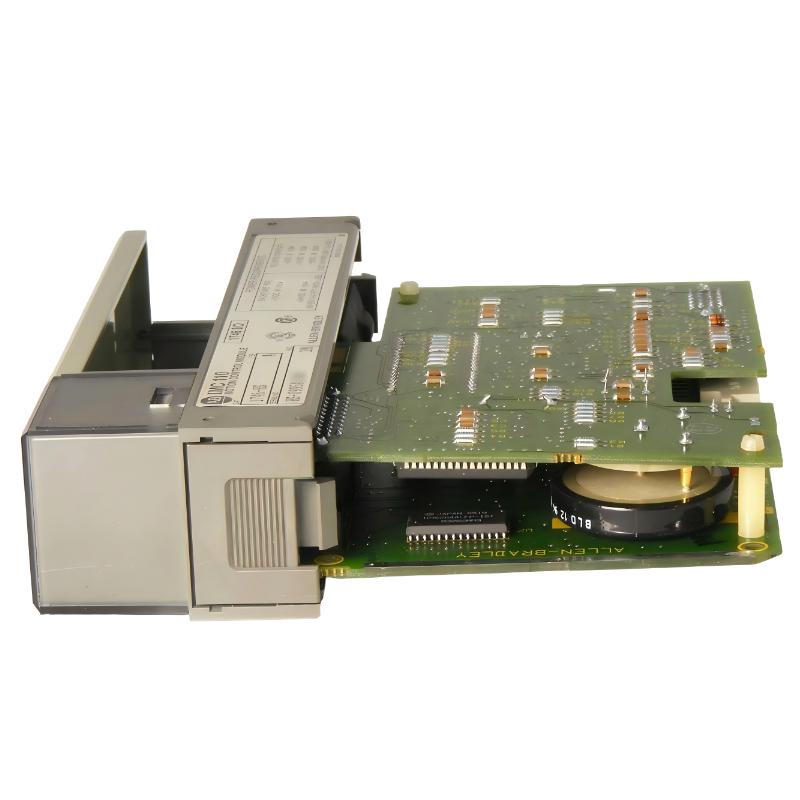

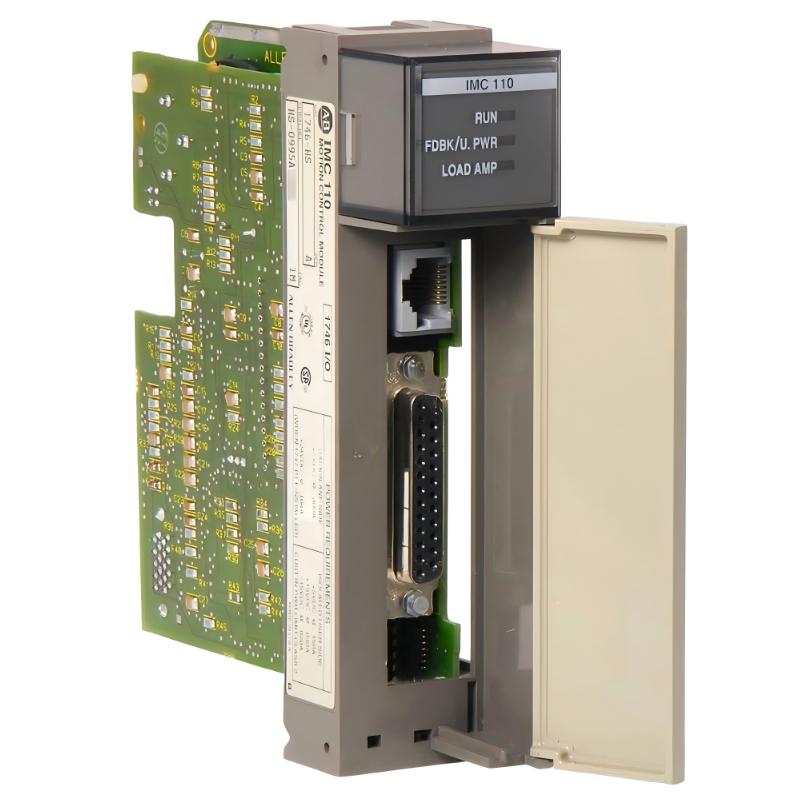

Allen Bradley 1746-HS — Comprehensive Technical Overview

1. Product Introduction

The Allen Bradley 1746-HS is a high-speed motion control module designed for modular PLC systems. It is used to perform precise motion-related tasks such as positioning, speed regulation, and coordinated movement control.

Unlike standard I/O modules, this unit operates as a dedicated motion processor. It receives high-speed input signals from encoders or sensors, processes motion algorithms, and generates accurate output commands for actuators and drives.

Installed in a chassis, the module communicates with the main processor through the backplane, allowing tight synchronization between motion control and overall machine logic. It is especially useful in systems that require real-time responsiveness and high accuracy.

2. Brand and Series

• Brand: Allen-Bradley
• Series: SLC 500 Series
• Product Type: Motion Control Module

The SLC 500 series is a modular control platform widely used in industrial automation. The 1746-HS expands its functionality by adding dedicated motion control capabilities.

3. Product Parameters

Below is a structured technical parameter table for the 1746-HS:

4. Product Applications

The 1746-HS is used in industrial environments requiring precise and high-speed motion control:

• Servo positioning systems
• Conveyor tracking and indexing
• Packaging and labeling equipment
• Automated assembly machines
• Robotics and coordinated motion systems
• CNC-related positioning control
• High-speed counting and pulse processing applications

It is particularly suitable for systems where accurate position and timing control are essential.

5. Product Advantages

High-speed signal processing
Capable of handling high-frequency input signals, ensuring accurate motion tracking.

Dedicated motion control
Offloads motion tasks from the main PLC processor, improving overall system performance.

Precise positioning capability
Enables accurate control of movement in complex automation systems.

Flexible integration
Works seamlessly within modular chassis-based systems.

Reliable performance
Maintains stable operation in industrial environments with consistent accuracy.

Efficient system design
Reduces the need for external motion controllers in many applications.

6. Recommended Models (Same Series or Related)

Below are 5 related models within the same series or similar functional category:

These modules are commonly used together to create complete motion and control systems.

7. Recommended Popular Models (Same Brand)

Below are 5 widely used models from the same brand in industrial automation systems:
