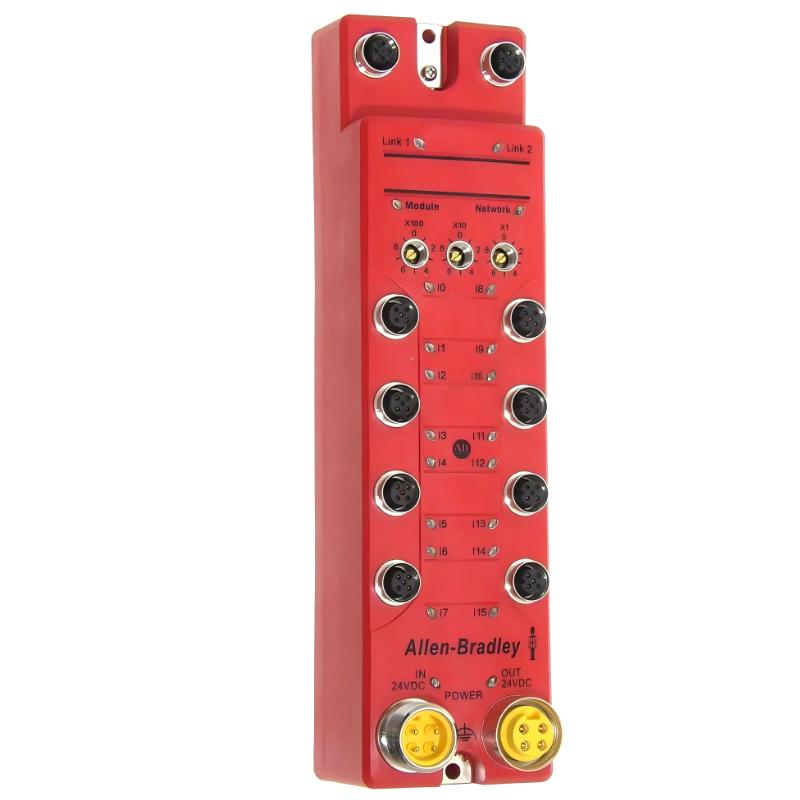

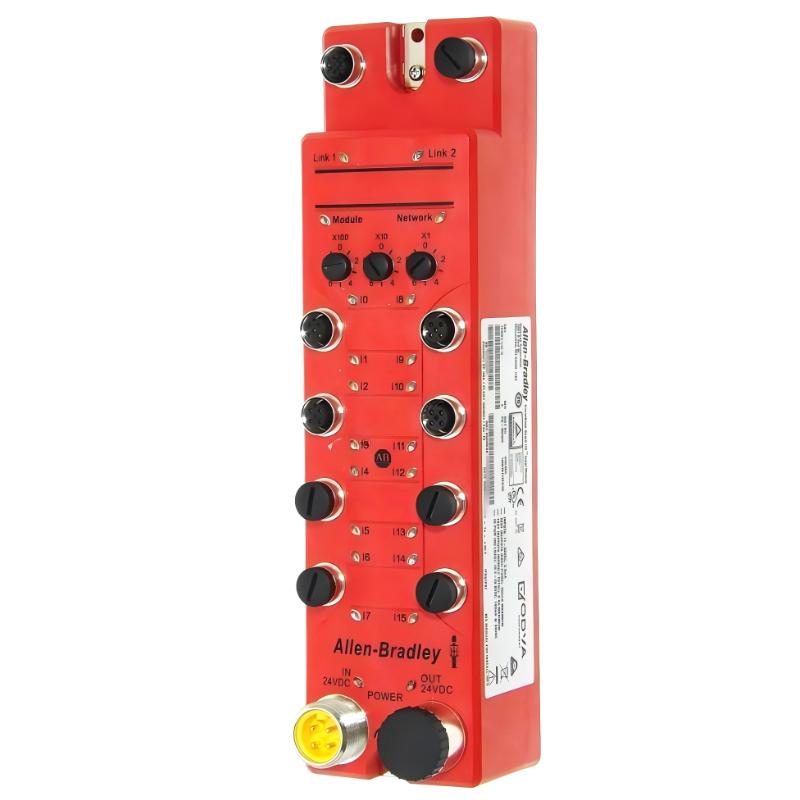

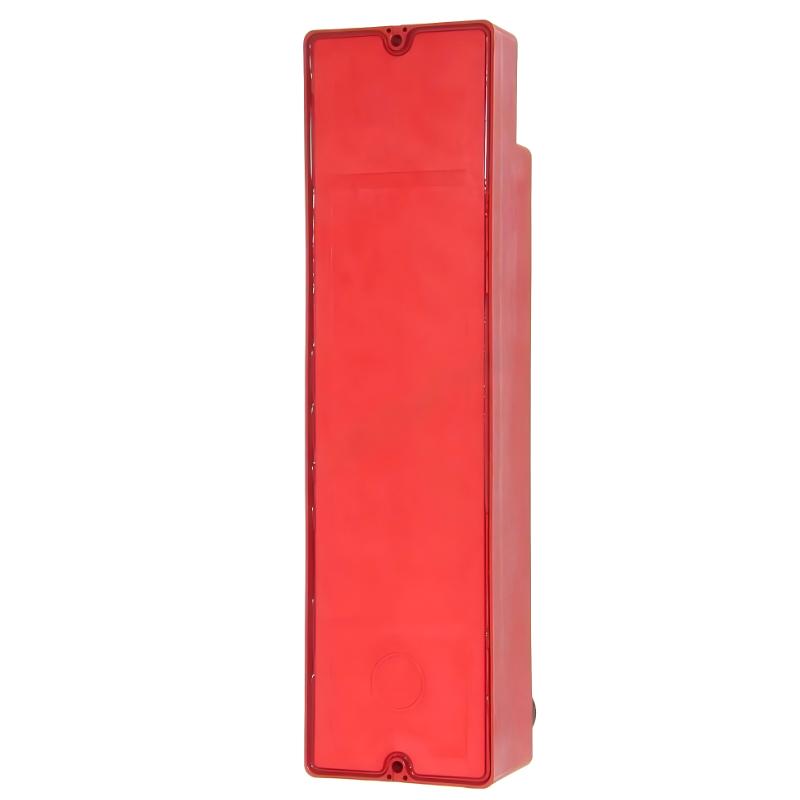

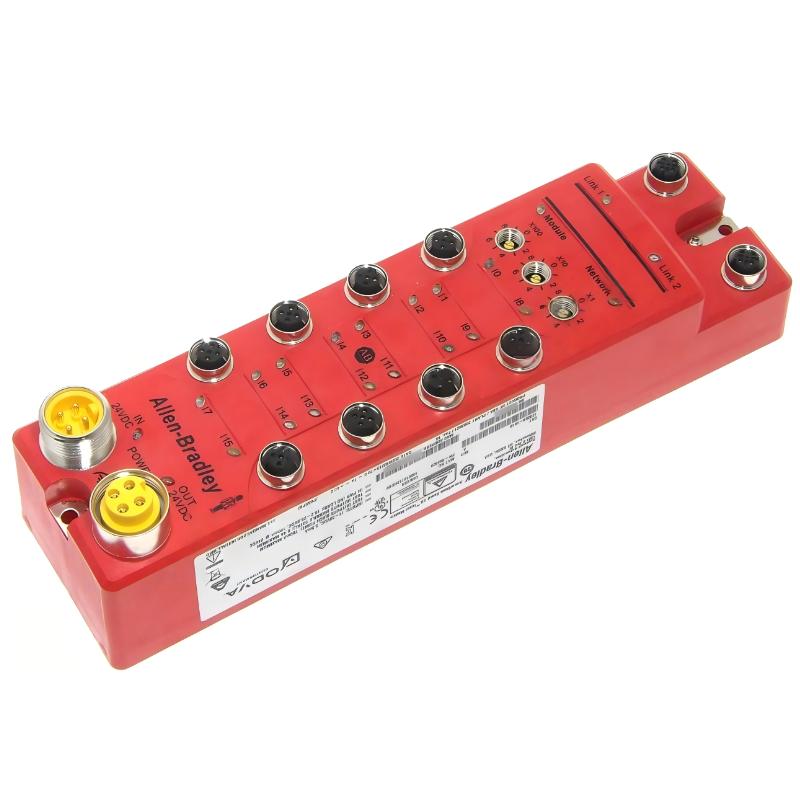

- ArmorBlock Guard I/O Security Input Module
- USA
- 259 x 69 x 70 mm
- 0.786 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 4
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview
The Allen-Bradley 1732ES-IB16 ArmorBlock Guard I/O Security Input Module is a safety-rated distributed input module designed for industrial automation systems requiring functional safety and reliable field-level signal acquisition. Built for EtherNet/IP safety communication, this module is used in safety-critical applications where machine protection, operator safety, and system integrity are essential.
As part of the ArmorBlock Guard I/O family, the 1732ES-IB16 is designed for direct machine mounting in harsh environments, eliminating the need for traditional control cabinet wiring while maintaining high safety performance. It is widely used in safety systems integrated with GuardLogix controllers and other safety automation architectures.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Allen-Bradley |
| Model | 1732ES-IB16 |
| Product Type | ArmorBlock Guard I/O Safety Input Module |
| Safety Function | Safety-rated digital input monitoring |
| Communication Protocol | EtherNet/IP Safety |
| Number of Inputs | 16 Safety Inputs |
| Input Type | 24 V DC sinking inputs |
| Network Ports | Dual EtherNet/IP ports |
| Safety Rating | SIL 3 / PLe capable system integration |
| Protection Rating | IP67 |
| Mounting Type | Direct machine mounting |
| Connector Type | M12 connectors |
| Dimensions | 259 × 69 × 70 mm |
| Weight | 0.786 kg |
| Operating Temperature | -20°C to +60°C |
| Housing Material | Sealed industrial enclosure |
Function and Working Principle
The 1732ES-IB16 safety input module continuously monitors connected field devices such as emergency stop buttons, safety switches, light curtains, and interlock devices. It transmits safety-related input signals over EtherNet/IP Safety networks to safety controllers for real-time monitoring and decision-making.
The module ensures that any detected fault or unsafe condition is rapidly communicated to the safety controller, which can trigger machine shutdown or safe state transitions.
This enables:
Safety-rated input monitoring
Real-time hazard detection
Machine shutdown integration
Reliable safety communication over EtherNet/IP
Reduced wiring complexity in safety systems
Its safety-certified design ensures compliance with industrial functional safety standards in automation environments.
Role in Industrial Safety Systems
The 1732ES-IB16 plays a critical role in industrial safety architectures, supporting:
Machine safety systems
Emergency stop monitoring
Safety interlock systems
Robotic safety zones
Industrial automation safety networks
GuardLogix-based safety control systems
It helps ensure personnel protection and machine safety compliance in automated production environments.
Industrial Applications
The Allen-Bradley 1732ES-IB16 is widely used in:
Automotive manufacturing safety systems
Robotic cells and welding stations
Packaging machinery safety systems
Conveyor safety interlocks
Press and stamping machine safety systems
Factory automation safety networks
It is especially suitable for applications requiring distributed safety I/O close to machines.
Installation and System Integration
Proper installation ensures reliable safety operation:
Mounted directly on machinery or production equipment
Integrated into EtherNet/IP safety networks
Connected using M12 industrial connectors
Requires safety controller integration (e.g., GuardLogix systems)
Must follow functional safety design and wiring standards
Correct installation ensures safe, reliable, and certified operation in industrial environments.
Compatible System Components
The 1732ES-IB16 typically works alongside:
Allen-Bradley GuardLogix safety controllers
EtherNet/IP safety networks
Safety relays and interlock devices
Emergency stop systems
Industrial sensors and safety switches
Distributed safety I/O architectures
These components together form a complete industrial functional safety system.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| 1732ES-IB12XOBV2 | Safety I/O Module | Input/output combination | Compact safety systems |
| 1732ES-IB16M12 | Safety Input Module | Standard 16-point safety input | Machine safety |
| 1732ES-IB12XOB4 | Safety I/O Module | Mixed safety outputs | Flexible safety applications |
| 1732E-IB16 | Standard I/O Module | Non-safety version | General automation |
| Compact Guard I/O Modules | Safety I/O System | Cabinet-based safety control | Industrial safety networks |
Key Advantages
Safety-rated EtherNet/IP communication
Supports functional safety applications (SIL/PLe capable systems)
Rugged IP67 sealed industrial design
Reduces safety wiring complexity
Enables machine-level safety distribution
Reliable operation in harsh industrial environments
Technical FAQs
What is the main function of the 1732ES-IB16?
It provides safety-rated digital input monitoring for industrial safety systems.
Where is this safety module commonly used?
It is commonly used in robotic systems, manufacturing lines, machine safety interlocks, and automated production equipment.
Why are distributed safety I/O modules important?
They reduce wiring complexity, improve response time, and allow safety devices to be installed closer to machines.
Conclusion
The Allen-Bradley 1732ES-IB16 ArmorBlock Guard I/O Security Input Module is a robust and reliable industrial safety solution designed for distributed functional safety applications. Its EtherNet/IP safety communication, rugged IP67 construction, and 16-channel safety input capability make it ideal for machine-level safety integration in demanding automation environments.
For engineers and safety system designers, it provides an effective way to enhance machine protection, simplify wiring, and ensure compliance with industrial safety standards.
