Product Overview

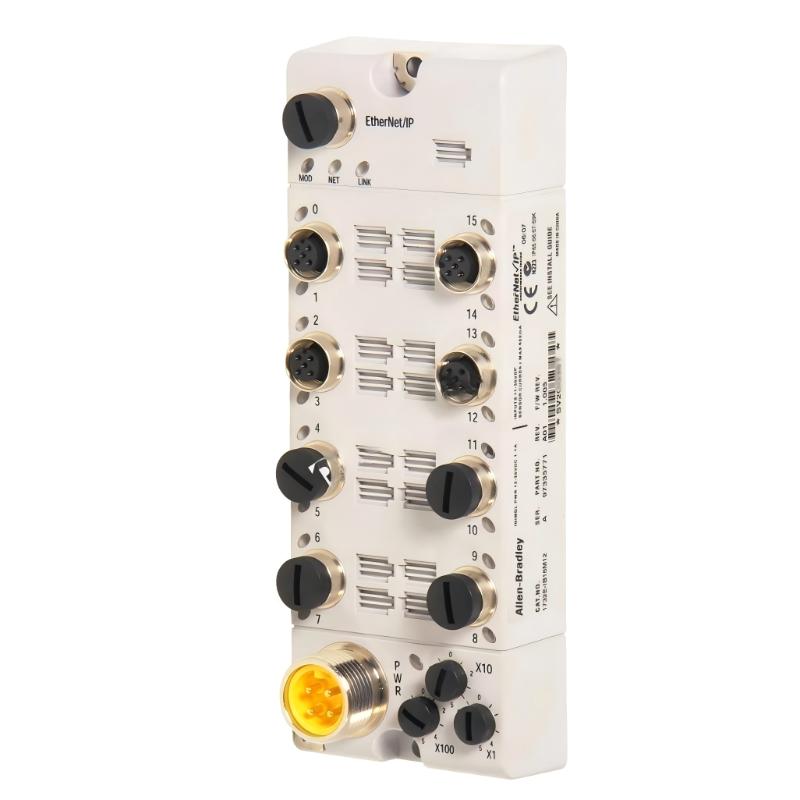

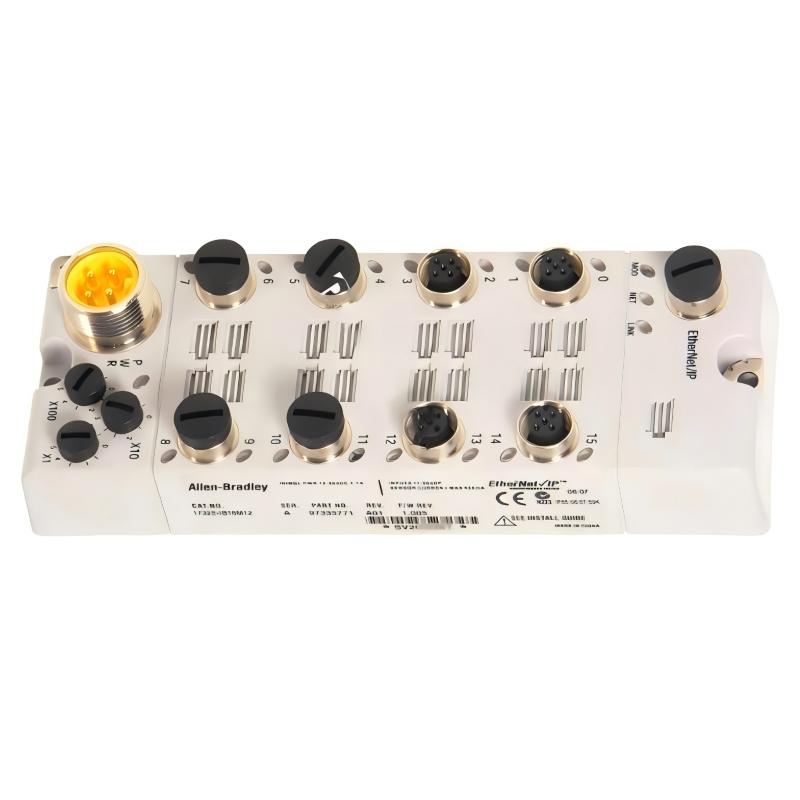

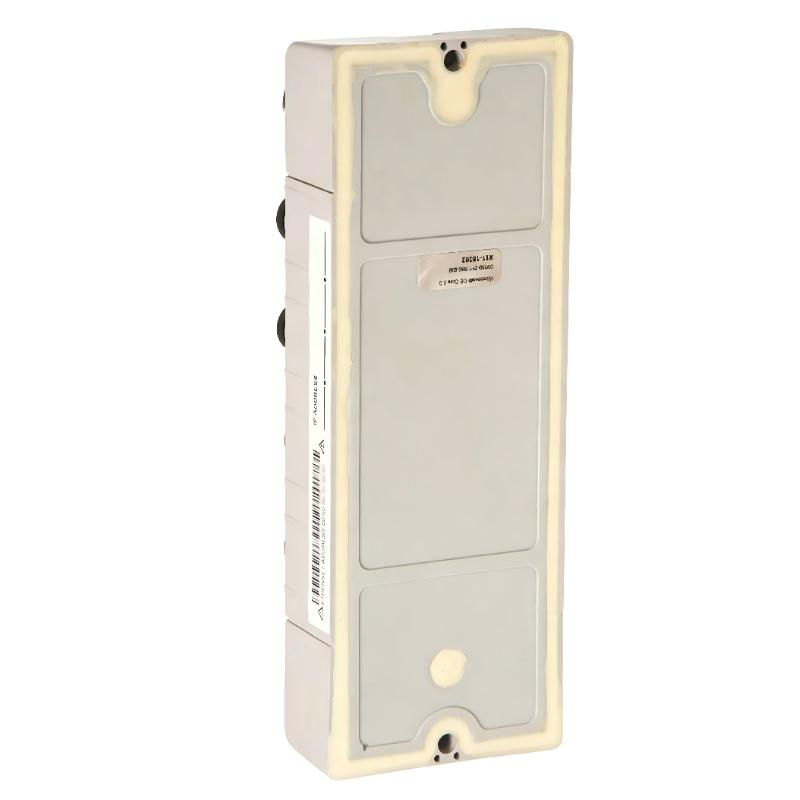

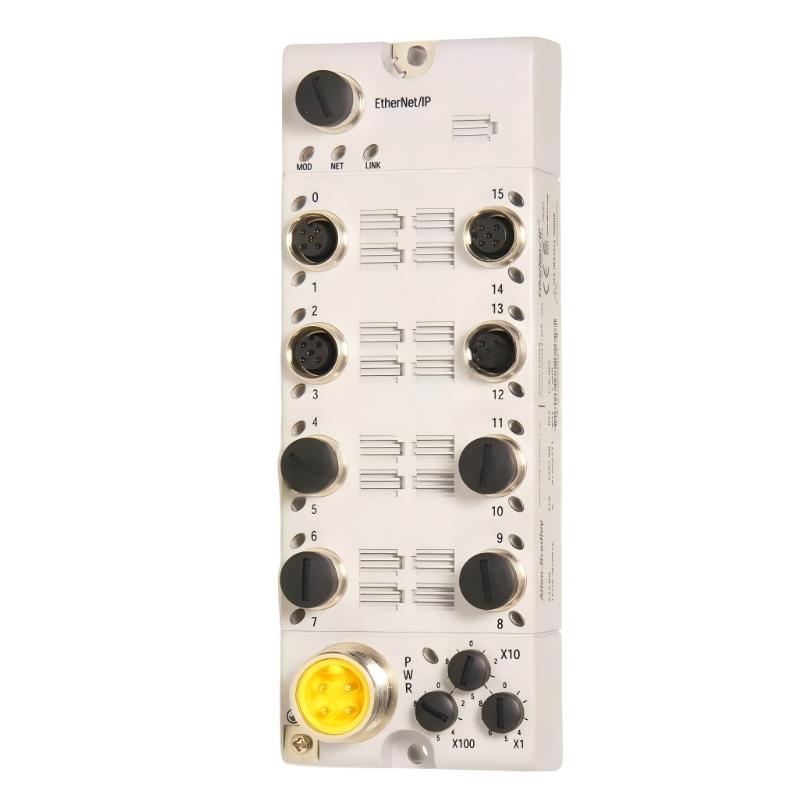

The Allen-Bradley 1732E-IB16M12 EtherNet/IP ArmorBlock I/O Module is a rugged distributed I/O solution designed for industrial automation and machine-mounted control applications. Engineered for reliable EtherNet/IP communication, this ArmorBlock module enables efficient connection of field devices such as sensors and switches directly to industrial networks while reducing cabinet wiring complexity.
Built for harsh industrial environments, the 1732E-IB16M12 features a sealed housing suitable for direct installation on machinery and production equipment without requiring additional protective enclosures. Its compact design and dependable communication capability make it ideal for demanding factory automation applications.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Allen-Bradley |
| Model | 1732E-IB16M12 |
| Product Type | EtherNet/IP ArmorBlock I/O Module |
| Communication Protocol | EtherNet/IP |
| I/O Type | Digital Input Module |
| Number of Inputs | 16 Digital Inputs |
| Connector Type | M12 Connectors |
| Operating Voltage | 24 V DC |
| Ethernet Ports | Dual Ethernet ports |
| Protection Rating | IP65/IP67/IP69K |
| Mounting Type | Direct machine mounting |
| Housing Material | Industrial sealed housing |
| Dimensions | 179 × 65 × 43.25 mm |
| Weight | 0.34 kg |
| Operating Environment | Industrial automation systems |
| Reliability | Continuous-duty industrial operation |
Function and Working Principle
The 1732E-IB16M12 ArmorBlock module operates as a distributed digital input interface that collects signals from industrial field devices and transmits the data through EtherNet/IP networks to automation controllers and PLC systems.
The module continuously monitors connected digital input devices such as sensors, switches, and limit devices, enabling real-time machine status monitoring and process control.
This enables:
Reliable digital signal acquisition
Real-time industrial communication
Reduced control cabinet wiring
Improved machine-level connectivity
Efficient distributed automation control
Its rugged industrial construction ensures stable operation in demanding manufacturing and automation environments.
Role in Industrial Control Systems
The 1732E-IB16M12 plays an important role in industrial automation architectures, supporting:
Distributed I/O systems
Machine-mounted automation control
EtherNet/IP industrial networks
Sensor integration applications
Manufacturing process monitoring
Factory automation systems
It helps improve installation flexibility, simplify system design, and enhance industrial communication efficiency.
Industrial Applications
The Allen-Bradley 1732E-IB16M12 is widely used in:
Automotive manufacturing systems
Conveyor and material handling systems
Packaging machinery
Assembly line automation
Robotic systems
Factory automation networks
Industrial machine control applications
It is especially suitable for harsh industrial environments requiring sealed and reliable distributed I/O solutions.
Installation and System Integration
Proper installation ensures reliable communication and operational performance:
Mounted directly on industrial machinery
Integrated with EtherNet/IP automation systems
Connected using industrial M12 connectors
Requires proper grounding and network configuration
Should follow industrial automation installation standards
Correct installation improves operational reliability and reduces maintenance complexity.
Compatible System Components
The 1732E-IB16M12 typically works alongside:
Allen-Bradley PLC systems
EtherNet/IP communication networks
Industrial sensors and switches
Distributed I/O architectures
Industrial automation controllers
Machine safety and monitoring systems
These components together form a complete industrial automation and distributed control solution.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| 1732E-IB16 | EtherNet/IP ArmorBlock Module | Standard digital input module | Factory automation |
| 1732E-8X8M12DR | ArmorBlock I/O Module | Mixed digital I/O configuration | Machine automation |
| 1732D-16CFGM12MN | DeviceNet I/O Module | DeviceNet communication | Legacy automation systems |
| FLEX I/O Modules | Distributed I/O Platform | Modular configuration | Industrial automation |
| ArmorPoint I/O Modules | Compact I/O System | Flexible field installation | Distributed control |
Key Advantages
Rugged sealed industrial design
Reliable EtherNet/IP communication
Reduces wiring complexity
Supports machine-mounted installation
Suitable for harsh industrial environments
Efficient distributed digital input processing
Technical FAQs
What is the primary function of the 1732E-IB16M12?
It provides distributed digital input connectivity for industrial EtherNet/IP automation systems.
Where is this ArmorBlock I/O module commonly used?
It is commonly used in manufacturing systems, conveyor equipment, robotic automation, and machine-mounted industrial control applications.
Why are distributed I/O modules important in industrial automation?
They simplify wiring, improve installation flexibility, and support efficient real-time communication between field devices and controllers.
Conclusion
The Allen-Bradley 1732E-IB16M12 EtherNet/IP ArmorBlock I/O Module is a reliable and rugged distributed I/O solution designed for demanding industrial automation environments. Its sealed industrial construction, dependable EtherNet/IP communication capability, and efficient digital input functionality make it suitable for machine-mounted applications requiring stable and efficient operation.
For engineers and maintenance professionals, it provides an effective way to improve automation efficiency, reduce installation complexity, and maintain reliable industrial communication across distributed control systems.
