Product Overview

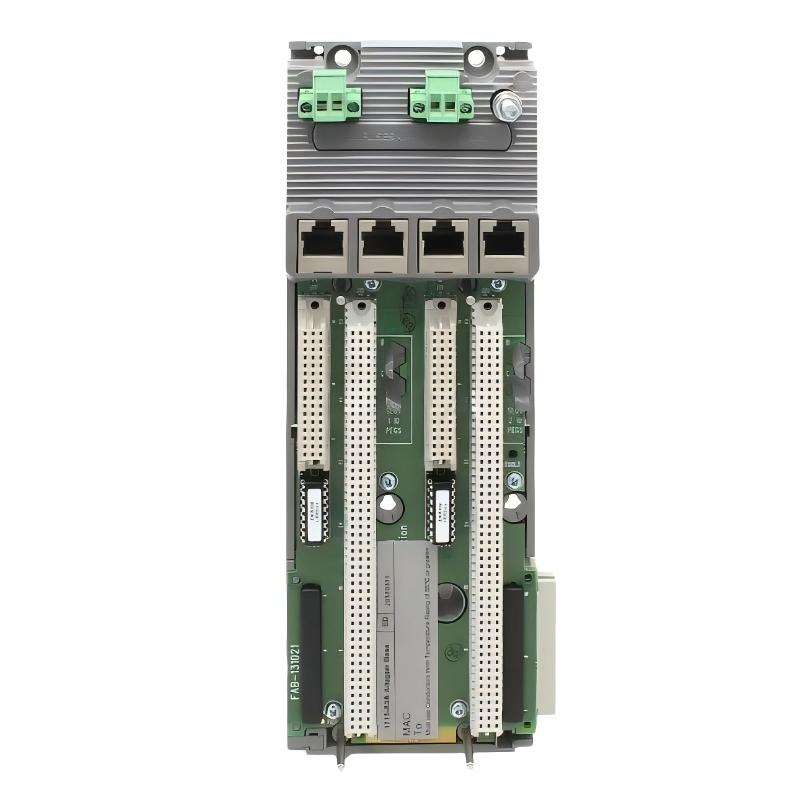

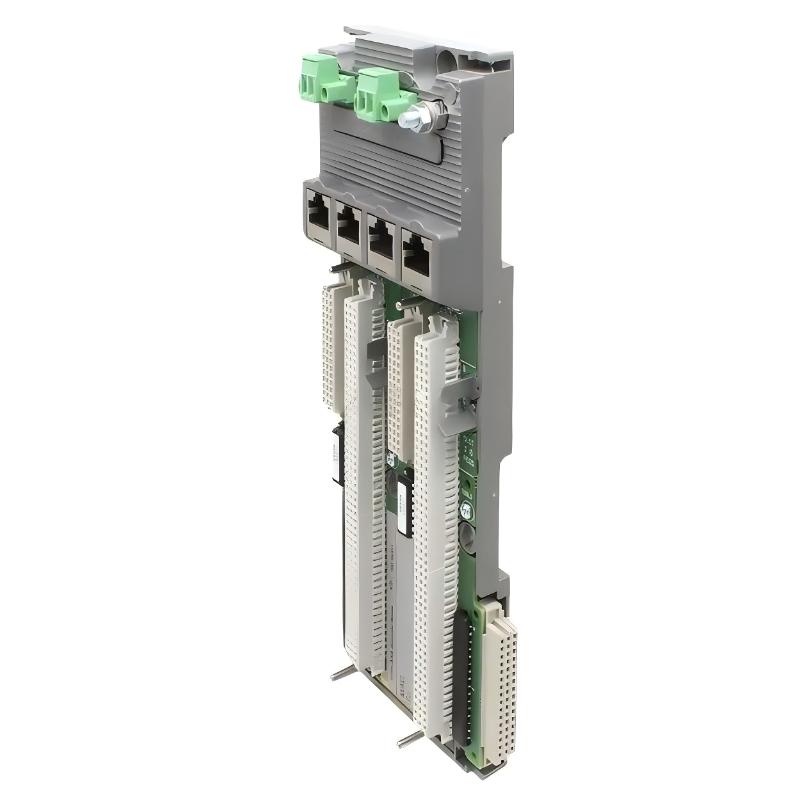

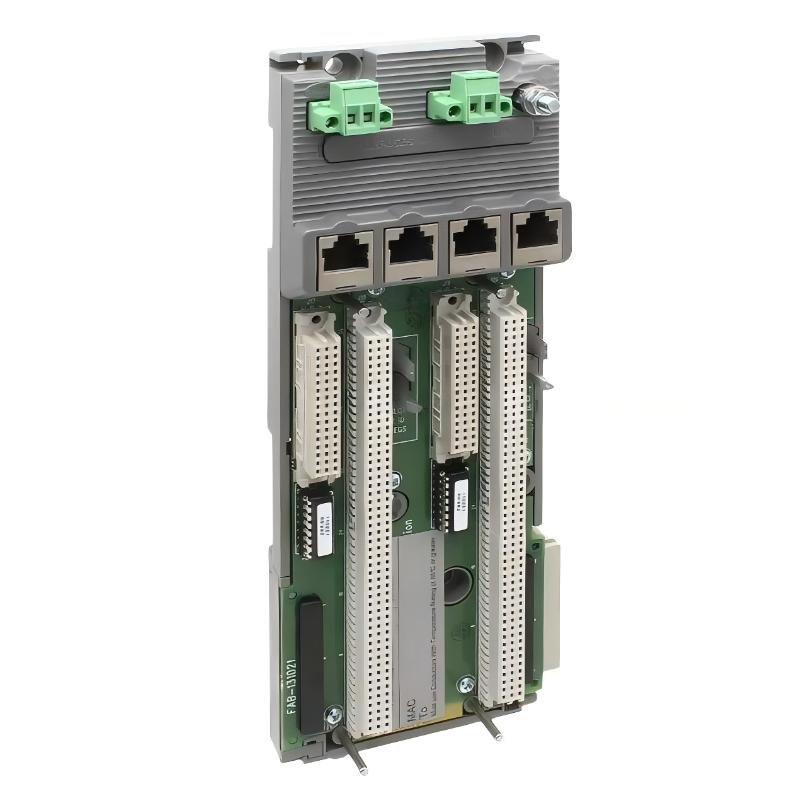

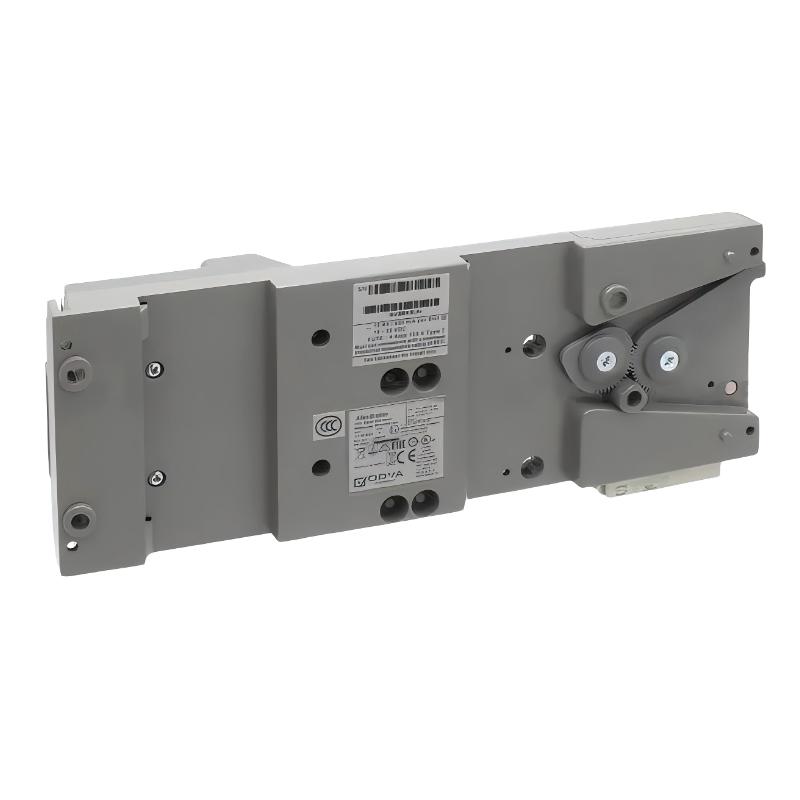

The Allen Bradley 1715-A2A 2-Slot Adaptor Base Unit is a mounting and connection component used within an Allen Bradley 1715-series I/O architecture. Rather than performing signal processing itself, the base unit provides the physical and electrical interface needed to accommodate compatible modules in the control system.

In a distributed I/O installation, the base assembly is part of the infrastructure that connects I/O hardware with the associated adapter and field wiring. The two-slot arrangement is useful where a compact group of compatible modules needs to be installed at a particular location in a control cabinet or remote I/O station.

For maintenance work, the 1715-A2A is best viewed as part of the complete I/O assembly. Module compatibility, slot arrangement, wiring, adapter connections, and the overall 1715 system configuration should all be considered when replacing the base unit.

Technical Specifications

Product Features

The 1715-A2A serves as part of the physical infrastructure for a 1715-series distributed I/O installation.

Key characteristics include:

• Allen Bradley 1715-series hardware
• Two-slot adaptor base configuration
• Provides mounting locations for compatible modules
• Supports the physical organization of I/O hardware
• Used within distributed I/O installations
• Forms part of the connection path between I/O modules and the system
• Suitable for control cabinet and remote I/O arrangements
• Compact base-unit construction
• Dimensions of 224 × 30 × 84 mm
• Stated weight of 0.283 kg

The base unit should be selected according to the specific 1715 system architecture and the modules intended for installation.

Working Principle

The 1715-A2A does not function like a PLC processor or signal-conditioning module. Its practical role is to establish the mounting and connection structure for compatible I/O hardware.

A typical arrangement can be viewed as:

Controller / Network → I/O Adapter → 1715-A2A Base Unit → I/O Modules → Field Devices

The base unit holds the applicable modules in their designated positions and forms part of the electrical interconnection between the modules and the rest of the I/O system.

For example, in a remote I/O cabinet, several field signals may need to be brought into the control system through distributed I/O modules. The base assembly keeps the modules mechanically organized while providing the required interface within the station.

Because of this role, a damaged or incorrectly assembled base can affect multiple I/O channels even when the individual modules themselves are functioning normally.

Industrial Applications

The 1715-A2A is suited to distributed control installations where compatible 1715 I/O modules need to be arranged as part of a remote or local I/O station.

The final application depends on the specific 1715-series modules and adapter configuration used with the base unit.

Compatible System Components

The 1715-A2A normally works together with other components of the distributed I/O system.

Compatibility should be checked across the complete station rather than treating the base unit as an independent component.

Installation and Maintenance

The 1715-A2A should be installed according to the mechanical and electrical arrangement of the associated 1715 I/O system. Particular attention should be paid to module seating, connections, wiring, and cabinet installation.

Recommended checks include:

• Confirm the complete 1715-A2A part number.
• Verify the intended 1715-series I/O configuration.
• Confirm the compatible modules.
• Inspect the base for cracks or physical damage.
• Check module seating and alignment.
• Inspect electrical connection points.
• Check wiring for loose or damaged terminals.
• Verify the associated I/O adapter.
• Inspect the cabinet mounting arrangement.
• Check grounding and electrical bonding where applicable.
• Inspect for contamination or corrosion.
• Confirm that installed modules correspond to the system configuration.
• Perform I/O testing after replacement.

If several I/O points become unavailable after a base-unit replacement, check the base connections, module seating, adapter interface, and station configuration before replacing individual I/O modules.

Recommended Related Models

For the 1715-A2A, related components should be selected based on the required I/O architecture and the number and type of modules used at the station.

When replacing a 1715-A2A, verify the number of required slots, compatible modules, adapter arrangement, mechanical mounting, and the existing I/O station configuration.

Key Advantages

• Two-slot I/O base configuration
• Allen Bradley 1715-series architecture
• Provides module mounting and connection structure
• Suitable for distributed I/O installations
• Supports organized I/O station construction
• Applicable to industrial automation systems
• Suitable for remote I/O cabinet installations
• Dimensions of 224 × 30 × 84 mm
• Stated weight of 0.283 kg

Technical FAQs

What is the function of the Allen Bradley 1715-A2A?

The 1715-A2A is a two-slot adaptor base unit used to provide the physical mounting and connection structure for compatible 1715-series I/O hardware.

Does the 1715-A2A process field signals by itself?

No. The base unit is part of the I/O infrastructure rather than a signal-processing module. The actual field signal processing is handled by the compatible I/O modules installed in the station.

What should be checked if multiple I/O modules become unavailable?

Check the base-unit connections, module seating, I/O adapter interface, station power, wiring, and network communication. When several modules are affected simultaneously, the shared infrastructure should be investigated before assuming that multiple modules have failed.

Why is the two-slot configuration important when replacing the 1715-A2A?

The slot arrangement determines how compatible I/O hardware can be physically installed within the station. The replacement should therefore match the required module configuration as well as the broader 1715-series system architecture.
