Product Overview

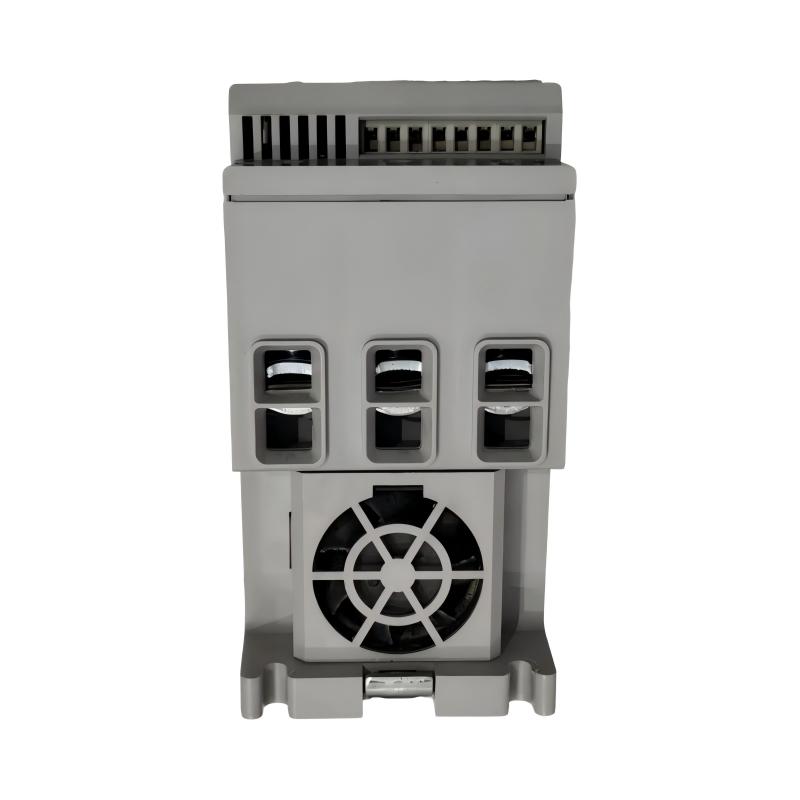

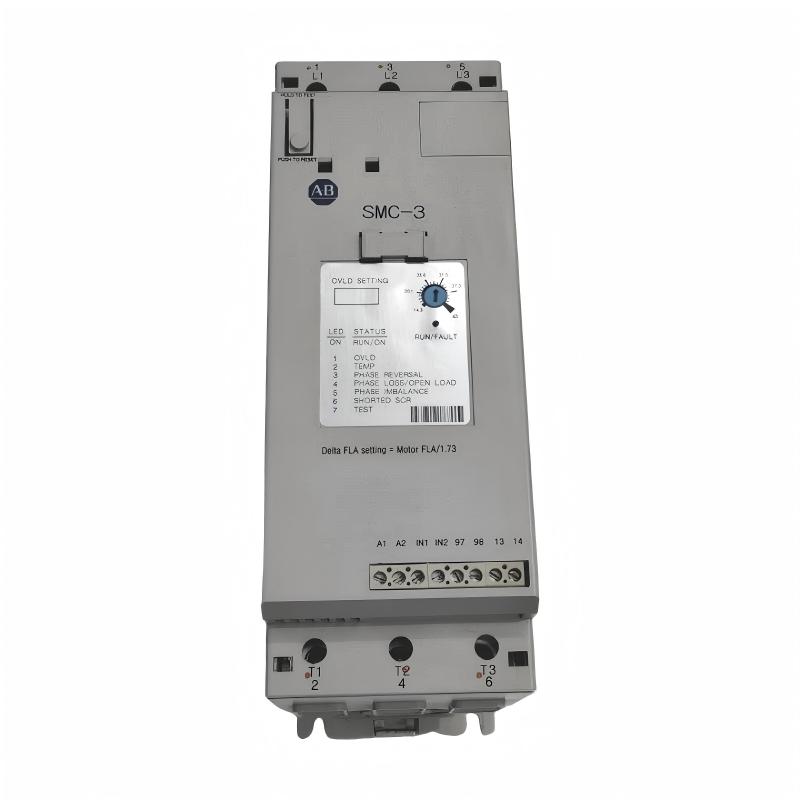

The Allen-Bradley 150-C43NCR SMC-3 Smart Motor Controller is a solid-state motor controller designed to provide controlled starting and stopping for compatible three-phase AC motors. Manufactured by Rockwell Automation, this controller belongs to the Allen-Bradley SMC-3 product family and is intended for industrial applications where controlled acceleration, motor protection, and reliable electrical operation are important.

The 150-C43NCR has a rated current of 43 A and is designed for higher-voltage three-phase motor-control applications. Its product configuration is listed for a 600 V class, with a 575 V, 60 Hz line-voltage specification in the manufacturer’s product cut sheet. The controller uses a 24 V AC/DC control supply, making it suitable for control systems designed around this low-voltage control requirement.

Unlike a direct-on-line starter, which applies the supply voltage to the motor immediately, the SMC-3 soft starter controls the motor’s starting process through solid-state switching. This helps manage the initial current and torque characteristics and can reduce mechanical shock on connected equipment.

The controller incorporates an internal bypass and integrated motor overload protection. It also offers adjustable starting parameters, including selectable initial torque and kick-start settings, along with soft-stop functionality when correctly configured and wired.

The Allen-Bradley 150-C43NCR can be considered for suitable pumps, fans, conveyors, and other industrial motor-driven equipment. The correct selection depends on the motor’s rated current, supply voltage, starting duty, load characteristics, and the protection requirements of the complete installation.

For maintenance teams and industrial spare-parts buyers, verifying the complete catalog number is essential. Although the 150-C43NCR shares its basic SMC-3 design and 43 A current rating with related models, its higher-voltage configuration distinguishes it from the 150-C43NBR.

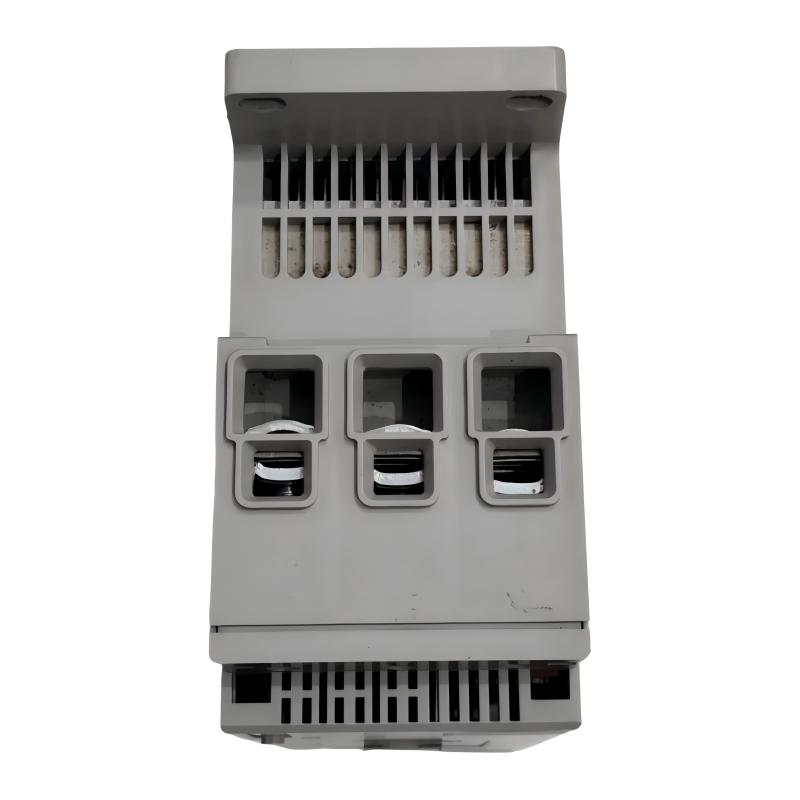

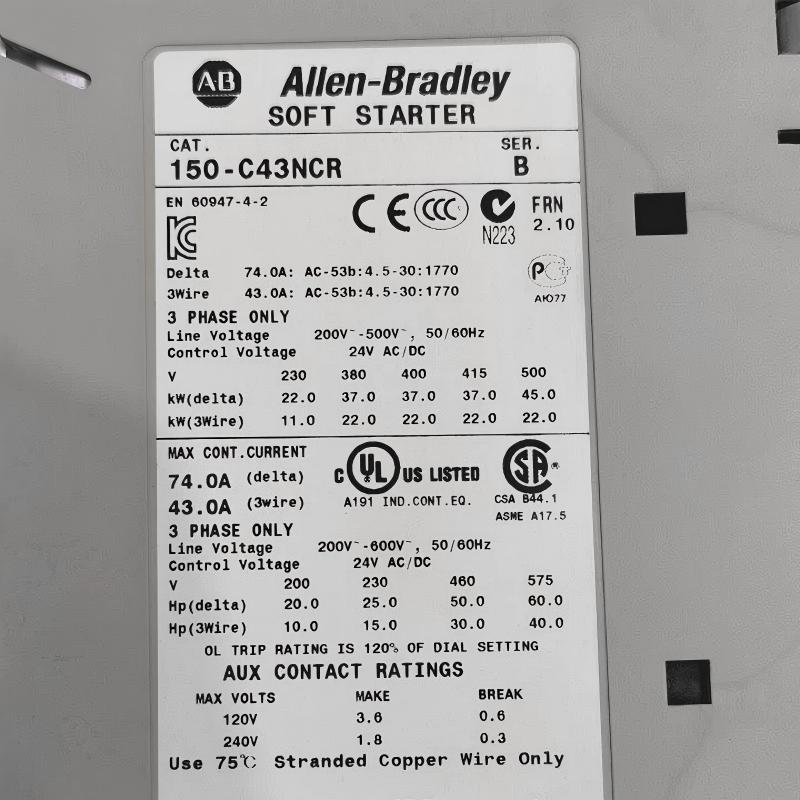

Technical Specifications

The electrical ratings above describe the 150-C43NCR configuration. Confirm the motor supply voltage and the product nameplate before installation, particularly when replacing another SMC-3 model.

Function and Working Principle

1. Solid-State Motor Starting

Electric motors can draw a high current during direct-on-line starting. The initial torque can also create mechanical stress on shafts, couplings, belts, gearboxes, and other driven components.

The 150-C43NCR uses solid-state switching to manage the voltage applied to the motor during starting. By controlling the starting process, it can help reduce abrupt electrical and mechanical changes compared with an uncontrolled start.

This function is useful in industrial applications where equipment needs to accelerate in a more controlled manner. The actual starting performance depends on the motor characteristics, the driven load, the selected parameters, and the available supply.

A soft starter is not equivalent to a variable frequency drive. The 150-C43NCR is designed primarily for motor starting and stopping rather than continuous speed regulation.

2. Adjustable Initial Torque

The SMC-3 controller provides selectable initial torque settings of 15%, 25%, 35%, and 65% of locked-rotor torque.

These settings allow the starting process to be adapted to the mechanical load. A lightly loaded fan may require a different starting profile from a conveyor carrying material or a pump operating against process pressure.

The selected initial torque must be sufficient to overcome the load’s starting resistance. If the setting is too low, the motor may accelerate slowly or fail to start. Excessive starting torque, on the other hand, can increase stress on mechanical components.

The appropriate setting should be established through application assessment and commissioning rather than selected solely to minimize starting current.

3. Current-Limit and Starting-Time Control

Current limiting is an important consideration in industrial motor starting because high inrush current can affect the electrical supply and connected equipment.

The SMC-3 family provides selectable current-limit settings and starting-time options. The appropriate configuration depends on the exact controller setup, motor requirements, load inertia, and expected starting frequency.

A lower current limit may help restrict starting current, but it also reduces the torque available to accelerate the load. If the limit is too restrictive, the motor may take too long to reach operating speed or may trip during starting.

Maintenance engineers should assess both current and acceleration time when adjusting these parameters. All settings must remain within the controller’s permitted operating conditions and the motor’s thermal limits.

4. Kick-Start Function

Some loads require additional starting torque to overcome static friction or initial resistance.

The SMC-3 family offers a selectable kick-start function associated with 450% of full-load current, with selectable durations of 0, 0.5, 1.0, or 1.5 seconds.

When appropriate for the load, this function can provide a short initial boost to help initiate movement. It may be useful for certain conveyors and other machinery that are difficult to start using a gradual voltage ramp alone.

Kick-start should not be enabled automatically for every application. Its use can increase the initial electrical and mechanical stress, so the setting should be selected according to the equipment requirements.

5. Soft-Stop Function

The 150-C43NCR supports soft-stop functionality when configured and wired as required.

Instead of removing motor voltage abruptly, the controller can manage the stopping process by reducing the applied voltage according to the configured settings. This may be useful in applications where a gradual reduction in motor operation is desirable.

Soft stopping does not guarantee a specific stopping time or provide active braking. The result depends on the motor, driven load, and system configuration. Applications requiring controlled deceleration beyond the soft starter’s capabilities may need a different motor-control solution.

6. Internal Bypass

The 150-C43NCR includes an internal bypass function. After the starting phase has completed and the controller enters the appropriate operating state, the bypass provides a lower-loss running path.

This helps reduce continuous power dissipation associated with solid-state switching during normal operation. It can also simplify the motor-control panel by reducing the need for a separately arranged external bypass contactor in applications supported by the product design.

The internal bypass does not eliminate the need for appropriate short-circuit protection, conductor sizing, grounding, ventilation, and electrical coordination.

7. Integrated Motor Overload Protection

The controller includes integrated motor overload protection. This feature helps protect a suitably configured motor against sustained overload conditions.

The correct protection arrangement depends on the motor nameplate data, the controller’s settings, the application’s starting duty, and the applicable electrical standards.

Integrated overload protection should not be treated as a substitute for all upstream short-circuit protection or for the machine’s broader safety system.

Role in Industrial Control Systems

The Allen-Bradley 150-C43NCR can serve as the motor-starting component within an industrial electrical control system. A typical installation includes a three-phase power supply, upstream protective devices, the soft starter, a compatible motor, and a suitable control circuit.

A programmable logic controller (PLC) or other automation device may provide start and stop commands through the appropriate control interface. The PLC manages process logic and interlocking, while the SMC-3 handles the motor-starting process according to its configured parameters.

For example, a PLC-controlled pumping station may check tank level, valve position, and system permissives before issuing a start command. The 150-C43NCR then manages motor starting, while the broader control system monitors process conditions and responds to relevant status or fault signals.

The controller also provides an auxiliary overload/fault contact that can be incorporated into a suitable control circuit. Engineers should verify the contact’s ratings and wiring requirements before using it for external status indication.

The 24 V AC/DC control requirement is particularly important when integrating the unit into an existing control panel. The control supply and command wiring must match the product specifications.

Industrial Applications

1. Industrial Pumping Systems

Pumps are widely used in water treatment, cooling systems, process manufacturing, and industrial utilities. Uncontrolled motor starting can create sudden mechanical loading and may contribute to unwanted pressure changes in some hydraulic systems.

The 150-C43NCR can be considered for compatible pump motors where the motor current, supply voltage, and starting duty are within the controller’s capabilities.

The starting and stopping parameters should be selected with consideration for the pump type, hydraulic conditions, and required operating sequence.

2. Fans and Blowers

Industrial fans and blowers are used in ventilation, cooling, dust collection, and process-air systems.

Controlled starting can help manage acceleration and reduce sudden loading on belts, bearings, couplings, and other mechanical components. The controller’s 43 A rating provides a starting point for selection, but actual suitability must be confirmed using the motor nameplate and application requirements.

3. Conveyor Systems

Conveyors are common in manufacturing, packaging, warehousing, and material handling.

A soft starter can help reduce abrupt changes in torque during startup. This may benefit belt-driven and other suitable conveyor arrangements by limiting sudden mechanical loading.

The 150-C43NCR may be suitable when the conveyor motor and starting duty fall within the controller’s ratings. High-inertia loads, frequent starts, or heavily loaded conveyors require careful assessment.

4. General Manufacturing Machinery

Industrial manufacturing equipment often relies on three-phase motors to drive auxiliary machinery and production systems.

The SMC-3 controller can be used where controlled starting and stopping are required but continuous variable-speed operation is unnecessary. It may be considered for compatible mixers, material-handling equipment, and utility machinery after the motor and load have been evaluated.

5. Industrial Utility Equipment

Plant utility systems frequently use motors for ventilation, water circulation, and other supporting functions.

A soft starter can help standardize motor-starting behavior across suitable equipment. Correct application sizing and coordination with upstream protection remain essential for dependable operation.

Installation and System Integration

Step 1: Verify the Complete Catalog Number

Confirm that the device is specifically marked 150-C43NCR. Do not identify the controller solely by appearance, current rating, or the SMC-3 family name.

The suffix is important because related models can have different line-voltage configurations or control-supply requirements.

Step 2: Confirm the Supply and Motor Ratings

Check the motor nameplate, three-phase supply voltage, rated current, frequency, and starting requirements.

The 150-C43NCR is a 43 A controller in the 600 V class, with a 575 V, 60 Hz line-voltage reference in the manufacturer’s cut sheet. Verify that the actual installation matches the approved product ratings.

The 43 A rating alone does not establish suitability for every motor below that current. Starting duty, ambient temperature, load inertia, and start frequency must also be considered.

Step 3: Coordinate Protective Devices

Select upstream short-circuit protection and verify the appropriate coordination with the controller, motor, and conductors.

The correct arrangement depends on the available fault current, protective-device type, conductor sizing, applicable standards, and manufacturer guidance.

Integrated overload protection does not remove the need to assess short-circuit protection and the complete motor-protection scheme.

Step 4: Mount the Controller

The 150-C43NCR is an open-type controller intended for installation in a suitable electrical enclosure.

The supplied dimensions are 206 × 72 × 130 mm, and the supplied weight is 2.25 kg. Provide adequate space for wiring, ventilation, inspection, and maintenance access.

The manufacturer lists an operating temperature range of -5 to 50°C for the open-type unit, subject to the specified installation conditions. Check derating requirements where applicable.

Step 5: Connect Power and Control Wiring

Connect the three-phase supply, motor conductors, and control circuit according to the approved wiring diagram.

The manufacturer’s listed line-terminal conductor range is 2.5–95 mm² (14–3 AWG). The listed tightening torque for load power terminals is 11.3–12.4 Nm. Confirm the exact terminal requirements in the applicable installation documentation before making connections.

The control circuit must provide the specified 24 V AC/DC supply. Never apply a different voltage to control terminals without explicit authorization in the product documentation.

All electrical work must be carried out by qualified personnel following appropriate isolation and safety procedures.

Step 6: Configure Starting Parameters

Set the starting parameters according to the motor and load requirements. Consider initial torque, current limit, starting time, and whether kick-start or soft-stop functions are necessary.

Settings should provide reliable acceleration while avoiding unnecessary current demand, excessive starting duration, and mechanical stress.

Step 7: Commission the Installation

After installation, perform the required electrical and functional checks.

Verify the control inputs, motor rotation, starting behavior, running current, auxiliary contact operation, and fault indications. Investigate unexpected trips, abnormal noise, excessive vibration, or unusual heating before returning the equipment to service.

Step 8: Record the Configuration

Document the catalog number, motor data, supply voltage, control voltage, protection settings, and commissioning results.

Maintaining accurate records helps engineers troubleshoot faults and select the correct replacement component in the future.

Compatible System Components

The 150-C43NCR operates as part of a complete motor-control installation. The components below are typical system elements, not a list of guaranteed plug-and-play accessories.

The final configuration should follow the machine’s electrical drawings and the manufacturer’s installation requirements.

Alternative Models and Replacement Considerations

The 150-C43NCR should not be replaced based only on its 43 A rating or physical dimensions. The voltage configuration and control-supply requirements must also match.

These are comparison examples rather than automatic replacement recommendations. Confirm the exact electrical ratings and wiring requirements before substituting one controller for another.

Key Advantages of the Allen-Bradley 150-C43NCR

1. Controlled Motor Starting

Solid-state starting helps manage motor acceleration and can reduce the abrupt electrical and mechanical effects associated with direct-on-line starting.

2. 43 A Current Rating

The controller provides a defined current rating for selecting compatible industrial motor applications. The final selection must account for the motor’s operating and starting requirements.

3. 24 V AC/DC Control

The 24 V AC/DC control supply can suit motor-control panels designed around low-voltage control circuits.

4. Higher-Voltage Application Configuration

The 150-C43NCR is designed for the 600 V class, with a 575 V, 60 Hz line-voltage reference in the product cut sheet. Confirm the actual supply and applicable product documentation before use.

5. Integrated Motor Overload Protection

The integrated overload function supports the motor-protection arrangement when correctly configured and coordinated with the rest of the installation.

6. Internal Bypass

The internal bypass helps reduce solid-state conduction losses during the appropriate running condition.

7. Adjustable Starting Characteristics

Selectable initial torque and kick-start parameters, together with soft-stop functionality, allow the controller to be configured for suitable applications.

8. Compact Panel Installation

The supplied dimensions of 206 × 72 × 130 mm and weight of 2.25 kg provide useful information for panel layout and spare-parts planning.

Technical FAQs

Q1: What is the Allen-Bradley 150-C43NCR?

It is an SMC-3 Smart Motor Controller designed to provide controlled starting and stopping for compatible three-phase AC motors.

Q2: What is its rated current?

The rated current is 43 A. Application suitability depends on motor current, supply voltage, starting duty, and installation conditions.

Q3: What control voltage does it use?

The 150-C43NCR uses a 24 V AC/DC control supply.

Q4: What is its voltage rating?

The manufacturer identifies the 150-C43NCR as a 600 V class controller. Its product cut sheet lists a 575 V, 60 Hz line-voltage reference. Always confirm the actual installation requirements against the product documentation.

Q5: Does the controller include an internal bypass?

Yes. The controller incorporates an internal bypass to reduce continuous losses associated with solid-state switching during the appropriate running state.

Q6: Does it provide motor overload protection?

Yes. Integrated motor overload protection is a listed feature. The complete installation still requires appropriate short-circuit protection and correct coordination.

Q7: Can it continuously regulate motor speed?

No. The 150-C43NCR is a soft starter, not a variable frequency drive. Continuous speed regulation generally requires a suitable variable frequency drive.

Q8: Can it be used for pumps, fans, and conveyors?

It can be considered for compatible applications when the motor and load requirements are within the controller’s ratings and starting capabilities.

Q9: What are its dimensions and weight?

The supplied dimensions are 206 × 72 × 130 mm, and the supplied weight is 2.25 kg.

Q10: Is the 150-C43NCR interchangeable with the 150-C43NBR?

Not automatically. Both models use 24 V AC/DC control and have a 43 A rating, but their line-voltage configurations differ. Confirm the actual supply voltage and application requirements before considering a replacement.

Q11: Is the 150-C43NCR a complete motor-protection solution?

No. It includes motor overload protection, but the overall installation must still be evaluated for short-circuit protection, electrical coordination, grounding, and machine safety.

Procurement and Maintenance Recommendations

When purchasing the Allen-Bradley 150-C43NCR, verify the full catalog number and compare it with the installed controller’s label. Pay particular attention to the line-voltage configuration and the 24 V AC/DC control requirement.

For replacement projects, confirm the motor’s rated current, operating voltage, starting duty, and protective-device arrangement. Check the proposed unit’s physical dimensions and terminal layout against the existing panel before installation.

For international spare-parts procurement, ask the supplier to confirm product condition, stock availability, warranty terms, and delivery lead time. If the item is refurbished or surplus, request information about inspection and functional testing.

Maintenance teams should retain the controller’s catalog number, motor data, control-circuit details, parameter settings, and commissioning records. This information helps reduce troubleshooting time and prevents errors when sourcing replacement equipment.

Installation, commissioning, and maintenance must be performed by qualified personnel in accordance with the manufacturer’s documentation and applicable electrical safety procedures.

Conclusion

The Allen-Bradley 150-C43NCR SMC-3 Smart Motor Controller is a 43 A solid-state soft starter designed for compatible three-phase motor applications. Its 600 V class configuration, 24 V AC/DC control supply, internal bypass, integrated motor overload protection, and adjustable starting functions make it a useful option for appropriately selected industrial motor-control systems.

For reliable application and replacement, engineers should verify the line-voltage rating, control voltage, motor current, starting duty, and protection coordination. Matching these details to the actual installation helps prevent incorrect substitutions and supports dependable motor operation.
