Product Overview

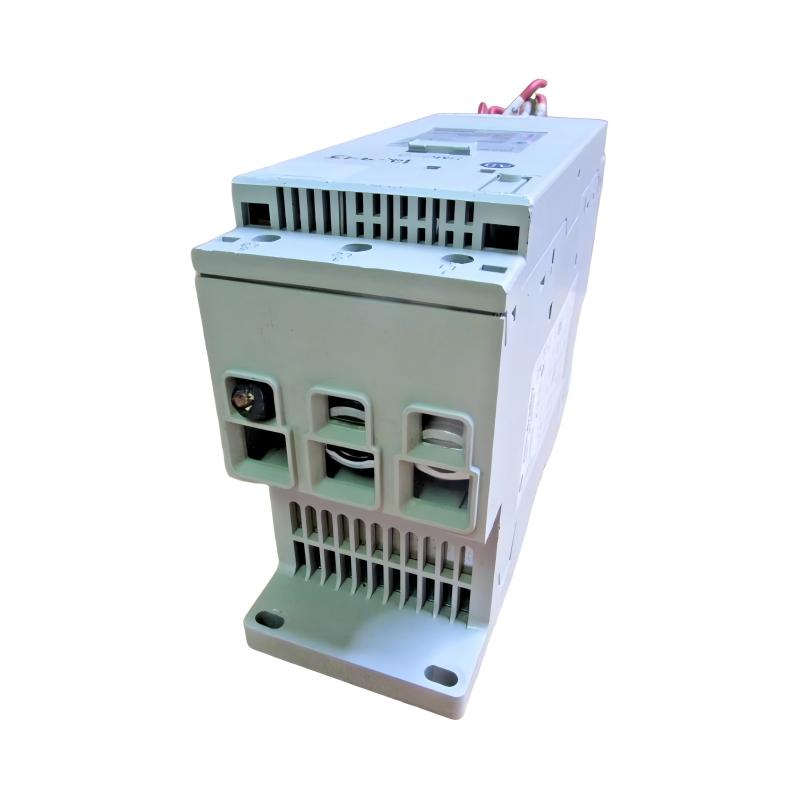

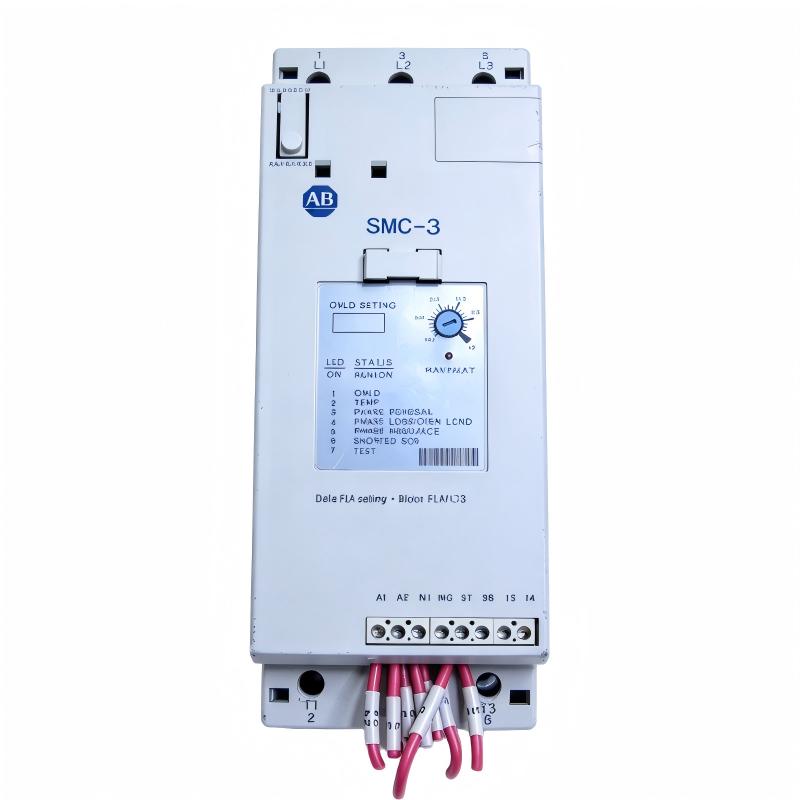

The Allen-Bradley 150-C43NCD SMC-3 Smart Motor Controller is a solid-state motor controller designed to manage motor starting and stopping in industrial applications. Manufactured by Rockwell Automation under the Allen-Bradley brand, this controller provides a practical solution for reducing the mechanical and electrical stress associated with direct-on-line motor starting.

Part of the SMC-3 family, the 150-C43NCD is rated for 43 A and is designed for three-phase motor applications. It supports line voltages up to 600 V, with a 100–240 V AC control supply. Its compact open-type construction makes it suitable for installation within an appropriately designed industrial control panel.

The controller regulates motor voltage during starting to help limit inrush current and reduce sudden mechanical loading. It also provides configurable starting and stopping functions, including selectable initial torque, kick-start options, and soft-stop settings. These functions can help engineers adapt motor starting behavior to the requirements of different machines and operating conditions.

An important feature of the SMC-3 design is its integrated bypass functionality. After the motor reaches the appropriate operating condition, the internal bypass can reduce the power losses associated with continuous solid-state conduction, subject to the controller’s operating design and installation requirements.

The Allen-Bradley 150-C43NCD is suitable for industrial equipment such as pumps, fans, conveyors, and other compatible three-phase motor-driven machinery. Its selection must be based on motor current, line voltage, starting duty, load characteristics, and the required protection coordination.

For maintenance engineers, system integrators, and industrial spare-parts buyers, the 150-C43NCD provides a dedicated motor-starting solution for compatible installations. Before replacement, users should verify the complete catalog number and confirm that the controller’s electrical ratings and control voltage match the existing system.

Technical Specifications

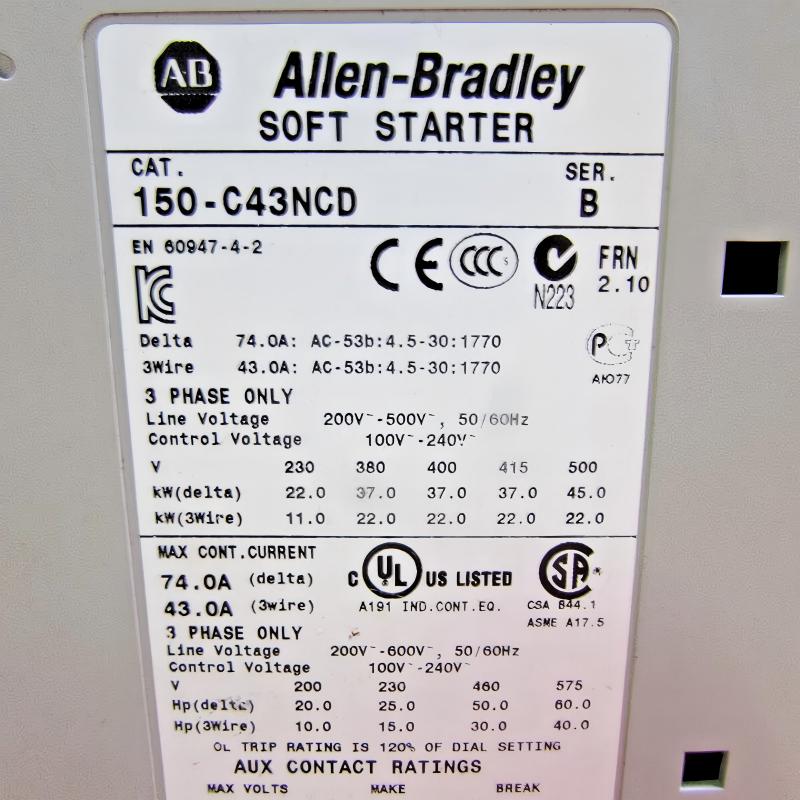

The dimensions, weight, current rating, and electrical characteristics above correspond to the supplied product information and manufacturer specifications. Actual motor suitability depends on the load, supply voltage, starting duty, and installation conditions.

Function and Working Principle

1. Solid-State Motor Starting

When a conventional motor is connected directly to the power supply, it can draw a high starting current and develop substantial starting torque. Depending on the driven equipment, this sudden electrical and mechanical demand may cause voltage disturbances, belt stress, coupling wear, or pressure fluctuations in a process system.

The 150-C43NCD uses solid-state switching to control the voltage applied to a motor during startup. By adjusting the starting voltage according to the configured settings, the controller helps manage the acceleration process and reduce abrupt changes in motor torque.

A soft starter differs from a variable frequency drive because its principal purpose is to control motor starting and stopping rather than provide continuous variable-speed operation.

2. Adjustable Starting Torque

The SMC-3 controller provides selectable initial torque settings of 15%, 25%, 35%, and 65% of locked-rotor torque.

These settings allow users to select a starting characteristic appropriate for the connected load. A pump with a relatively light starting requirement may need a different setting from a conveyor with a heavier initial load.

The correct setting must provide sufficient torque to accelerate the motor reliably without imposing unnecessary electrical or mechanical stress. An excessively low setting may cause a motor to accelerate too slowly or fail to start under load.

3. Kick-Start Function

For certain loads, initial breakaway torque may be required to overcome static friction or a temporary mechanical resistance. The SMC-3 offers a selectable kick-start function at 450% of full-load current, with selectable durations of 0, 0.5, 1.0, or 1.5 seconds.

This feature can help the motor overcome a difficult initial load before continuing with the configured starting process.

Kick-start should be applied only when the machine’s operating requirements justify it. Excessive starting current or unnecessary kick-start duration can increase mechanical stress and should be avoided.

4. Soft-Stop Function

The controller supports configurable soft-stop operation when appropriately wired. The selectable soft-stop duration can be set to off or to 100%, 200%, or 300% of the configured start-time setting.

Soft stopping can be useful when abrupt motor shutdown would cause unwanted mechanical effects. For example, it may help reduce sudden changes in flow in certain pumping applications.

The effectiveness of soft stopping depends on the load’s mechanical characteristics and the motor’s behavior. It should not be assumed to replace specialized braking equipment or provide a guaranteed stopping time under every operating condition.

5. Internal Bypass

The 150-C43NCD incorporates an internal bypass function. Once the starting phase is completed and the controller enters the appropriate operating state, the bypass can provide a lower-loss path for the motor’s running current.

This design helps reduce the continuous heat generated by the solid-state switching devices during normal operation. It can also support a more compact motor-control arrangement compared with solutions requiring separate external bypass contactors.

The internal bypass does not eliminate the need for correct overcurrent protection, suitable conductor sizing, and installation in accordance with the applicable electrical codes.

Role in Industrial Motor Control Systems

The Allen-Bradley 150-C43NCD is typically installed as part of a larger motor-control system rather than operating as an independent automation controller.

A typical installation includes a three-phase power source, upstream circuit protection, the SMC-3 controller, a compatible motor, and a control circuit. Depending on the application, the system may also include a PLC, push buttons, selector switches, contactors, auxiliary relays, and process instrumentation.

The controller manages the motor’s starting and stopping behavior according to its configured settings and control inputs. Its auxiliary status and fault contacts can be incorporated into a wider control scheme, subject to the contact ratings and wiring requirements.

For example, a PLC may issue a start command while monitoring status information from the motor-control circuit. The PLC continues to perform the higher-level sequencing, interlocking, and process-control functions, while the SMC-3 handles the motor-starting function.

The controller’s fault and overload-related indications can also assist maintenance teams in identifying abnormal operating conditions. However, a fault indication should be investigated using the appropriate diagnostic procedure rather than automatically attributed to controller failure.

Industrial Applications

1. Pumping Systems

Industrial pumping systems are widely used in water treatment, process manufacturing, cooling systems, and general utilities. Sudden motor acceleration can cause mechanical shock or unwanted pressure changes.

The 150-C43NCD can provide controlled starting for compatible pumps when the motor current and load characteristics fall within the controller’s ratings.

Soft-stop settings may also be useful in selected pumping applications. The appropriate configuration depends on the pump type, hydraulic system, and process requirements.

2. Industrial Fans and Blowers

Fans and blowers are common in ventilation systems, dust collection equipment, cooling installations, and industrial process lines.

A soft starter can help manage motor acceleration and reduce the abrupt mechanical loading associated with direct-on-line starting. The 43 A controller rating may suit certain fan motors, but motor selection must be verified against the nameplate current and the actual starting duty.

3. Conveyor Systems

Conveyor drives are used in manufacturing, packaging, material handling, and warehouse operations.

Controlled motor starting can help reduce sudden tension changes in belts, chains, couplings, and other mechanical components. For compatible conveyor applications, the 150-C43NCD can be configured to provide an appropriate starting profile.

Applications involving very high inertia, frequent starts, or demanding acceleration requirements require careful assessment to ensure that the soft starter is correctly sized.

4. Industrial Processing Equipment

Mixers, auxiliary process machines, and other motor-driven equipment may benefit from controlled starting when their mechanical systems are sensitive to abrupt acceleration.

The controller can be considered where a fixed-frequency motor with controlled starting and stopping is appropriate. Applications that require continuous speed regulation, precise torque control over a wide speed range, or advanced motion control may require a variable frequency drive or another specialized solution instead.

5. General Manufacturing

Manufacturing facilities frequently operate pumps, fans, conveyors, and auxiliary machinery through centralized motor-control panels.

The compact SMC-3 design can support integration into suitable panel layouts. Engineers must still provide adequate ventilation, electrical protection, clearance, and access for maintenance.

Installation and System Integration

Step 1: Verify Electrical Compatibility

Before installation, confirm the motor’s rated voltage, full-load current, starting requirements, and the supply system’s characteristics.

The 150-C43NCD is rated at 43 A and supports line voltages up to 600 V AC. These ratings do not mean that every motor below 43 A is automatically suitable. Starting duty, ambient temperature, load inertia, start frequency, and the manufacturer’s application guidance must also be considered.

Confirm that the control supply is compatible with the 100–240 V AC requirement.

Step 2: Select Appropriate Protection

Provide upstream short-circuit protection and coordinate the controller with the motor and installation requirements. The appropriate fuse or circuit-breaker arrangement depends on the system’s available fault current, required short-circuit current rating, conductor sizing, and applicable standards.

The soft starter should not be treated as a universal replacement for all motor overload and short-circuit protection devices. Follow the manufacturer’s coordination tables and installation instructions.

Step 3: Mount the Controller

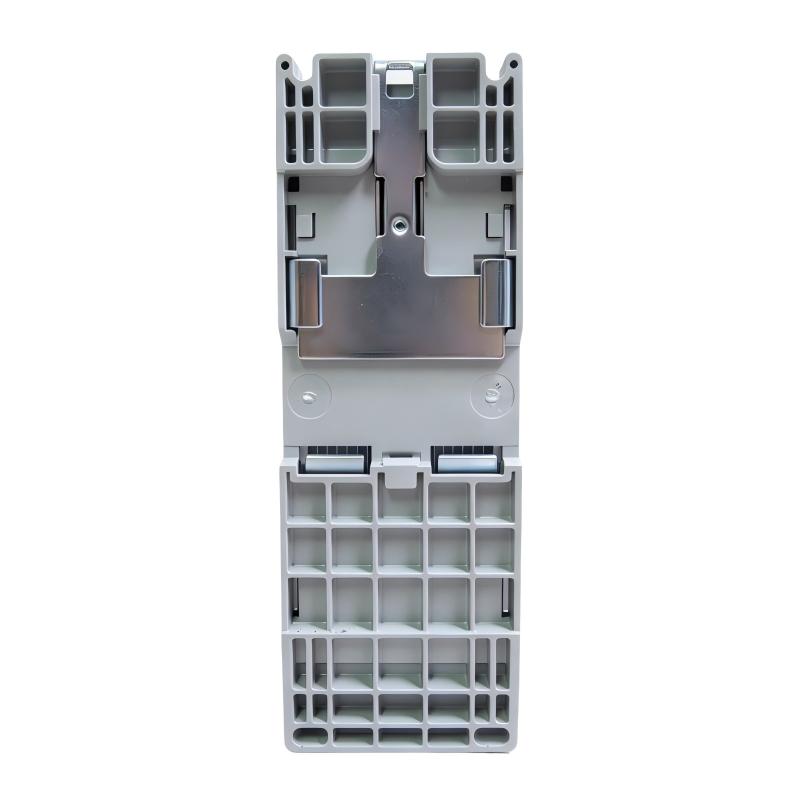

The 150-C43NCD has an open-type enclosure and is intended for installation within a suitable electrical enclosure.

The supplied dimensions are 206 × 72 × 130 mm, with a weight of 2.25 kg. Allow additional space for power wiring, control wiring, ventilation, service access, and the clearances specified in the installation documentation.

The controller’s rated environmental conditions must also be considered. The manufacturer specifies an operating temperature range of -5 to 50 °C for the open-type unit, subject to the stated installation conditions and applicable derating requirements.

Step 4: Connect Power and Control Wiring

Connect the three-phase power conductors and motor leads according to the approved wiring diagram. Verify terminal identification, conductor size, terminal tightening torque, grounding arrangements, and control-circuit connections.

The manufacturer lists a line-power terminal conductor range of 2.5–95 mm² (14–3 AWG) and a load power terminal tightening torque of 11.3–12.4 Nm. Confirm the requirements in the applicable manual before making connections.

All wiring must be performed by qualified personnel after the equipment has been placed in a safe electrical condition.

Step 5: Configure Starting Parameters

Set the starting parameters according to the motor and machine requirements. These may include initial torque, kick-start duration, and soft-stop settings where the relevant function is used.

Avoid selecting settings solely because they are available in the menu. The objective is to achieve reliable acceleration and appropriate stopping behavior while respecting the motor’s thermal limits and the driven equipment’s mechanical requirements.

Step 6: Test the Installation

After completing the wiring and configuration, conduct the required inspection and commissioning procedure.

Check the control inputs, motor rotation, starting performance, current draw, status contacts, and fault indications. Confirm that the motor reaches its intended operating condition without unexpected vibration, excessive heating, or abnormal mechanical noise.

Testing must follow the manufacturer’s instructions and the facility’s commissioning procedures.

Step 7: Record Settings and Maintenance Information

Record the controller model, motor data, protection settings, starting parameters, and commissioning results. This information helps future maintenance personnel identify the correct configuration and reduces the time required for troubleshooting.

Compatible System Components

The 150-C43NCD is designed to function within a coordinated motor-control installation. The following component categories are commonly relevant to integration.

This table describes typical system relationships. The exact component selection depends on the machine, electrical design, and required protection coordination.

Replacement and Alternative Model Selection

When replacing the Allen-Bradley 150-C43NCD, the complete catalog number should be checked carefully. Controllers in the SMC-3 family may have similar physical appearances but different current ratings, control voltages, or line-voltage ratings.

These models are comparison examples, not automatic replacement recommendations. Before selecting a substitute, confirm line voltage, control voltage, motor current, wiring configuration, starting duty, bypass requirements, fault protection, and the physical installation.

Key Advantages of the Allen-Bradley 150-C43NCD

1. Controlled Motor Starting

Solid-state starting helps manage motor acceleration and can reduce the electrical and mechanical stress associated with abrupt direct-on-line starting.

2. 43 A Current Rating

The 43 A rating provides a defined selection basis for compatible three-phase motor applications, subject to the motor’s operating conditions and applicable sizing requirements.

3. Integrated Bypass

The internal bypass helps reduce continuous solid-state conduction losses during the appropriate running state.

4. Adjustable Starting Characteristics

Selectable initial torque and kick-start settings allow the controller to be adapted to different starting loads.

5. Configurable Soft Stopping

When correctly wired and configured, the soft-stop function can help manage shutdown behavior in suitable applications.

6. Industrial Control Integration

The controller can be incorporated into motor-control panels and wider automation systems using compatible control circuits and status contacts.

7. Compact Open-Type Construction

The controller’s 206 × 72 × 130 mm dimensions support integration into suitably designed control panels, provided that the required clearances and thermal conditions are maintained.

Technical FAQs

Q1: What is the Allen-Bradley 150-C43NCD?

It is an Allen-Bradley SMC-3 Smart Motor Controller designed for controlled starting and stopping of compatible three-phase AC motors.

Q2: What is its rated current?

The rated current is 43 A. Actual motor suitability depends on the motor’s nameplate data, supply voltage, starting duty, ambient conditions, and installation requirements.

Q3: What line voltage does the 150-C43NCD support?

The controller is specified for line voltages up to 600 V AC in three-phase applications. The exact permissible voltage and motor application must be verified against the product documentation.

Q4: What control voltage does it require?

The specified control voltage is 100–240 V AC. A version requiring 24 V AC/DC should not be treated as a direct replacement without confirming the control-circuit design.

Q5: Does the controller have an internal bypass?

Yes. The 150-C43NCD includes an internal bypass function that reduces continuous solid-state conduction losses when operating in the appropriate running state.

Q6: Can it control motor speed continuously?

No. A soft starter primarily controls motor starting and stopping. Applications requiring continuous variable-speed operation generally need a suitable variable frequency drive.

Q7: Can it be used for pumps and fans?

Yes, provided the motor and application meet the controller’s ratings and starting requirements. The final selection should consider motor current, load characteristics, start frequency, and the required protection arrangement.

Q8: What are the dimensions and weight?

The dimensions are 206 × 72 × 130 mm, and the weight is 2.25 kg.

Q9: What should be checked before replacing an existing controller?

Verify the complete model number, rated current, line voltage, control voltage, wiring arrangement, protection coordination, and starting parameters. Also confirm that the replacement is appropriate for the installed motor and machine.

Q10: What causes a soft starter to trip?

Possible causes include excessive starting current, an unsuitable starting profile, motor or load problems, supply abnormalities, overheating, incorrect wiring, or a protection-coordination issue. Diagnose the fault using the controller’s indicators and the manufacturer’s troubleshooting procedure.

Procurement and Maintenance Recommendations

For industrial maintenance teams and spare-parts buyers, the Allen-Bradley 150-C43NCD should be selected according to the actual electrical and mechanical requirements of the installation.

Before ordering, confirm the complete catalog number and ensure that the offered unit has the correct 43 A rating and 100–240 V AC control voltage. The 150-C43NCD should not be confused with superficially similar SMC-3 variants that use a different control supply or line-voltage rating.

For replacement projects, compare the installed unit’s label, wiring diagram, motor nameplate, and protection settings. Where the existing application has been modified, reassess the motor current, starting duty, and protection coordination rather than assuming that the original controller selection remains appropriate.

For international procurement, verify the product condition, availability, warranty, packaging, and delivery lead time. Keep the controller’s installation and commissioning records so that future maintenance can reproduce the correct settings.

Routine maintenance should include checks for loose connections, signs of overheating, abnormal operating conditions, and relevant fault records, following the manufacturer’s maintenance guidance. Work inside motor-control equipment must be performed by qualified personnel using the prescribed electrical safety procedures.

Conclusion

The Allen-Bradley 150-C43NCD SMC-3 Smart Motor Controller is a 43 A solid-state motor controller designed for compatible three-phase industrial motor applications. With a line-voltage rating up to 600 V AC, 100–240 V AC control voltage, configurable starting characteristics, soft-stop capability, and an internal bypass, it provides a practical solution for controlled motor starting and stopping.

Correct selection depends on the motor’s electrical characteristics, starting duty, load requirements, protection coordination, and control-circuit design. By confirming these factors before installation or replacement, industrial users can improve equipment compatibility, simplify maintenance planning, and support reliable motor-control operation.

Product Summary: Allen-Bradley 150-C43NCD | SMC-3 Smart Motor Controller | 43 A | Up to 600 V AC | 100–240 V AC Control | 206 × 72 × 130 mm | 2.25 kg
