Product Overview

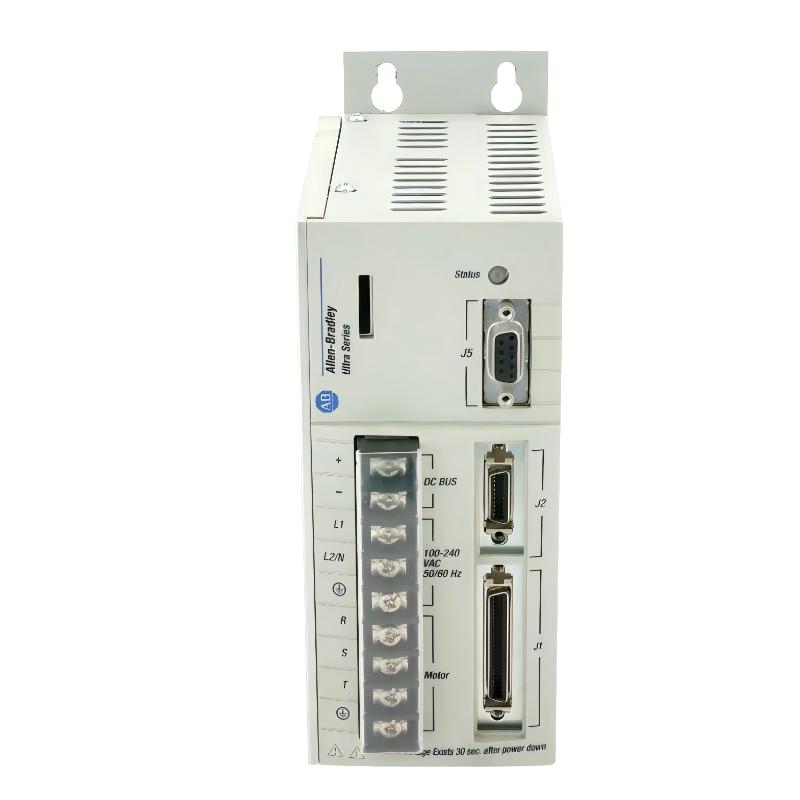

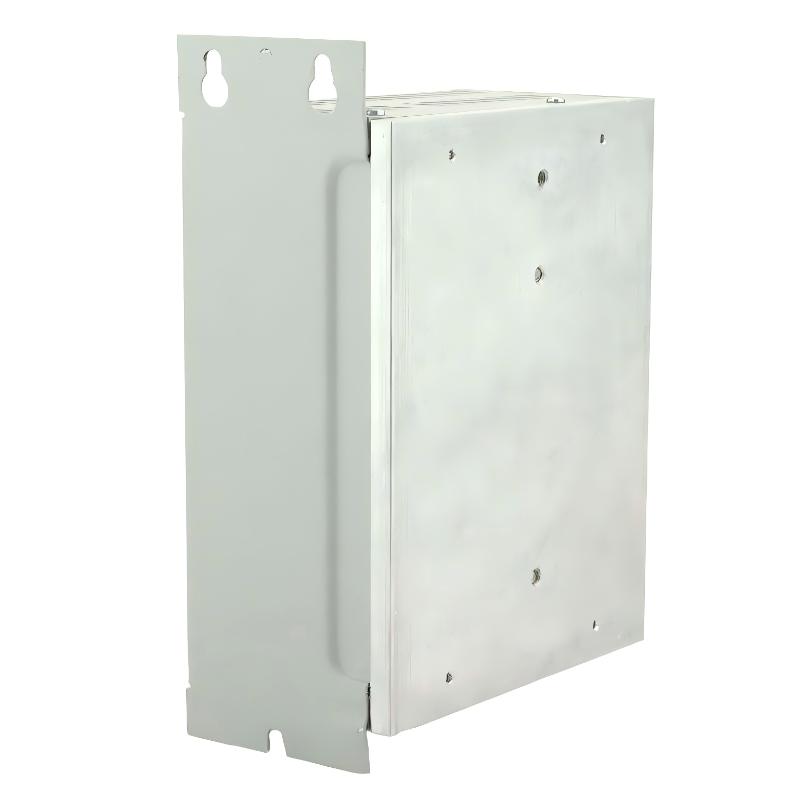

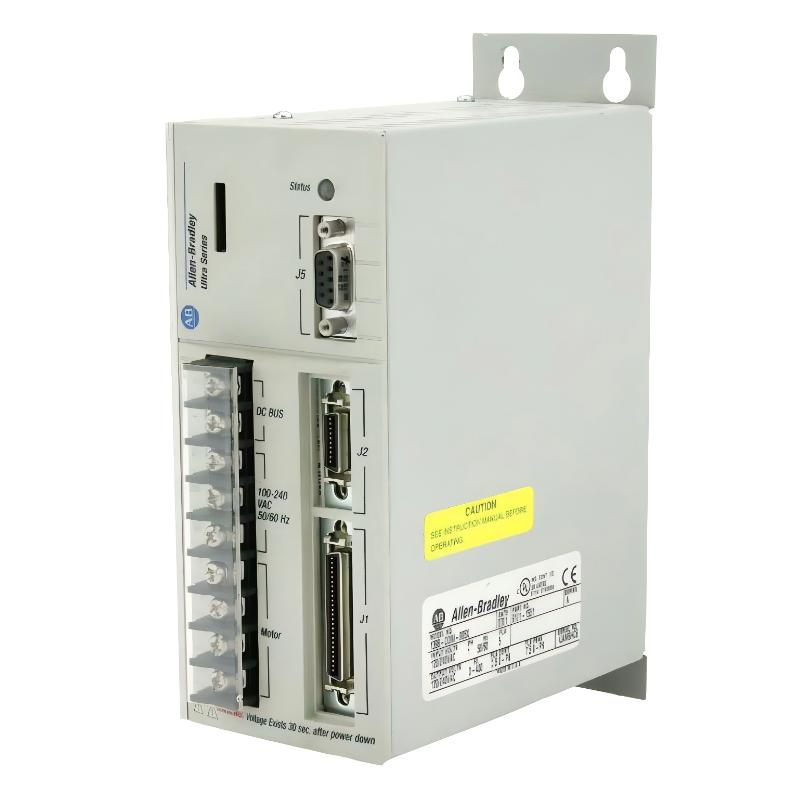

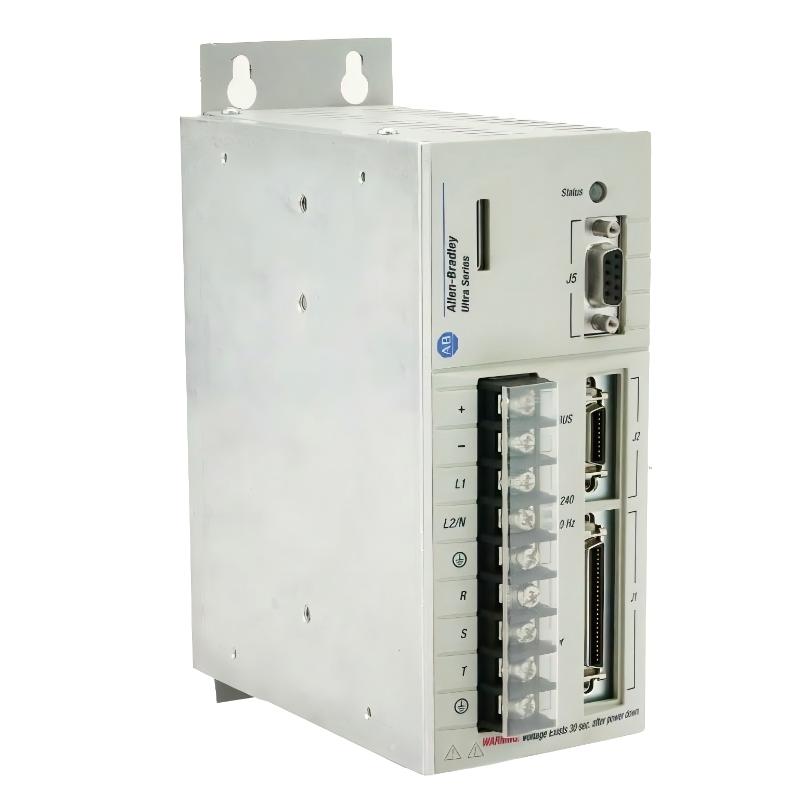

The Allen Bradley 1398-DDM-005X Ultra 100 Digital Servo Drive is a digital servo drive designed to control servo motors in industrial motion-control systems. Unlike a standard variable frequency drive, a servo drive is intended for applications where motor speed, position, torque, and dynamic response need to be controlled with greater precision.
The drive receives commands from a motion controller or machine control system and converts the incoming electrical power into controlled output power for the connected servo motor. Feedback from the motor is used by the control system to monitor actual operating conditions and make continuous adjustments.
The 1398-DDM-005X belongs to the Allen Bradley Ultra 100 family and is suited to machine applications where repeatable positioning and responsive motor control are important. It forms part of a complete motion system rather than operating as an independent motor controller.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Allen Bradley |
| Model | 1398-DDM-005X |
| Product Type | Digital Servo Drive |
| Series | Ultra 100 |
| Main Function | Servo Motor Control |
| Control Type | Digital Motion Control |
| System Role | Servo Amplifier / Drive |
| Application | Industrial Motion Control |
| Typical Use | Servo Motor Speed, Torque and Position Control |
| Dimensions | 198.12 × 72.6 × 146.05 mm |
| Weight | 1.7 kg |
| Application Area | Industrial Automation and Machine Motion |
Product Features
The 1398-DDM-005X is built for servo-based motion applications where conventional motor control may not provide the required response or positioning performance.
Key characteristics include:
- Ultra 100 digital servo drive design
- Designed for servo motor control
- Digital control architecture
- Supports coordinated motor operation within motion systems
- Interfaces with motor feedback and control circuitry
- Provides controlled power to the servo motor
- Compact industrial drive construction
- Dimensions of 198.12 × 72.6 × 146.05 mm
- Stated weight of 1.7 kg
- Suitable for industrial machine motion applications
A servo drive must be matched with the motor, feedback device, controller, and electrical supply used by the machine. Correct system compatibility is more important than simply matching the drive’s physical size.
Working Principle
A servo system can be viewed as a closed-loop control system:
Motion Controller → Servo Drive → Servo Motor → Feedback → Servo Drive
The motion controller sends a command to the servo drive. The drive then regulates the electrical output supplied to the motor.
At the same time, feedback from the motor provides information about actual motion. The drive compares the commanded condition with the feedback information and continuously adjusts the motor output.
This closed-loop process allows the system to respond to changes in load and maintain the commanded motion more accurately than an open-loop arrangement.
The servo drive can regulate electrical parameters such as motor current and output voltage while coordinating these functions with the motion-control requirements of the machine.
Role in a Servo Motion System
The 1398-DDM-005X serves as the power and control interface between the motion controller and servo motor.
| System Element | Function |
|---|---|
| Motion Controller | Generates motion commands |
| Servo Drive | Converts commands into controlled motor power |
| Servo Motor | Produces mechanical movement |
| Feedback Device | Reports actual motor position or operating condition |
| Power Supply | Provides electrical energy to the drive |
| Mechanical Load | Receives the motor’s mechanical output |
The performance of the complete system depends on the correct coordination of all these elements. A properly functioning servo drive cannot compensate for an incorrectly configured motor, feedback device, or mechanical system.
Industrial Applications
Digital servo drives are commonly used in machines where controlled acceleration, rapid response, repeatable positioning, or coordinated movement is required.
| Application | Typical Use |
|---|---|
| Packaging Machinery | Precise synchronized movement |
| Material Handling | Controlled positioning |
| Machine Tools | Accurate axis movement |
| Printing Equipment | Coordinated motion |
| Assembly Machinery | Repeatable positioning |
| Robotics | Controlled mechanical axes |
| Automated Production Lines | Synchronized machine movement |
| Motion-Control Systems | Servo motor speed and position control |
The actual suitability of the 1398-DDM-005X depends on the motor specifications and the motion-control architecture of the machine.
Installation and Maintenance
The servo drive should be installed in accordance with the applicable electrical and mechanical requirements of the machine.
Before installation or replacement, verify the drive model and the complete motor-control configuration.
Important checks include:
- Confirm the complete 1398-DDM-005X part number.
- Verify compatibility with the connected servo motor.
- Check the motor feedback device and wiring.
- Verify input power requirements.
- Check motor power and control connections.
- Inspect connectors for loose or damaged terminals.
- Provide appropriate cabinet ventilation.
- Maintain adequate clearance around the drive.
- Check grounding and shielding arrangements.
- Verify controller and drive communication.
- Confirm drive parameters before commissioning.
- Perform controlled motion testing after installation.
Servo drives can be sensitive to incorrect feedback wiring. An encoder or feedback connection that is improperly terminated can result in position errors, unexpected motion, or drive faults.
Related Components
The 1398-DDM-005X is normally part of a larger servo motion system.
| Component | Function |
|---|---|
| Servo Motor | Converts electrical energy into controlled mechanical motion |
| Motion Controller | Generates positioning and motion commands |
| Feedback Device | Provides actual motor position or speed information |
| Motor Power Cable | Carries controlled power from drive to motor |
| Feedback Cable | Carries feedback signals to the drive |
| Power Supply | Provides input power to the servo drive |
| Control Interface | Connects the drive to the machine controller |
| Mechanical Transmission | Transfers motor torque to the machine mechanism |
For troubleshooting, these components should be checked as a complete system. A servo fault does not necessarily indicate that the drive itself has failed.
Recommended Related Models
| Model / Component | Type | Primary Function | Application |
|---|---|---|---|
| Allen Bradley 1398-DDM-005X | Digital Servo Drive | Servo motor control | Ultra 100 motion systems |
| Allen Bradley Ultra 100 Series | Servo Drive Family | Digital motion control | Industrial automation |
| Allen Bradley Servo Motors | Servo Motor | Precision mechanical motion | Motion-control systems |
| Allen Bradley Motion Controllers | Motion Controller | Motion command generation | Automated machinery |
| Servo Feedback Devices | Feedback Component | Position and speed feedback | Closed-loop servo systems |
When replacing the 1398-DDM-005X, the motor model, feedback type, controller configuration, input power, output requirements, and drive parameters should all be checked. A servo drive should be selected as part of the complete motion system rather than as an isolated component.
Key Advantages
- Digital servo control architecture
- Designed for closed-loop motion control
- Supports precise servo motor operation
- Suitable for speed, torque, and positioning applications
- Interfaces with motor feedback systems
- Compact industrial installation format
- Dimensions of 198.12 × 72.6 × 146.05 mm
- Stated weight of 1.7 kg
- Suitable for industrial automation and machine motion applications
Technical FAQs
What distinguishes the 1398-DDM-005X from a conventional variable frequency drive?
A servo drive is designed for closed-loop motion control and is intended to work with a compatible servo motor and feedback system. It can respond rapidly to changes in commanded motion and actual motor conditions, making it suitable for applications requiring accurate positioning and dynamic response.
Why is motor feedback important when commissioning a servo drive?
Feedback allows the drive to determine the motor’s actual operating condition. Without correct feedback, the drive cannot reliably compare commanded motion with actual motion, which can lead to positioning errors, faults, or unstable operation.
What should be checked if the servo motor does not move after the drive is enabled?
The input power, enable signal, controller command, motor wiring, feedback connection, drive parameters, and active fault status should be checked. The mechanical load should also be inspected for conditions that could prevent movement.
How can incorrect feedback wiring affect servo operation?
Incorrect feedback wiring can cause the drive to receive invalid position or speed information. Depending on the system, this may result in feedback faults, incorrect motor direction, poor positioning, or an inability to complete the enable sequence.
