Product Overview

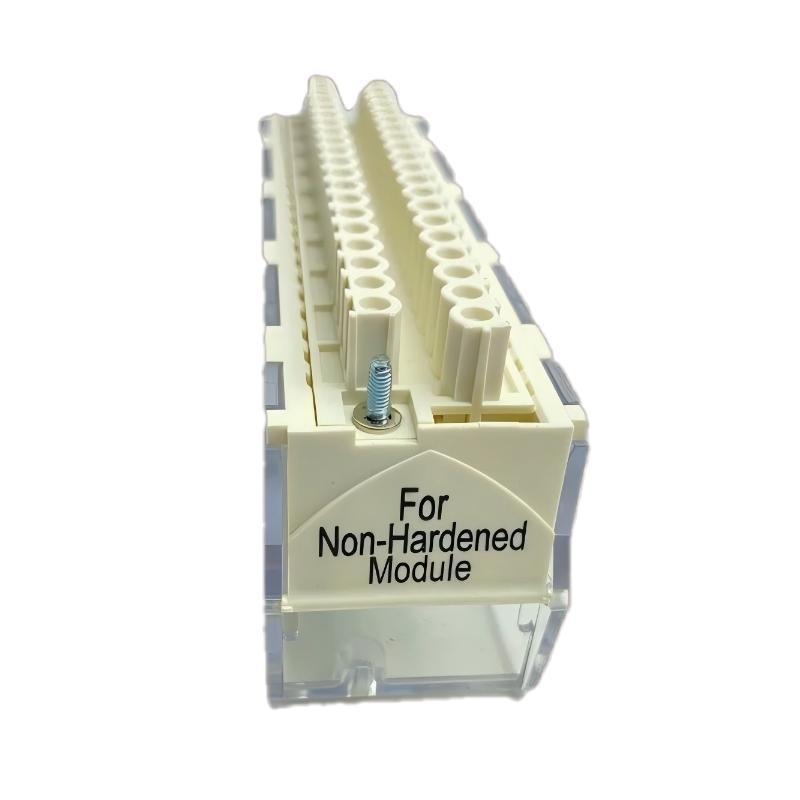

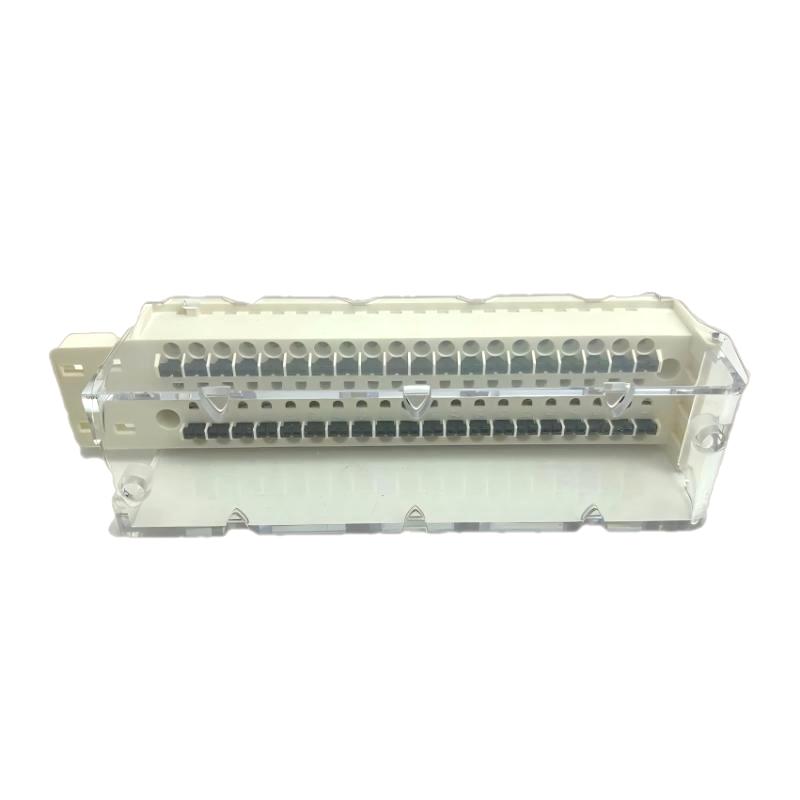

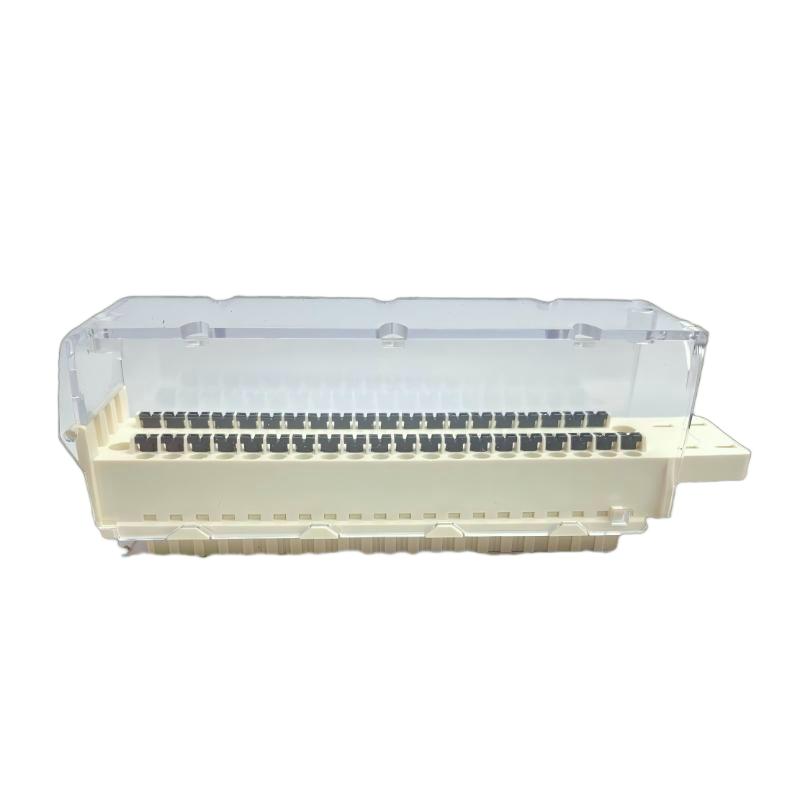

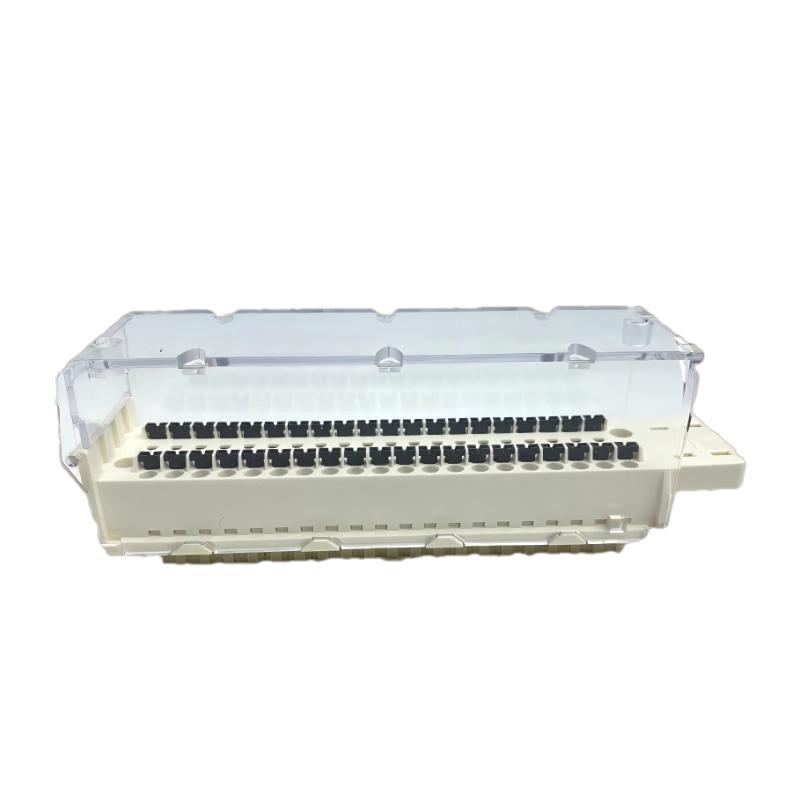

The Schneider BMXFTB4020 is a 40-Pin Detachable Spring-Loaded Terminal Block designed for organized electrical connections within compatible Schneider Electric industrial automation systems. Terminal blocks provide an important interface between PLC modules, control equipment, field wiring, and external devices, allowing electrical connections to be installed, maintained, and serviced in a structured manner.
The detachable spring-loaded design provides a practical alternative to conventional fixed wiring arrangements. By using a removable terminal interface, technicians can disconnect the associated wiring from the automation module without necessarily removing every individual field conductor from its termination point.
The BMXFTB4020 has 40 pins and supplied physical dimensions of 156 × 53 × 33 mm, with a weight of 0.12 kg. Its compact construction makes it suitable for control cabinets and automation installations where organized field wiring and convenient service access are important.
The terminal block should be used only with compatible Schneider Electric equipment. Exact electrical ratings, terminal assignments, supported wire sizes, spring-terminal characteristics, and module compatibility should be verified against the applicable system documentation before installation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | BMXFTB4020 |
| Product Type | Detachable Spring-Loaded Terminal Block |
| Terminal Configuration | 40-Pin |
| Connection Type | Spring-Loaded / Spring Terminal |
| Detachable | Yes |
| Dimensions (H × W × D) | 156 × 53 × 33 mm |
| Weight | 0.12 kg |
| Application | Industrial Automation and PLC Systems |
| Installation | Control Cabinet / Automation Equipment |
| Primary Function | Field Wiring and Module Interface |
The exact electrical ratings, terminal assignments, conductor specifications, and compatibility requirements should be confirmed for the intended Schneider Electric system.
What Is the Schneider BMXFTB4020?
The Schneider BMXFTB4020 is a 40-pin detachable spring-loaded terminal block used to provide an organized connection point between compatible automation equipment and external wiring.
In a PLC installation, field devices often need to be connected to input, output, analog, or interface modules. Directly connecting and disconnecting multiple field wires from a PLC module can make maintenance more difficult.
A detachable terminal block provides an intermediate connection point.
A simplified architecture can be represented as:
Field Wiring → BMXFTB4020 → Compatible PLC / I/O Module
The terminal block therefore serves as an interface between the control-system electronics and external wiring.
The exact application depends on the Schneider Electric module and system for which the terminal block is specified.
40-Pin Terminal Configuration
The BMXFTB4020 provides 40 pins.
A multi-pin terminal block allows numerous individual circuits to be organized within a single detachable interface.
This can be particularly useful in systems containing multiple:
- Digital signals
- Control circuits
- Field connections
- Interface signals
- Module connections
The actual electrical assignment of each pin should not be assumed from the pin count alone. Technicians should refer to the wiring documentation for the specific module and application before connecting field conductors.
Correct terminal identification is essential because an incorrect connection can result in signal errors or damage to connected equipment.
Spring-Loaded Terminal Technology
The spring-loaded connection design provides mechanical pressure between the conductor and terminal contact.
Compared with conventional screw-terminal arrangements, spring-loaded connections can offer practical advantages for industrial control installations.
Potential benefits include:
- Consistent contact pressure
- Reduced dependence on screw-tightening torque
- Faster wiring operations
- Convenient maintenance
- Reduced risk of loose screw connections
- Compact terminal construction
The actual conductor preparation and permissible wire specifications should be confirmed from the applicable Schneider Electric installation requirements.
Detachable Terminal Block Function
One of the important characteristics of the BMXFTB4020 is its detachable design.
A detachable terminal interface allows the associated wiring assembly to be separated from the connected automation equipment as an assembly rather than requiring every field conductor to be individually removed.
This can simplify:
- Module replacement
- Maintenance
- Troubleshooting
- Equipment inspection
- Commissioning
- Control-cabinet servicing
For example, when replacing a compatible PLC or I/O module, the terminal connection can potentially be disconnected as an assembly according to the applicable equipment procedure.
This reduces the amount of repeated field wiring work during maintenance.
Role in Industrial Control Systems
Terminal blocks are essential components in many industrial automation architectures.
A typical system can include:
Field Devices → Terminal Block → I/O Module → PLC CPU → HMI / SCADA
The BMXFTB4020 occupies the interface layer between field wiring and compatible control equipment.
It helps organize the physical connection between:
- Sensors
- Actuators
- Control modules
- PLC I/O
- Interface equipment
- External control circuits
This makes the terminal block an important part of the overall wiring infrastructure even though it does not perform the same processing function as a PLC CPU or I/O module.
Industrial Applications
PLC Control Cabinets
The BMXFTB4020 can be used in compatible PLC control cabinets where multiple field connections must be organized through a detachable interface.
Its 40-pin configuration can help consolidate a large number of connections into a structured terminal arrangement.
Factory Automation
Manufacturing systems often contain numerous sensors and actuators connected to PLC I/O equipment.
A suitable terminal block can simplify the field-wiring interface and make maintenance more manageable.
Machine Control
Automated machinery can contain multiple switches, sensors, solenoids, and other electrical devices.
A detachable terminal interface can make machine control wiring easier to organize and service.
Process Automation
Process-control installations frequently contain distributed field instruments and control equipment.
Terminal blocks can provide structured connection points between field wiring and automation modules.
Control-System Maintenance
Detachable terminal assemblies are particularly useful where modules may need to be removed or replaced during scheduled maintenance.
Installation Guidelines
1. Verify the Model
Before installation, confirm the complete part number:
Schneider BMXFTB4020
Do not substitute a visually similar terminal block without confirming compatibility.
2. Confirm the Associated Module
The terminal block should be installed only with the compatible Schneider Electric module or equipment specified for the application.
3. Inspect the Terminal Block
Before installation, inspect the BMXFTB4020 for:
- Cracked housing
- Damaged terminals
- Bent components
- Contamination
- Mechanical damage
- Signs of improper storage
4. Check the Wiring
Inspect field conductors for:
- Damaged insulation
- Loose strands
- Incorrect stripping
- Excessive conductor length
- Mechanical stress
5. Install the Terminal Block
Position the terminal block correctly and secure it according to the applicable equipment installation procedure.
6. Connect the Field Wiring
Connect each conductor to the correct terminal according to the approved wiring diagram.
Never rely solely on terminal position or visual assumptions.
Wiring Considerations
Correct field wiring is essential when using the BMXFTB4020.
Before wiring, verify:
- Terminal identification
- Signal type
- Wire designation
- Polarity where applicable
- Common connections
- Shielding requirements
- Grounding requirements
A clear wire-labeling system should be used in industrial cabinets.
For example, each conductor can be identified according to the project electrical drawings and PLC I/O addressing.
This makes future troubleshooting significantly easier.
Spring Terminal Wiring
When connecting conductors to a spring-loaded terminal, the correct conductor preparation procedure should be followed.
Depending on the applicable terminal design, installation may require appropriate conductor stripping and insertion techniques.
Avoid:
- Damaged conductor strands
- Excessive stripping
- Insufficient insertion
- Forced insertion
- Incorrect conductor size
The permitted conductor type and wire-size range should be confirmed against the applicable product documentation.
Detachable Connection and Maintenance
The detachable design can simplify maintenance activities.
Before disconnecting the terminal block:
- Follow the applicable equipment shutdown procedure.
- Isolate hazardous energy where required.
- Verify that the system is in a safe maintenance state.
- Identify the terminal block and associated module.
- Label wiring if required.
- Disconnect the terminal interface according to the equipment procedure.
- Protect the removed assembly from mechanical damage.
Never disconnect an energized terminal assembly unless the system documentation explicitly permits that operation and the required safety procedures are followed.
Commissioning Procedure
After installation, the BMXFTB4020 should be checked as part of the complete control system.
Step 1: Verify the Terminal Block
Confirm the installed component is the correct BMXFTB4020.
Step 2: Confirm Pin Assignment
Compare every connected conductor against the approved wiring documentation.
Step 3: Inspect Connections
Verify that conductors are properly inserted and securely retained.
Step 4: Check the Detachable Interface
Ensure that the terminal block is correctly seated with its associated equipment.
Step 5: Energize the System
Apply power according to the applicable PLC and control-system commissioning procedure.
Step 6: Test Individual Signals
Verify the expected operation of connected inputs, outputs, or interface circuits.
Step 7: Check for Abnormal Conditions
Monitor the system for:
- Incorrect I/O states
- Signal loss
- Intermittent operation
- Unexpected alarms
- Wiring-related faults
Troubleshooting the BMXFTB4020
No Signal at the PLC
If a connected signal is not detected, inspect:
- Field wiring
- Terminal assignment
- Conductor insertion
- Terminal-block seating
- Associated I/O module
- Sensor or actuator
- PLC configuration
A terminal-block fault is only one possible cause.
Intermittent Signal
Intermittent signals may result from:
- Poor conductor insertion
- Damaged wiring
- Loose interface connection
- Mechanical vibration
- Contamination
- Damaged terminal components
Inspect the entire signal path rather than replacing the terminal block immediately.
Incorrect I/O Signal
If an input or output appears on the wrong channel, check the wiring documentation and terminal assignment carefully.
A single conductor connected to the wrong terminal can cause unexpected PLC behavior.
Difficult Disconnection
If the detachable terminal assembly does not release normally, do not apply excessive force.
Inspect the mechanical interface and follow the applicable equipment procedure.
Preventive Maintenance
Regular inspection of terminal assemblies can improve long-term control-system reliability.
Inspect Terminal Connections
Check for signs of:
- Loose conductors
- Damaged insulation
- Corrosion
- Contamination
- Mechanical damage
Check the Housing
Inspect the terminal-block housing for cracks or deformation.
Verify Wire Labels
Clear labels should remain legible throughout the service life of the control cabinet.
Inspect Cabinet Conditions
Excessive dust, moisture, vibration, or temperature can affect electrical connection reliability.
Review Maintenance History
Recording terminal-block replacements and wiring modifications can simplify future troubleshooting.
Replacement Considerations
When replacing a Schneider BMXFTB4020, verify the complete model number and terminal configuration.
Important checks include:
- Model number
- 40-pin configuration
- Detachable design
- Spring-loaded terminal type
- Associated module
- Wiring arrangement
- Physical dimensions
- Installation requirements
The supplied physical specifications are:
Dimensions: 156 × 53 × 33 mm
Weight: 0.12 kg
A terminal block with a similar appearance should not automatically be considered an equivalent replacement.
Physical Dimensions and Weight
The BMXFTB4020 has the following supplied physical specifications:
| Parameter | Value |
|---|---|
| Product | Schneider BMXFTB4020 |
| Product Type | 40-Pin Detachable Spring-Loaded Terminal Block |
| Number of Pins | 40 |
| Dimensions | 156 × 53 × 33 mm |
| Weight | 0.12 kg |
These dimensions are useful when planning control-cabinet space and determining physical compatibility with associated equipment.
Control Cabinet Installation
The BMXFTB4020 should be installed as part of an organized control-cabinet layout.
Good cabinet design should consider:
- Accessibility
- Wiring space
- Cable routing
- Terminal identification
- Heat-generating equipment
- Maintenance clearance
- Separation of power and signal wiring
The terminal block should remain accessible enough for inspection and maintenance while avoiding unnecessary exposure to mechanical damage.
Engineering Best Practices
Use Approved Wiring Documentation
Every conductor should be connected according to the applicable electrical drawings.
Label Every Circuit
Clear wire identification helps technicians trace signals during troubleshooting.
Verify the 40-Pin Configuration
Confirm that the terminal count and connection arrangement match the intended module.
Avoid Improvised Substitution
Do not replace the BMXFTB4020 with another terminal block simply because its physical dimensions appear similar.
Protect the Terminal Interface
Keep the connection free from unnecessary dust, moisture, vibration, and mechanical stress.
Maintain Wiring Consistency
Use consistent labeling and routing practices throughout the control cabinet.
Document Modifications
Any field-wiring changes should be reflected in the system documentation.
Compatible Automation Components
The BMXFTB4020 may form part of a larger Schneider Electric automation system containing compatible:
- Modicon PLC Controllers
- Digital I/O Modules
- Analog I/O Modules
- Communication Modules
- Interface Modules
- Remote I/O Equipment
- Field Sensors
- Actuators
- HMI Systems
- Control-Cabinet Wiring
The exact associated equipment should be confirmed before installation.
Related Schneider Product Categories
| Product Category | Typical Function |
|---|---|
| Modicon PLC Modules | Control and automation processing |
| Digital Input Modules | Acquisition of discrete field signals |
| Digital Output Modules | Control of discrete field devices |
| Analog Input Modules | Acquisition of continuous process signals |
| Analog Output Modules | Generation of continuous control signals |
| Communication Modules | Industrial network communication |
| Terminal Blocks | Field wiring and equipment interfacing |
| Cable Assemblies | Dedicated equipment interconnection |
| Remote I/O Systems | Distributed signal handling |
The products in these categories may operate within the same automation architecture but should not be considered direct replacements for the BMXFTB4020.
Key Advantages
40-Pin Connection Interface
The 40-pin configuration provides a structured connection point for a large number of circuits within a compatible automation system.
Detachable Design
The detachable construction can simplify module replacement and maintenance procedures.
Spring-Loaded Connections
The spring-loaded terminal design provides a practical method for establishing electrical connections without relying on conventional screw-terminal tightening.
Compact Construction
With dimensions of 156 × 53 × 33 mm, the terminal block can be incorporated into appropriately designed control-system installations.
Lightweight Design
The supplied weight of 0.12 kg makes the component easy to handle during installation and maintenance.
Organized Field Wiring
The BMXFTB4020 can help create a structured interface between external field wiring and compatible automation modules.
Technical FAQs
What is the Schneider BMXFTB4020?
The Schneider BMXFTB4020 is a 40-Pin Detachable Spring-Loaded Terminal Block designed for compatible Schneider Electric industrial automation equipment.
How many pins does the BMXFTB4020 have?
The BMXFTB4020 has 40 pins.
What are the dimensions of the BMXFTB4020?
The supplied dimensions are 156 × 53 × 33 mm.
How much does the BMXFTB4020 weigh?
The supplied weight is 0.12 kg.
What is the purpose of a detachable terminal block?
A detachable terminal block provides an organized interface between field wiring and automation equipment and can simplify maintenance or module replacement.
What is the advantage of a spring-loaded terminal?
Spring-loaded terminals provide a consistent mechanical connection and can simplify wiring compared with conventional screw-terminal arrangements.
Can the BMXFTB4020 be used with any Schneider PLC module?
No. Compatibility must be confirmed for the specific PLC or I/O module. The 40-pin configuration alone does not establish compatibility.
What can cause an incorrect signal?
Possible causes include incorrect terminal assignment, loose wiring, damaged conductors, poor terminal engagement, incorrect PLC configuration, or faults elsewhere in the signal path.
Should the terminal block be disconnected while energized?
Unless the applicable equipment documentation explicitly permits live disconnection, the system should be placed in an appropriate safe maintenance state before disconnecting the terminal block.
What should be checked when replacing the BMXFTB4020?
Verify the complete model number, 40-pin configuration, spring-loaded detachable design, associated module, wiring arrangement, and physical dimensions before replacement.
Conclusion
The Schneider BMXFTB4020 40-Pin Detachable Spring-Loaded Terminal Block is an important interface component for compatible Schneider Electric industrial automation systems. By providing a structured connection point between field wiring and automation equipment, it can simplify control-cabinet wiring, maintenance, troubleshooting, and module replacement.
The BMXFTB4020 features a 40-pin configuration, with supplied dimensions of 156 × 53 × 33 mm and a weight of 0.12 kg. Its detachable design can make maintenance more convenient, while the spring-loaded connection arrangement provides a practical approach to industrial field wiring.
For reliable operation, correct terminal assignment, proper conductor installation, secure seating, and compatibility with the associated automation module are essential. The complete BMXFTB4020 model designation should always be verified before installation or replacement rather than relying solely on physical appearance or terminal count.
When correctly integrated into a Schneider Electric control architecture, the BMXFTB4020 can provide a practical and organized interface for industrial automation wiring and long-term maintenance.
