- Ingersoll Rand
- 47667845001 54601513
- Air/Oil Separator Element
- USA
- 300 × 300 × 190 mm
- 5.4 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 6
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

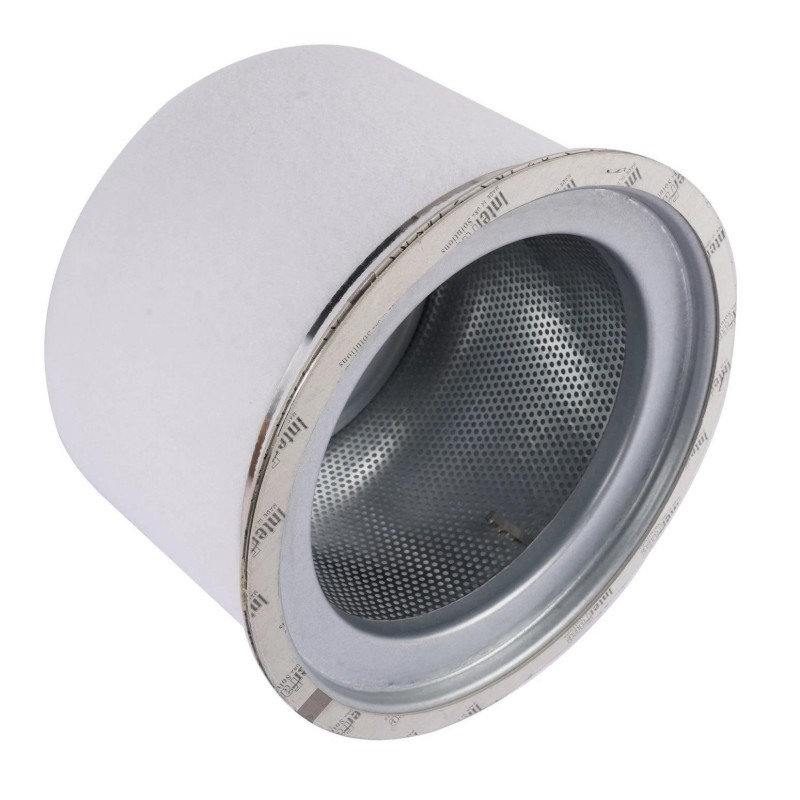

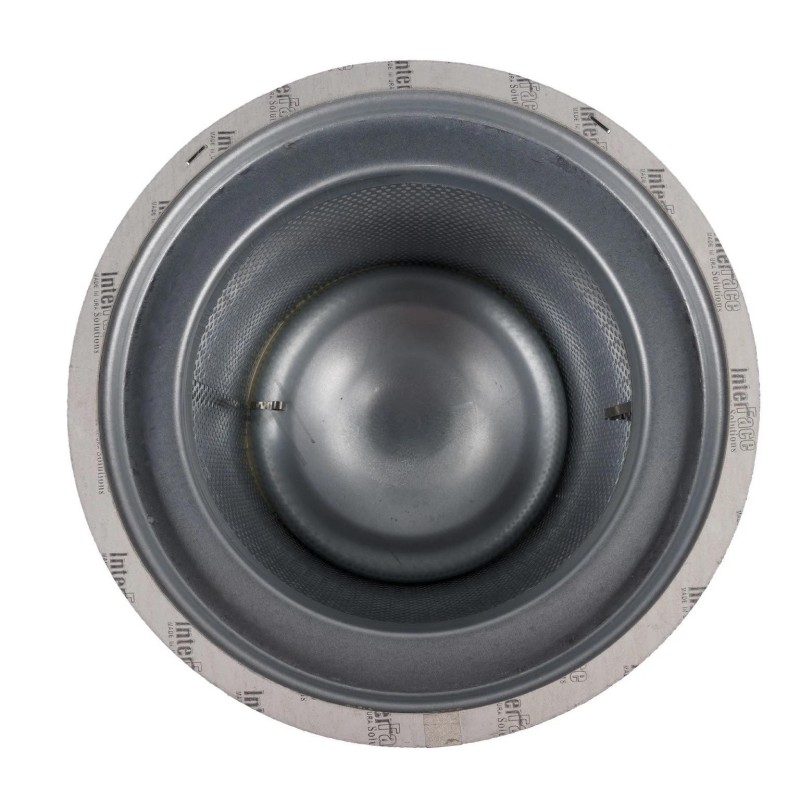

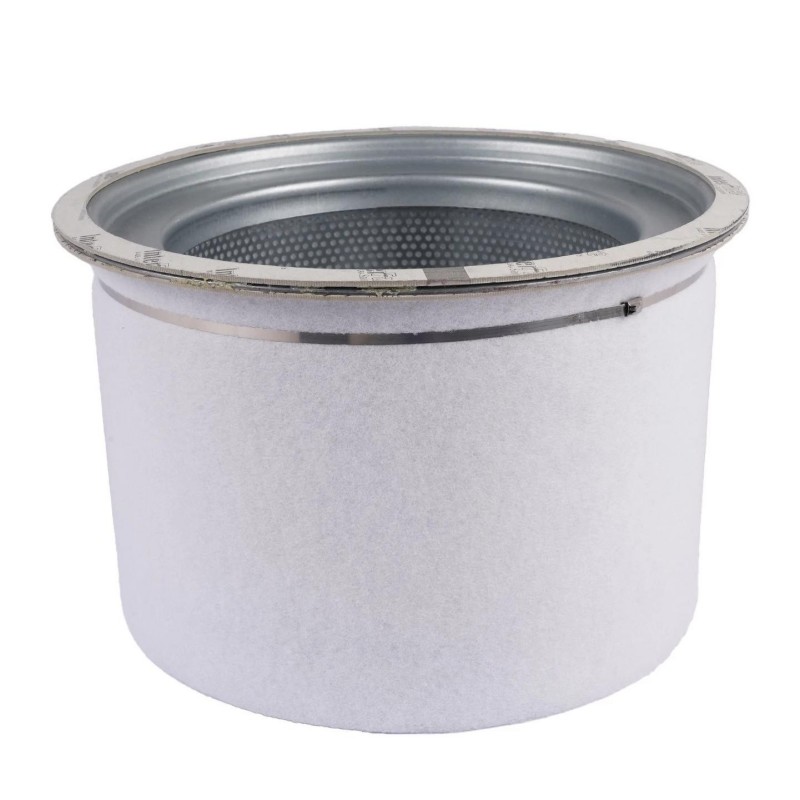

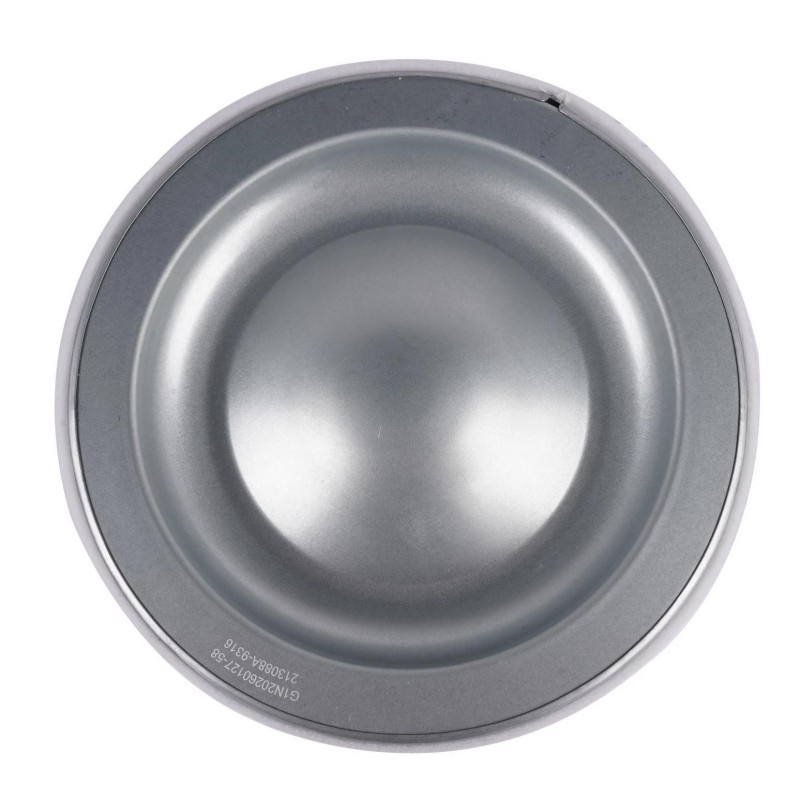

The Ingersoll Rand 47667845001 54601513 Air/Oil Separator Element is a separation component used in compatible oil-lubricated compressor systems. Its primary function is to separate entrained compressor oil from compressed air before the air leaves the compressor package.
In an oil-injected screw compressor, oil is introduced into the compression process for lubrication, cooling, and sealing. After compression, the resulting air-oil mixture must pass through a separation stage so that most of the circulating oil can be recovered and returned to the compressor oil circuit.
The 54601513 separator element forms part of this separation process. It helps reduce oil carryover in the compressed-air stream while allowing recovered oil to return to the lubrication system. Its condition directly affects separation performance, oil consumption, and the cleanliness of the compressed-air outlet.
The separator element is normally considered a service component during compressor maintenance. Excessive contamination, increasing pressure differential, damaged seals, or abnormal oil carryover can indicate that the separator assembly requires inspection or replacement.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Ingersoll Rand |
| Part Number | 47667845001 |
| Component Number | 54601513 |
| Product Type | Air/Oil Separator Element |
| Primary Function | Separation of compressor oil from compressed air |
| System Role | Air/oil separation component |
| Application | Oil-lubricated compressor systems |
| Installation | Compressor air/oil separator assembly |
| Dimensions | 300 × 300 × 190 mm |
| Weight | 5.4 kg |
Product Features
- Air/oil separator element for compatible Ingersoll Rand compressor systems
- Separates entrained compressor oil from compressed air
- Supports recovery of circulating compressor oil
- Helps reduce oil carryover into the compressed-air outlet
- Suitable for oil-injected screw compressor applications
- Supports compressor lubrication-system efficiency
- Used as a replacement component during scheduled maintenance
- Suitable for industrial compressed-air equipment
Working Principle
The 54601513 separator element receives the compressed air-oil mixture generated during the compression process. As the mixture passes through the separator assembly, the separation media retain and coalesce oil droplets while the compressed air continues toward the discharge side.
Separated oil collects within the separator assembly and is returned to the compressor oil circuit through the appropriate oil-return path. This allows circulating lubricant to be recovered instead of being continuously discharged with the compressed air.
A simplified separation path is:
Compression Element → Air/Oil Mixture → 54601513 Separator Element → Separated Compressed Air → Air Outlet
At the same time:
Separated Oil → Oil Return Path → Compressor Oil Circuit → Compression Element
As the separator becomes contaminated or its separation characteristics deteriorate, pressure differential across the element may increase and oil carryover can become more noticeable. These symptoms should be evaluated together with compressor operating conditions and the complete oil-management system.
Role in Compressor Air/Oil Separation Architecture
The 47667845001 54601513 Air/Oil Separator Element sits between the compression stage and the compressed-air outlet in the compressor’s oil-separation system. It is responsible for recovering entrained oil from the compressed-air stream.
Compression Element → Air/Oil Mixture → Separator Element → Compressed-Air Outlet
| System Element | Function |
|---|---|
| Compression Element | Produces compressed air and oil mixture |
| 54601513 Separator | Separates entrained oil from compressed air |
| Separator Housing | Contains and supports the separator element |
| Oil Return System | Returns recovered oil to the compressor oil circuit |
| Oil Filter | Removes contaminants from circulating compressor oil |
| Oil Cooler | Controls compressor oil operating temperature |
| Compressed-Air Outlet | Transfers separated compressed air to the system |
| Compressor Controller | Monitors and manages compressor operating conditions |
The separator therefore connects the compressed-air discharge path with the compressor’s oil-recovery circuit and is an important service component in oil-injected compressor packages.
Industrial Applications
| Application | Typical Use |
|---|---|
| Industrial Screw Compressors | Air/oil separation after the compression stage |
| Manufacturing Plants | Maintaining low oil carryover from compressor air |
| Process Air Systems | Separation of compressor lubricant from air |
| Packaging Facilities | Compressed-air system maintenance |
| Workshop Compressor Systems | Replacement separator element during servicing |
| Plant Utility Systems | Compressor oil recovery and air purification |
| OEM Compressor Packages | Replacement air/oil separation component |
| Compressor Service Operations | Preventive maintenance and separator replacement |
Installation and Maintenance
- Confirm that the 47667845001 / 54601513 separator element is specified for the compressor model being serviced.
- Shut down and isolate the compressor according to the applicable maintenance procedure.
- Allow the compressor pressure and oil system to reach a safe service condition before opening the separator assembly.
- Clean the surrounding area before removing the existing separator element to prevent contamination from entering the system.
- Remove the existing separator element and inspect the separator housing for oil deposits, contamination, or damage.
- Check the sealing surfaces and associated seals before installing the replacement element.
- Compare the replacement element with the removed component to verify correct configuration.
- Install the new separator element according to the applicable compressor service procedure and ensure proper seating.
- Reassemble the separator housing and reconnect the oil-return and associated system connections.
- Start the compressor under controlled conditions and inspect the separator assembly for leakage or abnormal operating indications.
- Monitor available oil carryover, pressure, temperature, and differential-pressure indications after replacement.
- Record the separator replacement in the compressor maintenance history and investigate abnormal oil carryover or pressure differential before continuing normal operation.
Compatible System Components
| Component | Function |
|---|---|
| Screw Compression Element | Produces the compressed air-oil mixture |
| Air/Oil Separator Housing | Contains the separator element and separation chamber |
| Oil Return Line | Returns separated oil to the compressor oil circuit |
| Oil Filter | Filters contaminants from circulating compressor oil |
| Oil Cooler | Removes heat from compressor oil |
| Air Filter | Filters contaminants from incoming compressor air |
| Compressor Oil | Provides lubrication, cooling, and sealing |
| Compressor Controller | Monitors and manages compressor operating conditions |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Ingersoll Rand 54601513 | Air/Oil Separator Element | Compressor air/oil separation |
| Ingersoll Rand 47638842001 | Air Filter Main Core | Primary compressor intake filtration |
| Ingersoll Rand 47638843001 | Air Filter Safety Filter | Secondary intake-air filtration |
| Ingersoll Rand 39911631 | Oil Filter | Compressor lubrication filtration |
| Ingersoll Rand Air/Oil Separators | Separator Element | Compressor oil separation |
| Ingersoll Rand Compressor Filters | Filter Components | Compressor filtration and maintenance |
Key Advantages
- Separates entrained oil from compressed air in oil-injected compressor systems
- Supports recovery of circulating compressor oil
- Helps reduce oil carryover at the compressed-air outlet
- Supports stable operation of the compressor oil-management system
- Suitable for scheduled separator maintenance and replacement
- Works together with the compressor oil circuit, cooler, and filtration components
Technical FAQs
What is the function of the 54601513 air/oil separator element?
The 54601513 separates oil entrained in the compressed-air stream after the compression process. Recovered oil can then return to the compressor oil circuit while the separated air continues toward the outlet.
What symptoms can indicate deterioration of an air/oil separator?
Increased oil carryover, abnormal pressure differential, changes in compressor oil consumption, or unusual operating conditions can indicate a separator problem. The separator should be evaluated together with the oil circuit and compressor operating conditions.
Why is the oil return path important when replacing the separator?
The separator depends on an appropriate oil-recovery path to return separated lubricant to the compressor oil circuit. A blocked, damaged, or incorrectly connected oil-return path can cause abnormal oil accumulation or increased oil carryover even when the separator element itself is new.
What should be checked after installing a replacement separator element?
Verify correct seating and sealing of the element, reconnect the oil-return system correctly, and check for leakage after startup. Available pressure, temperature, and oil-carryover indications should also be monitored to confirm normal separator operation.
