- Ingersoll Rand
- 47667844001 54601513
- Air/Oil Separator Element
- USA
- 300 × 300 × 190 mm
- 5.4 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 7
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

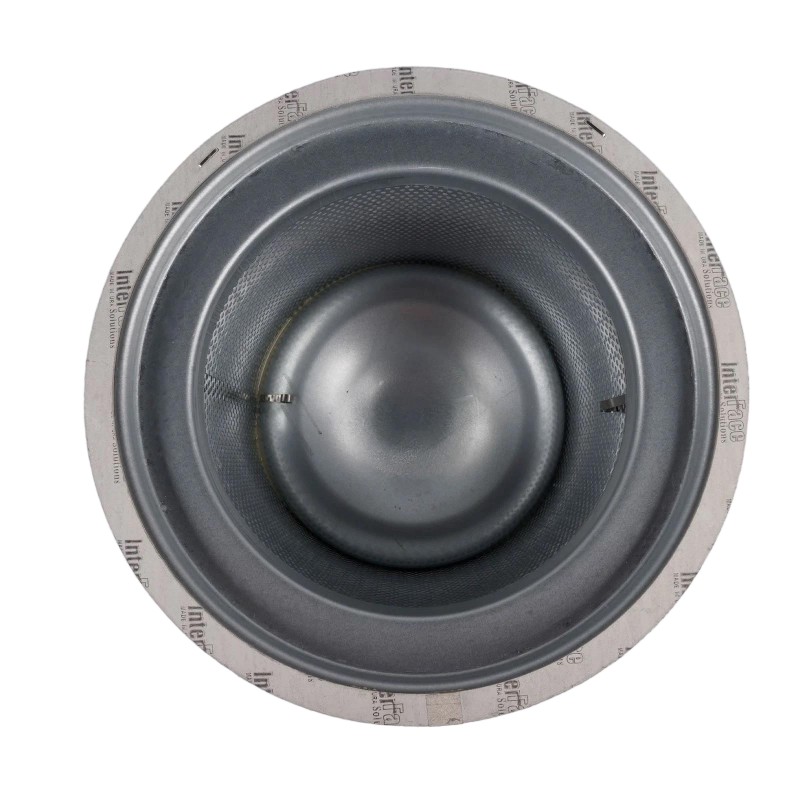

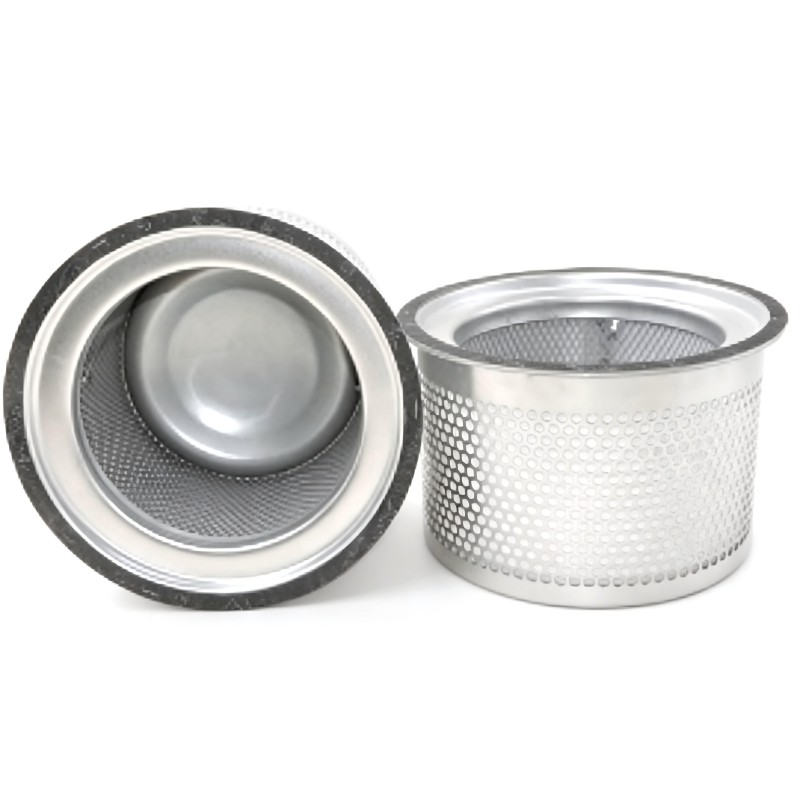

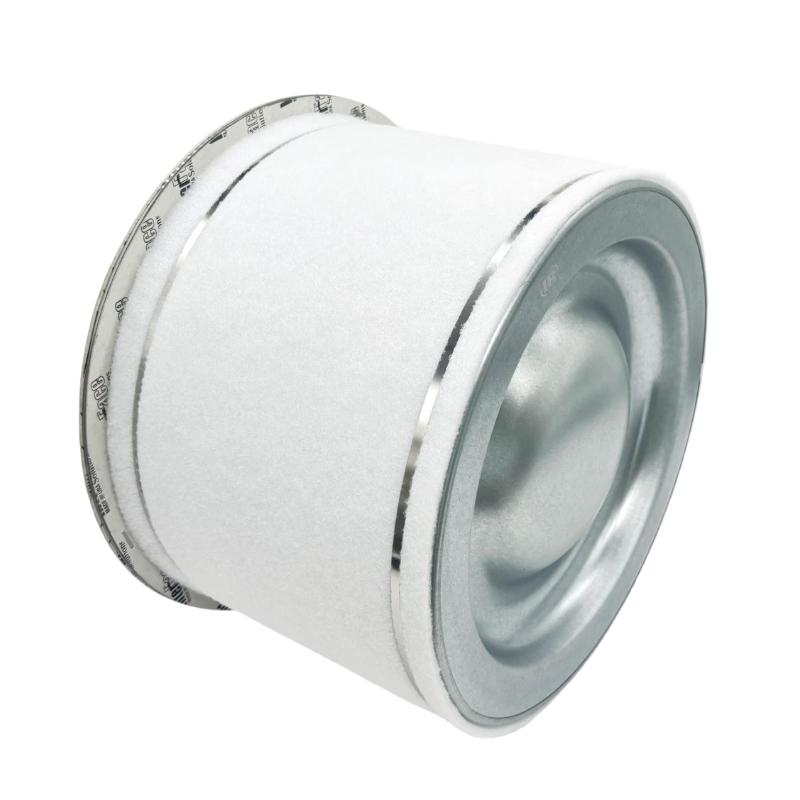

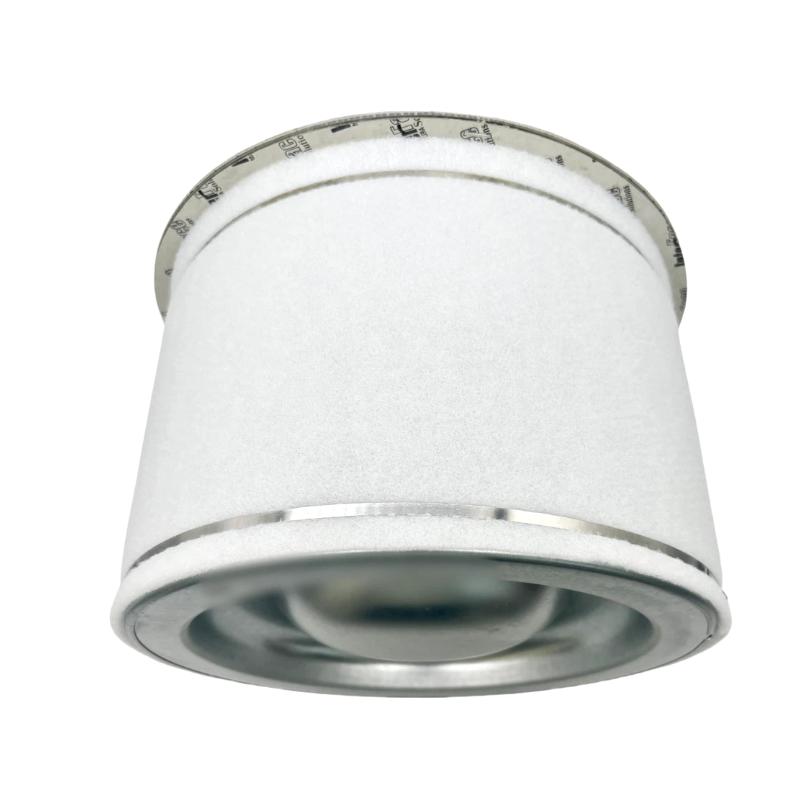

The Ingersoll Rand 47667844001 54601513 Air/Oil Separator Element is a separation component used in compatible oil-injected air compressor systems. Its primary function is to separate oil from the compressed air stream after compression, allowing recovered oil to return to the compressor lubrication circuit while cleaner compressed air continues toward the outlet system.
During normal compressor operation, oil is introduced into the compression process for lubrication, sealing, and cooling. The resulting compressed-air mixture therefore contains entrained oil that must be separated before the air enters the downstream compressed-air system. The separator element performs this separation inside the compressor’s separation vessel.
The separator is particularly important in applications where compressed-air quality, oil carryover, and stable compressor operation need to be controlled. A properly functioning separator helps maintain the intended separation performance while supporting efficient recovery of compressor oil.
The 47667844001 and 54601513 identifiers should be checked against the compressor configuration when sourcing a replacement. Separator replacement should also include inspection of the associated housing, seals, connections, and oil return path.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 47667844001 |
| Part Number | 54601513 |
| Product Family | Ingersoll Rand |
| Product Type | Air/Oil Separator Element |
| Primary Function | Separation of oil from compressed air |
| System Role | Compressor air/oil separation component |
| Typical Application | Oil-injected air compressors |
| Separation Application | Removal and recovery of entrained compressor oil |
| Dimensions | 300 × 300 × 190 mm |
| Weight | 5.4 kg |
Product Features
- Air/oil separator element for compatible Ingersoll Rand compressor systems.
- Separates entrained oil from compressed air after the compression process.
- Supports oil recovery within the compressor lubrication circuit.
- Helps reduce oil carryover into the downstream compressed-air system.
- Suitable for oil-injected industrial air compressors.
- Supports stable compressor separation performance.
- Important component in the compressor air/oil separation stage.
- Suitable for scheduled compressor maintenance and separator replacement.
- Works with the associated separator vessel and oil return system.
- Identified by the Ingersoll Rand part number 54601513.
Working Principle
During compression, oil mixes with the incoming air inside the compressor air end. The resulting air/oil mixture enters the separator vessel, where the 54601513 Air/Oil Separator Element separates oil droplets and mist from the compressed air.
Separated oil collects and is directed back toward the compressor oil circuit through the appropriate oil return path. The remaining compressed air continues through the outlet side of the compressor toward the downstream air system.
Compressor Air End → Air/Oil Mixture → 54601513 Separator Element → Separated Oil / Compressed Air → Downstream Air System
As the separator element accumulates contamination or becomes restricted, compressor operating conditions may change. Monitoring separator-related operating indications and following the compressor manufacturer’s maintenance requirements helps determine when inspection or replacement is appropriate.
Role in an Air Compressor Control Architecture
The separator element is a mechanical process component rather than an electronic controller, but its condition directly affects compressor performance and compressed-air quality. The compressor control system may monitor operating parameters associated with the separation stage and overall compressor condition.
Air/Oil Mixture → Separator Vessel → Air/Oil Separator Element → Cleaned Compressed Air → Aftercooler / Air System
| System Element | Function |
|---|---|
| Compressor Air End | Produces the compressed air/oil mixture |
| Separator Vessel | Receives and contains the air/oil mixture |
| Air/Oil Separator Element | Separates entrained oil from compressed air |
| Oil Return System | Returns separated oil to the compressor oil circuit |
| Aftercooler | Reduces compressed-air temperature where applicable |
| Compressor Controller | Monitors and manages compressor operation |
| Compressed Air System | Receives the separated compressed air |
Industrial Applications
| Application | Typical Use |
|---|---|
| Industrial Air Compressors | Air/oil separation |
| Manufacturing Plants | Compressed-air generation |
| Process Industries | Reduction of oil carryover |
| Factory Utilities | Clean compressed-air production |
| Pneumatic Production Systems | Compressor air supply |
| Machinery Workshops | Oil-injected compressor operation |
| Continuous-Duty Compressors | Routine separator maintenance |
| Industrial Process Equipment | Compressed-air supply and filtration |
Installation and Maintenance
- Confirm the compressor model and separator part number before starting replacement.
- Shut down and isolate the compressor according to the applicable maintenance procedure.
- Allow the compressor system to reach a safe maintenance condition before opening the separator assembly.
- Remove the existing separator element carefully to prevent contamination from entering the separation vessel.
- Inspect the separator housing for oil deposits, contamination, or foreign material.
- Check the sealing surfaces before installing the replacement element.
- Inspect associated seals and connections for damage or deterioration.
- Ensure the replacement separator is correctly seated inside the housing.
- Verify that the oil return path is clear and correctly connected.
- Reassemble the separator housing according to the compressor maintenance procedure.
- Monitor compressor operating conditions and check for abnormal oil carryover after startup.
- Record the separator replacement and inspect the separation system during future scheduled maintenance.
Related Components
| Component | Function |
|---|---|
| Compressor Air End | Generates the compressed air/oil mixture |
| Separator Vessel | Houses the air/oil separation assembly |
| Oil Return Line | Returns separated oil to the compressor |
| Separator Housing | Supports and contains the separator element |
| Compressor Oil Circuit | Provides lubrication, cooling, and oil circulation |
| Aftercooler | Cools compressed air where applicable |
| Air Filter | Filters incoming compressor air |
| Compressor Controller | Monitors and controls compressor operation |
| Compressed Air System | Receives the separated compressed air |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| 54601513 | Air/Oil Separator Element | Compressor air/oil separation |
| 47667844001 | Compressor Service Component | Compressor maintenance |
| Ingersoll Rand Air/Oil Separator Elements | Separation Components | Oil-injected compressor systems |
| Ingersoll Rand Compressor Separator Components | Compressor Components | Air/oil separation |
| Ingersoll Rand Compressor Service Parts | Replacement Components | Compressor maintenance |
| Ingersoll Rand Oil Separation Components | Separation Components | Reduction of oil carryover |
| Ingersoll Rand Compressor Oil Circuit Components | Compressor Components | Oil recovery and circulation |
| Ingersoll Rand Compressor Maintenance Parts | Service Components | Scheduled compressor service |
Key Advantages
- Separates entrained oil from compressed air within the compressor separation stage.
- Supports recovery of separated oil into the compressor oil circuit.
- Helps reduce oil carryover into the downstream compressed-air system.
- Suitable for compatible Ingersoll Rand oil-injected compressors.
- Supports routine compressor maintenance and separator replacement.
- Suitable for industrial compressed-air applications.
Technical FAQs
What is the purpose of the 54601513 Air/Oil Separator Element?
The 54601513 separator element separates entrained oil from compressed air after the compression process. The separated oil can then be returned to the compressor oil circuit while the compressed air continues toward the outlet system.
What symptoms can indicate a separator element problem?
Possible indications include increased oil carryover, changes in compressor operating conditions, increased restriction across the separation stage, or abnormal compressor performance. The specific diagnostic criteria depend on the compressor model and its monitoring system.
Why should the oil return path be checked during separator replacement?
Separated oil needs a clear return path to reach the compressor oil circuit. A blocked, damaged, or incorrectly connected oil return path can affect oil recovery and may contribute to abnormal oil carryover or compressor operating conditions.
What should be checked before installing a replacement separator?
Verify the compressor model and part number, then inspect the separator housing, sealing surfaces, associated seals, and oil return connection. The replacement element should be correctly seated before the housing is closed and the compressor is returned to service.
