Product Overview

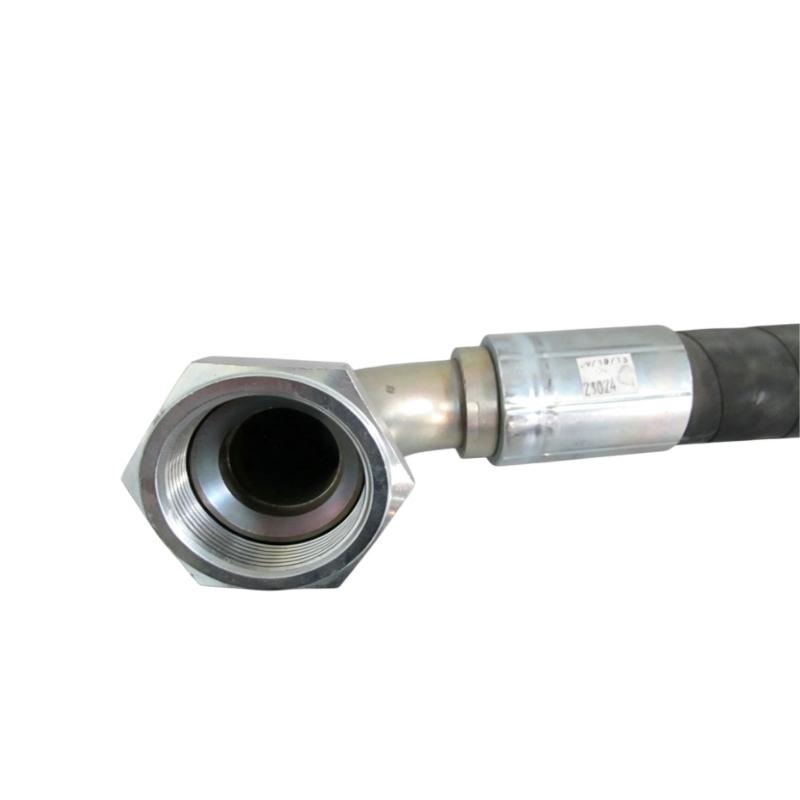

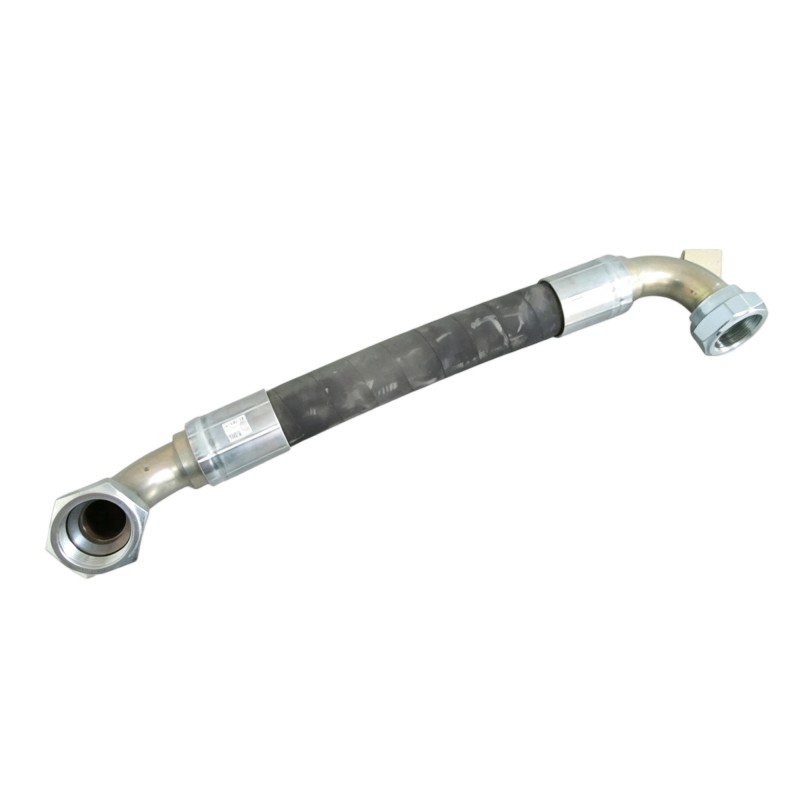

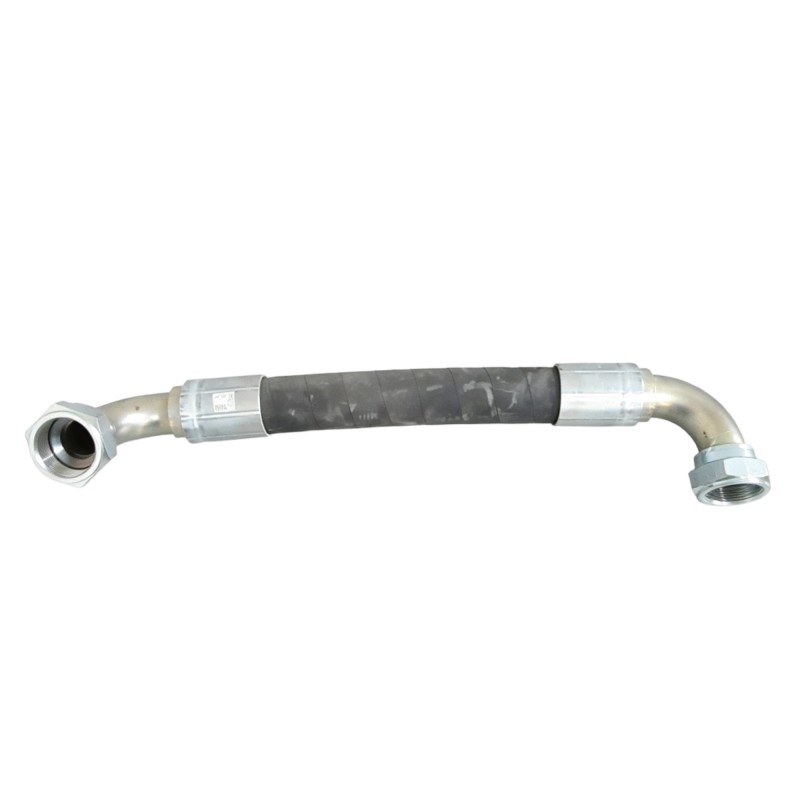

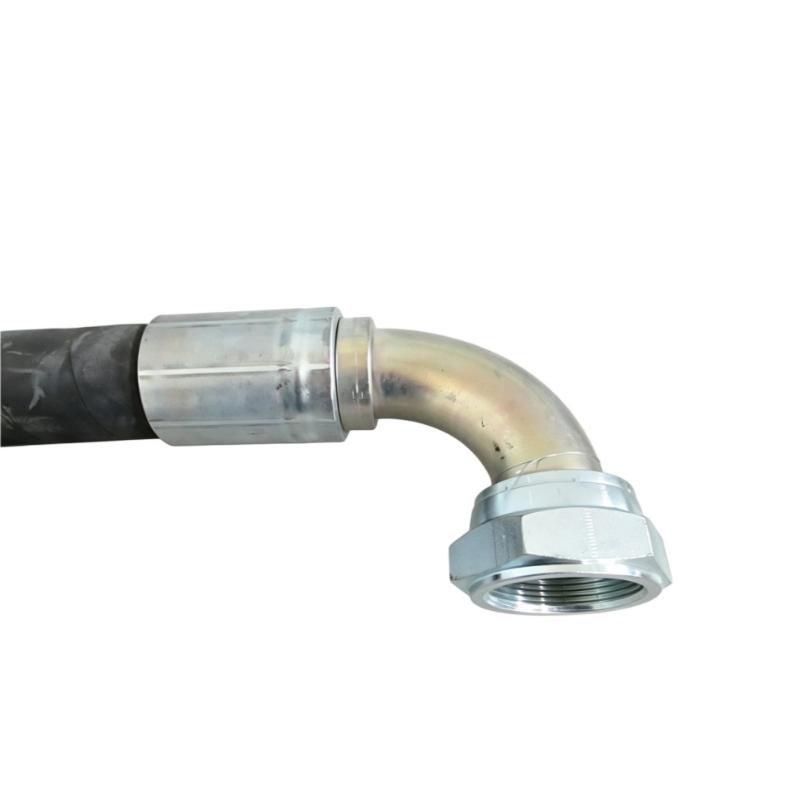

The Ingersoll Rand 47642698001 85562544 Hose is a replacement hose used in compatible Ingersoll Rand compressor service applications. It forms part of the fluid or air connection path between compressor components and must maintain a secure connection while the machine is operating under normal pressure, temperature, and vibration conditions.
In a screw compressor, hoses may connect components within the air, oil, control, or auxiliary circuits. Their condition directly affects the integrity of the associated circuit. A hose that has hardened, cracked, swollen, chafed, or developed a damaged connection can result in leakage or abnormal system behavior.
For replacement work, identifying the correct hose by part number is important. The hose diameter alone is not sufficient to establish compatibility because connection type, routing, length, material construction, and the specific compressor configuration can also determine whether a replacement is appropriate.
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | 47642698001 |
| Product Number | 85562544 |
| Product Type | Hose |
| Hose Diameter | 1.50 in |
| Shipping Weight | 3 kg |
| Equipment Application | Ingersoll Rand compressor systems |
Product Features
- Replacement hose for compatible Ingersoll Rand compressor equipment.
- Provides a flexible connection between compressor system components.
- Suitable for service and maintenance applications where the original hose requires replacement.
- 1.50 in hose diameter for identification and application matching.
- Supports fluid or air routing within the applicable compressor circuit.
- Flexible construction accommodates equipment movement and vibration where specified by the original installation.
Working Principle
The hose provides a continuous flexible passage between two connected points in the compressor system. During operation, the hose carries the applicable medium while maintaining a sealed connection at both ends.
Unlike rigid piping, a flexible hose can accommodate limited movement and vibration between connected components. This is particularly useful in compressor assemblies where components may experience mechanical vibration during operation.
A hose fault can affect the circuit in several ways. A leak may cause loss of pressure or fluid, while internal deterioration can restrict flow or introduce contamination. For this reason, hose condition should be considered together with the fittings, clamps or connection hardware, routing, and surrounding components during maintenance.
Role in an Ingersoll Rand Compressor Control Architecture
| System Element | Function |
|---|---|
| Compressor Assembly | Generates compressed air and provides the main mechanical process. |
| Hose | Provides a flexible connection for the applicable compressor air, oil, or auxiliary circuit. |
| Hose Connections / Fittings | Maintain the sealed interface between the hose and connected components. |
| Air and Oil Circuit Components | Control and route the relevant compressor media. |
| Valves | Regulate or isolate flow within the compressor system. |
| Pressure and Temperature Devices | Monitor operating conditions associated with the connected circuit. |
| Compressor Controller | Monitors operating parameters and responds to abnormal system conditions. |
Industrial Applications
| Application | Typical Use |
|---|---|
| Screw Compressor Maintenance | Replacement of a worn or damaged hose in a compatible compressor assembly. |
| Compressor Overhaul | Renewal of flexible connections during planned equipment service. |
| Industrial Air Systems | Maintaining the connection between compressor components and associated circuits. |
| Oil Circuit Service | Replacement of applicable flexible oil-system connections. |
| Field Compressor Service | On-site replacement of hoses showing leakage, wear, or deterioration. |
Installation and Maintenance
- Verify the exact part number before installation. Confirm 47642698001 and 85562544 against the compressor’s applicable parts documentation.
- Confirm the hose application before removal. The 1.50 in diameter alone should not be used as the only compatibility criterion.
- Depressurize the applicable circuit before disconnecting the existing hose and follow the compressor manufacturer’s safety procedure.
- Inspect the existing hose routing before removal so the replacement follows the same approved path.
- Check both connection points for damaged fittings, threads, sealing surfaces, clamps, or other hardware that could affect the replacement hose.
- Inspect surrounding components for sharp edges, excessive heat, moving parts, or other conditions that could damage the hose after installation.
- Install the hose without excessive twisting or bending. The hose should follow the intended routing and maintain suitable clearance from adjacent components.
- Secure the connections correctly using the applicable installation procedure. Do not rely on the hose itself to compensate for damaged connection hardware.
- Check for kinks or restricted sections after installation. A restricted hose can reduce flow and affect the connected compressor circuit.
- Inspect the hose after initial operation for leakage, rubbing, abnormal movement, or signs of contact with hot or moving components.
- Include the hose in routine compressor inspections and replace it when deterioration, cracking, swelling, abrasion, or other damage is identified.
- Record the replacement part number and maintenance date to maintain traceability for future compressor service.
Compatible System Components
| Component | Function |
|---|---|
| Ingersoll Rand Screw Compressor Assemblies | Provide the equipment in which the replacement hose is installed. |
| Compressor Valves | Control air, oil, or auxiliary flow connected to the hose circuit. |
| Air/Oil Separator Components | Support separation and circulation within the compressor system. |
| Thermostatic Valve Components | Regulate oil temperature within applicable compressor circuits. |
| Minimum Pressure Components | Maintain required pressure conditions in the compressor air circuit. |
| Pressure and Temperature Sensors | Monitor conditions that can reveal leakage or flow problems. |
| Hose Fittings and Connection Hardware | Provide the mechanical and sealed connection between the hose and compressor components. |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Ingersoll Rand 47642698001 85562544 | Hose | Compressor flexible connection |
| Ingersoll Rand 47642697001 42837054 | Loctite Sealant | Compressor sealing and assembly |
| Ingersoll Rand 47642697001 89292445 | Shaft Seal | Compressor shaft sealing |
| Ingersoll Rand 47642697001 89292478 | Motor Shaft Sleeve | Shaft protection and sealing assembly |
| Ingersoll Rand 47642697001 95023388 | O-Ring | Static sealing |
| Ingersoll Rand 47642703001 54509427 | Air/Oil Separator | Air and oil separation |
Key Advantages
- Provides a flexible connection within compatible compressor circuits.
- 1.50 in diameter supports straightforward part identification.
- Suitable for planned maintenance and replacement work.
- Helps maintain the intended routing and connection of the compressor circuit.
- Can accommodate normal equipment movement and vibration where specified by the original installation.
Technical FAQs
What is the Ingersoll Rand 47642698001 85562544 used for?
It is a replacement hose used in compatible Ingersoll Rand compressor applications to provide a flexible connection between system components.
Is the 1.50 in hose diameter enough to confirm compatibility?
No. Diameter is only one identification parameter. The exact part number, connection arrangement, routing, hose construction, and compressor configuration should also be verified before installation.
What should be checked when replacing this compressor hose?
The technician should check the applicable circuit, both connection points, fittings, routing, clearance, and surrounding components. The replacement hose should not be twisted, kinked, or routed against hot or moving equipment.
What are common signs that a compressor hose needs replacement?
Visible cracking, abrasion, swelling, hardening, leakage, damaged connections, or abnormal movement can indicate hose deterioration. Any suspected hose problem should be evaluated together with the connected compressor circuit.
