Product Overview

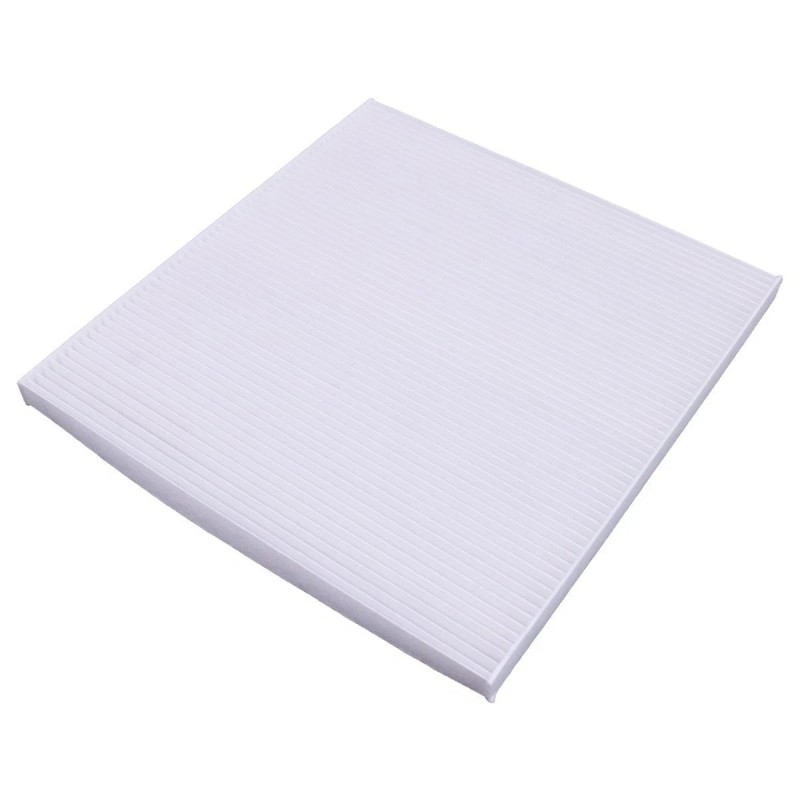

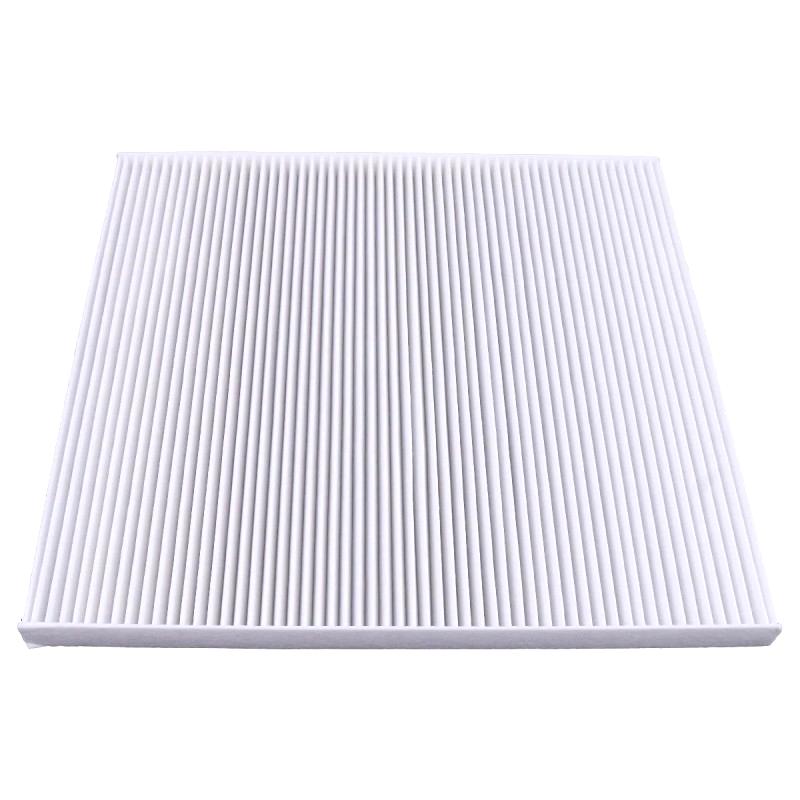

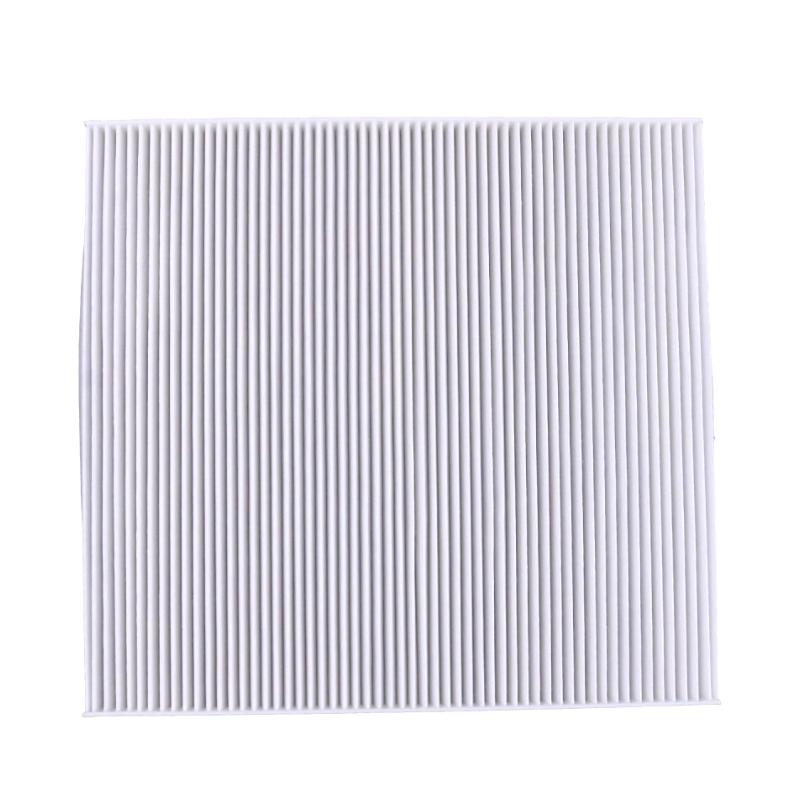

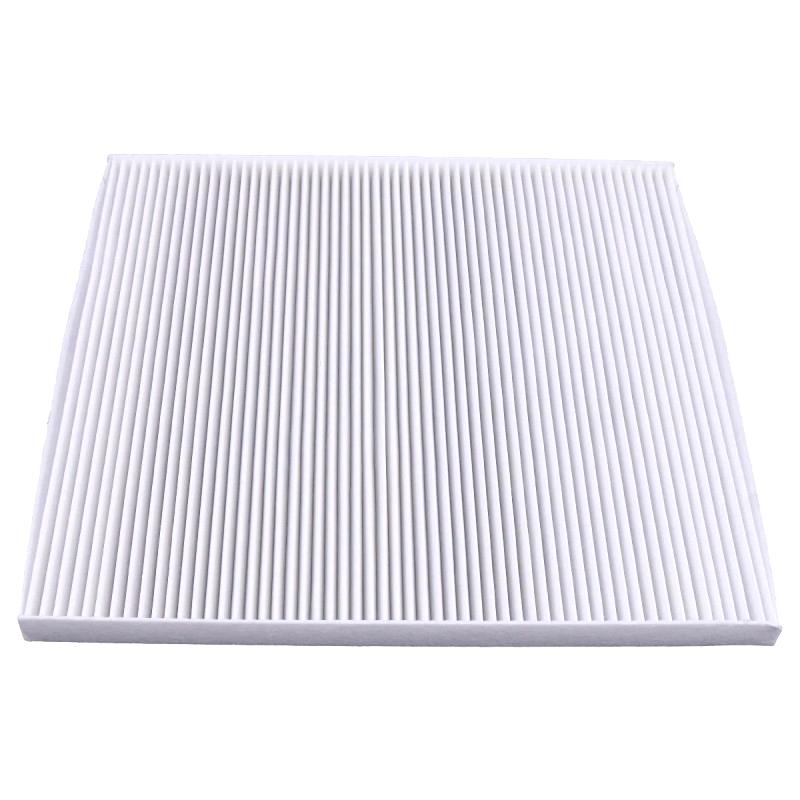

The Ingersoll Rand 47556185001 23564446 Filter Mat is a replacement panel filter element used in compatible rotary screw air compressor ventilation assemblies. It serves as a pre-filtration stage, capturing airborne dust and other particles before cooling air enters the compressor enclosure.

In an industrial compressor room, the ventilation system draws air from the surrounding environment to remove heat generated during operation. Dust from manufacturing processes, packaging materials, workshop debris, and general airborne contamination can accumulate on the intake filter over time. The 23564446 Filter Mat helps limit this contamination before it reaches internal cooling passages and equipment surfaces.

This component is identified as a PDM filter element and is associated with selected Ingersoll Rand R-series and RS-series compressor configurations. It belongs to the cabinet ventilation and pre-filtration arrangement rather than the main compressed-air filtration circuit. This distinction is important because a panel filter and an inlet air filter perform different functions, even when both are described as air filters.

During routine maintenance, the filter mat should be assessed for dust loading, damage, and restricted airflow. A heavily contaminated element can increase resistance through the ventilation path, while a torn or incorrectly seated element may allow particles to bypass the intended filtration surface.

For replacement work, the 23564446 part number should be checked against the installed compressor’s configuration. Similar panel filters may have different mounting arrangements or filtration characteristics, so appearance alone is not sufficient to establish compatibility.

Technical Specifications

Product Features

• Panel pre-filtration: Captures airborne dust before intake air enters the compressor cabinet.
• Ventilation system protection: Helps reduce particle accumulation on internal components and cooling-air passages.
• PDM filter element format: Serves as a replaceable filtration component within the applicable panel assembly.
• Passive operation: Filters airflow without requiring an electrical connection or control signal.
• Maintenance access: Can be inspected and replaced during scheduled compressor servicing.
• Airflow support: A clean, correctly fitted filter helps maintain the intended ventilation path.
• Dedicated part identification: The 23564446 reference helps distinguish this filter element from the compressor’s main inlet air filter and oil filter.

Working Principle

The 23564446 Filter Mat works by intercepting airborne particles as air passes through the compressor’s panel ventilation assembly. Its filter media retains a portion of the dust carried by the incoming air while allowing air to continue through the intended cooling path.

The typical airflow arrangement is:

Ambient Air → Panel Filter Mat → Compressor Cabinet → Internal Cooling Air Path

As the compressor runs, its ventilation system moves air through the enclosure to remove heat from operating components. The filter mat reduces the amount of airborne contamination entering this airflow path. It does not generate airflow or regulate compressor temperature; those functions depend on the complete ventilation arrangement.

Consider a compressor operating near a production line where cardboard fibers, workshop dust, or fine process debris are present in the surrounding air. As these particles accumulate on the filter, airflow resistance can increase. If the element becomes excessively loaded, the ventilation system may have to overcome greater resistance to move the required amount of air.

The appropriate maintenance response depends on the filter’s condition and the compressor’s service requirements. A damaged element should not remain in service merely because it appears relatively clean, and a new element should be fitted evenly to avoid gaps around the filtration surface.

Because this is a panel pre-filter, it should not be treated as a substitute for the main compressor inlet filter or downstream compressed-air treatment equipment. Each component serves a separate part of the air-handling system.

Role in the Compressor Ventilation System

The 23564446 Filter Mat occupies the panel pre-filtration stage of the compressor’s ventilation arrangement. It helps control dust entry before cooling air reaches the cabinet interior.

Industrial Applications

Installation and Maintenance

1. Verify the complete part number: Confirm 47556185001 and 23564446 against the existing filter identification and the compressor’s parts configuration.
2. Identify the compressor model: Check the machine model and serial number before ordering a replacement panel filter.
3. Shut down the equipment: Follow the compressor’s shutdown and isolation procedure before opening the ventilation panel.
4. Inspect the filter assembly: Check the intake grille, filter frame, retaining clips, and surrounding surfaces for damage or accumulated debris.
5. Remove the existing filter carefully: Avoid shaking accumulated dust into the compressor cabinet or onto nearby electrical and mechanical components.
6. Assess the filter condition: Look for excessive dust loading, tears, deformation, moisture contamination, or deterioration of the filter media.
7. Clean the surrounding area: Remove loose debris from the filter housing and intake area without forcing contamination into internal ventilation passages.
8. Check the replacement part: Confirm the replacement reference and inspect the filter media for damage before fitting it.
9. Install the filter correctly: Position the element in the designated panel assembly and ensure that the intended filtration surface is fully covered.
10. Check the seating and retention: Confirm that the filter lies correctly within its frame and that no gaps allow unfiltered air to bypass the media.
11. Verify ventilation operation: After restoring the equipment according to the approved procedure, check for abnormal airflow restrictions, loose panels, or unusual ventilation behavior.
12. Record the maintenance work: Document the part number, inspection date, observed contamination, replacement status, and any damage found in the intake assembly.

Compatible System Components

Recommended Related Models

Key Advantages

• Captures airborne dust before it enters the compressor cabinet.
• Helps maintain the intended cooling-air filtration path.
• Can be inspected and replaced during routine maintenance.
• Has a distinct part number for spare-parts identification.
• Supports cabinet cleanliness in compatible industrial compressor installations.

Technical FAQs

Is the 23564446 Filter Mat the same as the compressor’s main inlet air filter?

No. The 23564446 is identified as a PDM panel filter element used in a ventilation or pre-filtration assembly. The main inlet air filter serves the separate function of filtering air entering the compression process.

What operating symptoms may indicate that the panel filter is restricted?

Possible signs include reduced ventilation airflow, increased dust accumulation around the intake, or abnormal cabinet temperatures. These symptoms can also arise from fan problems, blocked passages, or other ventilation faults, so the complete airflow system should be inspected.

Can the 23564446 be used across all R-series and RS-series compressors?

Compatibility should not be assumed across the entire product family. The correct fit depends on the compressor’s model, serial number, and installed panel-filter assembly. Confirm the part reference against the specific machine configuration.

How frequently should the filter mat be inspected?

Inspection frequency depends on the compressor’s operating hours, surrounding dust levels, and the applicable service schedule. Compressors operating near dusty production processes may need more frequent checks than equipment installed in a clean utility room.
