Product Overview

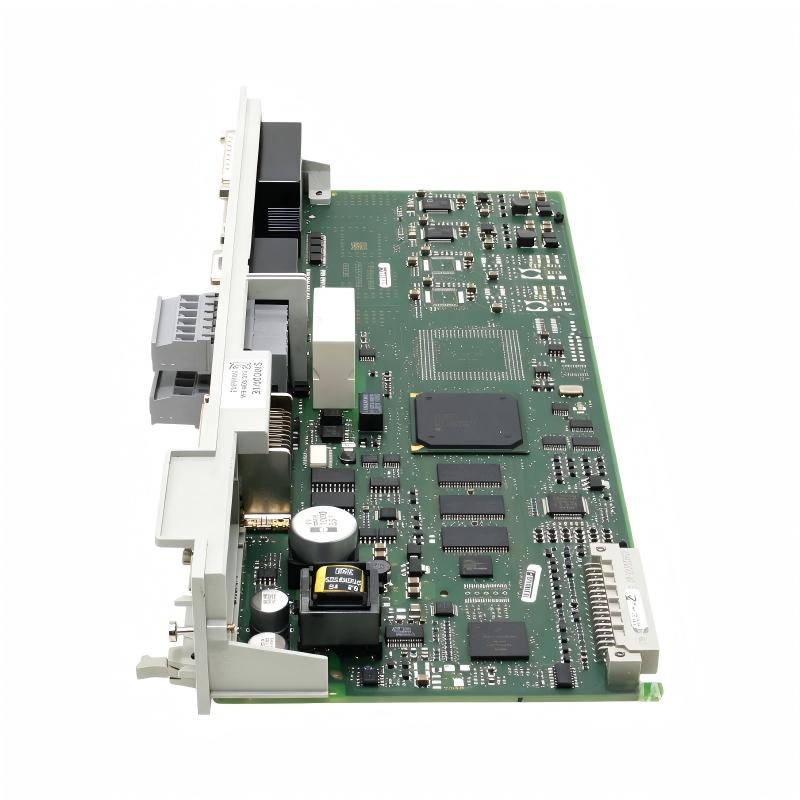

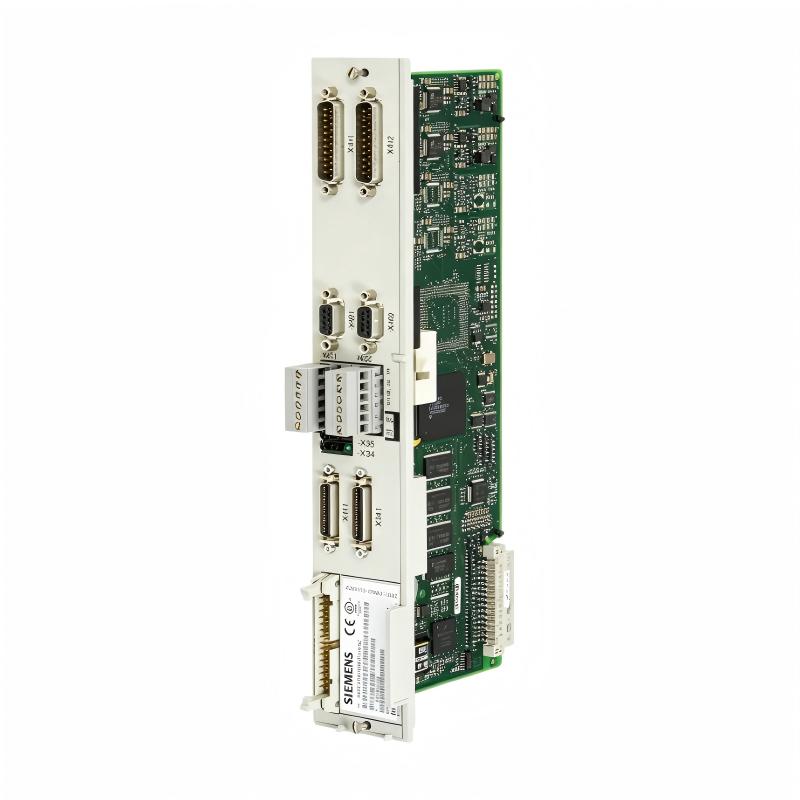

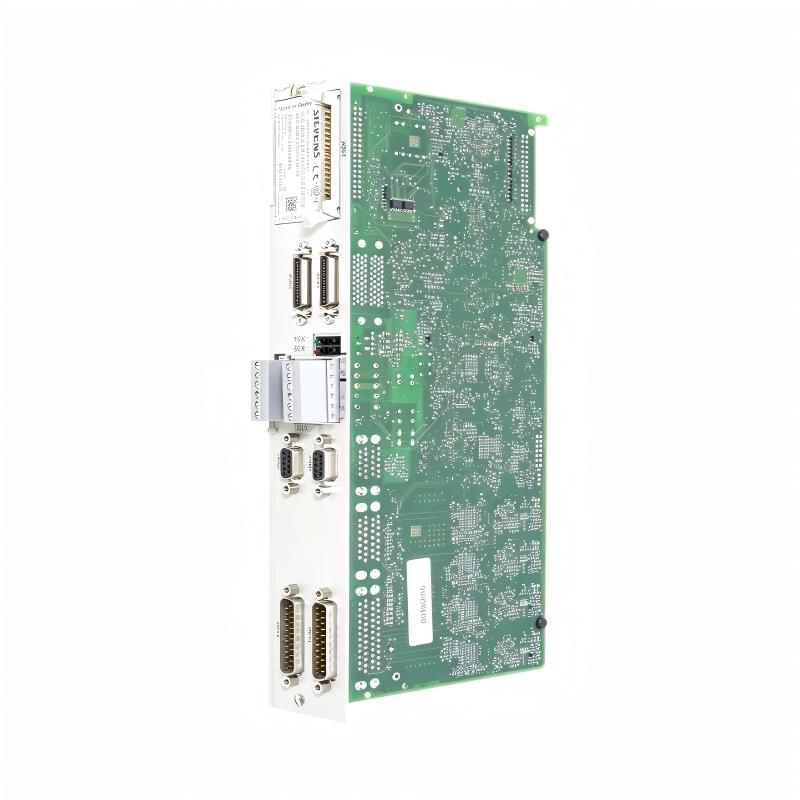

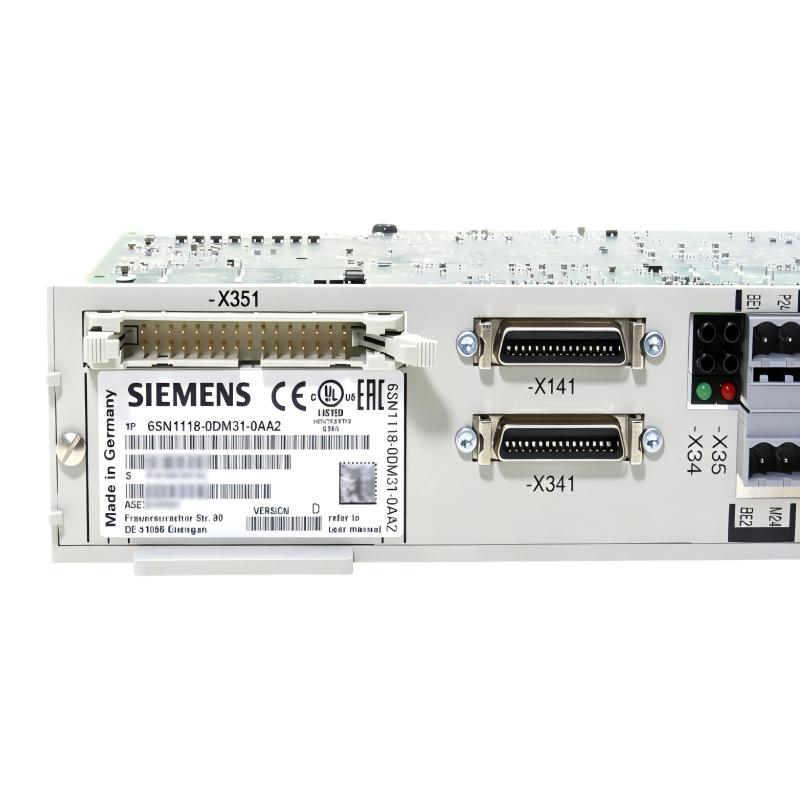

The Siemens 6SN1118-0DM31-0AA2 is a SIMODRIVE 611 digital High Standard closed-loop control plug-in unit for two-axis CNC drive applications. It supports compatible SIN/COS encoders with 1 Vpp signals and uses a digital speed/torque setpoint interface for feed-drive and main-spindle control. This variant operates without a direct measuring system and requires the corresponding NC software configuration.
In a CNC machining center, the control unit processes motion commands and encoder feedback for the configured drive axes. When a milling machine moves between machining positions, for example, the CNC controller specifies the required movement while the drive system regulates motor operation according to the feedback and configured control parameters. The 6SN1118-0DM31-0AA2 provides the closed-loop control functions needed within that arrangement.
Its High Standard classification is an important selection factor. SIMODRIVE 611 includes other control units with different performance levels, axis configurations, and measuring-system interfaces. A replacement must therefore match the existing drive architecture, not simply the physical installation or two-axis designation.
The absence of a direct measuring system also affects how machine position is established. With motor-encoder feedback, the control system evaluates movement using the connected encoder, while the relationship between motor rotation and actual machine-axis position depends on the mechanical transmission. Applications requiring direct measurement at the machine axis need a control-unit variant with the appropriate feedback interface.
The 6SN1118-0DM31-0AA2 is one component in a modular CNC drive system. Its operation depends on compatible power modules, motors, encoder connections, NC software, and correctly configured drive parameters. These details should be checked together when commissioning a new axis or replacing an existing control unit.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model | 6SN1118-0DM31-0AA2 |
| Product Family | SIMODRIVE 611 Digital |
| Product Type | Digital High Standard Closed-Loop Control Unit |
| Control Classification | High Standard |
| Number of Axes | 2 |
| Encoder Compatibility | SIN/COS encoders, 1 Vpp |
| Setpoint Interface | Digital speed/torque setpoint interface |
| Direct Measuring System | Not supported in this configuration |
| Drive Applications | Feed Drive (FD) and Main Spindle Drive (MSD), subject to configuration |
| NC Software Requirement | Version 06.04.09 or later |
| Installation Type | Plug-in control unit |
| Compatible System | SIMODRIVE 611 Digital |
| Dimensions | 318 × 44 × 127 mm |
| Weight | 0.51 kg |
Product Features
- Two-axis control: Supports the specified two-axis drive configuration within the SIMODRIVE 611 Digital system.
- High Standard classification: Identifies the unit’s control configuration and distinguishes it from High Performance variants.
- SIN/COS encoder compatibility: Accepts supported 1 Vpp encoder feedback.
- Digital speed/torque interface: Supports the specified setpoint interface for compatible drive applications.
- Feed-drive and spindle applications: Can be used in supported feed-axis or main-spindle configurations.
- Motor-feedback control: Operates without the direct measuring-system interface used by certain related models.
- Modular drive integration: Works with compatible SIMODRIVE power modules, motors, and CNC control hardware.
- Software-dependent operation: Requires a compatible NC software configuration for the installed drive system.
Working Principle
The 6SN1118-0DM31-0AA2 processes drive commands and encoder feedback within the SIMODRIVE 611 Digital architecture. Its control functions coordinate the configured axis movement through the associated power module and motor.
A simplified control arrangement is:
CNC Controller → 6SN1118-0DM31-0AA2 → SIMODRIVE Power Module → Motor → Machine Axis
SIN/COS Encoder → Feedback Interface → Closed-Loop Control
When the CNC program commands an axis to move, the drive system supplies the motor with controlled electrical power. The compatible encoder reports movement information, which the closed-loop control system uses to regulate the drive response. The controller and drive parameters determine how the system responds to the commanded movement and measured feedback.
Because this model does not support a direct measuring system, its feedback arrangement must be based on the compatible encoder configuration. The control system therefore relies on the relationship between motor movement and the mechanical transmission to establish machine-axis positioning. Backlash, coupling movement, transmission wear, or other mechanical problems can affect positioning accuracy even when the encoder itself is functioning correctly.
The two-axis designation describes the supported control configuration, but it should not be interpreted as unrestricted support for every combination of feed and spindle axes. The application must match the unit’s interface, associated drive hardware, and NC software requirements.
During commissioning, the encoder type, feedback wiring, axis assignment, and parameter settings need to be checked together. An incorrect encoder configuration or feedback direction can prevent the axis from following its command correctly. If positioning errors occur, both the electronic feedback chain and the mechanical transmission should be investigated.
Role in the SIMODRIVE 611 CNC Drive Architecture
The 6SN1118-0DM31-0AA2 occupies the closed-loop control position between the CNC command system and the associated drive hardware. It processes the configured motion-control information and encoder feedback for the supported axis arrangement.
CNC Controller → High Standard Control Unit → Power Module → Motor → Machine Axis
| System Element | Function |
|---|---|
| CNC Controller | Generates movement commands and coordinates machining sequences |
| 6SN1118-0DM31-0AA2 | Processes the specified two-axis closed-loop control functions |
| SIMODRIVE 611 Power Module | Supplies controlled electrical power to the connected motor |
| Feed Motor or Main-Spindle Motor | Produces the mechanical movement required by the machine |
| Compatible SIN/COS Encoder | Supplies 1 Vpp feedback signals |
| Mechanical Transmission | Transfers motor movement to the machine axis |
| NC Software | Provides the required CNC and drive-control functions |
| Drive Parameters | Define axis behavior and feedback settings |
| CNC Electrical Cabinet | Houses the associated control and drive hardware |
Industrial Applications
| Application | Practical Use |
|---|---|
| CNC Milling Machines | Controlling compatible feed axes during programmed machining operations |
| CNC Turning Machines | Supporting configured axis and spindle-drive arrangements |
| Metalworking Machinery | Processing encoder feedback within a SIMODRIVE-based drive system |
| Two-Axis Feed Systems | Coordinating movement across two supported axes |
| CNC Production Lines | Integrating closed-loop control into modular machine-tool drive hardware |
| Machine Tool Retrofits | Replacing an existing control unit when the drive and feedback configurations match |
| Industrial Positioning Equipment | Regulating movement through compatible encoder-based control |
| Multi-Axis Machining Centers | Serving as one control component within a larger coordinated drive architecture |
Installation and Maintenance
- Verify the complete order number: Confirm 6SN1118-0DM31-0AA2 and distinguish it from related control units with different axis or measuring-system configurations.
- Check the axis arrangement: Verify that the intended feed-drive or main-spindle application matches the unit’s supported configuration.
- Confirm encoder compatibility: Check that the connected encoder provides the supported SIN/COS 1 Vpp signals.
- Review the measuring-system arrangement: Confirm that the machine does not require a direct measuring-system interface from this control unit.
- Check the drive hardware: Verify compatibility with the installed SIMODRIVE 611 power modules, motors, and control assembly.
- Isolate the drive system: Follow the approved shutdown, electrical isolation, and DC-link discharge procedures before removing or installing the unit.
- Inspect connectors and wiring: Check the encoder and control interfaces for damaged insulation, loose connections, contamination, or incorrect pin assignments.
- Verify NC software requirements: Confirm that the installed software meets the specified version requirement and supports the intended configuration.
- Back up the drive parameters: Preserve axis assignments, encoder settings, and relevant control parameters before replacing the unit.
- Check feedback direction and scaling: Confirm that the encoder signal corresponds correctly to the configured axis movement and engineering units.
- Test axis response during commissioning: Follow the machine’s commissioning procedure and verify controlled movement before returning the equipment to production.
- Record the final configuration: Document the control-unit reference, software version, encoder type, axis assignment, and commissioning results for future troubleshooting.
Compatible System Components
| Component | Function |
|---|---|
| Siemens 6SN1118-0DM31-0AA2 | Provides the specified two-axis High Standard closed-loop control |
| SIMODRIVE 611 Power Modules | Supply controlled power to compatible motors |
| CNC Controller | Generates motion commands and coordinates machine operation |
| Compatible Feed Motors | Produce movement for the configured feed axes |
| Compatible Main-Spindle Motors | Support spindle operation in an appropriate drive configuration |
| SIN/COS 1 Vpp Encoders | Provide the specified motor-feedback signals |
| CNC NC Software | Supplies the required control functions for the installed configuration |
| Drive Parameter Configuration | Defines axis behavior, feedback scaling, and control settings |
| CNC Electrical Cabinet | Houses the control unit and associated drive hardware |
Recommended Related Models
| Model | Product Type | Typical Application |
|---|---|---|
| Siemens 6SN1118-0DM31-0AA0 | Digital High Standard Closed-Loop Control Unit | Comparing the related two-axis High Standard configuration |
| Siemens 6SN1118-0DM31-0AA1 | SIMODRIVE 611 Digital High Standard Control Unit | Evaluating a related order-code variant for compatible drive systems |
| Siemens 6SN1118-0DM33-0AA2 | Digital High Standard Closed-Loop Control Unit | Two-axis applications requiring a direct measuring system |
| Siemens 6SN1118-0DM21-0AA0 | Closed-Loop Control Plug-In Unit | Comparing another SIMODRIVE High Standard control configuration |
| Siemens 6SN1118-0DK21-0AA2 | Digital High Performance Closed-Loop Control Unit | Applications requiring the specified High Performance configuration |
| Siemens 6SN1118-0DK23-0AA2 | Digital High Performance Closed-Loop Control Unit | High Performance two-axis applications with a direct measuring system |
Key Advantages
- Supports two-axis closed-loop control in the SIMODRIVE 611 Digital system.
- Works with compatible SIN/COS 1 Vpp encoder feedback.
- Supports the specified digital speed/torque setpoint interface.
- Fits drive configurations that do not require direct measuring-system feedback.
- Integrates with compatible CNC controllers, power modules, and motors.
Technical FAQs
What is the difference between the 6SN1118-0DM31-0AA2 and 6SN1118-0DM33-0AA2?
Both are two-axis High Standard control units, but the DM31 configuration is specified without a direct measuring system, whereas the DM33 variant supports a direct measuring system. The machine’s feedback architecture is therefore a key selection criterion.
Which encoder signal should be checked before connecting this control unit?
The specified configuration supports SIN/COS encoders with 1 Vpp signals. Verify the encoder interface, wiring, feedback scaling, and compatibility with the installed drive system before commissioning.
Why does the NC software version matter when installing the 6SN1118-0DM31-0AA2?
The unit requires NC software version 06.04.09 or later. The installed software and drive configuration must support the intended control unit and axis arrangement for correct operation.
Can this control unit correct positioning errors caused by mechanical backlash?
The control unit processes the available encoder feedback, but it does not eliminate mechanical backlash or wear in the transmission. If motor feedback appears correct while machine positioning remains inaccurate, inspect the coupling, screw drive, transmission, and other mechanical components.
