Product Overview

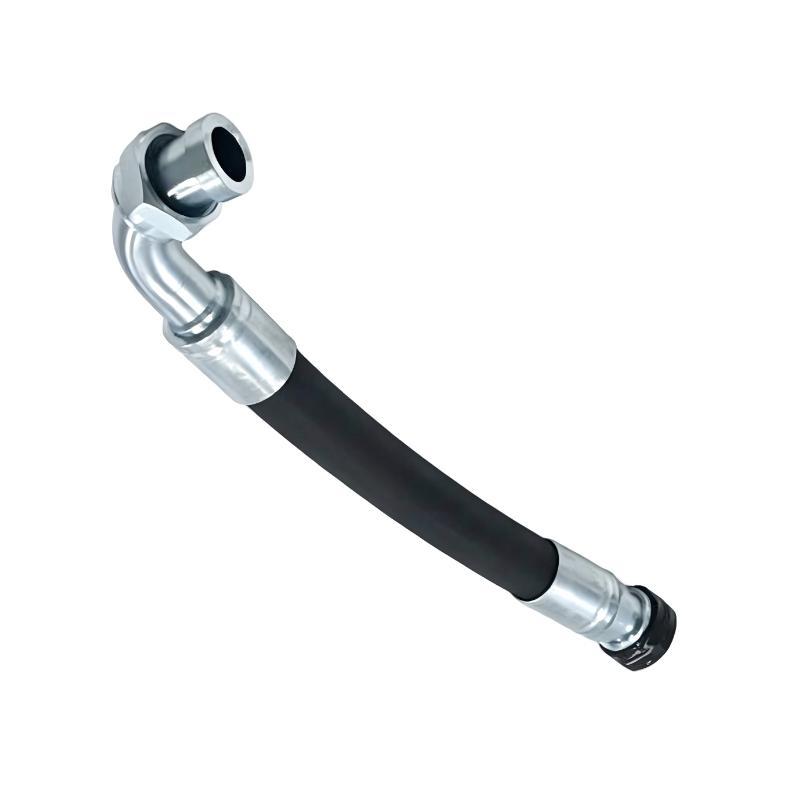

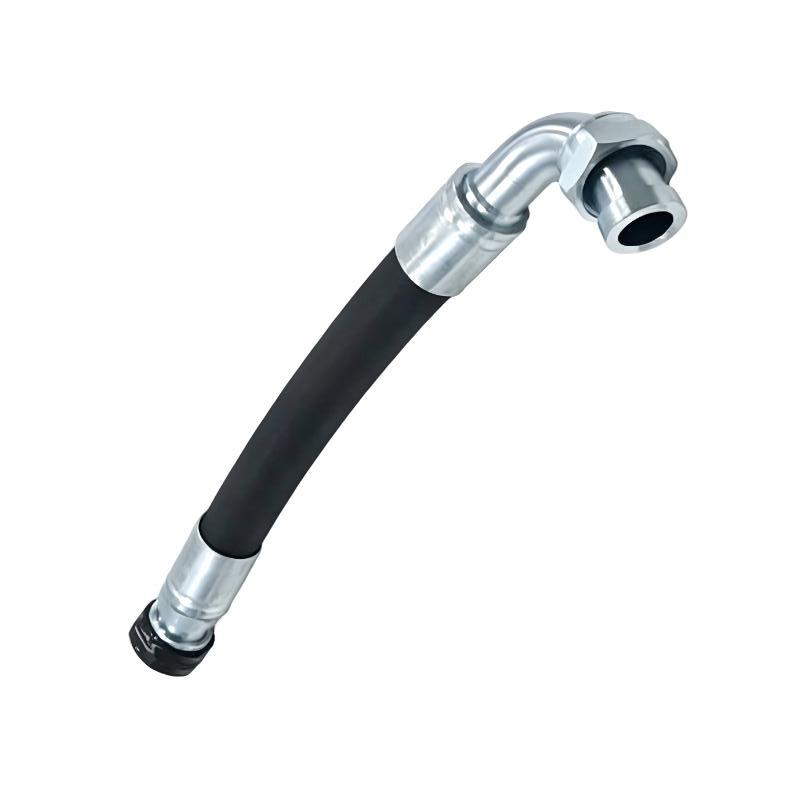

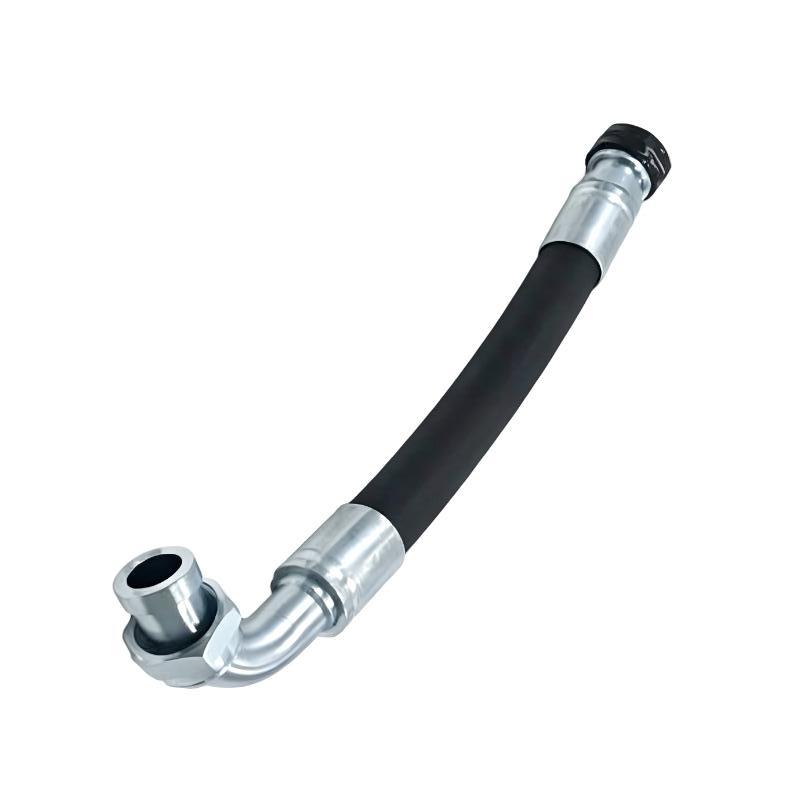

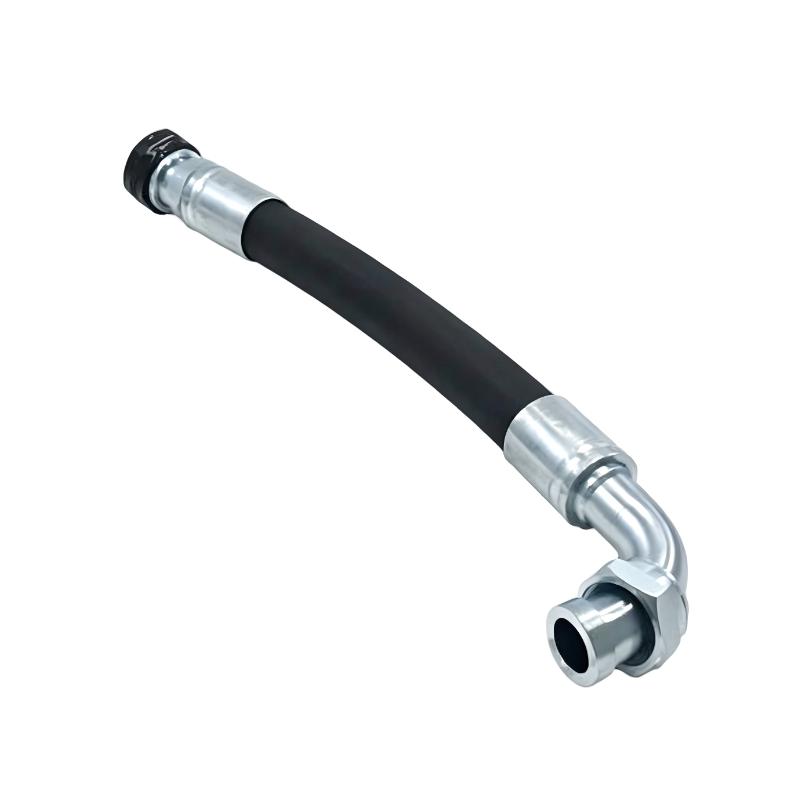

The Ingersoll Rand 24509192 48662688 Hose is a replacement hydraulic hose identified by the part number 48662688. Its catalog description specifies a 0.75-inch hose with a nominal length of 34 inches, indicating a hydraulic line used to carry fluid between connected components in compatible equipment.

Hydraulic hoses are used where fluid must move between components that may be mounted at different positions or experience vibration during operation. Unlike rigid tubing, a flexible hose can accommodate movement and simplify routing around mechanical assemblies. Its suitability depends on the required pressure rating, fluid compatibility, connection type, and installation geometry.

In an industrial machine, a hydraulic hose may connect a pump, valve, actuator, or other fluid-handling component. Correct hose selection is essential because the line must carry the intended fluid without leakage while accommodating the movement and operating conditions of the equipment.

The 48662688 reference is listed as a hydraulic hose with a 0.75-inch nominal size and a 34-inch length. The exact fitting configuration, pressure rating, and installation position should be confirmed against the applicable parts arrangement before replacement. These details cannot be determined from the part number and hose description alone.

For maintenance personnel, the main concerns are hose deterioration, abrasion, leakage, fitting damage, and incorrect routing. A replacement should match the original assembly specification rather than being selected solely because its nominal diameter and length appear suitable.

Technical Specifications

Product Features

• Hydraulic fluid transfer: Carries fluid between connected components in the intended hydraulic circuit.
• Flexible routing: Accommodates hose routing where rigid pipework would be less suitable.
• Defined nominal size: The 0.75-inch designation helps identify the specified hose size.
• Specified length: The 34-inch catalog description provides a reference for replacement selection.
• Dedicated part identification: The 48662688 number distinguishes this hose from other hydraulic lines in the parts range.
• Maintenance replacement: Allows a damaged or deteriorated hose to be replaced without automatically changing the surrounding hydraulic components.
• Assembly-specific compatibility: Requires confirmation of the original connection arrangement and operating specifications before installation.

Working Principle

The 48662688 hose functions as a conduit within a hydraulic circuit. When the hydraulic pump generates flow, fluid travels through the connected hoses and passages to the relevant control valves or actuators. The hose provides a flexible connection along that route.

A simplified hydraulic circuit may follow this arrangement:

Hydraulic Reservoir → Pump → Control Valve → Hydraulic Hose → Actuator → Return Circuit

This is a general example rather than a confirmed circuit diagram for the 48662688. The actual flow path depends on the equipment in which the hose is installed.

In operation, the hose wall contains the hydraulic fluid while its reinforcement supports the pressure imposed by the circuit. The end fittings connect the hose to the adjoining components and provide the necessary sealing interfaces. The assembly must be rated for the system’s pressure, temperature, fluid, and expected operating conditions.

During maintenance, a hose may require replacement if its outer cover is abraded, the reinforcement is exposed, a fitting is damaged, or leakage appears around the assembly. Repeated flexing, contact with sharp edges, excessive bending, and exposure to incompatible fluids can shorten service life.

Installing a replacement involves more than matching the nominal hose size. The connection types, pressure rating, hose routing, and required clearance must also match the equipment specification. A hose that is too short may remain under tension, while one that is routed incorrectly may rub against adjacent components or interfere with machine movement.

Role in the Hydraulic System

The hose forms the fluid connection between components in the hydraulic circuit. Its specific position and function depend on the machine’s hydraulic schematic and the hose’s original installation.

Industrial Applications

Installation and Maintenance

1. Verify the part number: Confirm 24509192 and 48662688 against the equipment’s parts list and the identification of the existing hose.
2. Check the hydraulic circuit: Establish the hose’s original connection points and function before disconnecting it.
3. Shut down the equipment: Follow the machine’s isolation procedure and prevent unintended movement of hydraulically operated components.
4. Release stored hydraulic pressure: Depressurize the relevant circuit according to the equipment’s service procedure before loosening any connection.
5. Inspect the existing hose: Look for abrasion, cracking, bulging, exposed reinforcement, leakage, or other visible damage.
6. Check the end fittings: Examine the connections for damaged threads, worn sealing surfaces, corrosion, and evidence of leakage.
7. Confirm replacement specifications: Verify hose size, length, pressure rating, fluid compatibility, and fitting configuration against the required assembly specification.
8. Inspect the routing path: Check for sharp edges, hot surfaces, moving parts, and other sources of abrasion or excessive bending.
9. Install the replacement hose: Connect the hose using the specified fittings and assembly procedure. Avoid twisting the hose body during installation.
10. Secure the hose correctly: Maintain the required clearance and bend radius, and ensure that the hose is not stretched or trapped by adjacent components.
11. Test the hydraulic circuit: Restore the system according to the approved procedure and check the hose and fittings for leakage under the specified operating conditions. Never use a hand to search for a high-pressure hydraulic leak.
12. Record the maintenance work: Document the installed part number, inspection findings, replacement date, and any additional hydraulic-system faults identified.

Compatible System Components

Recommended Related Models

Key Advantages

• Provides a flexible fluid connection within a compatible hydraulic circuit.
• Has a defined part number and listed nominal hose size for identification.
• Supports replacement of damaged or deteriorated hose assemblies.
• Helps maintain the intended hydraulic connection when correctly specified and installed.
• Allows hose condition and routing to be addressed during routine equipment maintenance.

Technical FAQs

What does the 48662688 hose designation tell you about the hose?

The catalog description identifies it as a hydraulic hose with a 0.75-inch nominal size and a listed length of 34 inches. The description alone does not establish its pressure rating, fitting details, or exact installation location.

Can the 48662688 be replaced with another 0.75-inch hydraulic hose?

Not automatically. The replacement must also match the required pressure rating, hose construction, fluid compatibility, end fittings, length, and routing requirements of the original assembly.

What should be checked if the hose leaks around one of its connections?

Inspect the fitting, sealing interface, threads, and hose termination for damage or incorrect assembly. Confirm that the connection type matches the installed port and that the hose has not been twisted or placed under excessive tension.

Why is hose routing important after replacement?

Incorrect routing can cause abrasion, excessive bending, twisting, heat exposure, or interference with moving components. These conditions can lead to premature hose failure even when the replacement has the correct nominal size.
