Product Overview

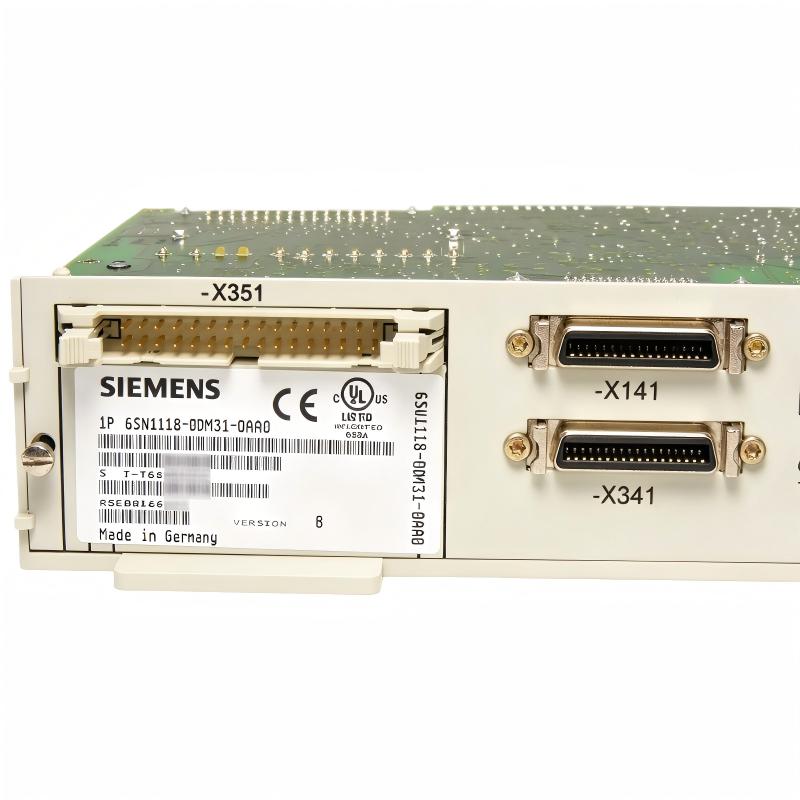

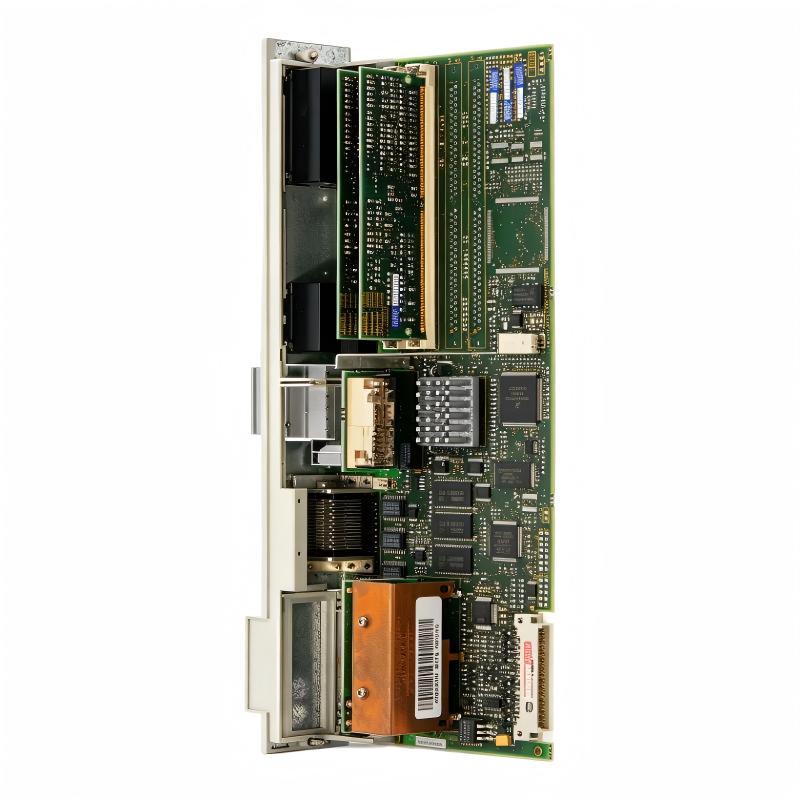

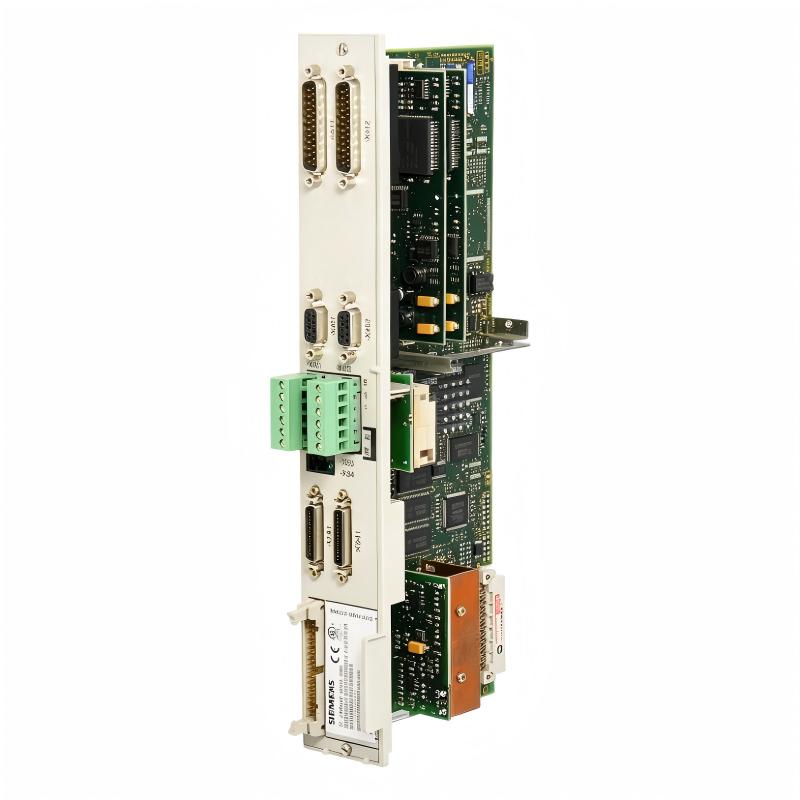

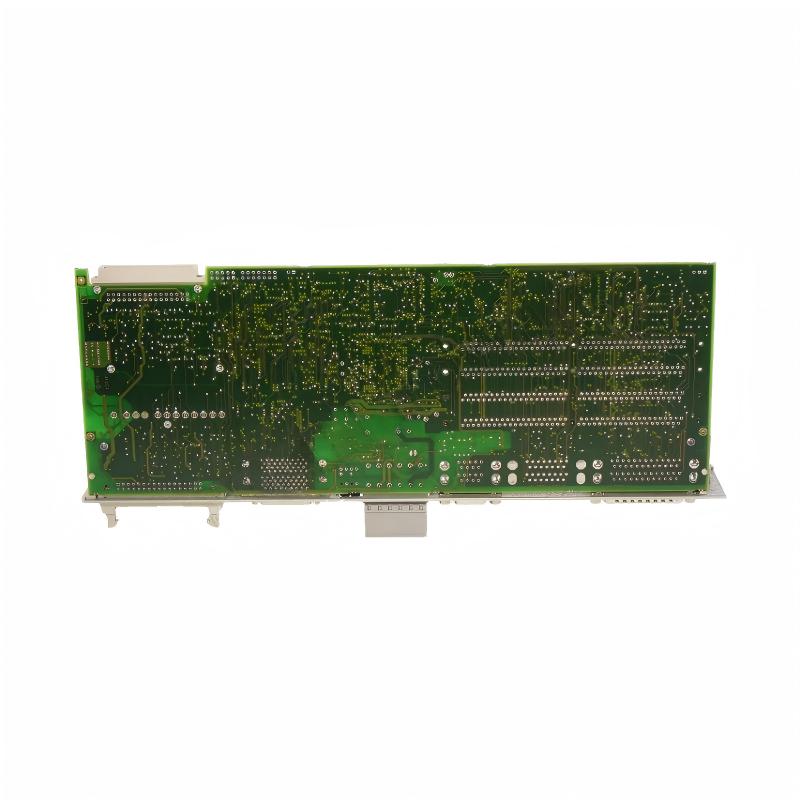

The Siemens 6SN1118-0DM31-0AA0 is a SIMODRIVE 611 digital High Standard closed-loop control plug-in unit for two-axis CNC drive applications. It supports incremental encoders and sin/cos encoders with 1 Vpp signals, with the specified configuration operating without a direct measuring system. The unit processes drive-control information for compatible feed-drive and main-spindle arrangements within the SIMODRIVE 611 architecture.
In a CNC machine, the controller issues movement commands while the drive system regulates motor operation and uses encoder feedback to track motion. The 6SN1118-0DM31-0AA0 handles the specified closed-loop control functions within that system. It is particularly relevant to machine configurations that need coordinated control of two axes without the additional direct measuring-system interface used by other SIMODRIVE variants.
For example, a milling machine may use the unit to support two feed axes during a programmed machining sequence. The CNC controller coordinates the requested positions, while the drive system processes the encoder feedback and adjusts motor operation to follow the commands. The achievable motion performance depends on the selected motors, power modules, encoder characteristics, mechanical transmission, and control parameters.
The product’s High Standard designation distinguishes it from the SIMODRIVE High Performance control units. Selection should therefore account for the required control functions, axis arrangement, feedback type, and application demands rather than assuming that all 6SN1118 units are interchangeable.
The 6SN1118-0DM31-0AA0 is a control plug-in unit, not a complete drive or standalone CNC controller. It must be integrated with compatible SIMODRIVE power modules, motors, encoder connections, and CNC hardware. The NC software requirement and the installed system configuration should also be checked when replacing an existing unit.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model | 6SN1118-0DM31-0AA0 |
| Product Family | SIMODRIVE 611 Digital |
| Product Type | Digital High Standard Closed-Loop Control Plug-In Unit |
| Control Classification | High Standard |
| Number of Axes | 2 |
| Encoder Compatibility | Incremental encoders and sin/cos encoders, 1 Vpp |
| Direct Measuring System | Not supported in this configuration |
| Drive Applications | Feed Drive (FD) and Main Spindle Drive (MSD), subject to configuration |
| NC Software | Required from 06.04.09 |
| Installation Type | Plug-in control unit |
| Compatible System | SIMODRIVE 611 digital drive system |
| Dimensions | 330 × 51 × 152 mm |
| Weight | 0.8 kg |
Product Features
- Two-axis control: Supports the specified two-axis SIMODRIVE configuration.
- High Standard control: Provides the control classification identified by the model’s product designation.
- Encoder feedback support: Works with compatible incremental and sin/cos 1 Vpp encoder systems.
- No direct measuring system: Suits configurations that use the supported encoder feedback arrangement without a direct axis-measuring interface.
- Feed-drive and spindle applications: Supports the applicable drive configurations within the SIMODRIVE 611 system.
- Digital drive integration: Operates as part of the modular CNC drive architecture.
- NC software compatibility: Requires the applicable software configuration for the installed drive system.
Working Principle
The 6SN1118-0DM31-0AA0 processes control commands and encoder feedback within a SIMODRIVE 611 digital drive system. The CNC controller supplies the motion commands, while the control unit works with the connected drive hardware to regulate motor operation according to the configured axis and feedback parameters.
A simplified control path is:
CNC Controller → 6SN1118-0DM31-0AA0 → SIMODRIVE Power Module → Motor → Machine Axis
Motor Encoder → Feedback Interface → Closed-Loop Control Unit
During machine operation, the CNC controller requests a movement. The drive system energizes the motor, and the encoder reports motor position or movement information to the control system. The closed-loop control process uses this feedback to evaluate motion against the command and adjust the drive response.
Because this variant does not support a direct measuring system, its feedback arrangement must be based on compatible motor encoders. The relationship between motor position and actual machine-axis position therefore depends on the mechanical transmission and its condition. Backlash, coupling problems, or mechanical wear can affect the final positioning result even when the encoder signal is functioning correctly.
The two-axis designation does not mean that every possible combination of feed axes and main spindles is supported simultaneously. The intended axis configuration must match the control unit, power modules, motors, encoder interfaces, and CNC software.
When commissioning the system, engineers should verify the encoder type, feedback wiring, axis assignment, and parameter configuration. Incorrect feedback direction or scaling can cause positioning errors, unexpected movement, or unsuccessful commissioning.
Role in the SIMODRIVE 611 CNC Drive Architecture
The 6SN1118-0DM31-0AA0 occupies the closed-loop control position between the CNC command system and the associated drive hardware. It processes the configured axis-control information and encoder feedback for the supported two-axis arrangement.
CNC Controller → Digital High Standard Control Unit → Power Module → Motor → Mechanical Axis
| System Element | Function |
|---|---|
| CNC Controller | Generates motion commands and coordinates machining sequences |
| 6SN1118-0DM31-0AA0 | Processes the specified two-axis closed-loop control functions |
| SIMODRIVE 611 Power Module | Supplies controlled electrical power to compatible motors |
| Feed or Main-Spindle Motor | Produces the mechanical movement required by the machine |
| Motor Encoder | Supplies position or movement feedback |
| Mechanical Transmission | Transfers motor movement to the machine axis |
| NC Software and Drive Parameters | Define the supported control and axis configuration |
| CNC Cabinet | Houses the associated control and drive equipment |
Industrial Applications
| Application | Practical Use |
|---|---|
| CNC Milling Machines | Coordinating compatible feed-axis movement during machining |
| CNC Turning Machines | Supporting configured axis and spindle control arrangements |
| Metalworking Machinery | Processing encoder feedback in SIMODRIVE-based equipment |
| Two-Axis Feed Systems | Controlling two compatible axes within the specified configuration |
| Machine Tool Retrofit Projects | Replacing a control unit where feedback and software requirements match |
| CNC Production Equipment | Integrating High Standard control into an existing modular drive system |
| Industrial Positioning Machinery | Regulating motion using compatible motor-encoder feedback |
| Multi-Axis Machine Tool Systems | Serving as a control component within a larger SIMODRIVE architecture |
Installation and Maintenance
- Verify the complete order number: Confirm 6SN1118-0DM31-0AA0 and distinguish it from related High Standard and High Performance variants.
- Check the axis configuration: Confirm that the intended feed-drive or main-spindle arrangement is supported by the control unit and associated drive modules.
- Verify encoder compatibility: Check that the installed feedback device uses a supported incremental or sin/cos 1 Vpp interface.
- Confirm the absence of a direct measuring system: Ensure that the machine’s feedback architecture matches this variant rather than a control unit intended for direct measuring-system operation.
- Check the drive assembly: Verify the intended plug-in position and compatibility with the installed SIMODRIVE 611 hardware.
- Isolate the equipment: Follow the machine’s approved shutdown, electrical isolation, and DC-link discharge procedures before accessing the drive system.
- Inspect connectors and wiring: Check encoder and control connections for loose contacts, damaged insulation, contamination, or incorrect pin assignments.
- Verify NC software compatibility: Confirm that the installed CNC and drive software meet the requirements of the control unit and configured application.
- Back up drive parameters: Preserve the existing axis assignments, encoder settings, and relevant control parameters before replacing the unit.
- Check feedback direction and scaling: Verify that encoder signals correspond correctly to the configured axis movement and measurement units.
- Perform controlled commissioning: Follow the approved commissioning procedure and confirm the axis response at a safe operating condition before returning the machine to production.
- Record the final configuration: Document the unit reference, software version, axis assignments, encoder types, and commissioning results for future troubleshooting.
Compatible System Components
| Component | Function |
|---|---|
| Siemens 6SN1118-0DM31-0AA0 | Provides two-axis High Standard closed-loop control |
| SIMODRIVE 611 Power Modules | Supply controlled power to compatible motors |
| CNC Controller | Generates motion commands and coordinates machine operation |
| Compatible Feed Motors | Produce movement for the configured feed axes |
| Compatible Main-Spindle Motors | Support spindle operation in an appropriate drive configuration |
| Incremental Encoders | Supply compatible motor-position feedback |
| Sin/cos 1 Vpp Encoders | Provide the specified encoder feedback signals |
| NC Software and Drive Parameters | Define the applicable control and axis settings |
| CNC Electrical Cabinet | Houses the control unit and associated drive hardware |
Recommended Related Models
| Model | Product Type | Typical Application |
|---|---|---|
| Siemens 6SN1118-0DM31-0AA0 | SIMODRIVE 611 Digital High Standard Control Unit, 2 Axes | Two-axis closed-loop control using compatible motor encoders |
| Siemens 6SN1118-0DM31-0AA1 | SIMODRIVE 611 Digital High Standard Control Unit, 2 Axes | Related control-unit version; verify the complete configuration before substitution |
| Siemens 6SN1118-0DM31-0AA2 | SIMODRIVE 611 Digital High Standard Control Unit, 2 Axes | Related version for compatible SIMODRIVE 611 configurations |
| Siemens 6SN1118-0DM33-0AA0 | SIMODRIVE 611 Digital High Standard Control Unit, 2 Axes | Compare the control and feedback configuration for the intended drive system |
| Siemens 6SN1118-0DM21-0AA0 | Closed-Loop Control Plug-In Unit | Related High Standard control configuration with a different order-code variant |
| Siemens 6SN1118-0DK21-0AA0 | Digital High Performance Closed-Loop Control Unit | Applications requiring the specified High Performance control configuration |
Key Advantages
- Supports two-axis closed-loop control in a SIMODRIVE 611 digital system.
- Works with compatible incremental and sin/cos 1 Vpp motor encoders.
- Fits CNC drive configurations that do not require a direct measuring system.
- Integrates with the corresponding power modules, motors, and CNC control hardware.
Technical FAQs
Which encoder types are supported by the 6SN1118-0DM31-0AA0?
The specified configuration supports incremental encoders and sin/cos encoders with 1 Vpp signals. The actual encoder interface, wiring, and parameter settings must match the installed motor and drive arrangement.
Can this control unit use a direct measuring system mounted on the machine axis?
This variant is specified for operation without a direct measuring system. If the machine requires direct axis-position feedback, select a compatible control-unit configuration that supports the required measuring-system interface.
What should be checked before replacing this unit with a DM31 variant carrying a different suffix?
Compare the complete order number, encoder configuration, software requirements, and installed drive parameters. Similar model designations do not guarantee identical interfaces or interchangeability.
Why might the motor encoder position be correct while the machine axis still shows a positioning error?
The encoder may measure motor movement rather than the final machine-axis position. Backlash, coupling movement, mechanical wear, or transmission problems can affect the relationship between motor rotation and actual axis displacement.
