Product Overview

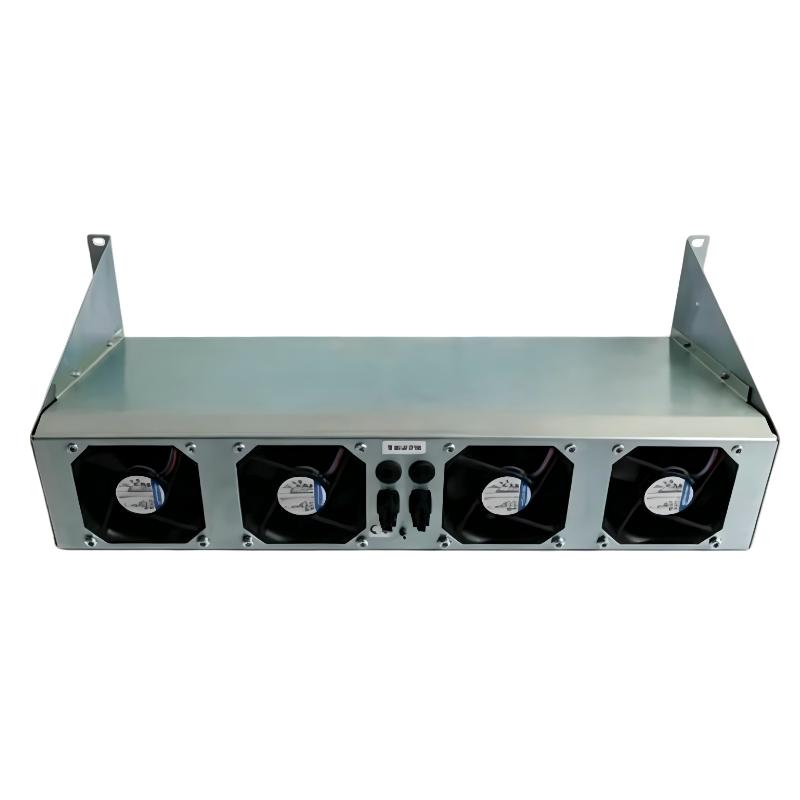

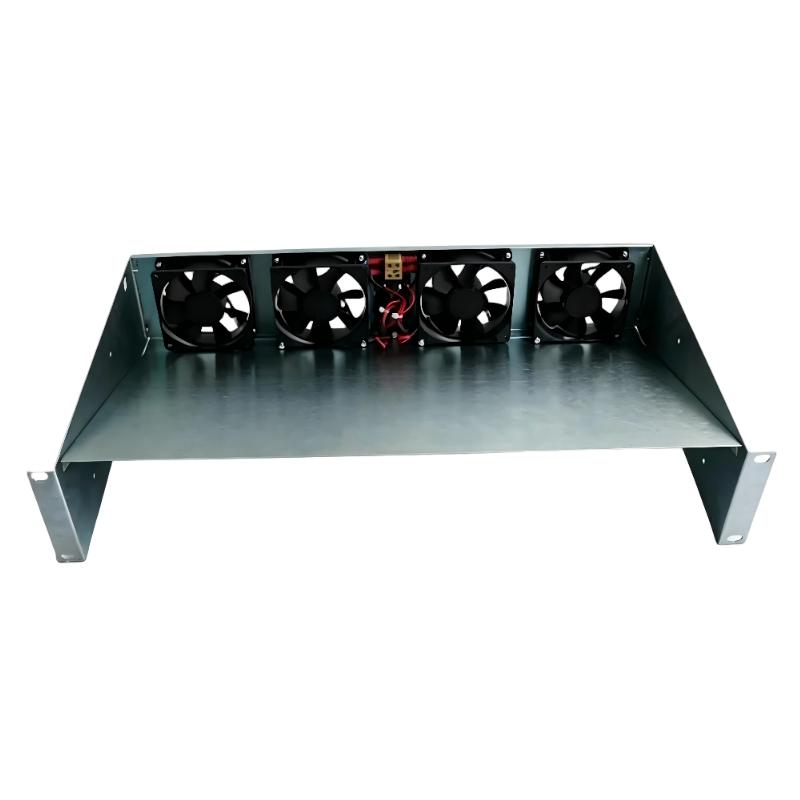

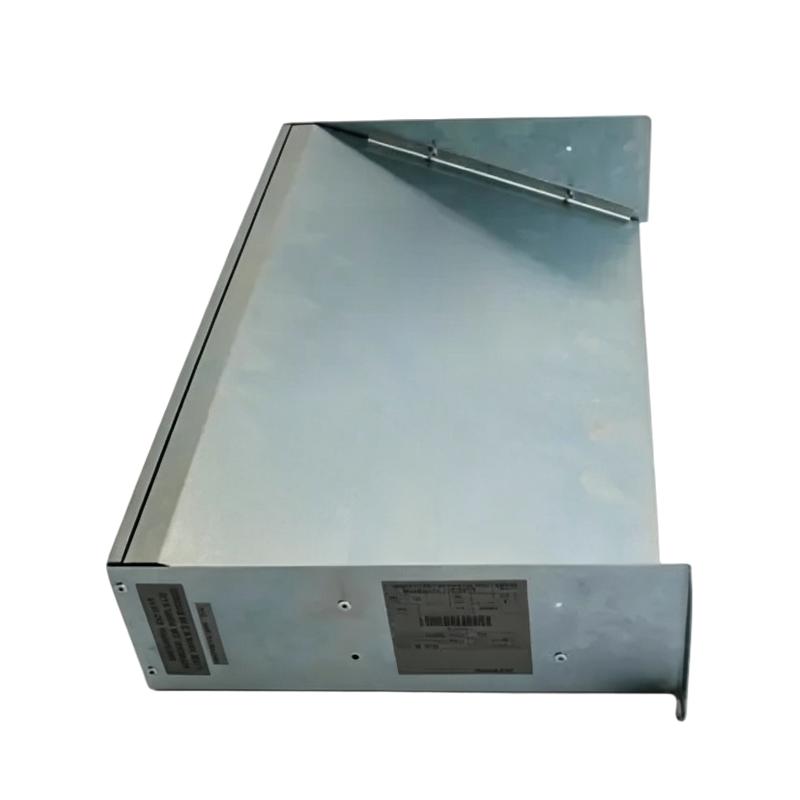

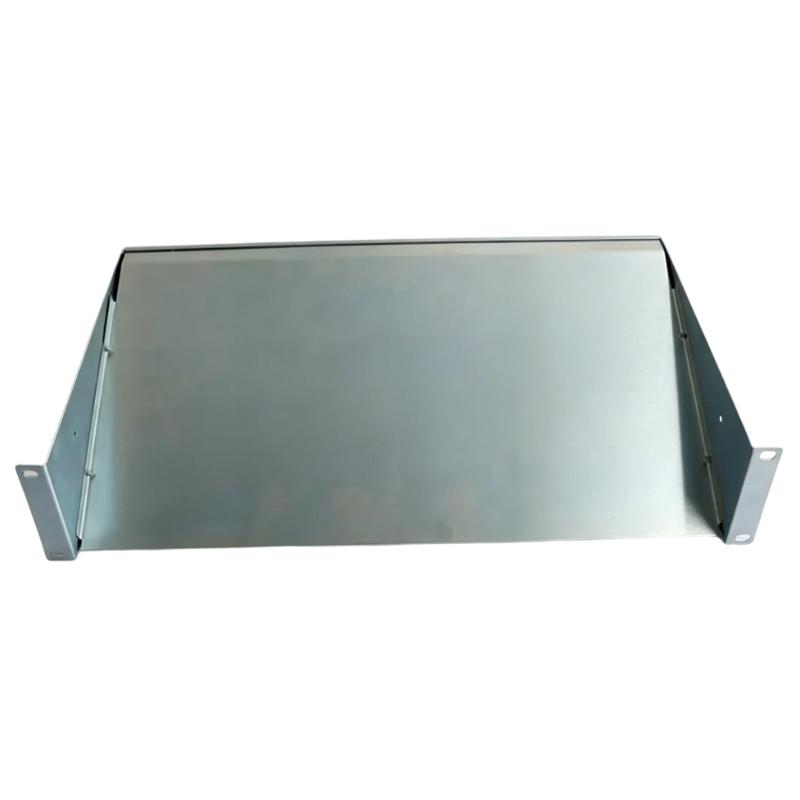

The ICS Triplex T8270 Trusted 24 Vdc Fan Assembly is a cooling component used within the ICS Triplex Trusted system. It supports thermal management inside the system cabinet by maintaining airflow around installed Trusted hardware.
For safety control systems operating continuously in industrial environments, heat generated by processors, I/O modules, power components, and interface hardware needs to be managed as part of normal cabinet operation. The T8270 addresses this requirement with a 24 Vdc fan assembly, helping maintain airflow through the equipment enclosure.
The fan assembly is particularly relevant in Trusted system cabinets where multiple modules operate together for extended periods. During maintenance, abnormal fan operation can also be an early indication of a cooling-system problem that should be addressed before elevated cabinet temperature affects system hardware.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ICS Triplex |
| Model | T8270 |
| Product Family | Trusted |
| Product Type | Trusted 24 Vdc Fan Assembly |
| Primary Function | System Cooling / Airflow |
| Rated Supply | 24 Vdc |
| System Role | Cabinet Thermal Management |
| Application | Safety / Industrial Control Systems |
| Installation | Trusted System Cabinet |
| Dimensions | 483 × 88 × 267 mm |
| Weight | 1.8 kg |
Product Features
- ICS Triplex Trusted 24 Vdc Fan Assembly
- Model T8270
- 24 Vdc fan supply
- Used for Trusted system cooling
- Supports airflow within the equipment cabinet
- Suitable for continuous industrial control environments
- Helps manage heat generated by installed system components
- Applicable to Trusted cabinet maintenance
- Useful for cooling-system replacement
- Works as part of the overall Trusted thermal-management arrangement
Working Principle
The T8270 uses a 24 Vdc supply to operate its fan assembly and generate airflow through the Trusted equipment enclosure.
A simplified cooling path is:
24 Vdc Supply → T8270 Fan Assembly → Airflow → Trusted System Hardware
During normal operation, the fan moves air through the cabinet area occupied by the Trusted equipment. This airflow helps carry heat away from processors, I/O modules, power components, and other heat-generating hardware.
The fan assembly itself does not perform control or safety logic. Its function is thermal management, supporting the operating environment required by the electronic modules installed in the Trusted system.
A failed or degraded fan can reduce airflow and gradually increase cabinet temperature. For this reason, fan condition should be considered when investigating temperature-related alarms or abnormal equipment behavior.
Role in a Trusted Safety Architecture
| System Element | Function |
|---|---|
| T8270 | Provides cabinet cooling airflow |
| T8111C | Performs Trusted TMR processing |
| T8151C | Provides Trusted communication interface |
| T8122C | Provides processor interface adaptation |
| Trusted I/O Modules | Interface with field signals |
| Trusted Power Components | Supply system power |
| Cabinet / Enclosure | Houses and protects system hardware |
| Temperature Monitoring | Detects abnormal thermal conditions |
The T8270 belongs to the supporting infrastructure of the Trusted system rather than the control-logic or I/O signal-processing layer.
Industrial Applications
| Application | Typical Use |
|---|---|
| Safety Instrumented Systems | Trusted cabinet cooling |
| Oil and Gas | Continuous safety-system operation |
| Chemical Processing | Control cabinet thermal management |
| Power Generation | Cooling for safety and control equipment |
| Refining | Trusted system enclosure airflow |
| Emergency Shutdown Systems | Thermal management of safety hardware |
| Process Automation | Cabinet cooling for electronic modules |
| Industrial Control | Maintaining suitable equipment airflow |
Installation and Maintenance
- Confirm the T8270 model before replacement.
- Verify the fan assembly’s position within the Trusted cabinet.
- Check the 24 Vdc supply to the fan assembly.
- Inspect fan connectors and associated wiring.
- Check for abnormal fan noise or vibration.
- Verify that the fan starts and operates normally.
- Inspect air passages for dust or obstruction.
- Check nearby equipment for signs of excessive heat.
- Review cabinet temperature indications where available.
- Confirm adequate airflow after maintenance.
- Inspect the fan assembly for mechanical damage.
- Replace the assembly if abnormal operation persists.
- Record the maintenance activity and fan operating condition.
If cabinet temperature rises unexpectedly, the fan should not be the only item checked. The investigation should also consider the 24 Vdc supply, airflow obstruction, cabinet ventilation, installed equipment load, and temperature-monitoring functions.
Related Components
| Component | Function |
|---|---|
| ICS Triplex T8270 | Trusted 24 Vdc Fan Assembly |
| T8111C | Trusted TMR Processor Module |
| T8151C | Trusted Communication Interface |
| T8122C | Trusted Processor Interface Adapter |
| T8290C | Trusted Output Power Distribution Unit |
| Trusted I/O Modules | Field signal processing |
| Trusted Power Supply | Provides system power |
| Cabinet Ventilation Hardware | Supports system airflow |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| ICS Triplex T8270 | Trusted 24 Vdc Fan Assembly | Trusted cabinet cooling |
| ICS Triplex T8111C | Trusted TMR Processor Module | Safety and control processing |
| ICS Triplex T8151C | Trusted Communication Interface | System communication |
| ICS Triplex T8122C | Trusted Processor Interface Adapter | Processor interfacing |
| ICS Triplex T8290C | Trusted Output Power Distribution Unit | Output power distribution |
| ICS Triplex Trusted I/O Modules | I/O Module Family | Field signal interface |
| ICS Triplex Trusted Power Supply | Power Supply | System power |
| ICS Triplex Trusted Chassis | System Chassis | Trusted hardware installation |
Key Advantages
- Trusted 24 Vdc Fan Assembly
- Model T8270
- Supports Trusted system cabinet cooling
- Operates from a 24 Vdc supply
- Maintains airflow around installed electronics
- Suitable for continuous industrial operation
- Useful for Trusted system maintenance and replacement
- Supports the thermal-management infrastructure of the system
Technical FAQs
What is the purpose of the 24 Vdc supply on the T8270?
The 24 Vdc supply powers the fan assembly so that it can generate the airflow required for Trusted system cooling. It is separate from the processing and safety-logic functions performed by the Trusted controller.
What symptoms can indicate that the T8270 requires inspection?
Typical indications can include abnormal fan noise, reduced airflow, fan stoppage, or an increase in cabinet temperature. The 24 Vdc supply and fan connections should also be checked before determining that the assembly itself has failed.
Can a failed cooling fan affect Trusted system hardware?
Yes. Reduced airflow can allow heat to accumulate inside the cabinet, potentially raising the operating temperature of processors, I/O modules, and other electronic components. The actual effect depends on cabinet conditions and the duration of the cooling problem.
What should be checked after replacing the T8270?
Verify the 24 Vdc supply, confirm that the fan starts correctly, and check for normal airflow. It is also useful to monitor cabinet temperature after maintenance to ensure that the cooling system is functioning as expected.
