Product Overview

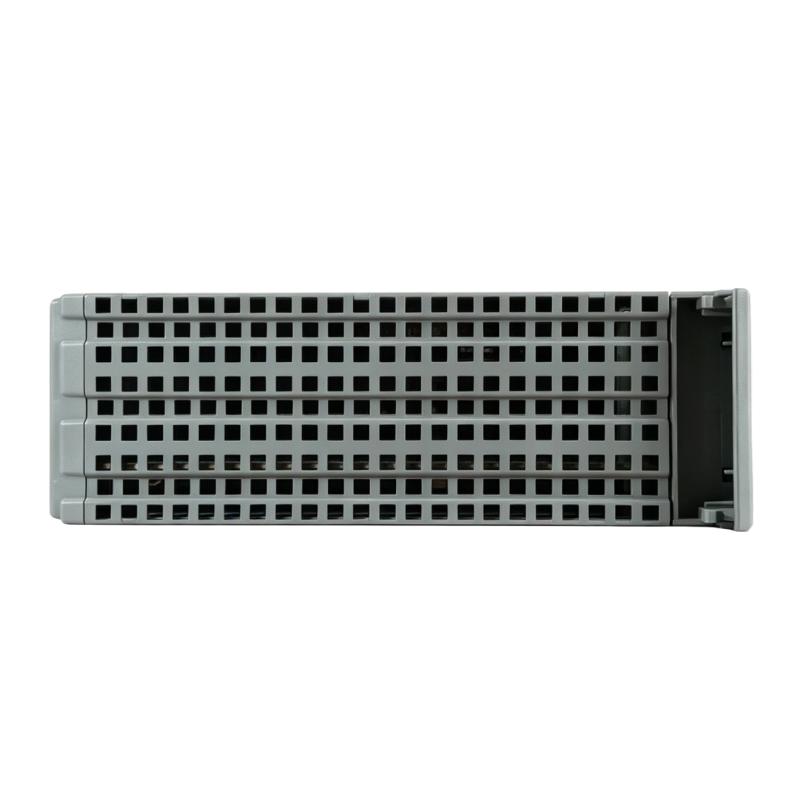

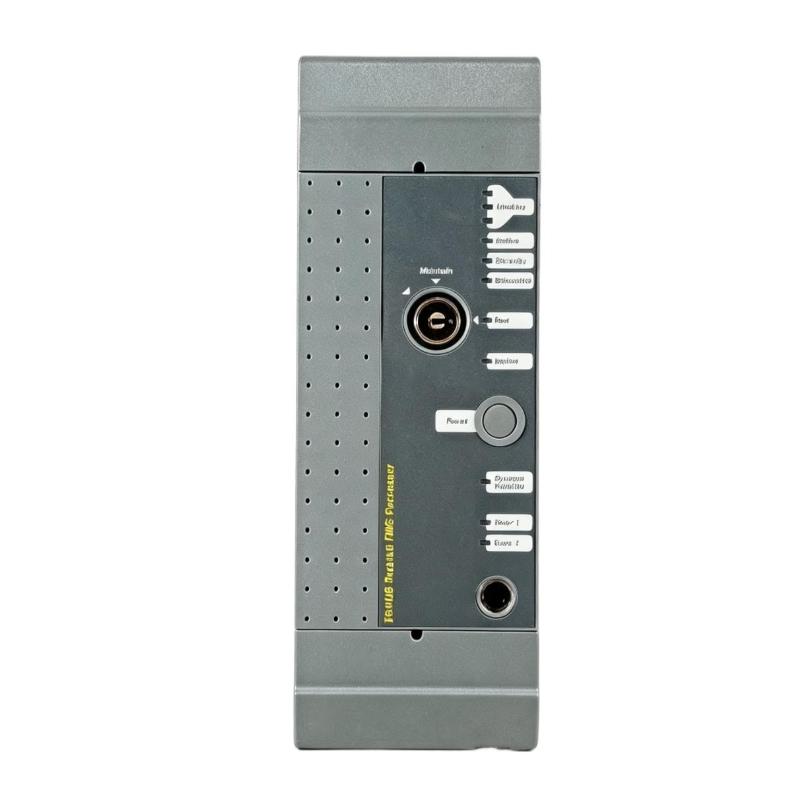

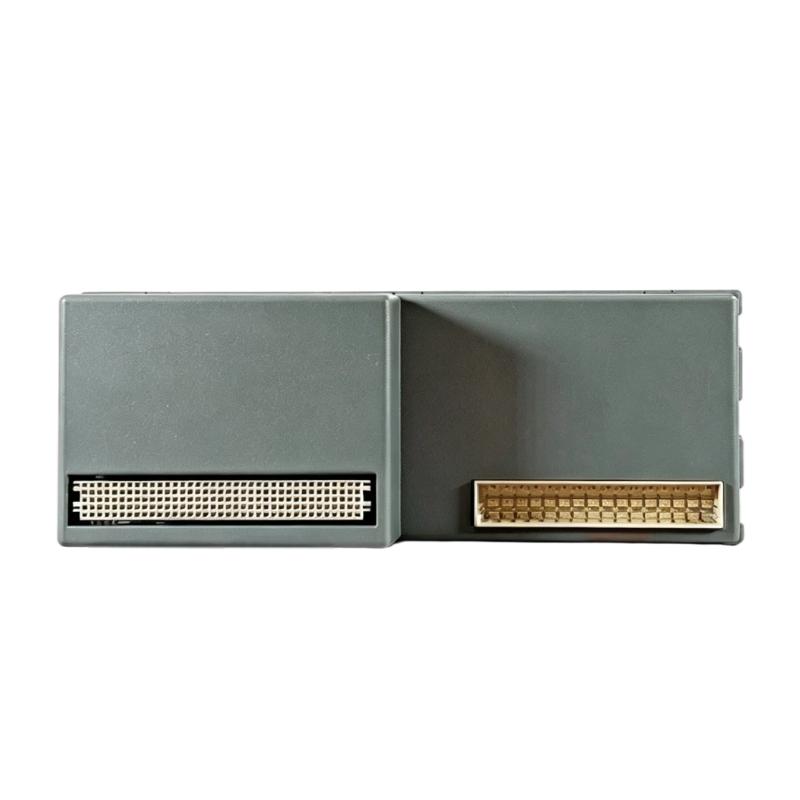

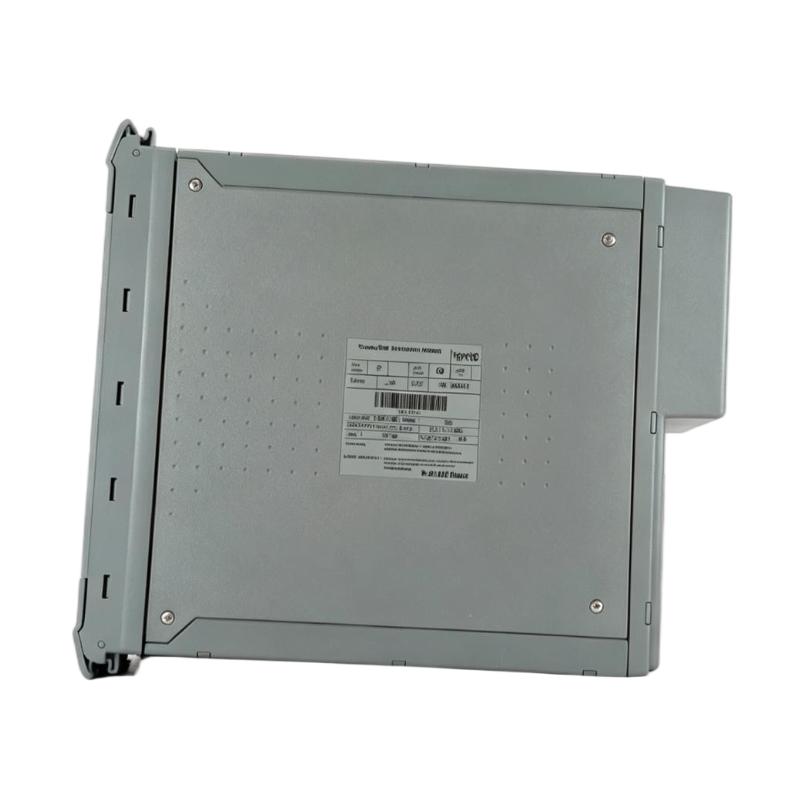

The ICS Triplex T8110 Trusted TMR Processor Module is the central processing module used in the Trusted safety control architecture. It handles the execution of the configured application logic and forms the core processing element of a Trusted TMR controller arrangement.
In a typical Trusted installation, the T8110 works with the other processor and system modules to execute control functions while maintaining the TMR architecture. The processor receives system information, executes the configured application, and coordinates the control actions required by the safety system.
The module is suited to safety-critical industrial installations where the controller must continuously process application logic and system status. Typical environments include process plants, oil and gas facilities, power generation, and emergency shutdown systems.
From a maintenance perspective, the T8110 is a processor-level component rather than an ordinary I/O module. Replacement work therefore requires attention to the Trusted system configuration, processor status, associated modules, and the system’s approved shutdown and commissioning procedures.
Technical Specifications
| ParameterSpecification | |
|---|---|
| Manufacturer | ICS Triplex |
| Model | T8110 |
| Product Family | Trusted |
| Product Type | TMR Processor Module |
| Primary Function | Execution of Trusted safety and control application logic |
| System Role | Central processing |
| Application | Trusted safety and control systems |
| Installation | Trusted control cabinet / system rack |
| Dimensions | 303 × 93 × 266 mm |
| Weight | 2.94 kg |
Product Features
- Part of the ICS Triplex Trusted safety system family.
- Functions as a TMR processor module.
- Executes configured application and control logic.
- Forms a central processing element of the Trusted architecture.
- Works as part of a TMR-based safety control arrangement.
- Supports processing of system and application information.
- Suitable for safety-related industrial control installations.
- Integrates with Trusted I/O and communication architecture.
- Applicable to centralized and distributed safety control systems.
- Suitable for maintenance and replacement of existing Trusted processor hardware.
Working Principle
The T8110 performs the processing function at the center of the Trusted control architecture. Inputs and system information collected through the Trusted system are made available to the processor, which executes the configured application logic and determines the required control response.
Trusted I/O / System Inputs → T8110 TMR Processor → Trusted Control Logic → Output Modules → Field Equipment
The processor operates within the Trusted TMR architecture rather than functioning as an isolated CPU. The TMR arrangement allows the control system to process the application using redundant processing paths and to monitor the resulting system behavior.
During normal operation, the T8110 is involved in:
- Executing configured application logic.
- Processing system and I/O information.
- Coordinating control decisions within the Trusted architecture.
- Participating in TMR processor operation and system diagnostics.
- Sending applicable control information toward output sections.
- Supporting continuous monitoring of the controller’s operating state.
The processor should be considered together with the complete Trusted controller architecture when analyzing system behavior or processor-related diagnostics.
Role in a Trusted TMR Control Architecture
The T8110 occupies the processor layer of the Trusted safety control system. Unlike an interface adapter or individual I/O module, it is directly involved in executing the application that determines how the control system responds to process conditions.
Field Inputs → Trusted I/O → T8110 TMR Processor → Trusted Output Modules → Actuators / Process Equipment
| System ElementFunction | |
|---|---|
| Field Instruments | Provide process measurements, status, and discrete signals |
| Trusted Input Modules | Acquire field signals for controller processing |
| T8110 | Executes the configured safety and control application |
| TMR Processor Architecture | Provides the redundant processing structure |
| Trusted Output Modules | Convert control decisions into output actions |
| Actuators and Valves | Execute commands in the process |
| Engineering / Diagnostic System | Supports configuration, monitoring, and maintenance |
The T8110 is therefore a core controller component, with the surrounding I/O, communication, power, and expansion modules forming the supporting system architecture.
Industrial Applications
| ApplicationTypical Use | |
|---|---|
| Emergency Shutdown Systems | Execution of configured shutdown and safety logic |
| Process Safety Systems | Central processing for safety control applications |
| Oil and Gas | Safety controller processing in production and processing facilities |
| Petrochemical Plants | Control and protection logic for process equipment |
| Power Generation | Safety and control processing for plant systems |
| Turbine Protection | Processing of safety and protection logic |
| Burner Management | Controller processing for burner and combustion safety systems |
| Distributed Safety Control | Central processing for distributed Trusted I/O architectures |
Installation and Maintenance
- Confirm the T8110 model before installation or replacement.
- Verify compatibility with the existing Trusted system architecture.
- Follow the approved plant shutdown and isolation procedure before removing the processor.
- Record the existing module position and associated connections before replacement.
- Inspect the rack and mating interfaces for contamination or mechanical damage.
- Ensure the processor is correctly seated in its intended position.
- Check the surrounding Trusted processor and system modules before commissioning.
- Verify that associated I/O and communication connections remain correctly installed.
- Review system configuration before returning a replacement processor to service.
- Monitor processor and system diagnostics after installation.
- Investigate processor faults together with associated power, rack, communication, and I/O hardware.
- Perform the required functional and safety checks before restoring the controlled process.
Because the T8110 is a processor-level component, replacement should be treated as a system maintenance activity rather than a simple module exchange. Configuration, diagnostics, and the overall TMR controller status should be verified before the system is returned to normal operation.
Related Components
| ComponentFunction | |
|---|---|
| Trusted TMR Processor Modules | Provide redundant controller processing |
| Trusted Input Modules | Acquire process and status signals |
| Trusted Output Modules | Control field actuators and process equipment |
| Trusted TMR Expander | Extends the Trusted system architecture |
| Trusted Communication Interface | Connects the controller with communication systems |
| Trusted Power Modules | Supply operating power to system hardware |
| Engineering Workstation | Supports configuration and diagnostics |
| Field Sensors and Actuators | Provide process inputs and execute control outputs |
Recommended Related Models
| Model / Product FamilyProduct TypeTypical Application | ||
|---|---|---|
| ICS Triplex T8110 | Trusted TMR Processor Module | Central Trusted system processing |
| ICS Triplex T8151 | Trusted TMR Communication Interface Module | Trusted system communication |
| ICS Triplex T8312-7 | Trusted TMR Expander Interface Adapter | TMR expansion interfacing |
| ICS Triplex Trusted TMR Expander | TMR Expansion Hardware | Extending Trusted system capacity |
| ICS Triplex Trusted I/O Modules | Safety I/O Modules | Field signal acquisition and control |
| ICS Triplex Trusted Power Modules | Power Supply Hardware | Trusted system power distribution |
Key Advantages
- Provides central application processing within the Trusted architecture.
- Supports TMR-based safety control operation.
- Executes configured safety and control logic.
- Works with Trusted I/O and expansion hardware.
- Suitable for safety-critical industrial control systems.
- Supports centralized processing of distributed Trusted system resources.
Technical FAQs
What is the primary function of the ICS Triplex T8110?
The T8110 is a Trusted TMR Processor Module responsible for executing the configured application and control logic within the Trusted safety system.
How does the T8110 differ from a Trusted I/O module?
The T8110 performs controller-level processing, while I/O modules interface directly with process signals and field equipment. The processor uses information from the I/O architecture to execute the configured control and safety logic.
Why is the TMR architecture important for the T8110?
The T8110 operates as part of a TMR-based Trusted controller architecture. The redundant processing arrangement is intended for safety-related applications where continued operation and fault monitoring are important system requirements.
What should be checked after replacing a T8110?
The processor installation, system configuration, processor diagnostics, associated power and rack connections, communication interfaces, and I/O status should be checked. The required functional and safety verification should be completed before the controlled process is returned to normal operation.
