Product Overview

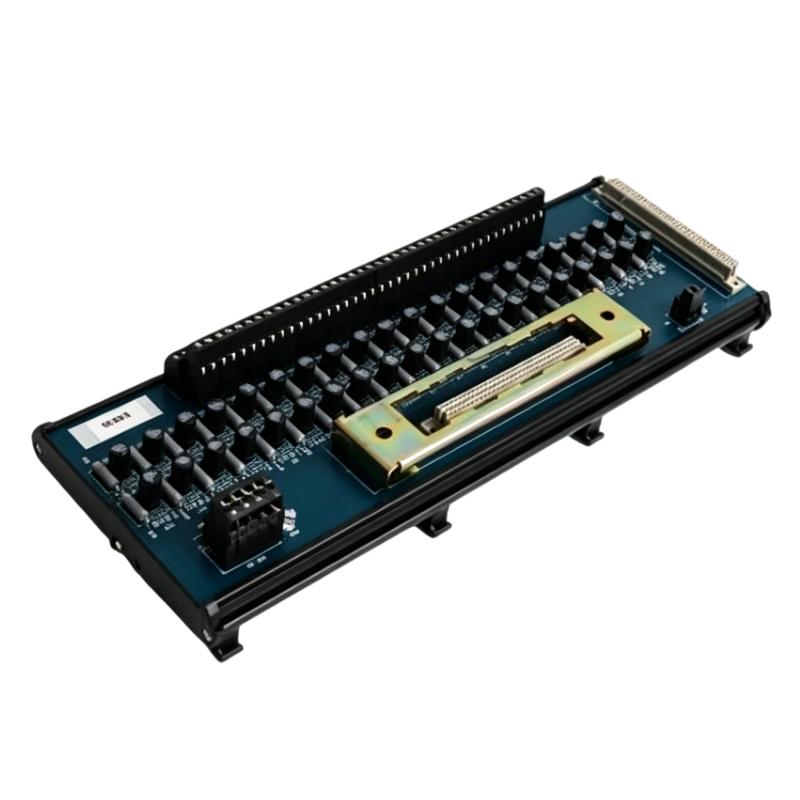

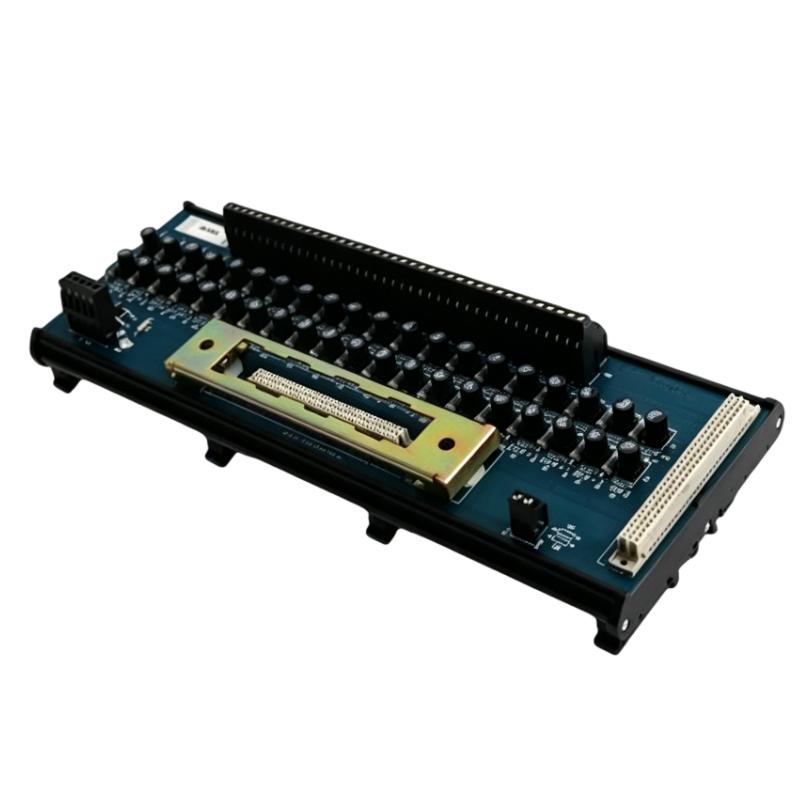

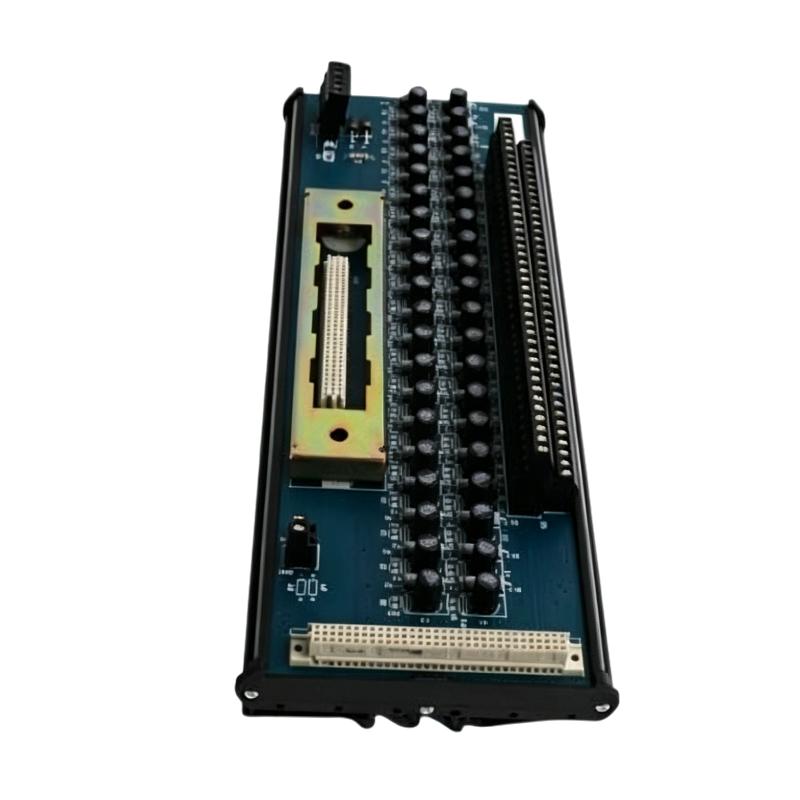

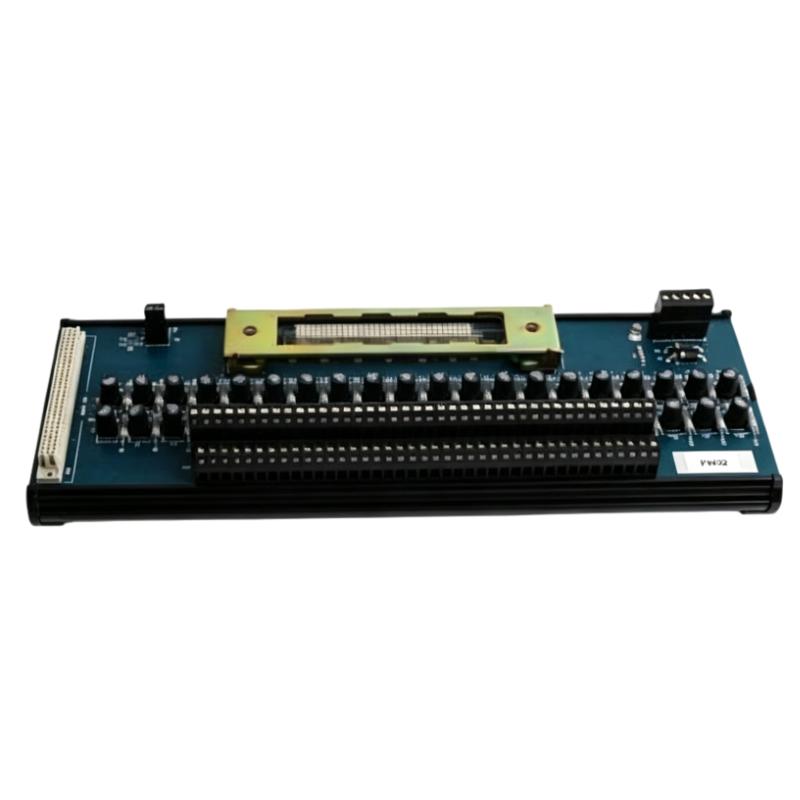

The ICS Triplex T8831 Trusted Field Termination Assembly is a field-side wiring component used with the Trusted safety system. Rather than performing processing or I/O conversion itself, the assembly serves as the physical termination point between field wiring and the associated Trusted I/O circuitry.
In a plant cabinet, numerous field conductors may come from switches, transmitters, relays, valves, shutdown circuits, and other equipment. The T8831 helps organize these connections at the termination side, making it easier to route field signals into the appropriate Trusted system interface.
This type of assembly is especially useful during system installation, cabinet modification, commissioning, and maintenance. When troubleshooting a field signal, the termination assembly is one of the practical points to inspect because loose conductors, incorrect wiring, or poor connections can affect the signal before it reaches the I/O module.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ICS Triplex |
| Model | T8831 |
| Product Family | Trusted |
| Product Type | Trusted Field Termination Assembly |
| Primary Function | Field Wiring Termination |
| System Role | Field Interface |
| Application | Safety / Industrial Control Systems |
| Installation | Trusted System Cabinet |
| Dimensions | 335 × 51 × 111 mm |
| Weight | 0.9 kg |
Product Features
- ICS Triplex Trusted Field Termination Assembly
- Model T8831
- Used for field wiring termination
- Provides a structured connection point for field circuits
- Interfaces field wiring with Trusted I/O arrangements
- Suitable for safety and process-control cabinets
- Simplifies field-side wiring organization
- Useful during cabinet installation and modification
- Applicable to maintenance and replacement work
- Works alongside Trusted I/O and interface hardware
Working Principle
The T8831 serves as the physical connection point between incoming field wiring and the corresponding Trusted system circuitry.
A typical arrangement can be represented as:
Field Device → Field Wiring → T8831 → Trusted I/O → Trusted Processor
For example, a signal generated by a field switch travels through the plant wiring and reaches the termination assembly. From there, the signal is routed toward the appropriate Trusted I/O interface.
For an output circuit, the direction is reversed:
Trusted I/O → T8831 → Field Wiring → Field Device
The T8831 itself does not execute application logic. Its practical function is to establish and organize the field-side electrical connections used by the Trusted system.
Role in a Trusted Safety Architecture
| System Element | Function |
|---|---|
| T8831 | Terminates and organizes field wiring |
| T8403C | Acquires digital field signals |
| T8461C | Sends digital output commands |
| T8111C | Executes Trusted processing and application logic |
| T8311C | Provides Trusted expansion interface |
| T8151C | Provides communication interface |
| Field Wiring | Carries signals between cabinet and field |
| Field Devices | Generate or receive process signals |
The T8831 sits at the field-interface boundary, connecting external field circuits with the Trusted I/O architecture.
Industrial Applications
| Application | Typical Use |
|---|---|
| Oil and Gas | Field signal termination |
| Chemical Processing | Safety-system field wiring |
| Power Generation | Control and protection circuits |
| Refining | Process and shutdown wiring |
| Emergency Shutdown Systems | Field-side circuit connections |
| Process Plants | Organized I/O field wiring |
| Manufacturing | Machine and equipment connections |
| Industrial Safety Systems | Field termination and maintenance |
Installation and Maintenance
- Confirm the complete T8831 model before installation or replacement.
- Verify the termination assembly’s assigned position.
- Identify each connected field circuit before disconnecting wiring.
- Label conductors and terminal positions during maintenance.
- Check terminals for loose or damaged connections.
- Inspect wiring for broken conductors or insulation damage.
- Verify correct routing between the T8831 and associated I/O hardware.
- Check for signs of overheating or mechanical damage.
- Compare actual wiring with the approved cabinet documentation.
- Verify signal continuity where appropriate.
- Check the corresponding I/O channel after wiring work.
- Test representative field signals following maintenance.
- Confirm alarms, interlocks, or equipment status indications where applicable.
- Record wiring changes and maintenance results.
When a Trusted I/O point behaves unexpectedly, checking the T8831 can be particularly useful because a field-side connection problem may produce symptoms similar to an I/O module fault.
Related Components
| Component | Function |
|---|---|
| ICS Triplex T8831 | Trusted Field Termination Assembly |
| T8403C | Trusted Digital Input Module |
| T8461C | Trusted Digital Output Module |
| T8111C | Trusted TMR Processor Module |
| T8310C | Trusted TMR Expander Processor |
| T8311C | Trusted Expander Interface Module |
| T8151C | Trusted Communication Interface |
| Field Wiring | Carries field signals |
| Field Devices | Provide input signals or receive outputs |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| ICS Triplex T8831 | Trusted Field Termination Assembly | Field wiring termination |
| ICS Triplex T8403C | Trusted Digital Input Module | Digital field signal acquisition |
| ICS Triplex T8461C | Trusted Digital Output Module | Digital field control |
| ICS Triplex T8111C | Trusted TMR Processor Module | Safety and control processing |
| ICS Triplex T8310C | Trusted TMR Expander Processor | Expanded TMR processing |
| ICS Triplex T8311C | Trusted Expander Interface Module | Trusted system expansion |
| ICS Triplex T8151C | Trusted Communication Interface | System communication |
| ICS Triplex T8290C | Trusted Output Power Distribution Unit | Output power distribution |
Key Advantages
- Trusted Field Termination Assembly
- Model T8831
- Provides an organized field-wiring interface
- Connects field circuits with Trusted I/O hardware
- Suitable for safety and process-control cabinets
- Simplifies field-side connection management
- Useful for installation and maintenance
- Supports structured troubleshooting of field signal paths
Technical FAQs
Does the T8831 perform signal processing like a Trusted I/O module?
No. The T8831 serves as a field termination and connection assembly. Signal acquisition or output processing is handled by the corresponding Trusted I/O modules.
Why is the termination point important when troubleshooting an I/O fault?
A loose, damaged, or incorrectly connected field conductor can prevent the correct signal from reaching the I/O module. Checking the termination point helps distinguish a wiring problem from an electronic I/O problem.
Can the T8831 be used for both input and output field circuits?
Its actual use depends on the specific Trusted system arrangement and associated termination configuration. The connected circuit should always be verified against the system’s approved wiring documentation.
What should be documented before removing wiring from the T8831?
The terminal position, conductor identification, associated I/O channel, and field-device connection should be recorded. This makes it easier to restore the original wiring correctly and verify the affected signal after maintenance.
