Product Overview

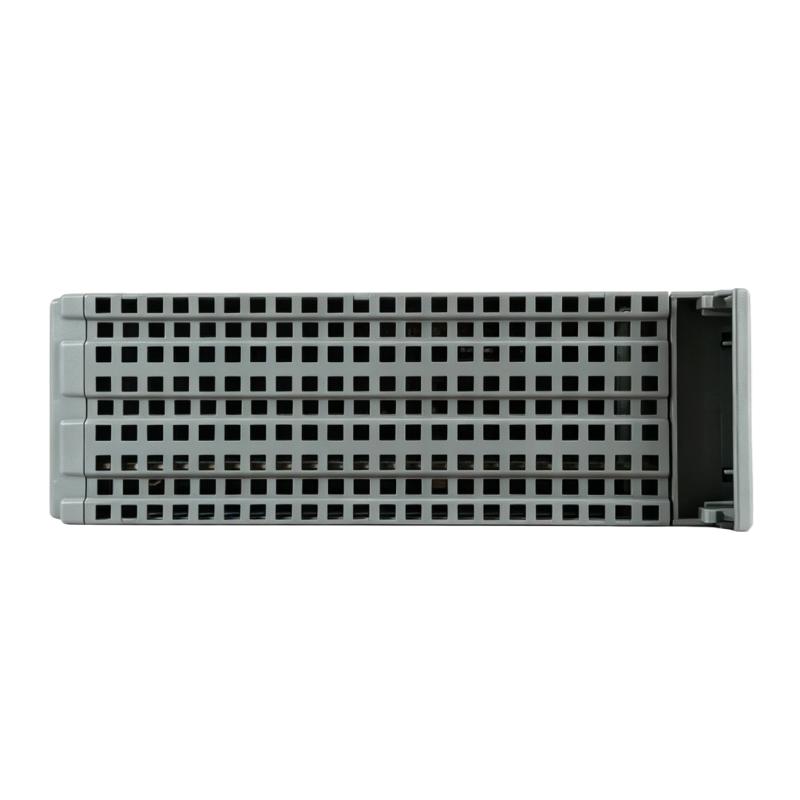

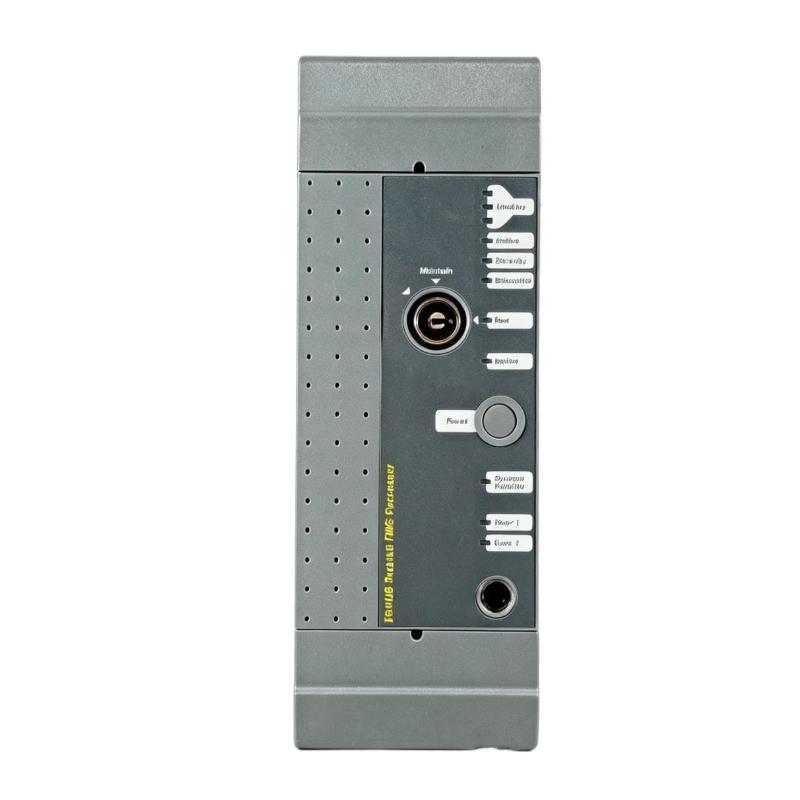

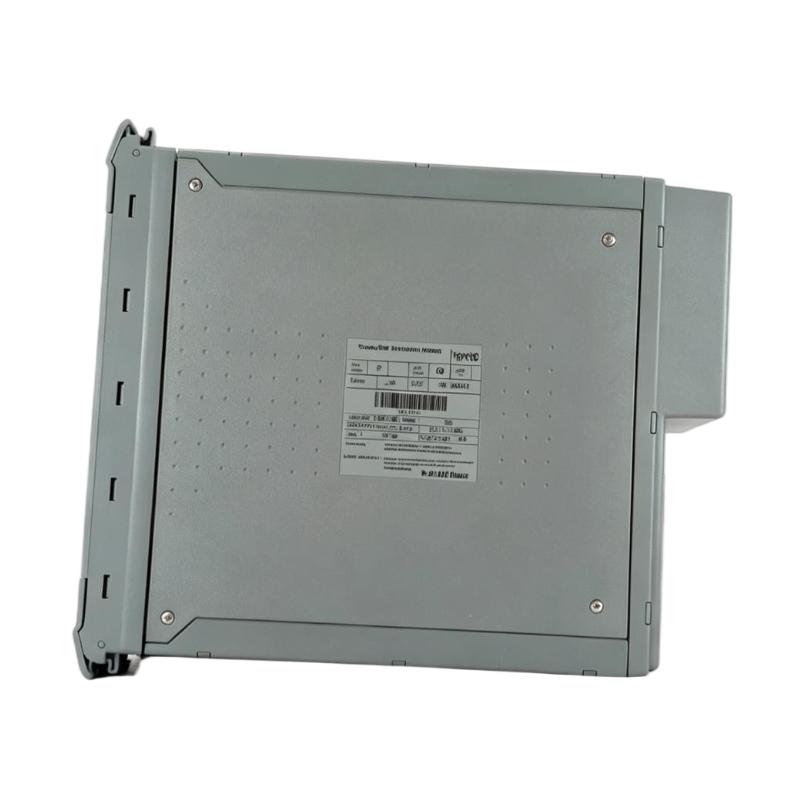

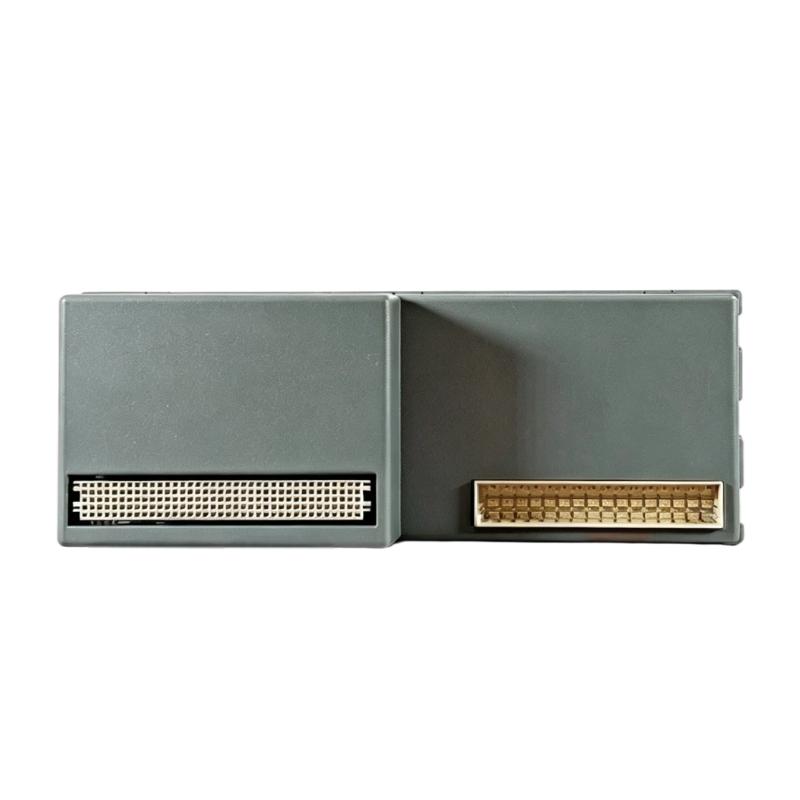

The ICS Triplex T8110C Trusted TMR Processor Module is a central processing component in the Trusted safety control architecture. It handles the execution of configured control and safety logic and works with the Trusted I/O, communication, power, and expansion hardware that make up the complete controller system.
In an operating Trusted installation, the T8110C receives information from the system’s input architecture, processes the configured application logic, and coordinates the resulting control actions. Its function is therefore directly connected to the controller’s processing layer rather than to individual field signal termination.
The T8110C is suited to safety-related applications where controller processing must operate within the Trusted TMR architecture. It can be found in applications such as emergency shutdown, process protection, turbine control, and other industrial systems where continuous monitoring and controller fault handling are required.
For maintenance engineers, the T8110C should be treated as a processor-level module. Replacement or troubleshooting normally involves checking the processor status together with the associated Trusted system configuration, rack connections, power, communication interfaces, and I/O modules.
Technical Specifications
| ParameterSpecification | |
|---|---|
| Manufacturer | ICS Triplex |
| Model | T8110C |
| Product Family | Trusted |
| Product Type | TMR Processor Module |
| Primary Function | Execution of Trusted safety and control application logic |
| System Role | Central processing |
| Application | Trusted safety and control systems |
| Installation | Trusted control cabinet / system rack |
| Dimensions | 303 × 93 × 266 mm |
| Weight | 2.94 kg |
Product Features
- Belongs to the ICS Triplex Trusted product family.
- Functions as a TMR processor module.
- Supports execution of configured application logic.
- Operates within the Trusted TMR control architecture.
- Processes information supplied by the Trusted system.
- Coordinates control actions toward the output architecture.
- Suitable for safety-related industrial control applications.
- Works with Trusted I/O and communication modules.
- Supports controller-level diagnostics and system monitoring.
- Suitable for maintenance and replacement of existing Trusted processor hardware.
Working Principle
The T8110C sits at the processing layer of the Trusted control system. Input information from connected Trusted I/O and other system functions is made available to the processor, which executes the configured application and safety logic before coordinating the required output response.
Trusted Input Architecture → T8110C TMR Processor → Application / Safety Logic → Trusted Output Architecture → Field Equipment
The processor operates as part of the Trusted TMR arrangement rather than as an independent controller. The TMR architecture continuously evaluates processor operation and system information so that the controller can identify discrepancies and maintain the intended safety control behavior.
Typical processing activities include:
- Executing configured control and safety application logic.
- Processing input and system status information.
- Coordinating output decisions through the Trusted I/O architecture.
- Participating in TMR processor monitoring.
- Supporting system diagnostics and processor status monitoring.
- Maintaining the processing path between Trusted I/O and application logic.
The T8110C should therefore be evaluated as one element of the complete Trusted controller architecture during commissioning and fault diagnosis.
Role in a Trusted TMR Control Architecture
The T8110C occupies the central processing layer between Trusted input and output hardware. Its position allows the application logic to operate on information collected from the process and generate the corresponding control response.
Field Sensors → Trusted Input Modules → T8110C TMR Processor → Trusted Output Modules → Actuators / Final Elements
| System ElementFunction | |
|---|---|
| Field Sensors | Measure process conditions and provide status signals |
| Trusted Input Modules | Acquire process input information |
| T8110C | Executes configured safety and control logic |
| TMR Processing Architecture | Supports redundant controller processing and monitoring |
| Trusted Output Modules | Transfer controller decisions toward field equipment |
| Final Control Elements | Execute shutdown, control, or protection actions |
| Engineering / Diagnostic System | Supports configuration, monitoring, and maintenance |
The processor is consequently a core component of the Trusted controller, while the surrounding modules provide the I/O, communication, power, and expansion functions needed by the complete system.
Industrial Applications
| ApplicationTypical Use | |
|---|---|
| Emergency Shutdown Systems | Execution of shutdown and protective control logic |
| Process Safety Systems | Central processing for safety applications |
| Oil and Gas | Safety controller processing in production and processing facilities |
| Petrochemical Plants | Process protection and shutdown control |
| Power Generation | Safety and control processing for plant equipment |
| Turbine Control | Processing of turbine-related control and protection logic |
| Burner Management | Safety logic for burner and combustion systems |
| Distributed Safety Systems | Processing for Trusted systems with distributed I/O |
Installation and Maintenance
- Verify the exact T8110C model before replacement.
- Confirm that the replacement is appropriate for the existing Trusted system configuration.
- Follow the plant’s approved shutdown and isolation procedure before removing the processor.
- Record the module position and relevant connections before removal.
- Inspect the rack and mating interfaces for contamination or physical damage.
- Ensure the processor is correctly seated in its intended position.
- Check adjacent Trusted modules for loose connections or visible damage.
- Verify associated power and communication connections.
- Confirm the appropriate system configuration before commissioning a replacement processor.
- Monitor processor and system diagnostics after installation.
- Check the associated I/O and communication architecture when processor-related faults occur.
- Complete the required functional and safety checks before returning the system to service.
Processor replacement should be handled as a system-level maintenance task. A reported processor fault does not necessarily indicate a defective T8110C, so the rack, power, configuration, I/O, communication interfaces, and other Trusted hardware should also be considered during troubleshooting.
Related Components
| ComponentFunction | |
|---|---|
| Trusted TMR Processor Modules | Execute controller application and safety logic |
| Trusted Input Modules | Acquire process and status signals |
| Trusted Output Modules | Transfer control decisions to field equipment |
| Trusted TMR Expander | Extends the Trusted system architecture |
| Trusted Communication Modules | Provide system-level communication functions |
| Trusted Power Modules | Supply operating power to Trusted hardware |
| Engineering Workstation | Supports system configuration and diagnostics |
| Field Sensors and Final Elements | Provide inputs and perform control or shutdown actions |
Recommended Related Models
| Model / Product FamilyProduct TypeTypical Application | ||
|---|---|---|
| ICS Triplex T8110 | Trusted TMR Processor Module | Trusted controller processing |
| ICS Triplex T8110C | Trusted TMR Processor Module | Trusted TMR safety processing |
| ICS Triplex T8151 | Trusted TMR Communication Interface Module | System communication |
| ICS Triplex T8312-7 | Trusted TMR Expander Interface Adapter | TMR expansion interfacing |
| ICS Triplex Trusted TMR Expander | TMR Expansion Hardware | Trusted system expansion |
| ICS Triplex Trusted I/O Modules | Safety I/O Modules | Process signal acquisition and control |
Key Advantages
- Provides central processing within the Trusted TMR architecture.
- Supports execution of configured safety and control logic.
- Works with the Trusted I/O and system communication architecture.
- Suitable for safety-critical industrial applications.
- Supports TMR-based controller operation and monitoring.
- Integrates into established Trusted control system configurations.
Technical FAQs
What is the role of the ICS Triplex T8110C in a Trusted system?
The T8110C functions as a Trusted TMR Processor Module. It executes the configured application and safety logic and coordinates processing between the Trusted input and output architecture.
Is the T8110C an I/O interface module?
No. The T8110C is a processor module. Trusted I/O modules handle the connection to process signals, while the T8110C performs controller-level application and safety processing.
What should be considered when replacing a T8110C?
The processor model, Trusted system configuration, rack position, power connections, associated I/O, communication interfaces, and system diagnostics should all be checked. Replacement should follow the site’s approved maintenance and commissioning procedures.
How should a processor fault involving the T8110C be investigated?
Begin with the processor diagnostics and system status, then check the rack, power, configuration, communication paths, and connected I/O hardware. This helps determine whether the fault originates from the processor itself or from another part of the Trusted controller architecture.
