Product Overview

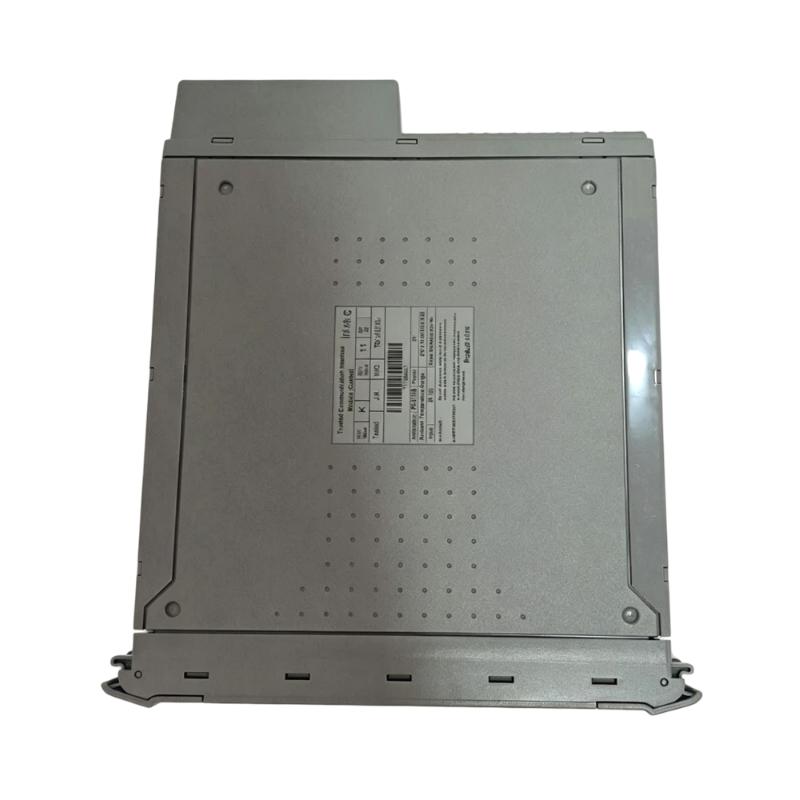

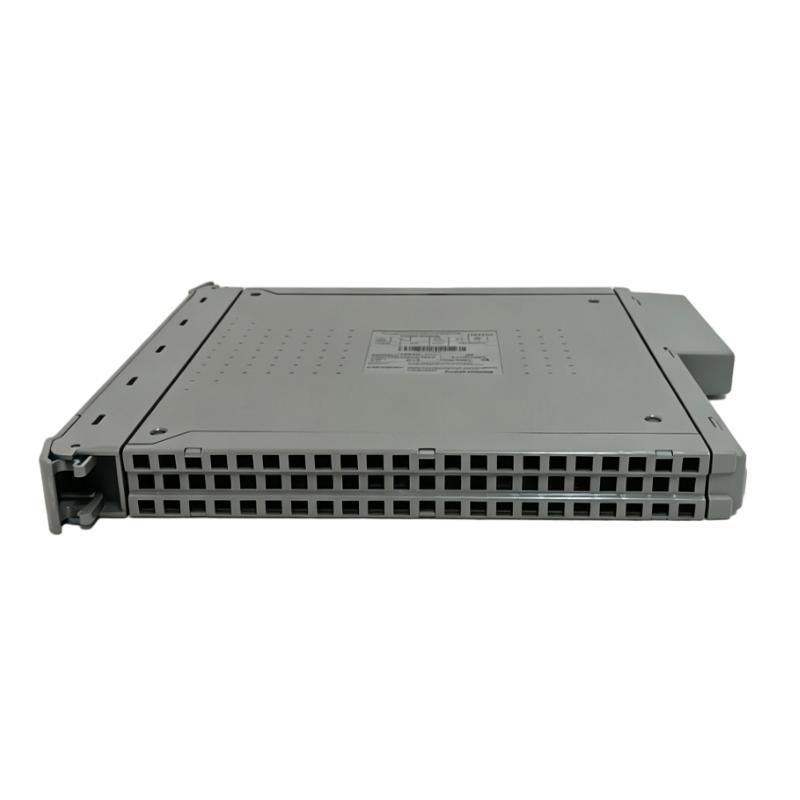

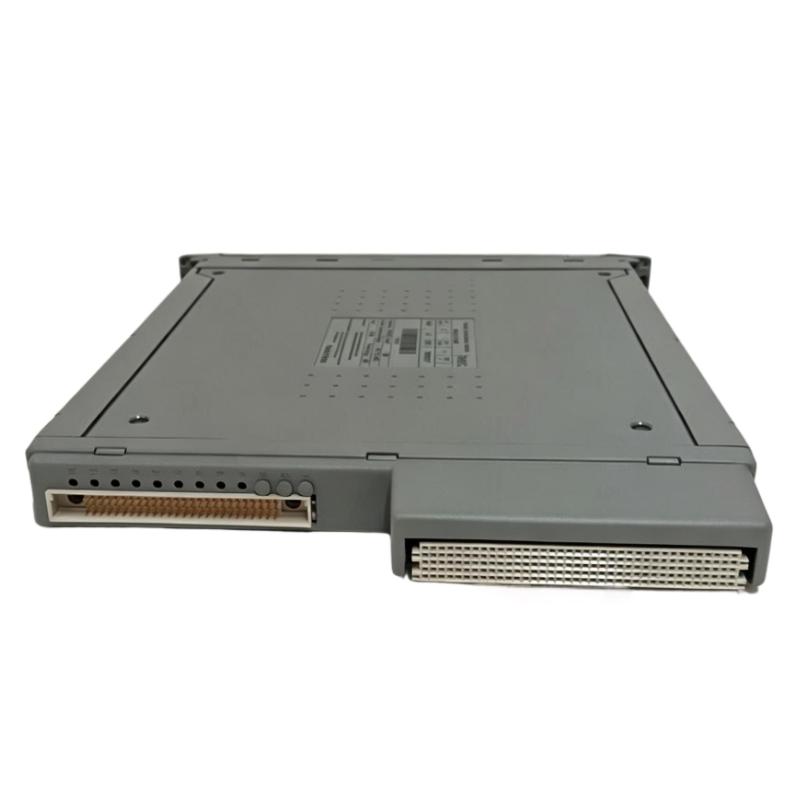

The ICS Triplex T8151 Trusted TMR Communication Interface Module is a communication component for the Trusted safety control system. It supports communication between the Trusted controller architecture and external or system-level communication equipment, making it suitable for installations where controller data needs to move beyond the local processing and I/O structure.
In a typical Trusted installation, the T8151 is associated with the controller communication architecture rather than field signal conditioning. It provides the interface required for communication functions while the Trusted processors continue to execute the application and safety logic.
The module is suited to larger control systems where multiple Trusted system sections, engineering interfaces, or external control and monitoring equipment need to exchange information. Its application is especially relevant in safety systems that combine controller processing with supervisory, diagnostic, or plant-level communication requirements.
During maintenance, the T8151 should be considered as part of the communication path. If communication is lost, engineers should check the module together with its connected interfaces, cables, configuration, and the corresponding equipment at the other end of the communication link.
Technical Specifications
| ParameterSpecification | |
|---|---|
| Manufacturer | ICS Triplex |
| Model | T8151 |
| Product Family | Trusted |
| Product Type | TMR Communication Interface Module |
| Primary Function | Communication interface for the Trusted TMR system |
| System Role | System communication |
| Application | Trusted safety and control systems |
| Installation | Trusted control cabinet / system rack |
| Dimensions | 303 × 31 × 266 mm |
| Weight | 1.13 kg |
Product Features
- Part of the ICS Triplex Trusted safety system family.
- Supports communication within the Trusted TMR architecture.
- Provides a dedicated communication interface function.
- Suitable for system-level communication requirements.
- Works alongside Trusted controller and processing hardware.
- Supports communication between Trusted equipment and connected systems.
- Suitable for centralized and distributed control architectures.
- Useful in safety system diagnostics and supervisory communication arrangements.
- Integrates into structured Trusted cabinet installations.
- Applicable to existing Trusted systems requiring communication interface replacement.
Working Principle
The T8151 operates as a communication interface within the Trusted TMR architecture. The Trusted controller handles the application logic and system processing, while the communication interface provides the path for exchanging applicable system information with connected equipment.
Trusted TMR Controller → T8151 Communication Interface → Communication Network / External System → Supervisory or Engineering Equipment
The module handles the interface portion of the communication path rather than replacing the controller’s processing function. Data generated or required by the Trusted system can therefore be transferred through the appropriate communication architecture to connected monitoring, engineering, or control equipment.
Typical communication-related operations include:
- Transferring applicable system information between Trusted equipment and external systems.
- Supporting communication between controller architecture and connected interfaces.
- Providing a defined communication point within the system cabinet.
- Supporting system monitoring and diagnostic activities.
- Maintaining communication paths used by larger Trusted installations.
The actual communication configuration depends on the complete Trusted system architecture and the equipment connected to the T8151.
Role in a Trusted TMR Control Architecture
Communication is an essential layer of a modern safety control installation because the controller must exchange selected information with engineering, monitoring, and other system-level equipment. The T8151 occupies this communication layer within the Trusted architecture.
Trusted TMR Processor → T8151 → Communication Infrastructure → HMI / Engineering / Supervisory Systems
| System ElementFunction | |
|---|---|
| Trusted TMR Processor | Executes configured safety and control logic |
| T8151 | Provides the communication interface for the Trusted architecture |
| Communication Infrastructure | Carries system information between connected equipment |
| Engineering Station | Used for system configuration, diagnostics, and maintenance |
| HMI / Supervisory System | Displays applicable process and system information |
| Field I/O | Connects the control system with process equipment |
The T8151 therefore serves as a communication-layer component rather than a direct field I/O interface.
Industrial Applications
| ApplicationTypical Use | |
|---|---|
| Process Safety Systems | Communication interface within Trusted safety controllers |
| Emergency Shutdown Systems | System-level monitoring and communication |
| Oil and Gas Facilities | Trusted controller communication in large process installations |
| Petrochemical Plants | Exchange of safety system information with supervisory equipment |
| Power Generation | Communication between Trusted safety hardware and higher-level systems |
| Distributed Safety Cabinets | Communication between separated system sections |
| Industrial Monitoring | Transfer of applicable controller and diagnostic information |
| Engineering and Maintenance | Interface supporting system diagnostics and engineering activities |
Installation and Maintenance
- Verify the T8151 model number before installation.
- Confirm that the replacement module matches the existing Trusted system configuration.
- Follow the site’s approved shutdown and isolation procedure before working on the cabinet.
- Check the mounting arrangement before inserting the module.
- Inspect connectors and mating interfaces for contamination or mechanical damage.
- Identify all associated communication cables before disconnecting the existing module.
- Confirm that cables are connected to the correct interfaces after replacement.
- Keep communication wiring properly routed and secured inside the cabinet.
- Avoid excessive force when connecting or removing communication cables.
- Review communication diagnostics if the system reports a communication fault.
- Check the connected communication equipment when the T8151 itself does not show an obvious hardware problem.
- Perform the applicable system diagnostic and communication checks after replacement.
Communication troubleshooting should follow the complete signal path rather than focusing only on the interface module. The T8151, associated cables, communication equipment, configuration, and connected systems should all be considered when investigating intermittent or lost communication.
Related Components
| ComponentFunction | |
|---|---|
| Trusted TMR Processor | Executes safety and control logic |
| Trusted TMR Expander | Extends system hardware architecture |
| Trusted I/O Modules | Processes field input and output signals |
| Trusted Communication Equipment | Supports system-level data exchange |
| Trusted Power Modules | Supplies system operating power |
| Engineering Workstation | Provides configuration and diagnostic functions |
| HMI / Supervisory System | Displays system and process information |
| Communication Cables and Interfaces | Connect communication equipment |
Recommended Related Models
| Model / Product FamilyProduct TypeTypical Application | ||
|---|---|---|
| ICS Triplex T8151 | Trusted TMR Communication Interface Module | Trusted system communication |
| ICS Triplex T8312-7 | Trusted TMR Expander Interface Adapter | TMR expansion interfacing |
| ICS Triplex Trusted TMR Controller | TMR Controller | Safety and control processing |
| ICS Triplex Trusted TMR Expander | TMR Expansion Hardware | System architecture expansion |
| ICS Triplex Trusted I/O Modules | Safety I/O Modules | Field signal acquisition and control |
| ICS Triplex Trusted Communication Modules | Communication Hardware | System and supervisory communication |
Key Advantages
- Provides a dedicated communication interface within the Trusted TMR architecture.
- Supports system-level communication requirements.
- Works with the Trusted controller architecture without replacing the main processor.
- Suitable for larger and distributed safety control installations.
- Useful for engineering, monitoring, and diagnostic communication paths.
- Can be integrated into established Trusted system cabinets.
Technical FAQs
What is the main role of the ICS Triplex T8151?
The T8151 is a Trusted TMR Communication Interface Module. Its primary role is to provide the communication interface required for exchanging applicable system information within the Trusted architecture and with connected communication equipment.
Is the T8151 responsible for executing Trusted safety logic?
No. The T8151 performs a communication interface function. Safety and application logic are handled by the appropriate Trusted TMR processing hardware.
What type of system problems can be associated with a T8151 communication fault?
A communication fault can affect the exchange of system information with connected equipment. Troubleshooting should include the T8151, communication cables, connected interfaces, communication configuration, and the equipment at the opposite end of the link.
Can the T8151 be replaced without checking the surrounding communication hardware?
The surrounding hardware should always be checked during replacement or troubleshooting. A communication problem may originate from the cable, connector, external communication equipment, configuration, or another part of the Trusted communication path rather than the T8151 itself.
