Product Overview

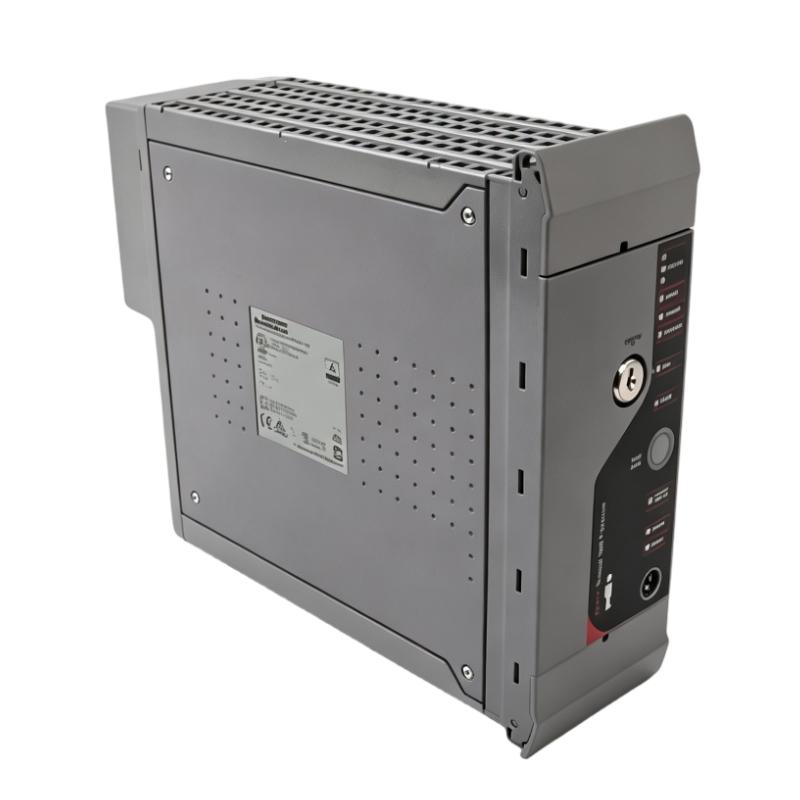

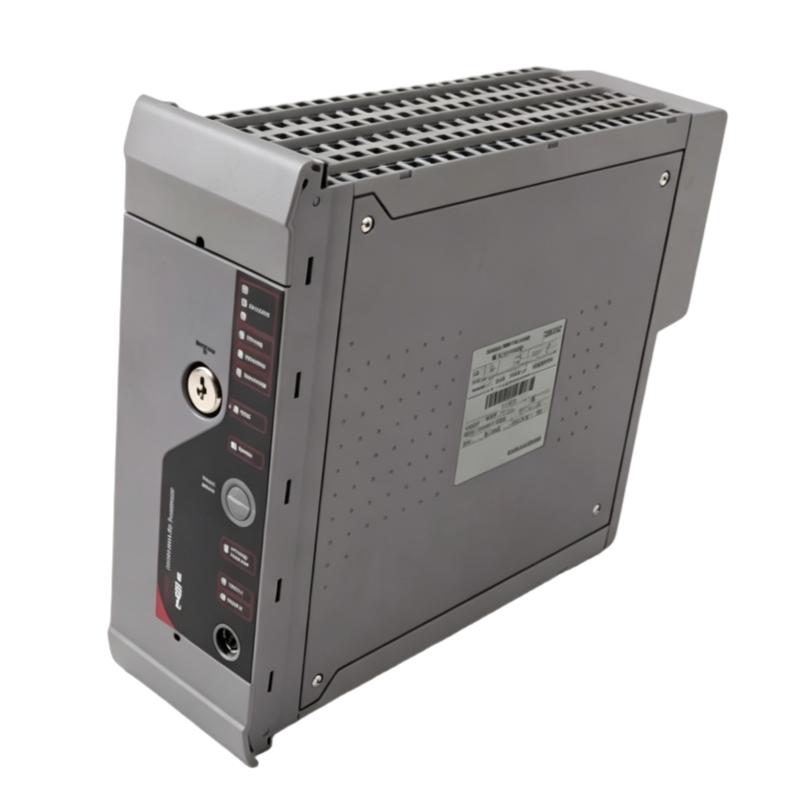

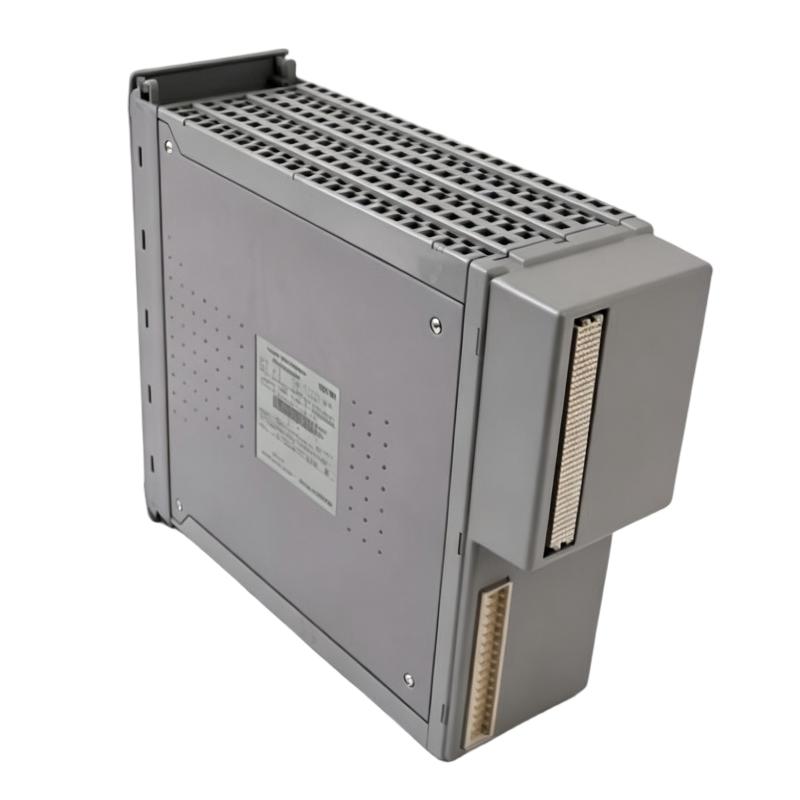

The ICS Triplex T8111C Trusted TMR Processor Module is a processor module for the Trusted safety system, using a Triple Modular Redundancy (TMR) architecture to support high-integrity control and safety applications.

Within a Trusted system, the processor handles the execution of application logic, system sequencing, diagnostics, and coordination with the associated I/O architecture. The TMR arrangement uses three processor channels operating together, allowing the system to compare processor results and maintain operation in the presence of certain single-channel faults.

The T8111C is suited to applications where the controller must continuously manage safety-related logic while maintaining extensive diagnostic coverage. Typical installations include process plants, emergency shutdown systems, turbine control, and other industrial applications where controller availability and fault detection are key system requirements.

Technical Specifications

Product Features

• ICS Triplex Trusted TMR Processor Module
• Model T8111C
• Triple Modular Redundancy architecture
• Intended for Trusted safety-system applications
• Executes configured control and safety logic
• Supports system-level diagnostics
• Works with the Trusted I/O architecture
• Suitable for high-integrity industrial control
• Applicable to emergency shutdown and process-safety systems
• Useful for existing Trusted system maintenance and replacement
• Supports continued system operation through redundant processor architecture

Working Principle

The T8111C processes the application running in the Trusted controller and coordinates the system’s interaction with its I/O modules.

The TMR architecture can be viewed as three processor channels working together:

Processor Channel A + Processor Channel B + Processor Channel C → TMR Decision / System Output

Each processor channel independently performs the applicable processing. The results are compared so that discrepancies between channels can be detected. Where a single processor channel develops a fault, the redundant architecture allows the system to identify the abnormal result without relying solely on that channel.

A typical control path is:

Field Inputs → Trusted I/O → T8111C TMR Processor → Application Logic → Trusted Outputs → Field Equipment

This architecture allows processor operation, diagnostics, and field control to remain integrated within the Trusted safety system.

Role in a Trusted Safety Architecture

The T8111C occupies the central processing layer between the Trusted I/O subsystem and the application-level control functions.

Industrial Applications

Installation and Maintenance

• Confirm the complete T8111C model before replacement.
• Verify the processor’s position within the Trusted system.
• Check associated processor and interface connections.
• Inspect connectors and system cabling.
• Verify the condition of the surrounding Trusted modules.
• Review processor and system diagnostics before replacement.
• Confirm the application configuration is appropriate for the replacement procedure.
• Follow the approved Trusted maintenance procedure for module removal and installation.
• Check processor status after installation.
• Verify communication with the Trusted I/O subsystem.
• Review diagnostic indications from the redundant processor channels.
• Confirm the affected safety functions operate as expected.
• Record the maintenance activity and resulting system status.

For a processor fault, diagnostics should be reviewed before replacing hardware. A TMR system can report channel-specific faults, so identifying the affected channel can help avoid unnecessary replacement of healthy components.

Related Components

Recommended Related Models

Key Advantages

• Trusted TMR Processor Module
• Model T8111C
• Triple Modular Redundancy architecture
• Executes Trusted safety and control logic
• Supports processor-level diagnostics
• Works with the Trusted I/O architecture
• Suitable for critical industrial control
• Applicable to emergency shutdown and process-safety systems
• Useful for Trusted system maintenance and replacement

Technical FAQs

Why does the T8111C use TMR architecture?

TMR uses three redundant processor channels so that their processing results can be compared. This architecture helps the Trusted system detect certain processor-channel faults while maintaining the required system response.

How does a processor-channel fault differ from a complete processor failure?

A channel-level fault affects one redundant processing path, while a complete processor-system failure would involve loss of the overall processing function. TMR architecture specifically helps isolate and manage certain single-channel faults.

What should engineers examine when T8111C diagnostics report an abnormal processor channel?

The diagnostic information should first be reviewed to identify the affected channel and fault condition. Associated interfaces, power, connections, and neighboring Trusted modules should then be checked before deciding whether the processor module requires replacement.

Can the T8111C be treated as a standalone controller?

No. It operates as part of the broader Trusted architecture. The processor works together with Trusted I/O, interface, power, and field equipment to execute the complete safety and control application.
