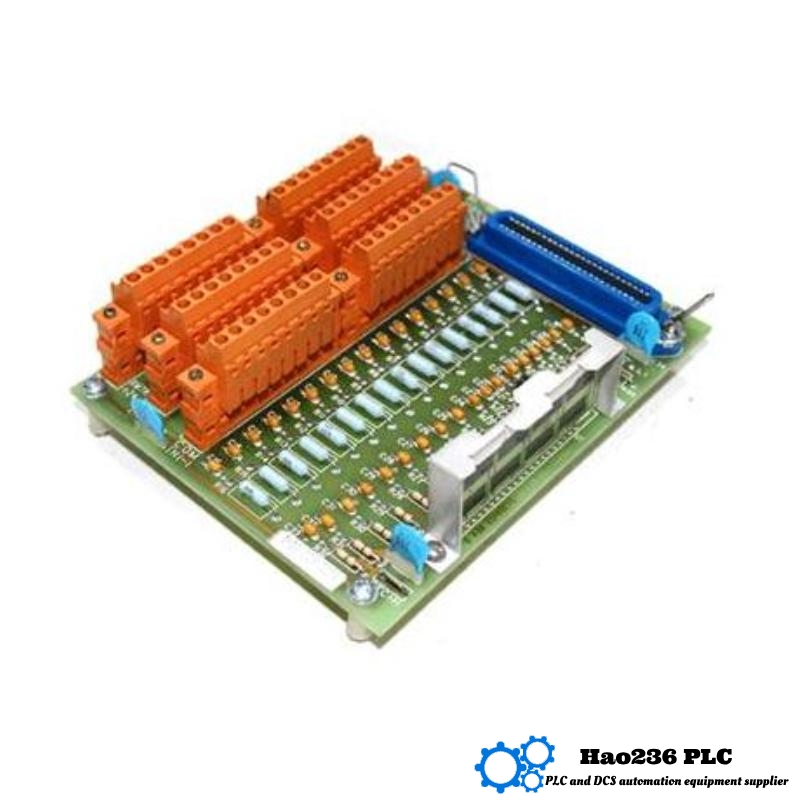

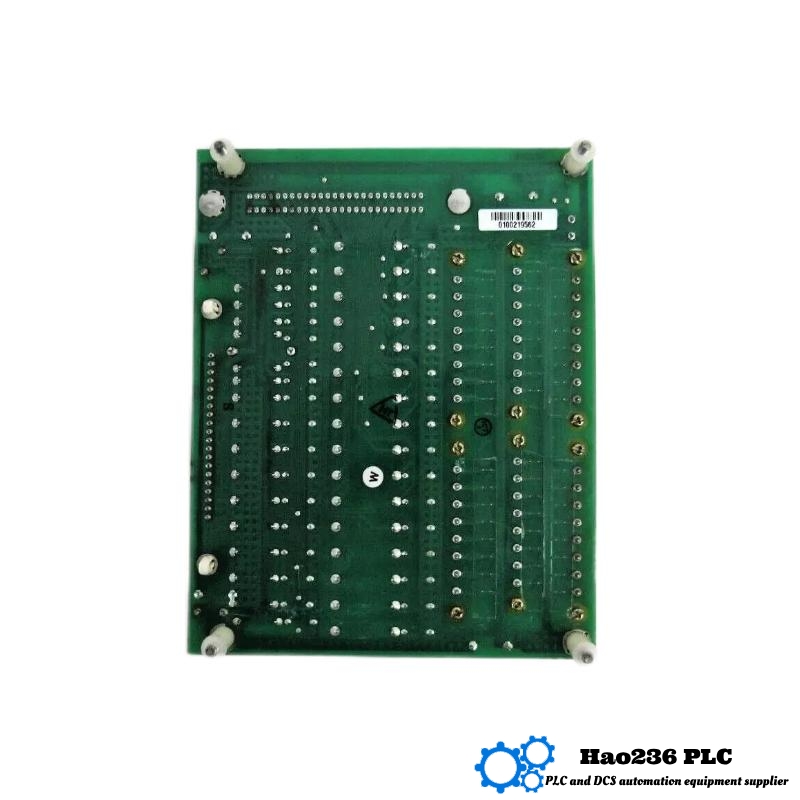

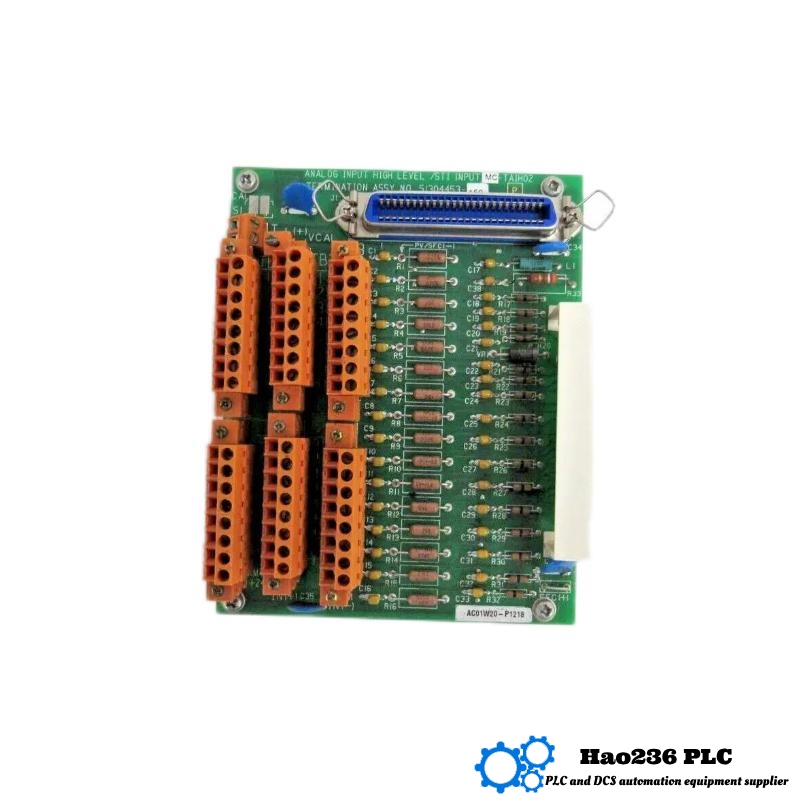

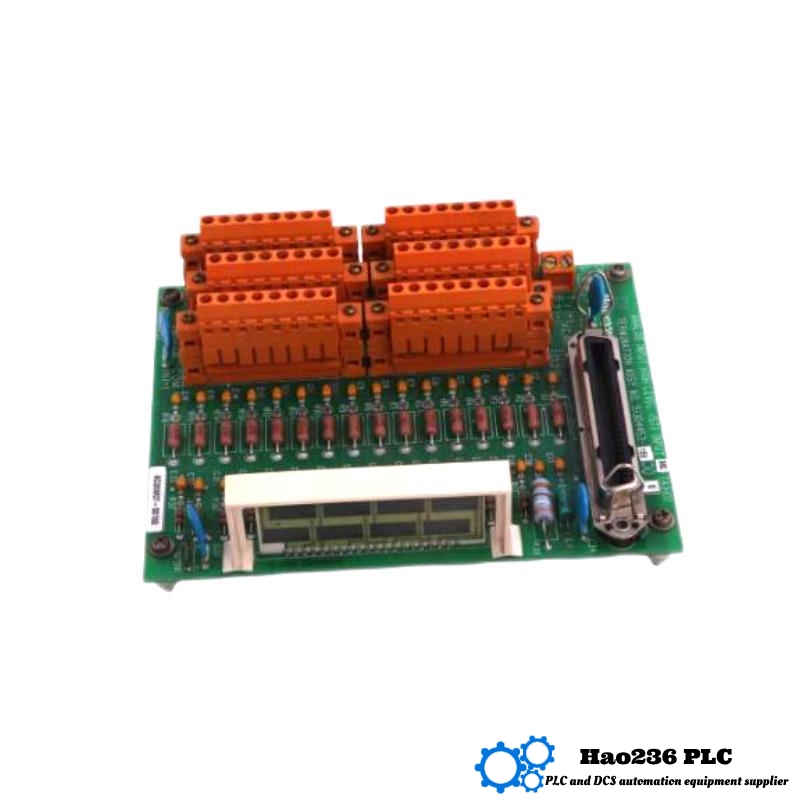

The Honeywell MC-TAIH02 51304453-150 is a high-performance high-level analog input module designed for industrial automation applications. It is part of Honeywell’s ControlEdge and Experion PKS control systems, offering precise and reliable analog signal processing.
This module is specifically designed to handle high-level analog inputs, making it an essential component for industrial processes requiring accurate data acquisition from field instruments such as pressure transmitters, temperature sensors, and flow meters. With advanced signal conditioning, high-resolution input channels, and robust noise immunity, the MC-TAIH02 ensures accurate and stable analog measurements even in harsh industrial environments.
It seamlessly integrates with Honeywell’s Distributed Control Systems (DCS) and Programmable Logic Controllers (PLC), providing a scalable and flexible solution for complex automation processes.
Parameter | Description |
---|---|
Model | MC-TAIH02 51304453-150 |
Input Channels | Multiple high-level analog input channels |
Input Signal Type | Voltage and current inputs |
Input Voltage Range | 0-10V DC |
Input Current Range | 4-20mA |
Resolution | 16-bit high-resolution |
Accuracy | ±0.1% of full scale |
Isolation | 1500V RMS isolation for noise protection |
Communication Interface | Compatible with Honeywell’s DCS and PLC systems |
Response Time | <5ms |
Power Consumption | Low power consumption for energy efficiency |
Mounting Type | DIN rail mounting |
Dimensions | 120 mm x 100 mm x 40 mm |
Weight | 1 kg |
Operating Temperature | -40°C to 70°C |
Operating Humidity | 5% to 95% (non-condensing) |
Process Control Systems – Used in industries such as oil and gas, power plants, and chemical processing for accurate monitoring of analog signals.
Manufacturing Automation – Provides precise analog data acquisition for factory automation and control systems.
Energy and Utilities – Essential in power plants and energy distribution networks for real-time measurement and control.
Building Management Systems – Utilized in large-scale building automation for HVAC and environmental monitoring.
Water Treatment Plants – Ensures accurate monitoring of water flow, pressure, and chemical composition in treatment facilities.
High Accuracy and Resolution – The 16-bit high-resolution input ensures precise signal measurements, reducing errors in critical industrial applications.
Robust Noise Immunity – 1500V RMS isolation protects against electrical noise and interference, ensuring reliable performance in harsh environments.
Fast Response Time – With a response time of less than 5ms, the module supports real-time data acquisition and processing.
Seamless Integration – Designed for Honeywell’s ControlEdge and Experion PKS systems, ensuring compatibility and easy system expansion.
Energy Efficient and Durable – Low power consumption and a wide operating temperature range make it suitable for long-term industrial use.
Brand: Honeywell
Series: ControlEdge I/O Modules
Product Line: Analog Input Modules
Model | Description | Key Features |
---|---|---|
MC-TAIH04 | High-Level Analog Input Module | High-resolution inputs, suitable for multiple sensors |
MC-TAMR02 | Multi-Range Analog Input Module | Supports multiple analog input ranges |
MC-TAO02 | Analog Output Module | High-precision analog output control |
MC-TDIC16 | 16-channel Digital Input Module | High-density digital input for automation |
MC-TDOD12 | Digital Output Module | Reliable digital signal output for industrial control |
Model | Description | Key Features |
---|---|---|
MC-TDIY22 | Digital Input Module | High-speed digital signal acquisition |
MC-TLPA02 | Loop Power Adapter Module | Provides loop power for field devices |
MC-TAMT04 | Temperature Measurement Module | High-precision temperature data acquisition |
MC-TDOR02 | Relay Output Module | Controls high-power loads with relay outputs |
MC-TDAI24 | 24-channel Analog Input Module | High-density analog data collection |
Q1: What is the primary function of the MC-TAIH02 module?
A1: It is designed for high-level analog signal acquisition, ensuring precise monitoring of voltage and current inputs.
Q2: What types of input signals does the MC-TAIH02 support?
A2: The module supports both voltage (0-10V) and current (4-20mA) analog inputs.
Q3: How does the module protect against electrical noise?
A3: It features 1500V RMS isolation, ensuring strong resistance to electrical interference.
Q4: Can the MC-TAIH02 be used in outdoor environments?
A4: Yes, with an operating temperature range of -40°C to 70°C, it is suitable for outdoor and harsh industrial environments.
Q5: What is the accuracy of the module?
A5: It offers an accuracy of ±0.1% of full scale, ensuring precise measurements.
Q6: What communication protocol does the MC-TAIH02 use?
A6: It is designed to integrate with Honeywell’s DCS and PLC systems.
Q7: How is the module mounted?
A7: It is DIN rail-mounted for easy installation in industrial control panels.
Q8: Is the module compatible with other brands of control systems?
A8: While optimized for Honeywell systems, it may be integrated with third-party systems using appropriate adapters.
Q9: What is the response time of the MC-TAIH02?
A9: It has a fast response time of less than 5ms, making it suitable for real-time applications.
Q10: What is the weight of the MC-TAIH02 module?
A10: The module weighs 1 kg, ensuring a compact and lightweight design.
