- Honeywell
- MC-PDIY22
- Digital Input I/O Processor 24 VDC
- USA
- 318 mm × 31 mm × 277 mm
- 0.51kg
- 80363972-150
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 55
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| sales@plc-automations.com | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |

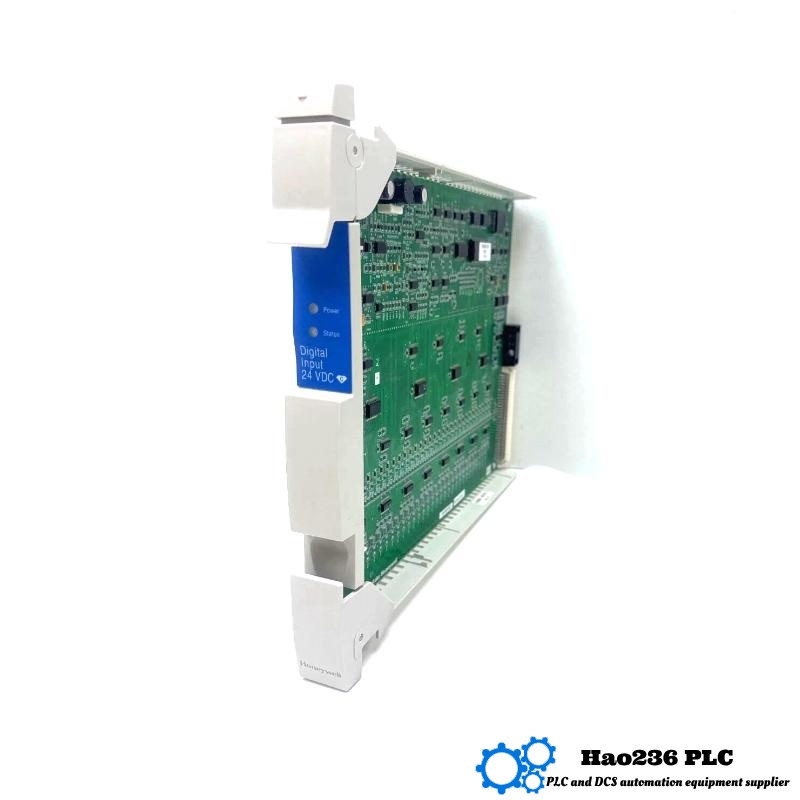

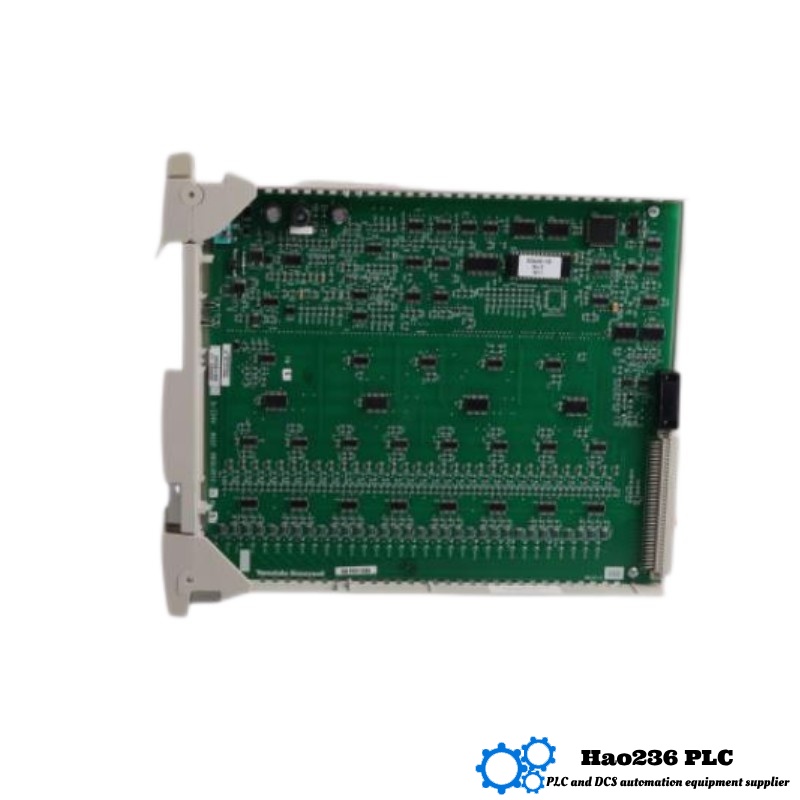

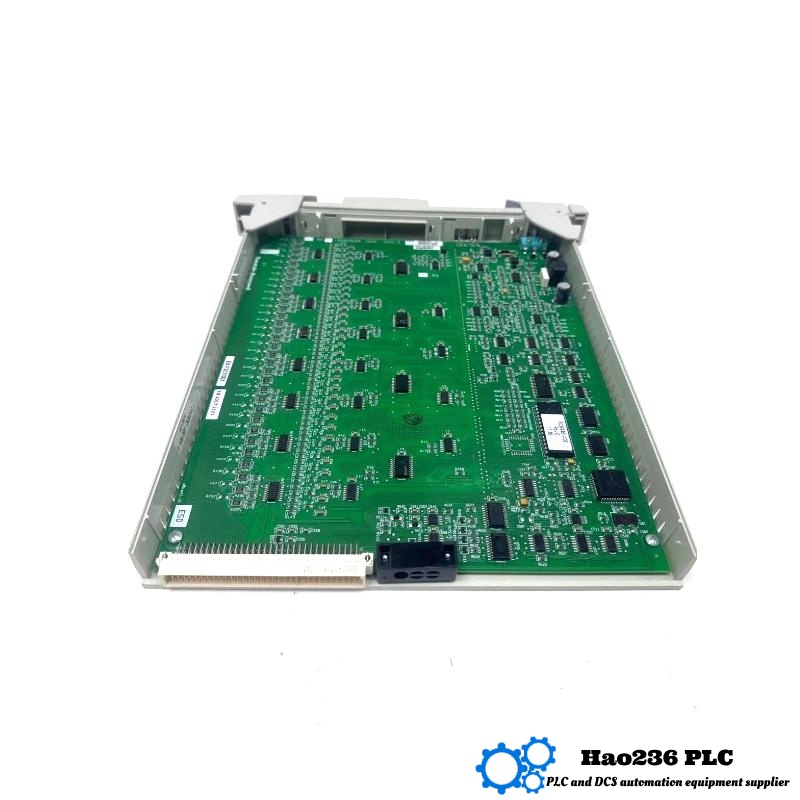

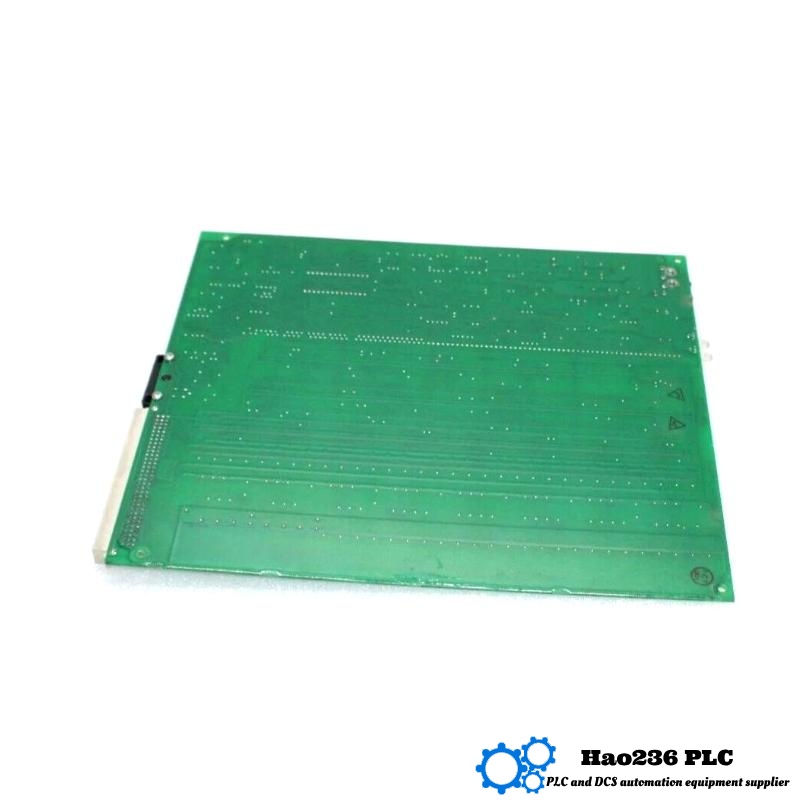

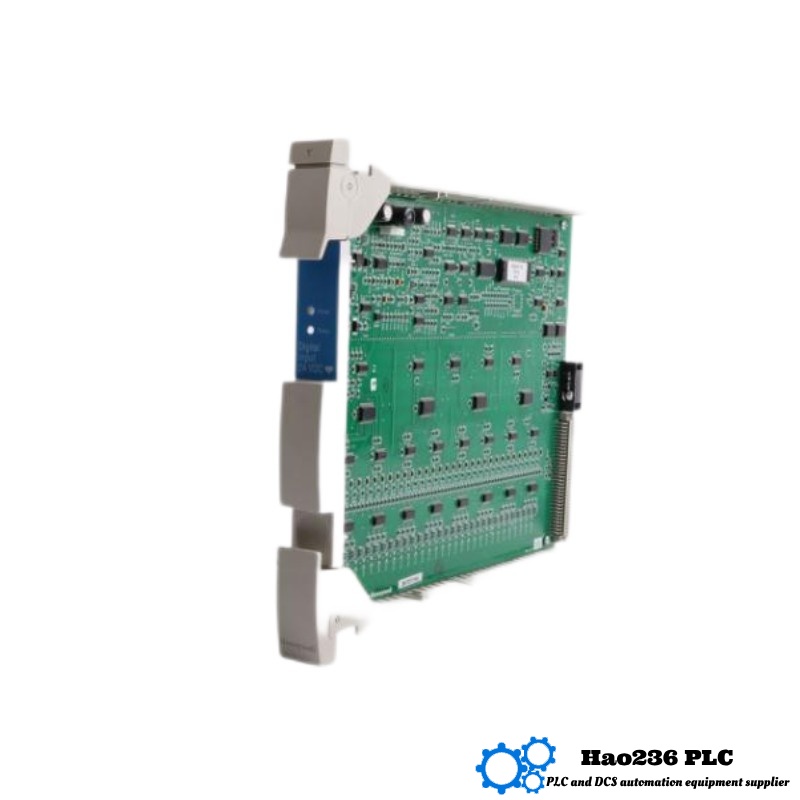

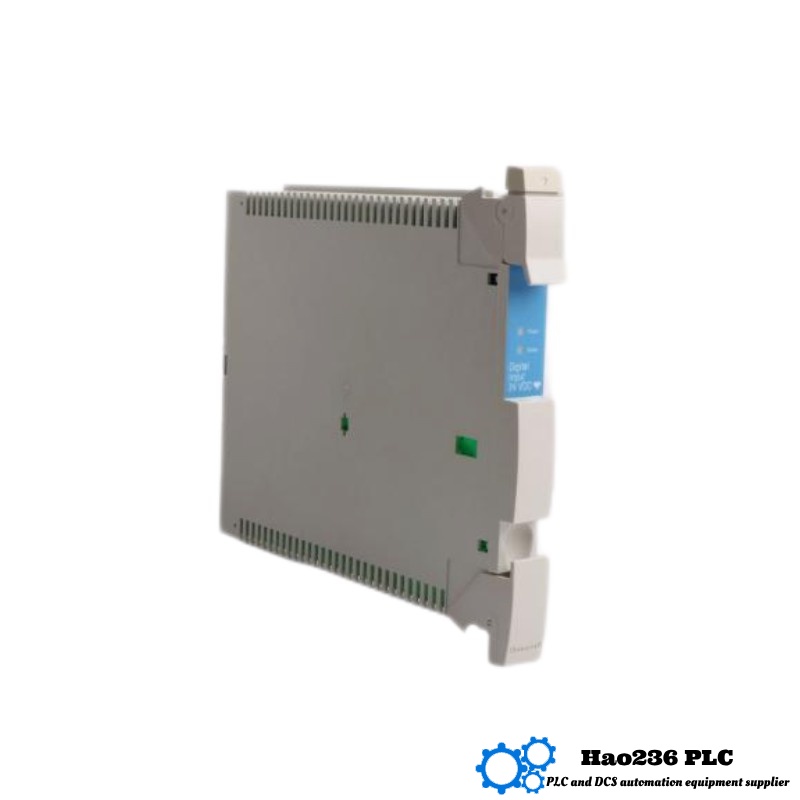

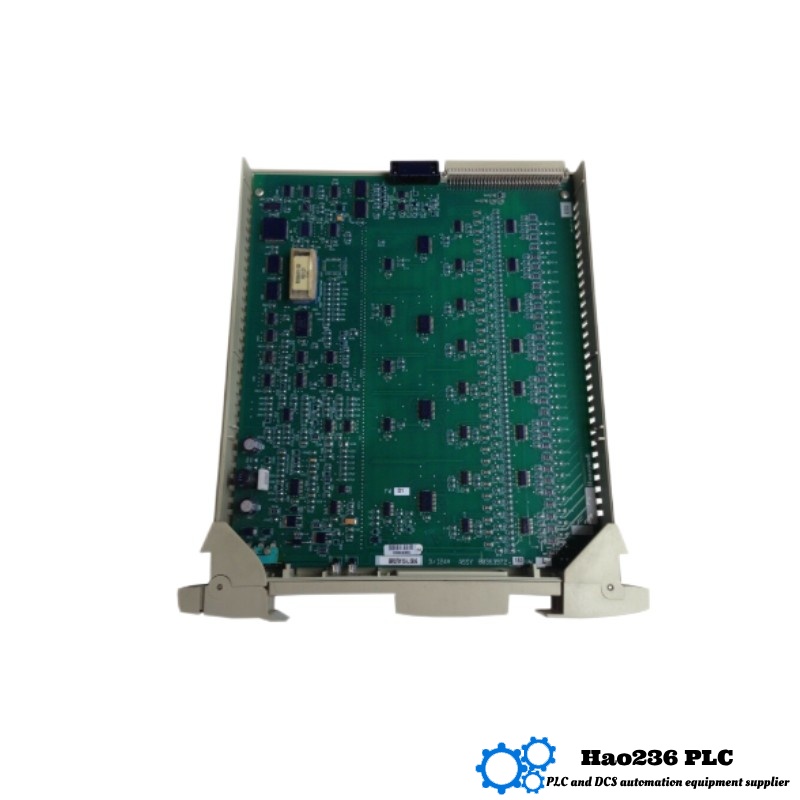

Product Overview – MC‑PDIY22 (80363972‑150)
Product Introduction
The MC‑PDIY22 module, part number 80363972‑150, is a conformally-coated digital input processor designed for industrial automation systems. It handles up to 32 digital input points at 24 V DC, collecting high-speed field signals and reliably delivering them to the control system processor.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | MC‑PDIY22 |
| Part Number | 80363972‑150 |
| Input Channels | 32 digital inputs |
| Input Voltage | 24 V DC |
| Coating | Conformal coating for environmental protection |
| Processor Type | High‑performance input processing |
| Response Time | ~2 ms |
| Insulation Resistance | 200 MΩ @ 500 VDC |
| Operating Temp | –20 °C to +70 °C |
| Dimensions (L × W × H) | Approx. 318 mm × 31 mm × 277 mm |
| Weight (kg) | Approx. 0.51 kg |
Applications
This module is ideal for demanding automation environments requiring fast and accurate processing of digital signals:
-
Process automation systems – Captures field digital signals like alarms, status bits, internal logic.
-
Power and utility operations – Logs breaker positions, safety interlocks, and sequence events.
-
Refineries and chemical plants – Monitors critical digital inputs under harsh, corrosive conditions.
-
Manufacturing and batching lines – Collects inputs from sensors for real‑time sequencing and control.
-
Utility and infrastructure monitoring – Feeds digital state changes into supervisory control systems reliably.
Advantages
-
High channel density – 32 inputs packed into a compact module, reducing footprint in control panels.
-
Rapid response – ~2 ms response ensures minimal latency, aiding fast control loops and event logging.
-
Robust design – Conformal coating protects electronics from moisture, dust, and chemical exposure.
-
Wide temperature tolerance – Works reliably in environments from –20 °C up to +70 °C.
-
Electrical resilience – High insulation provides strong protection against surges and electrical noise.
Brand & Series
-
Brand: Industrial Automation Division (name withheld)
-
Series: Digital Input Processors – part of a modular I/O family in distributed control systems.
Related or Similar Models in the Same Series
| Model | Function | Channels / Details | Dimensions & Weight |
|---|---|---|---|
| MC‑PDIY22 (32‑ch) | Digital Input Processor | 32 DI | As above, ~0.51 kg |
| MC‑PDIX02 | Digital Input Module | 32 DI | Similar size, ~0.50 kg |
| MC‑PDIS12 | SOE Digital Input Processor | 32 DI with timestamp | Larger module, ~0.45 kg |
| MC‑PDOY22 | Digital Output Processor | 16 DO | Similar size, ~0.51 kg |
| MC‑TDIY22 | Digital Input Processor | 32 DI (FTA module) | ~307 mm length, ~0.55 kg |
Other Popular Models from the Same Brand
| Model | Role | Function | Weight (kg) |
|---|---|---|---|
| Power Supply Unit | System power | Supplies 24 V DC to I/O rack | ~0.5–0.7 kg |
| Logic Manager | System controller | Core logic processing | ~0.6 kg |
| Analog Input Module | Multi‑signal analog input | Accepts RTD, mA, V channels | ~0.5–0.6 kg |
| Analog Output Module | Multi‑channel analog output | Drives field actuators via 4–20 mA | ~0.5 kg |
| Fieldbus Interface | I/O network controller | Connects to industrial Ethernet, Profibus, etc. | ~0.4 kg |
FAQ – MC‑PDIY22 (80363972‑150)
Q1: How many input channels does the module support?
A1: It supports 32 digital input channels.
Q2: What voltage do the input channels use?
A2: It accepts 24 V DC digital inputs.
Q3: What environmental protection does the module offer?
A3: It uses conformal coating to protect against moisture and dust.
Q4: What is the typical response time?
A4: About 2 ms response time, enabling fast signal detection.
Q5: What is its insulation performance?
A5: Insulation resistance is about 200 MΩ at 500 V DC.
Q6: What temperature range can it operate in?
A6: It functions reliably from –20 °C to +70 °C.
Q7: How heavy is the module?
A7: Approximately 0.51 kg, making it quite lightweight.
Q8: What kind of systems is it designed for?
A8: It is tailored for high-speed process management in automation systems.
Q9: Is it easy to install?
A9: Yes—its compact design and DIN-rail compatibility allow straightforward installation.
Q10: What should I choose if I need output instead of input?
A10: Try a digital output processor—such as the 16-channel digital output module in the same line.
