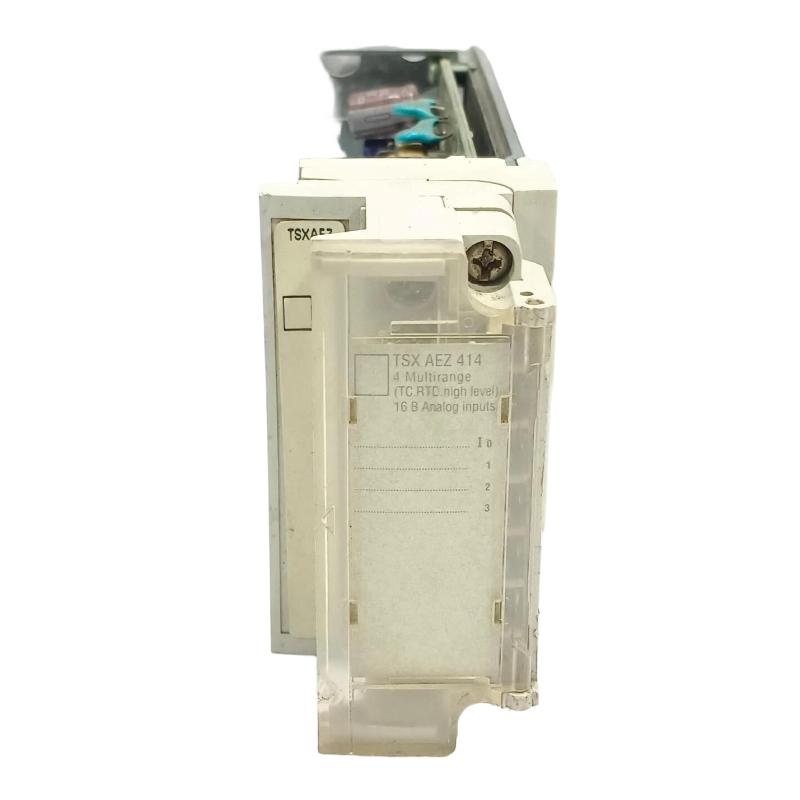

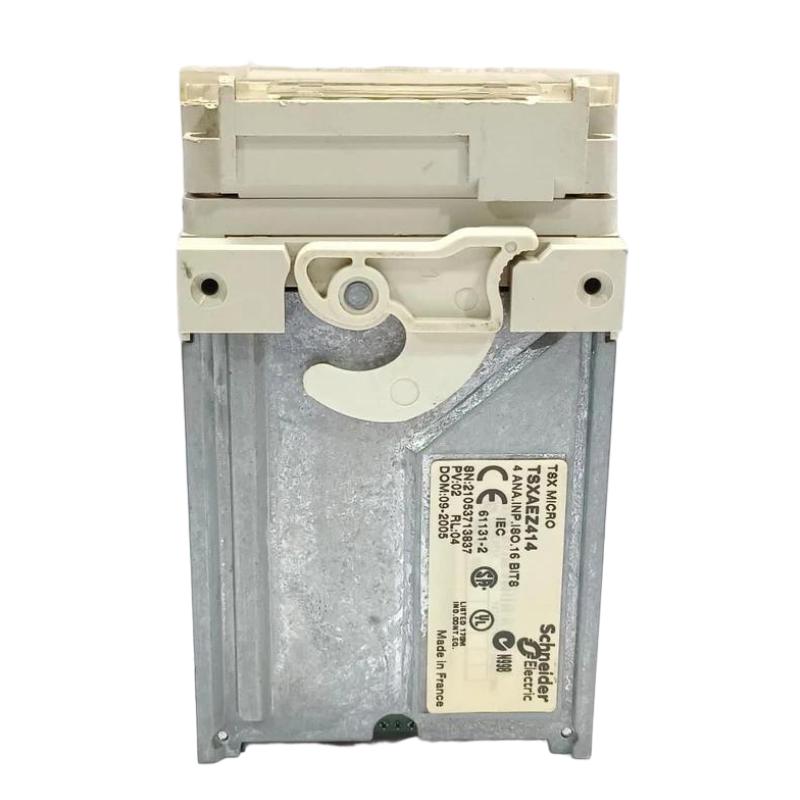

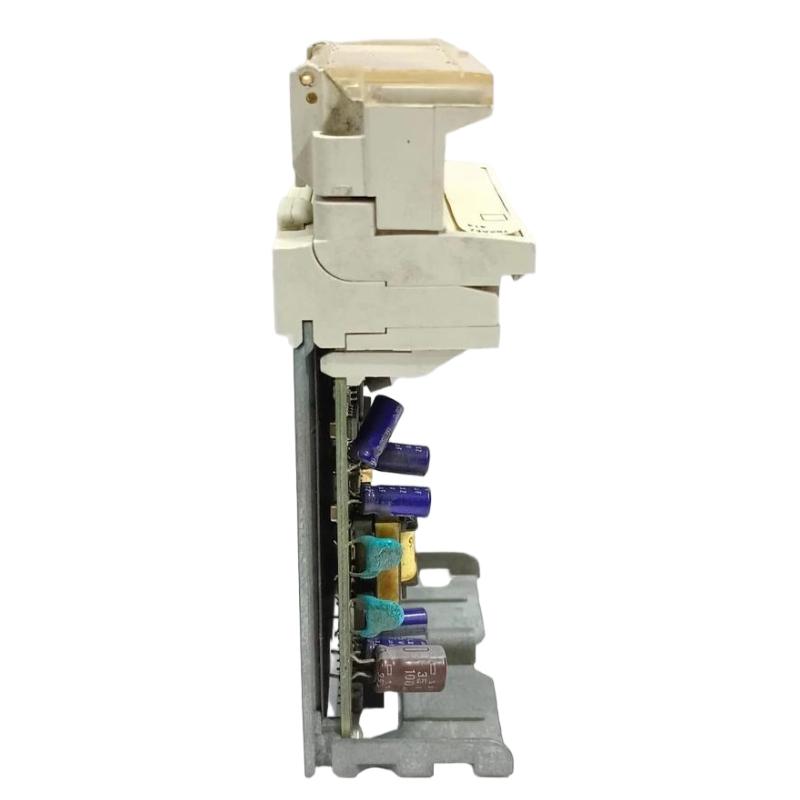

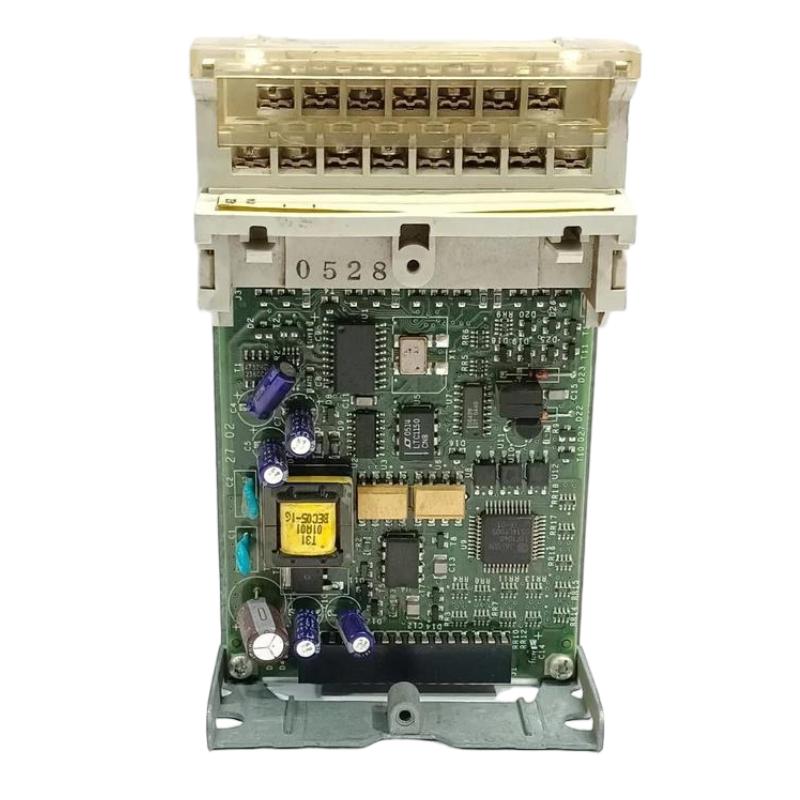

1. Product Overview

The Schneider TSXAEZ414 Analog Input Module is an industrial automation component identified for analog signal acquisition in PLC-based control systems. Analog input modules allow industrial controllers to receive variable electrical signals from compatible field instruments and use the resulting measurement data for monitoring, process regulation, and equipment coordination.

In industrial environments, analog signals are commonly associated with physical variables such as temperature, pressure, flow, liquid level, and position. A compatible input module receives the instrument signal and converts it into data that can be interpreted by the control system. The PLC application can then use this data to display process conditions, generate alarms, or execute programmed control sequences.

The Schneider TSXAEZ414 may be relevant to industrial facilities maintaining existing automation equipment. When sourcing this component for maintenance or replacement, it is important to confirm the complete model number, supported controller platform, electrical input characteristics, and hardware configuration.

For maintenance engineers and industrial spare-parts buyers, accurate model identification helps reduce the risk of purchasing incompatible equipment and supports a more predictable replacement process.

2. Technical Specifications

Specification note: The dimensions and weight above are based on the supplied product information. The exact input signal types, channel count, resolution, accuracy, isolation characteristics, and supported controller models should be verified against the technical documentation for TSXAEZ414 before use.

3. Function and Working Principle

Analog input modules form an important part of industrial measurement and control systems. Their purpose is to receive supported analog signals and make the corresponding measurement data available to a PLC.

3.1 Analog Signal Acquisition

Industrial sensors and transmitters convert physical conditions into electrical signals. Depending on the instrument and application, these signals may represent temperature, pressure, flow, level, or another process variable.

A compatible analog input module receives the electrical signal through its designated input connections. The module must be suitable for the signal type and range produced by the connected instrument.

For example, a pressure transmitter may provide an electrical signal corresponding to the pressure in a pipeline. The input module acquires this signal so that the PLC application can evaluate the measurement.

3.2 Signal Conversion and Data Representation

Many analog input modules use analog-to-digital conversion to represent an incoming electrical signal as a numerical value. The PLC program can then process the value and, where necessary, convert it into an engineering unit.

A correctly configured system might convert a raw measurement into degrees Celsius, bar, liters per minute, or millimeters.

The conversion method, numerical range, measurement resolution, and scaling formula depend on the exact hardware and software configuration. These details should be established using the applicable product documentation.

3.3 Integration with PLC Control Logic

Once acquired, analog measurement data can be used by the controller program for monitoring, alarm generation, process sequencing, and control calculations.

For example, an application may compare a measured temperature with a configured operating limit and generate an alarm if the value moves outside the permitted range. In a suitable closed-loop control arrangement, measurement data may also contribute to adjustments of a compatible control output.

The actual capabilities depend on the PLC platform, connected equipment, and application design.

4. Role in Industrial Automation Systems

Analog measurement enables an automation system to evaluate changing process conditions rather than relying exclusively on discrete on/off signals.

Process Monitoring

A PLC can use analog measurement data to monitor process variables from compatible field instruments. Operators may use these values to assess operating conditions and identify abnormal trends.

Equipment Condition Monitoring

Analog signals can provide information about equipment operating conditions when appropriate sensors and signal interfaces are installed. The controller can evaluate these measurements according to the application program.

Automatic Process Regulation

When incorporated into a properly engineered control loop, analog input data can help a controller maintain a process variable near a target value. Typical examples include pressure regulation, temperature control, and flow management.

Control performance depends on the complete system, including the instrument, input hardware, controller program, and final control element.

Alarm and Supervisory Functions

The PLC can compare acquired values against configured limits and generate alarms or status information. If the overall system supports the required communications, these values may also be displayed on an operator interface or made available to supervisory software.

A standard analog input module should not be assumed to provide a safety-rated function unless the complete hardware and system design explicitly supports it.

5. Typical Industrial Applications

The following are general application areas for analog input modules. They are not confirmation that every signal type or application is supported by the TSXAEZ414.

• Manufacturing machinery: Monitoring process variables and machine operating conditions.
• Process automation: Acquiring compatible signals from industrial transmitters.
• Water and wastewater systems: Monitoring flow, pressure, and level through suitable instruments.
• HVAC equipment: Collecting temperature and pressure measurements where supported.
• Packaging machinery: Monitoring operating conditions and supporting programmed machine sequences.
• Material handling: Acquiring compatible position or process measurement signals.
• Industrial utilities: Providing measurement data for equipment monitoring and control.

The suitability of the TSXAEZ414 for any specific application must be confirmed by checking its documented electrical characteristics and the requirements of the connected field devices.

6. Installation and System Integration

Correct installation and configuration are essential for obtaining reliable analog measurements. Qualified personnel should follow the applicable equipment instructions and site electrical safety procedures.

6.1 Verify the Exact Product Model

Check the product label and confirm the model number TSXAEZ414. Compare the component with the existing unit and verify its hardware identification, mounting arrangement, connector configuration, and supported PLC platform.

Do not assume that two modules are interchangeable simply because they have similar dimensions or product descriptions.

6.2 Isolate Power Before Installation

Place the controlled equipment in a safe condition and follow the facility’s lockout/tagout procedure. Isolate the relevant controller supply and external field circuits as required.

Do not install or remove the module under power unless the manufacturer explicitly permits this operation for the exact hardware and configuration.

6.3 Verify Field Instrument Compatibility

Before connecting a sensor or transmitter, confirm its output signal type, range, polarity, and electrical requirements. Compare these characteristics with the module’s documented input specifications.

For current-loop instruments, verify the complete loop arrangement, including the power source and any required signal-conditioning components. Incorrect wiring or incompatible signal levels may result in invalid readings or equipment damage.

6.4 Inspect Wiring and Grounding

Inspect the wiring for loose terminals, damaged insulation, corrosion, and other visible problems. Route analog signal cables according to the manufacturer’s recommendations and applicable site standards.

Where appropriate, separate low-level measurement wiring from motor cables and other sources of electrical interference. Follow the documented shielding and grounding arrangement, and do not assume that input channels are electrically isolated unless the specifications confirm it.

6.5 Configure the Input Channel

Use the supported engineering software and hardware configuration procedure to configure the module, where applicable.

Verify the input range and signal type, and check that the PLC program interprets the resulting data correctly. Incorrect scaling or engineering-unit conversion can cause a valid electrical signal to produce an incorrect displayed measurement.

6.6 Perform Commissioning Tests

After installation, test the complete measurement path before returning the system to production.

Confirm that:

• The module is correctly installed and recognized by the controller.
• No unexpected hardware diagnostics are present.
• Field instruments are connected according to the approved wiring diagram.
• Measurements respond correctly to known conditions or suitable test inputs.
• PLC scaling, alarms, and application logic operate as intended.

Record the final configuration and test results to support future maintenance.

7. Troubleshooting Common Problems

Analog measurement problems may originate from the module, field instrument, wiring, power supply, configuration, or PLC program. A structured diagnostic process helps identify the actual cause.

7.1 No Analog Signal or an Unexpectedly Low Reading

Possible causes:

• Open circuit or loose terminal.
• Incorrect wiring polarity.
• Missing field-instrument power.
• Incorrect input signal configuration.
• Incompatible transmitter output.
• Faulty sensor, transmitter, or input circuit.

Recommended checks:

1. Verify the field instrument’s power supply and operating status.
2. Inspect the signal wiring after making the circuit safe.
3. Confirm that the instrument’s output type matches the module’s supported input.
4. Review the configured input range and channel assignment.
5. Use suitable test equipment to check the signal at appropriate measurement points.
6. Review available PLC and module diagnostic information.

7.2 Unstable or Fluctuating Measurements

Possible causes:

• Electrical interference.
• Poor shielding or grounding.
• Loose connections.
• Unstable transmitter power.
• A faulty field instrument.
• Incorrect filtering or configuration.

Recommended checks:

1. Compare the PLC measurement with an independent reading where practical.
2. Inspect the cable route and its separation from switching equipment.
3. Check the documented grounding and shielding arrangement.
4. Verify the stability of the field instrument’s power and output.
5. Review any configured filtering or averaging settings.
6. Record when the fault occurs and compare it with machine operating events.

7.3 Incorrect Engineering Values

An input may appear to function normally while the PLC displays an incorrect temperature, pressure, or flow value.

Possible causes:

• Incorrect scaling coefficients.
• A mismatch between the instrument range and configured input range.
• Incorrect raw-data interpretation.
• Incorrect engineering units.
• Unsupported input signal characteristics.

Recommended checks:

Verify the field instrument’s configured range and compare it with the module’s documented specifications. Review the application’s scaling formula and test the measurement at known points where practical.

7.4 Module Not Recognized by the PLC

Possible causes:

• Unsupported hardware configuration.
• Incorrect installation.
• Poor connection or mounting.
• Incompatible configuration software.
• A defective module or related controller hardware.

Recommended checks:

1. Confirm the full model number and controller compatibility.
2. Inspect the installation and connections after safe isolation.
3. Review hardware identification and diagnostic messages.
4. Confirm the software version and configuration requirements.
5. Consult the approved technical documentation before replacing additional components.

7.5 Intermittent Input Errors

Intermittent problems may be associated with vibration, loose wiring, electrical interference, unstable instrument power, or temperature-related faults.

Record the affected channel, measured value, time of occurrence, and relevant machine operating conditions. This information can help distinguish a module problem from a fault in the field instrument or wiring.

8. Compatible System Components

The following table describes general component categories that may be used in an industrial analog measurement system. It is not a confirmed compatibility list for the TSXAEZ414.

The entire measurement chain should be checked, from the field instrument through the wiring and input module to the controller program and operator display.

9. Replacement and Alternative Selection

When replacing the TSXAEZ414, the priority is to ensure that the replacement meets the electrical and system requirements of the original installation.

Replacement Recommendations

An exact TSXAEZ414 replacement with verified identification is generally the simplest option when maintaining the original system. If the original model is unavailable, an alternative should be selected only after reviewing its input characteristics, channel arrangement, mounting requirements, controller compatibility, and software support.

A replacement from the same manufacturer should not automatically be treated as a direct substitute. Changes in hardware may require wiring modifications, application changes, configuration updates, and additional commissioning tests.

10. Key Advantages of Correct Analog Input Integration

Reliable Signal Acquisition

A properly selected and configured analog input module allows a PLC system to acquire supported process measurements for monitoring and control.

Improved Troubleshooting

Correct wiring, documented signal ranges, and accurate scaling make it easier to determine whether an incorrect measurement originates from the instrument, input hardware, or controller program.

Better System Compatibility

Verifying hardware and software requirements before installation helps reduce avoidable integration and commissioning problems.

Support for Existing Automation Systems

For industrial facilities maintaining established PLC installations, correctly identifying the required replacement component can help minimize unnecessary changes to the control architecture.

More Efficient Maintenance Planning

Accurate product identification, configuration records, and commissioning documentation help maintenance teams manage spare parts and plan future repairs.

11. Frequently Asked Questions

What is the Schneider TSXAEZ414 Analog Input Module?

The TSXAEZ414 is identified as an analog input module for industrial automation applications. Its exact signal capabilities and compatible controller platforms should be verified using the technical documentation for the specific model.

What are the dimensions and weight of the TSXAEZ414?

The supplied dimensions are 122 × 72 × 40 mm, and the supplied weight is 0.21 kg.

Which signals can the TSXAEZ414 accept?

The supported voltage, current, or other signal types depend on the exact module design. Check the product’s electrical specifications before connecting field instruments.

Can the TSXAEZ414 replace another Schneider analog input module?

Not necessarily. Compatibility depends on the supported signal types, input ranges, channel configuration, controller platform, mounting arrangement, and software requirements.

Why does an analog input module display an incorrect value?

Potential causes include incorrect scaling, an incompatible signal range, wiring faults, unstable instrument power, electrical interference, or a defective field transmitter. Diagnosis should cover the entire measurement loop.

Does replacing the TSXAEZ414 require PLC reconfiguration?

The requirement depends on the existing hardware configuration and the replacement procedure. Verify the controller’s hardware configuration and application settings before restarting the system.

What should buyers check before ordering?

Confirm the full product identification, physical specifications, electrical input characteristics, controller compatibility, product condition, and supplier testing or warranty terms. Comparing the product label and connector arrangement with the installed unit can also help reduce ordering errors.

12. Conclusion

The Schneider TSXAEZ414 Analog Input Module is an industrial automation component identified for analog signal acquisition. Its supplied dimensions of 122 × 72 × 40 mm and weight of 0.21 kg provide useful information for procurement, storage, and installation planning.

Reliable operation depends on confirming the exact input specifications, wiring requirements, configuration settings, and compatibility with the installed PLC system. Before purchasing or replacing this component, maintenance teams should verify the model-specific documentation and test the complete measurement loop during commissioning.

For industrial automation spare-parts procurement, accurate identification and careful compatibility checks help reduce installation risks, improve troubleshooting efficiency, and support dependable process monitoring.
