1. Product Overview

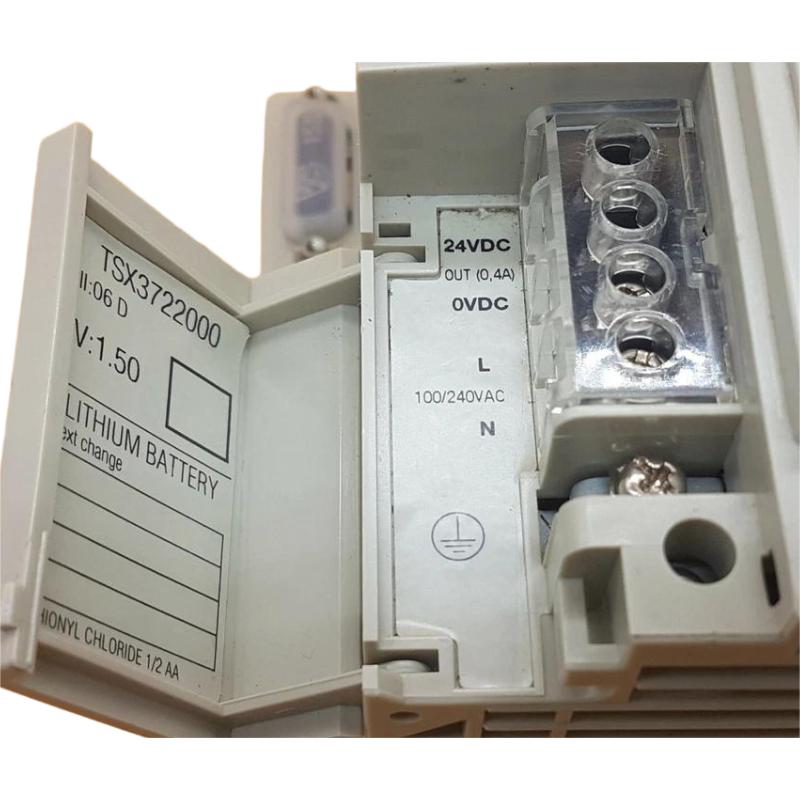

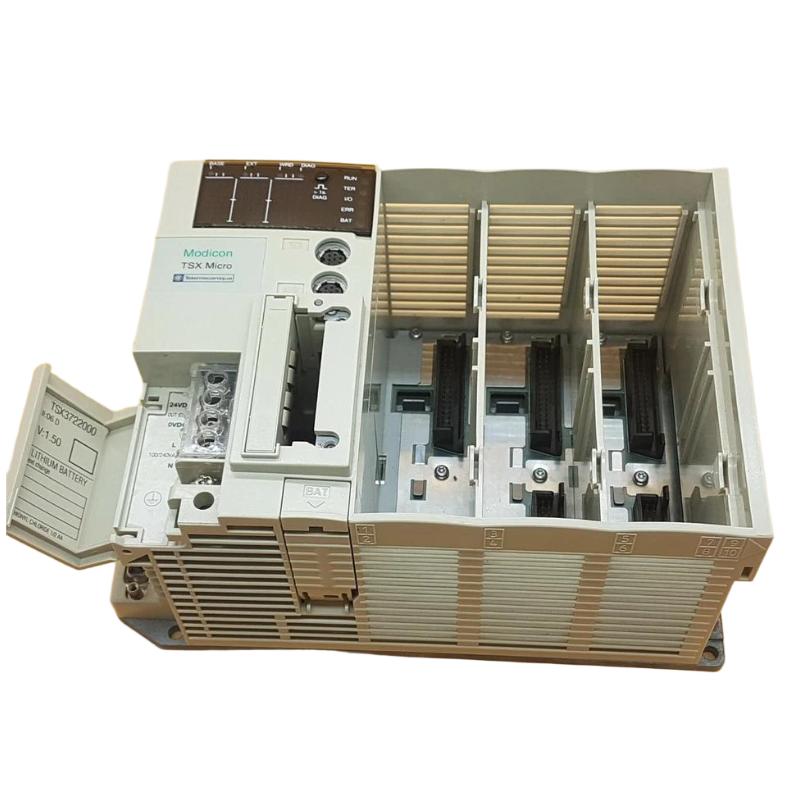

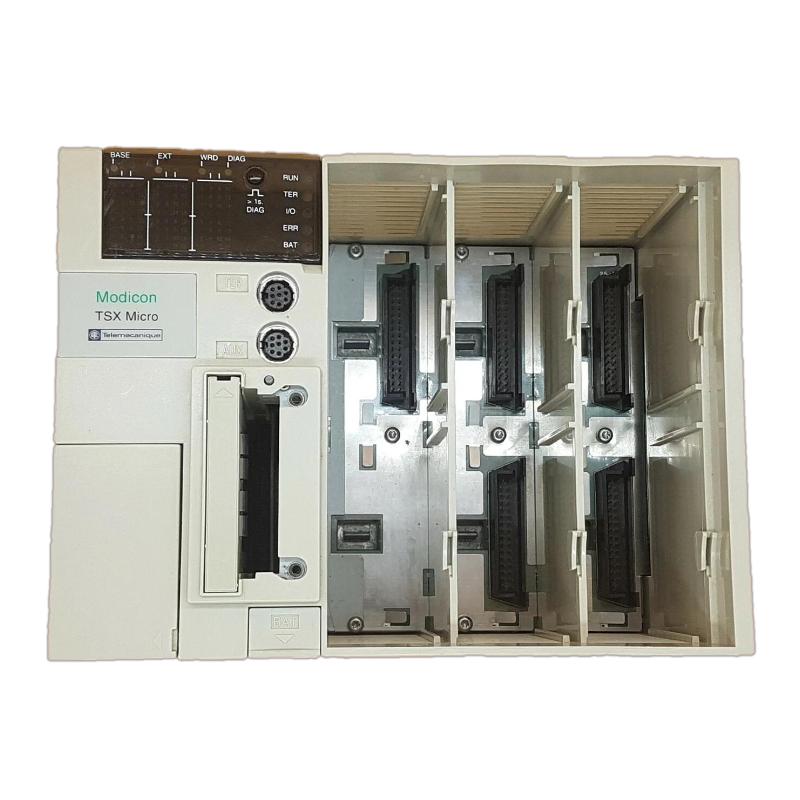

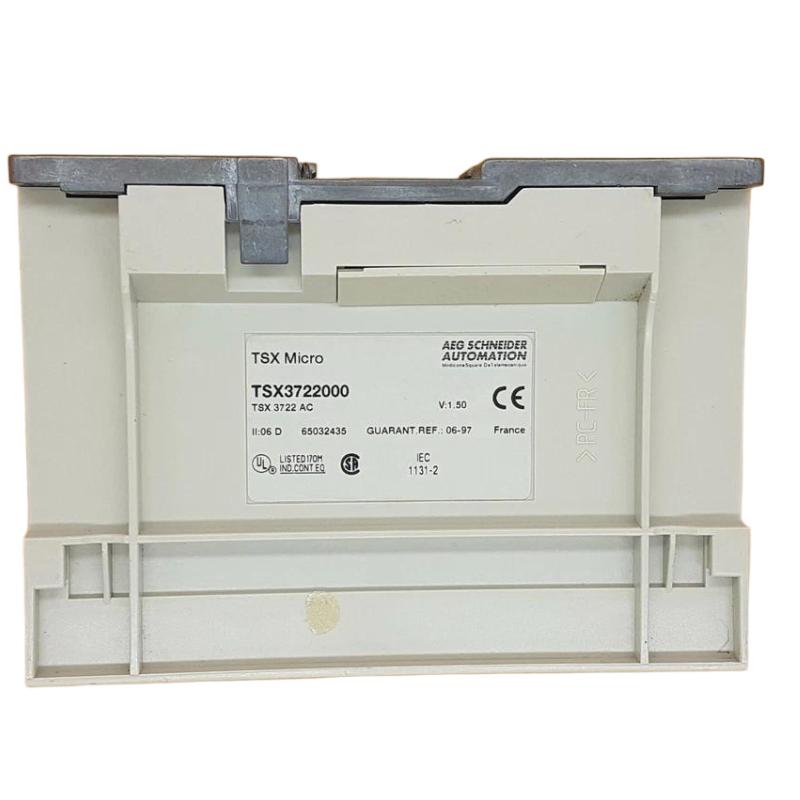

The Schneider Electric TSX3722000 CPU Module is an industrial programmable logic controller (PLC) component associated with the Modicon TSX Micro automation family. The CPU is the processing center of a PLC system, executing the application program, evaluating input signals, and coordinating machine operations according to configured control logic.

In industrial automation, CPU modules support equipment sequencing, machine interlocking, field-signal processing, and communication with compatible devices. They are used in applications where repeatable control logic is needed to manage production machinery and industrial processes.

The TSX3722000 is relevant to facilities maintaining existing automation installations that rely on compatible Modicon TSX Micro hardware. When sourcing a replacement, engineers should verify the full part number, hardware configuration, power requirements, I/O arrangement, communication interfaces, and programming compatibility.

For legacy PLC systems, preserving the original application program and configuration records is particularly important. A replacement should be evaluated against the actual installed system rather than selected solely by appearance or physical dimensions.

2. Technical Specifications

The dimensions and weight are based on the supplied product information. Electrical ratings, memory capacity, supported communication protocols, and expansion capabilities should be verified against the exact TSX3722000 technical documentation before installation.

3. Function and Working Principle

The TSX3722000 CPU module executes programmed control instructions and coordinates operations within a compatible PLC system.

3.1 Application Program Execution

The CPU processes the instructions stored in the PLC program. Depending on the application, these may include logic conditions, timers, counters, sequencing operations, data handling, and equipment interlocks.

For example, a machine may be programmed to start a motor only when an operator command is received and the required operating conditions are satisfied. The CPU evaluates these conditions and updates the relevant outputs according to the program.

3.2 Input Signal Processing

The controller receives information through its configured input system. Typical field devices include proximity sensors, limit switches, pushbuttons, pressure switches, and other compatible instruments.

The CPU uses input information to determine the machine’s operating state and select the appropriate control response. Correct field wiring, valid input assignments, and compatible I/O hardware are essential for dependable operation.

3.3 Output Control

After processing the program, the CPU updates output states through the supported output hardware. Depending on the installation, outputs may control contactors, indicator lamps, solenoid valves, or other industrial devices.

The electrical characteristics and load ratings of the output circuits depend on the installed hardware and interface components. They should be checked before connecting field loads.

3.4 System Communication

A PLC installation may exchange information with programming equipment, operator interfaces, other controllers, and compatible industrial devices.

The available communication functions depend on the exact TSX3722000 configuration and the connected equipment. Communication settings should be documented before replacement or modification.

4. Role in Industrial Automation Systems

The TSX3722000 can serve as a central processing component in compatible legacy PLC installations.

• Machine sequencing: Executes programmed startup, production, and shutdown sequences.
• Signal evaluation: Processes information from connected sensors and operator controls.
• Equipment coordination: Coordinates programmed interactions between machine components.
• Operating-state management: Uses application logic to determine machine status and required control actions.
• Interlocking: Applies programmed conditions to prevent certain operations when required conditions are absent. Safety-critical functions must be implemented using appropriately designed and validated safety systems.
• Legacy system maintenance: Can be relevant to repairing and maintaining existing equipment that uses compatible TSX Micro hardware.

Maintaining accurate wiring diagrams, application backups, and configuration records can simplify troubleshooting and reduce the risk of unexpected machine behavior after replacement.

5. Typical Industrial Applications

Manufacturing Machinery

PLC-based machinery uses control logic to coordinate sensors, actuators, machine sequences, and equipment-status signals. The TSX3722000 may be relevant to maintenance of compatible installations.

Conveyor and Material Handling Systems

Controllers can coordinate conveyor starts and stops, monitor material-position signals, and manage transfers between different machine sections.

Packaging Equipment

Packaging machinery often requires programmed coordination of product detection, mechanical movement, and operating sequences. Actual functions depend on the original application and installed I/O hardware.

Assembly Lines

In assembly applications, a PLC can manage process steps, monitor equipment conditions, and coordinate the operation of connected machines.

Industrial Utility Equipment

Suitable applications may include the control of pumps, fans, and auxiliary equipment when the required functions match the PLC configuration.

Legacy Automation Maintenance

The TSX3722000 may be considered when restoring older control panels or maintaining production machinery built around compatible Modicon TSX Micro systems. Model and configuration verification are essential before ordering a replacement.

6. Installation and System Integration

Correct installation helps prevent wiring errors, hardware damage, and unexpected machine operation.

Step 1: Verify the Model

Confirm the complete TSX3722000 part number and compare the replacement with the installed unit. Inspect the product label, connectors, mounting arrangement, and physical condition.

Do not assume that another CPU from the same product family is interchangeable without checking its specifications.

Step 2: Back Up the PLC Program

Before removing a functioning controller, obtain a verified backup of the application program and available configuration data.

Record relevant I/O assignments, communication parameters, application settings, and memory configuration where applicable. Confirm that the backup can be accessed through a compatible programming environment.

Step 3: Isolate Electrical Power

Shut down the equipment according to the approved maintenance procedure. Isolate the relevant power sources and verify that the work area is safe before disconnecting electrical connections.

Installation and electrical testing should be performed by qualified personnel.

Step 4: Inspect the Installation

Inspect the mounting area, wiring, connectors, and cabinet for corrosion, overheating, contamination, loose terminals, or mechanical damage.

Check grounding and ventilation arrangements and confirm that the environment meets the requirements specified for the controller.

Step 5: Install the CPU Module

Mount the module using the intended installation arrangement. Reconnect the verified wiring according to the approved electrical drawings.

Before applying power, confirm the required supply characteristics, terminal assignments, protective measures, and compatibility of connected components.

Step 6: Restore the Application

Use a compatible programming environment and connection method to restore the correct PLC program and configuration. Verify that the project matches the target controller.

Do not assume that a program developed for a different CPU model can be transferred without modification.

Step 7: Complete Commissioning

After installation and configuration checks, energize the system under controlled conditions. Check available status indicators, input states, output behavior, communication, and the intended machine sequence.

Verify relevant interlocks and protective functions before returning the equipment to normal production.

7. Troubleshooting Common Problems

Problem 1: The CPU Does Not Start

Possible causes:

• Incorrect or missing supply voltage.
• Loose or damaged wiring.
• Faulty upstream power protection.
• Internal hardware failure.

Recommended checks:

1. Verify the supply against the exact product specifications.
2. Inspect wiring and terminals after safely isolating the equipment.
3. Check relevant protective devices and status indicators.
4. Arrange qualified hardware diagnosis if the supply is correct but the CPU remains inactive.

Problem 2: The PLC Program Does Not Execute Correctly

Possible causes:

• Incorrect application program.
• Incomplete program transfer.
• Configuration mismatch.
• Unexpected input conditions or active interlocks.

Recommended checks:

1. Confirm that the correct program and configuration have been loaded.
2. Review available controller diagnostics.
3. Compare the installed configuration with the approved backup.
4. Check input conditions and program logic before modifying the application.

Problem 3: Input or Output Signals Are Incorrect

Possible causes:

• Field wiring errors.
• Failed sensors or actuators.
• Incorrect I/O assignments.
• Incompatible or faulty I/O hardware.
• Program conditions preventing the expected operation.

Recommended checks:

1. Compare wiring with the approved electrical drawings.
2. Check input states using a supported diagnostic method.
3. Review the logic conditions governing the expected output.
4. Verify the electrical characteristics of the connected devices.

Never force outputs or bypass protective circuits on operating machinery without an authorized, controlled test procedure.

Problem 4: Programming Communication Fails

Possible causes:

• Incompatible programming software.
• Incorrect communication settings.
• Damaged cable or connector.
• Unsupported communication interface.

Recommended checks:

1. Confirm programming-software compatibility with the exact CPU.
2. Verify the intended interface and connection method.
3. Inspect cables and connectors.
4. Review communication parameters and project configuration.

Problem 5: Intermittent Operation

Possible causes:

• Unstable power.
• Loose connections.
• Electrical interference.
• Excessive cabinet temperature.
• Age-related component deterioration.

Recommended checks:

1. Review fault history and operating conditions.
2. Inspect grounding, wiring, and cabinet ventilation.
3. Check for recurring power interruptions or communication errors.
4. Arrange further diagnosis if the fault persists.

8. Compatible System Components

The TSX3722000 should be integrated only with components confirmed to be compatible with the actual controller configuration.

The exact combination of components depends on the original system design. Confirm compatibility before purchasing accessories or changing the installed configuration.

9. Replacement and Alternative Selection

When the TSX3722000 requires replacement, the best approach depends on the existing machine, spare-parts availability, and long-term maintenance requirements.

An exact replacement may reduce immediate engineering changes when the existing system remains suitable for operation. The replacement’s hardware identity, condition, and configuration must still be verified.

A modern PLC should not be treated as a direct substitute without an engineering assessment. Migration may require application redevelopment, I/O changes, communication modifications, and comprehensive commissioning.

For used or refurbished units, confirm the supplier’s testing status, physical condition, included accessories, and warranty or return policy.

10. Key Advantages

• Centralized PLC processing: Executes the configured automation program and coordinates supported control operations.
• Legacy system maintenance: Can help maintain compatible existing automation installations.
• Structured troubleshooting: Supports systematic diagnosis of power, program, I/O, and communication problems.
• Potentially reduced replacement effort: An exact, verified replacement may avoid an immediate full control-system redesign.
• Application continuity: Restoring the correct controller and program can help return machinery to its intended operating sequence.

Actual suitability depends on the installed application, hardware condition, configuration, and availability of compatible components.

11. Frequently Asked Questions

Q1: What is the Schneider TSX3722000 CPU Module?

The TSX3722000 is identified as a Schneider Electric CPU Module associated with the Modicon TSX Micro family for compatible PLC-based industrial automation applications.

Q2: What are the dimensions and weight of the TSX3722000?

The supplied dimensions are 230 × 150 × 110 mm, and the supplied weight is 1.5 kg.

Q3: What should I verify before purchasing this CPU module?

Confirm the complete model number, physical condition, electrical requirements, installed configuration, programming compatibility, and supplier testing and warranty terms.

Q4: Can it replace another TSX Micro CPU?

Not automatically. Compatibility depends on the exact model, hardware configuration, application program, communication requirements, and installed I/O.

Q5: Why might the CPU fail to start?

Potential causes include an incorrect supply, loose wiring, a power-protection fault, or internal hardware damage. Begin with the specified electrical checks and seek qualified diagnosis if necessary.

Q6: Can I upgrade to a modern PLC?

A migration may be possible, but it requires an assessment of the original program, I/O hardware, field wiring, communication interfaces, and machine operating requirements.

Q7: Is a program backup necessary before replacement?

Yes. A verified backup and configuration record help restore the intended machine behavior and reduce the risk of commissioning errors.

12. Conclusion

The Schneider Electric TSX3722000 CPU Module is intended for PLC-based industrial automation systems requiring programmed logic execution and coordinated machine control. For facilities maintaining compatible legacy equipment, accurate model identification and configuration verification are essential when sourcing a replacement.

Before installation, confirm electrical requirements, software compatibility, I/O configuration, and communication arrangements. Preserve the original application program and complete controlled commissioning tests before returning equipment to normal production.

For long-term maintenance planning, evaluate spare-parts availability, technical support, and the potential benefits of migrating to a currently supported PLC platform. Careful compatibility checks help reduce avoidable downtime and support reliable industrial operations.
