Product Overview

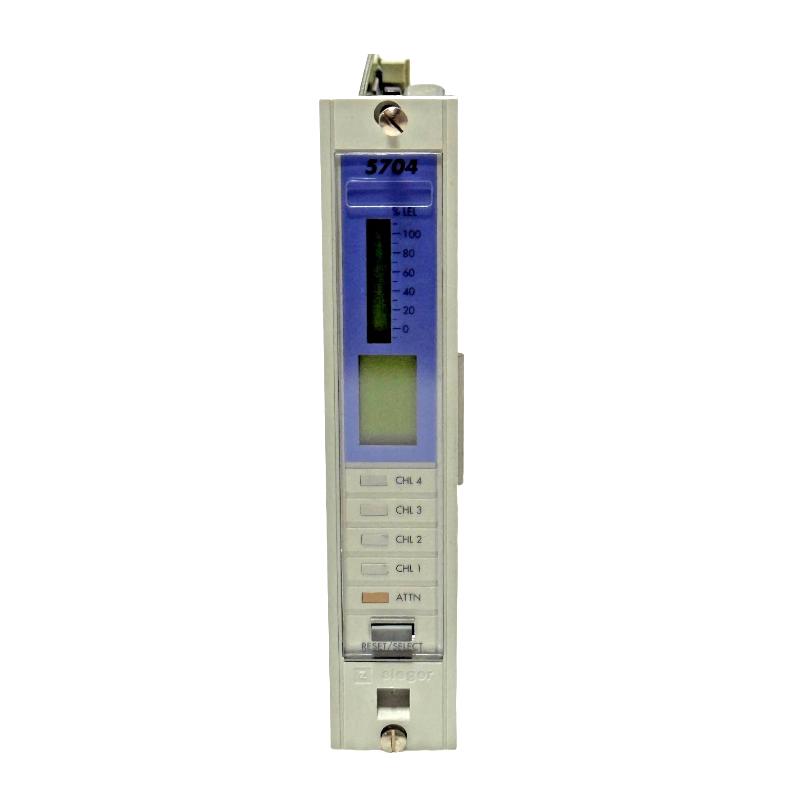

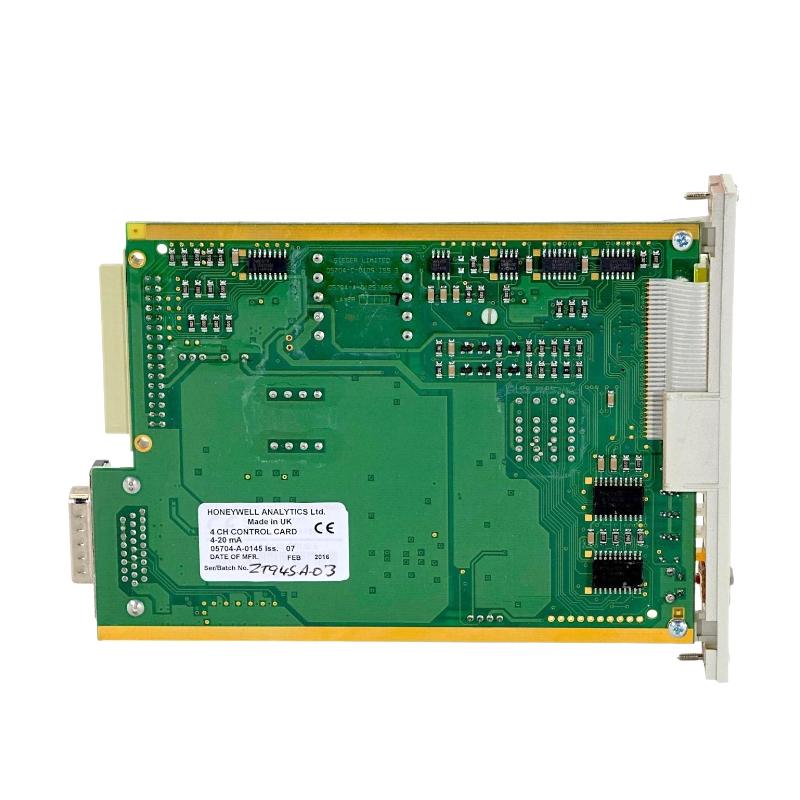

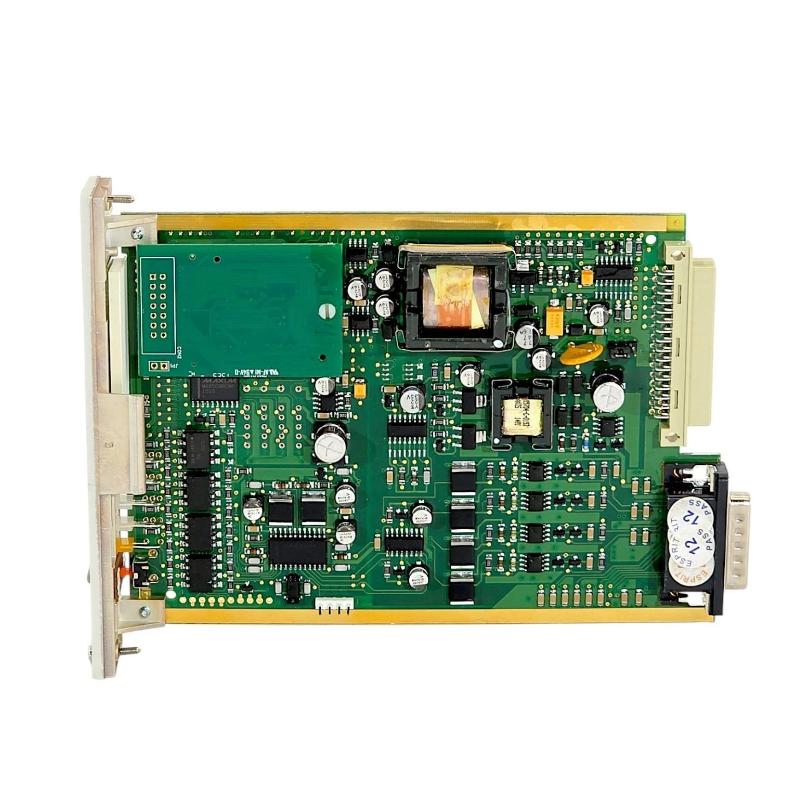

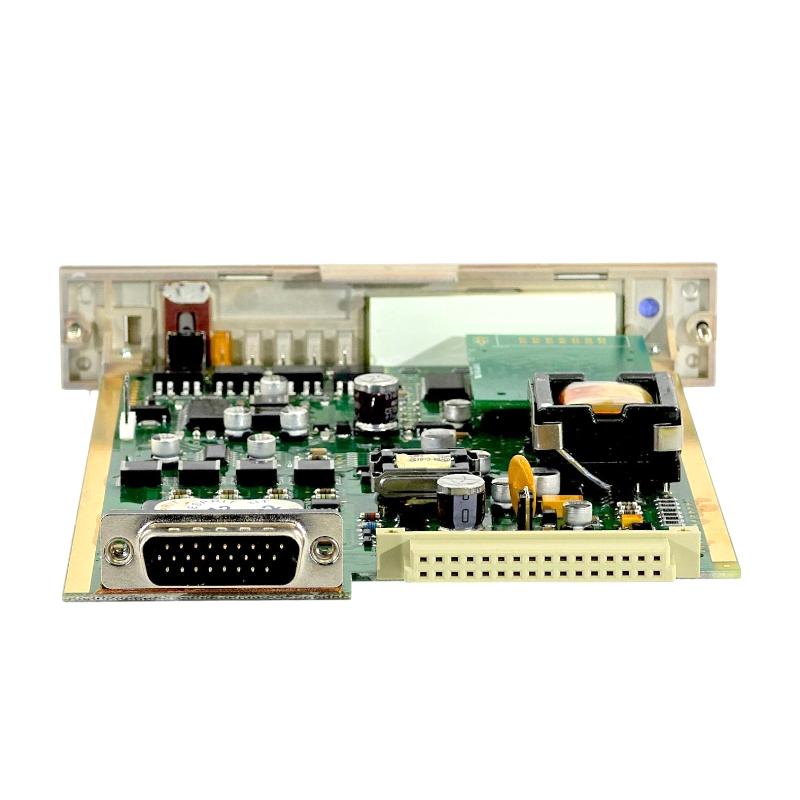

The Honeywell 05704-A-0145 4-Channel Control Card is a multi-channel control card used within Honeywell industrial control and gas detection system architectures. Its four-channel configuration allows one card to handle multiple control-related functions within a centralized system rather than requiring a separate card for each channel.
In a typical installation, the card works as part of a larger rack or controller assembly. Field devices provide status, alarm, or control-related signals, while the control card processes the relevant channel information and exchanges it with the rest of the system.
The 05704-A-0145 is particularly relevant to installations where several control points need to be handled within a compact industrial control architecture. Its application should be evaluated together with the host rack, power arrangement, field interfaces, and other cards installed in the same system.
With dimensions of 150 × 25 × 100 mm and a stated weight of 0.141 kg, the card has a compact form factor suitable for rack-based system integration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model | 05704-A-0145 |
| Product Type | 4-Channel Control Card |
| Number of Channels | 4 |
| Primary Function | Multi-Channel Control |
| System Application | Industrial Control / Safety System |
| Installation | Compatible Honeywell System Rack |
| Form Factor | Control Card |
| Dimensions | 150 × 25 × 100 mm |
| Weight | 0.141 kg |
The exact electrical function of each channel depends on the host system and associated field interface. For replacement work, the complete part number and existing system configuration should be verified before installation.
Product Features
The 05704-A-0145 is built around a four-channel architecture, allowing several control points to be managed within one compact card.
Its main characteristics include:
- Four independent control channels
- Compact card-style construction
- Designed for Honeywell industrial system integration
- Suitable for centralized multi-channel control
- Rack-based installation
- Supports integration with associated field interfaces
- Suitable for applications requiring multiple control points
- Simplifies channel concentration within a control rack
- Compact 150 × 25 × 100 mm dimensions
- Lightweight 0.141 kg construction
A four-channel card can be advantageous in systems where several related control functions are located within the same equipment area. It reduces the need to distribute individual control functions across multiple standalone devices and keeps the system architecture organized.
Working Principle
The 05704-A-0145 operates as one element within a larger Honeywell control architecture.
A simplified control path can be represented as:
Field Devices → Interface / Control Card → System Controller → Alarm / Control Logic → External Equipment
The card receives the channel information made available through the host system and performs the control-related function assigned to its four channels.
The important point is that the card does not normally operate as an independent controller. Its behavior depends on the rack, system controller, field interface, power supply, and configuration in which it is installed.
In an industrial application, several field conditions may need to be monitored or acted upon at the same time. A four-channel architecture allows these related functions to be concentrated into one card while maintaining separate channel paths.
If one channel behaves incorrectly, troubleshooting should focus on that channel’s complete signal path rather than immediately replacing the entire card.
Role in a Honeywell Control System
The 05704-A-0145 serves as a multi-channel control interface within the overall system architecture.
A practical arrangement may look like:
Field Sensors / Switches → 05704-A-0145 → System Controller → Control Outputs / Alarm System
Depending on the installation, the card may work alongside other cards responsible for input acquisition, system processing, communications, power distribution, or output control.
This modular arrangement is useful because different parts of the control system can be isolated during commissioning and maintenance.
For example, if one control channel does not respond correctly while the remaining channels operate normally, an engineer can compare the affected channel with a functioning channel. This helps determine whether the problem is related to the field device, wiring, channel circuitry, configuration, or another system component.
Industrial Applications
The 05704-A-0145 can be used in industrial control environments where multiple control channels need to be integrated into a centralized system.
| Application | Typical Use |
|---|---|
| Gas Detection Systems | Multi-channel control and system interfacing |
| Industrial Safety Systems | Handling control-related system functions |
| Process Equipment | Centralized control of multiple field points |
| Plant Monitoring | Concentrating several control channels |
| Utility Equipment | Multi-point control applications |
| Industrial Machinery | Integration of control signals |
| Alarm Systems | Supporting associated control functions |
| Process Safety Applications | Interface within a larger safety architecture |
The actual application should be determined from the host Honeywell system and the electrical function assigned to each channel.
Installation and Maintenance
The 05704-A-0145 should be installed in the appropriate Honeywell rack or system assembly for which it is specified.
Because control cards form part of an integrated system, replacement should be performed with the complete system configuration in mind. A physically compatible card is not necessarily an electrically or functionally equivalent replacement.
Recommended checks include:
- Confirm the complete 05704-A-0145 part number.
- Verify the host rack or controller compatibility.
- Check the card position before removal.
- Isolate power according to the applicable maintenance procedure.
- Inspect card connectors for contamination or damage.
- Check for bent or damaged contacts.
- Confirm the card is correctly seated after installation.
- Verify field wiring associated with each channel.
- Check channel status after power-up.
- Compare affected channels with known-good channels.
- Review system diagnostics where available.
- Confirm alarm and control behavior during commissioning.
- Inspect the card and rack during scheduled maintenance.
When replacing the card in an operating control or safety system, the maintenance procedure should account for process availability and any required bypass, inhibit, or shutdown conditions.
A channel fault should also be investigated systematically. Field wiring, terminal connections, configuration, upstream devices, and downstream control logic can all produce symptoms that appear to originate from the control card.
Related Components
The 05704-A-0145 normally works as part of a larger control system rather than as an isolated device.
| Component | Function |
|---|---|
| Honeywell System Rack | Provides card mounting and system interconnection |
| System Controller | Executes system control and processing functions |
| Power Supply | Provides operating power to the control architecture |
| Field Sensors | Detect process or equipment conditions |
| Field Switches | Provide discrete status information |
| Terminal / Interface Assembly | Connects field wiring to system hardware |
| Output Modules | Transfer control commands to external equipment |
| Communication Module | Exchanges data with external systems |
| Alarm System | Provides operator notification of abnormal conditions |
| Control Cabinet | Houses the complete control assembly |
The correct combination depends on the Honeywell platform in which the 05704-A-0145 is installed.
Recommended Related Models
When evaluating the 05704-A-0145 for replacement or system maintenance, related Honeywell control-system components should be selected according to the actual architecture rather than by physical dimensions alone.
| Model / Component | Product Type | Typical Application |
|---|---|---|
| Honeywell 05704-A-0145 | 4-Channel Control Card | Four-channel control applications |
| Honeywell 05704 Series Control Cards | Control Card Family | Modular industrial control systems |
| Honeywell 05704 System Rack | Rack / Chassis | Housing system cards |
| Honeywell 05704 Power Supply Modules | Power Supply | System power distribution |
| Honeywell 05704 Input Cards | Input Module | Field signal acquisition |
| Honeywell 05704 Output Cards | Output Module | External control signal output |
For a direct replacement, the complete 05704-A-0145 designation should be matched first. The number of channels, electrical characteristics, rack compatibility, and system function should all be confirmed before substituting another card.
Key Advantages
- Four-channel control architecture.
- Compact rack-mounted card format.
- Suitable for centralized multi-channel control.
- Integrates with Honeywell industrial system architecture.
- Supports multiple control functions within one card.
- Suitable for industrial and safety-related system applications.
- Simplifies control-channel concentration.
- Allows individual channel troubleshooting within a multi-channel card.
- Compact 150 × 25 × 100 mm dimensions.
- Lightweight 0.141 kg design.
Technical FAQs
What does the four-channel configuration of the 05704-A-0145 mean in practical terms?
The card provides four separate control channels within a single hardware assembly. Each channel can form part of an individual control or interface path, allowing several related functions to be handled from the same rack position.
Is the 05704-A-0145 interchangeable with another Honeywell card having the same physical dimensions?
Not necessarily. Physical size alone does not establish compatibility. The replacement must match the required channel function, electrical characteristics, rack architecture, system configuration, and application requirements.
What should be investigated when only one channel on the card fails?
Start by comparing the affected channel with a functioning channel. Check the associated field device, terminal connections, wiring, channel configuration, and system diagnostics. If the external signal path is normal, the card itself can then be evaluated as a possible source of the fault.
Why is the host rack important when replacing this control card?
The rack provides the card’s mechanical mounting, electrical interconnection, and relationship with the rest of the control system. A replacement card therefore needs to be compatible not only with the field application but also with the rack and controller architecture in which it operates.
