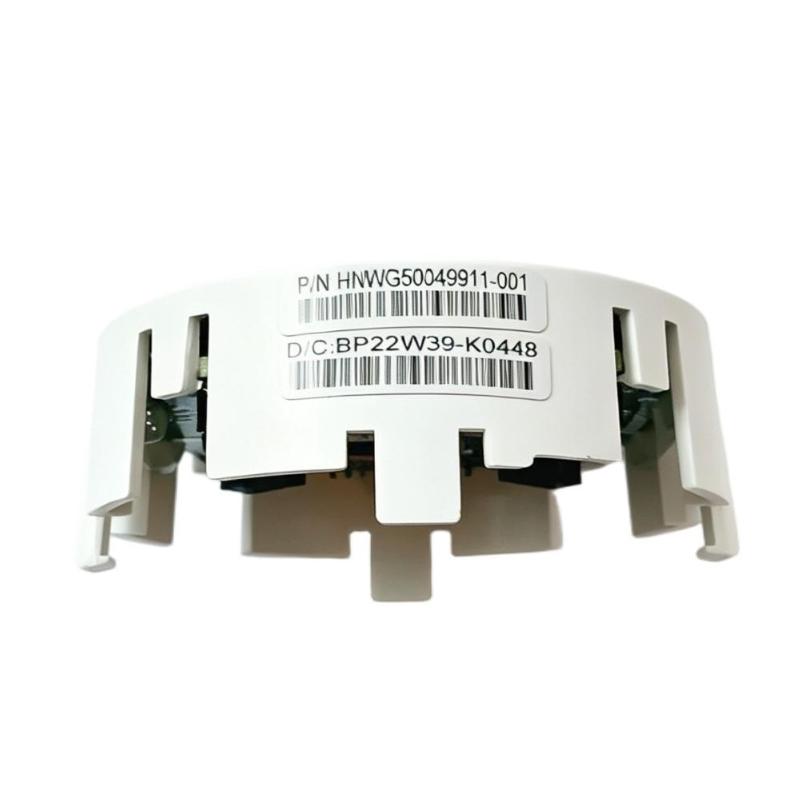

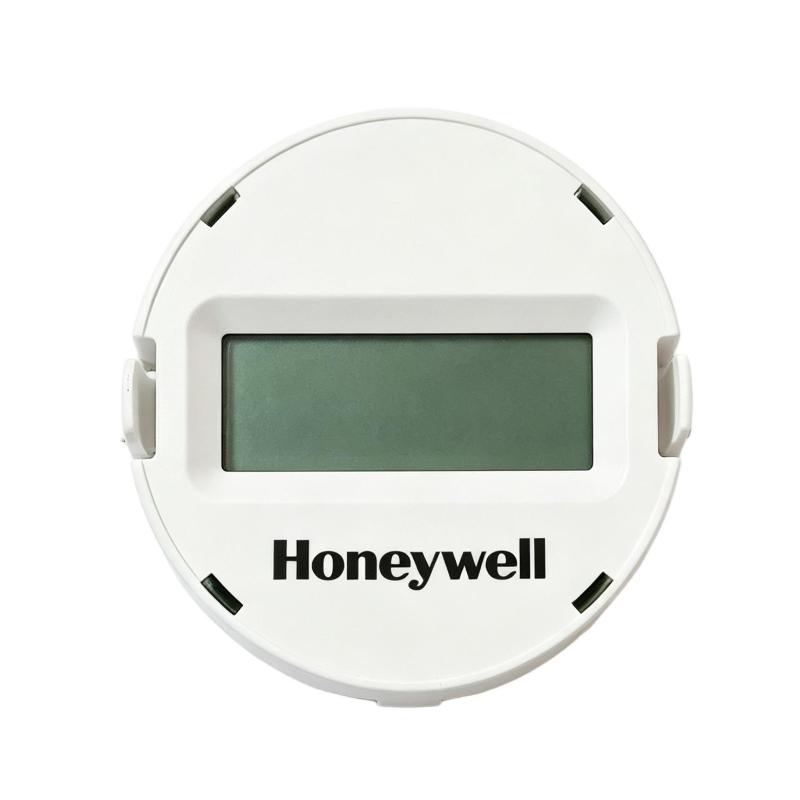

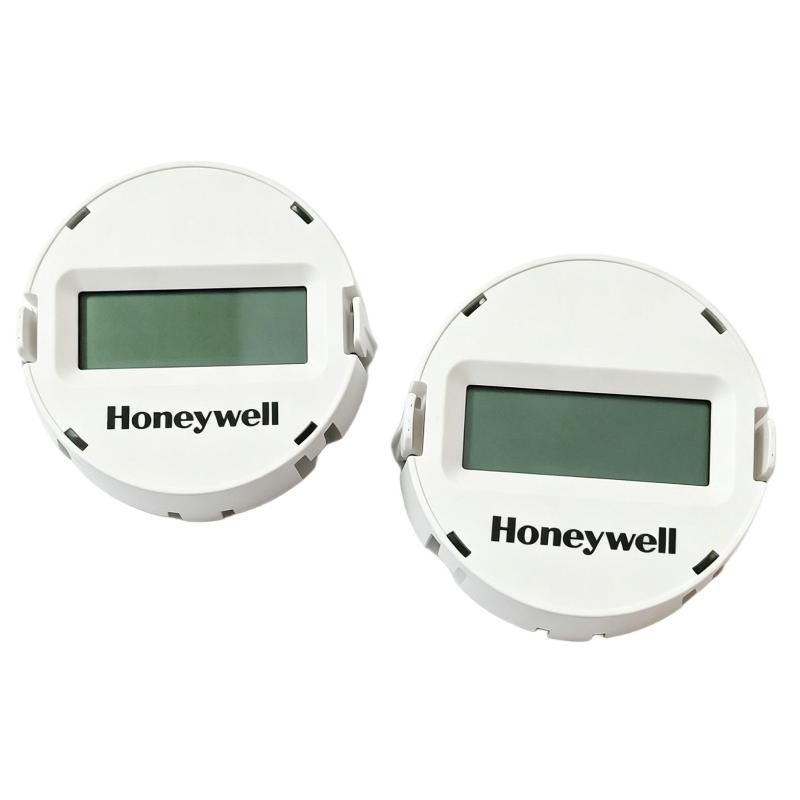

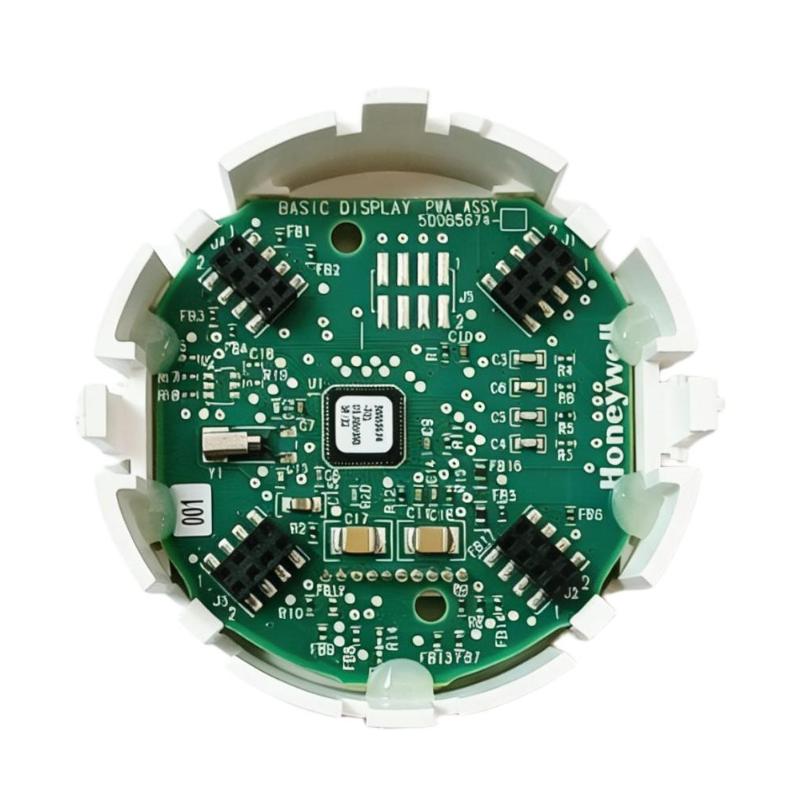

Product Overview
The Honeywell 50065674-701 Basic Display Module is a compact operator-interface component used within compatible Honeywell industrial control and monitoring systems. Its primary purpose is to present selected system information locally, giving operators and maintenance personnel a direct way to observe equipment or system status at the installation point.
Unlike a controller, I/O module, or communication interface, the 50065674-701 is primarily concerned with local information display. It works together with the host Honeywell system, receiving the information made available by the associated control electronics and presenting it through the display interface.
A local display is particularly useful during commissioning, routine inspection, and troubleshooting. Technicians working at the cabinet or equipment can check system information without depending entirely on a remote HMI or engineering workstation.
The module is best treated as one part of the overall operator-interface architecture. Its actual functionality depends on the Honeywell platform, controller, power arrangement, and system configuration in which it is installed.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model | 50065674-701 |
| Product Type | Basic Display Module |
| Primary Function | Local System Information Display |
| Application | Industrial Control and Monitoring |
| System Role | Operator / Maintenance Interface |
| Installation | Honeywell System Assembly |
| Form Factor | Compact Display Module |
| Dimensions | 70 × 15 × 50 mm |
| Weight | 0.15 kg |
The exact information presented by the module depends on the host Honeywell system and its configured interface. For replacement applications, the complete part number and host-system compatibility should be confirmed before installation.
Product Features
The 50065674-701 focuses on making system information available directly at the equipment level.
Its compact design is suitable for control assemblies where panel space is limited, while its display function can assist operators during normal operation and technicians during maintenance.
Key characteristics include:
- Honeywell Basic Display Module
- Local display functionality
- Compact operator-interface format
- Suitable for industrial control and monitoring systems
- Provides local visibility of selected system information
- Useful during commissioning and maintenance
- Integrates with associated Honeywell control hardware
- Suitable for equipment-level status indication
- Compact 70 × 15 × 50 mm form factor
- 0.15 kg stated weight
The module should not be regarded as a replacement for the main controller or HMI. Its purpose is to provide the appropriate local display function within the system architecture.
Working Principle
The 50065674-701 operates at the operator display layer of the Honeywell system.
A simplified information path is:
Field Devices → I/O / Control Hardware → Controller → System Information → 50065674-701 → Operator
The controller and associated system electronics generate operating information based on field inputs, control logic, system status, or alarm conditions. The display module receives the information made available through its host system interface and presents the relevant information locally.
This arrangement allows personnel to observe system conditions directly at the equipment.
For example, during commissioning, a technician may need to verify whether a system has reached the expected operating state. A local display can provide immediate feedback while the technician remains at the cabinet rather than requiring access to a central control room.
The module itself does not normally perform the primary control calculation or field signal acquisition. Its role is to present information generated elsewhere in the system.
Role in a Honeywell Operator Interface System
The 50065674-701 forms part of the operator-interface layer between the Honeywell control architecture and personnel working with the equipment.
A typical relationship can be represented as:
Sensors / Field Equipment → I/O → Controller → Control Logic → Display Interface → Operator
The controller remains responsible for processing and control functions, while the display provides local access to selected system information.
This arrangement can be useful in cabinets containing multiple control cards, I/O modules, power supplies, and communication equipment. A technician can use the local display as an additional diagnostic point when checking the system.
It is also important to distinguish a display problem from a control-system problem. If the displayed information is missing or incorrect, the investigation should consider the display connection, power, host controller, interface signals, and system configuration.
Industrial Applications
The 50065674-701 can be used in industrial environments where local access to system information is required.
| Application | Typical Use |
|---|---|
| Industrial Control Cabinets | Local equipment-status indication |
| Process Control Systems | Displaying selected operating information |
| Safety System Installations | Local system-status observation |
| Gas Detection Systems | Local indication where supported by the host system |
| Machinery Control Panels | Maintenance and operator information |
| Utility Equipment | Local equipment-status monitoring |
| Commissioning Panels | Verifying system conditions during startup |
| Maintenance Stations | Supporting on-site troubleshooting |
| Industrial Automation | Equipment-level operator interface |
The actual application depends on the Honeywell platform and the role assigned to the display within that system.
Installation and Maintenance
Installation should begin by confirming that the 50065674-701 is intended for the specific Honeywell system in which it will be installed.
Although the module has a compact form factor, physical compatibility alone is not sufficient. The electrical interface, system connection, power requirements, and host controller must also be appropriate.
Recommended checks include:
- Confirm the complete 50065674-701 part number.
- Verify host-system compatibility.
- Check the intended mounting position.
- Inspect the module for physical damage.
- Examine connectors and contacts.
- Verify associated wiring.
- Confirm the required system power is available.
- Check the host controller before diagnosing the display.
- Verify the interface between the controller and display.
- Confirm that expected information is being generated by the host system.
- Check display operation after installation.
- Inspect the module during scheduled maintenance.
- Keep the display area clean and readable.
If the display is blank, technicians should first determine whether the problem originates from the display itself or from the system supplying information to it.
A practical troubleshooting sequence is:
Power → Connections → Host Controller → Interface Communication → Display Module
This avoids replacing the display unnecessarily when the actual problem is located elsewhere in the control architecture.
Related Components
The 50065674-701 normally operates together with other Honeywell control-system hardware.
| Component | Function |
|---|---|
| Honeywell Controller | Executes control and processing functions |
| Honeywell I/O Modules | Interfaces with field signals |
| Power Supply | Provides system operating power |
| Communication Module | Transfers information to external systems |
| Field Sensors | Detect process or equipment conditions |
| Alarm Devices | Provide abnormal-condition notification |
| Terminal Assemblies | Connect field and system wiring |
| Control Cabinet | Houses the automation hardware |
| Remote HMI | Provides broader operator visualization |
| System Interface Hardware | Connects the display with the host architecture |
The display is only one layer of the complete system. Its usefulness depends on the controller, power supply, interface hardware, and associated field equipment operating correctly.
Recommended Related Models
When maintaining a Honeywell system containing the 50065674-701, related hardware should be selected according to the actual system architecture.
| Model / Component | Product Type | Typical Application |
|---|---|---|
| Honeywell 50065674-701 | Basic Display Module | Local system information display |
| Honeywell 05704-A-0145 | 4-Channel Control Card | Multi-channel control functions |
| Honeywell Control Cards | Control Hardware | System processing and control |
| Honeywell I/O Modules | I/O Hardware | Field signal acquisition and output |
| Honeywell Communication Modules | Communication Interface | External system integration |
| Honeywell Power Supply Modules | Power Supply | System power distribution |
For replacement work, the complete 50065674-701 designation should be matched first. A display with similar dimensions does not necessarily have the same electrical interface or compatibility with the host Honeywell system.
Key Advantages
- Honeywell Basic Display Module.
- Provides local access to system information.
- Suitable for operator and maintenance applications.
- Complements Honeywell controller and I/O hardware.
- Useful during commissioning and troubleshooting.
- Compact format for space-constrained installations.
- Integrates into a larger control-system architecture.
- Provides an additional local observation point.
- Suitable for industrial control and monitoring environments.
- Dimensions of 70 × 15 × 50 mm.
- Stated weight of 0.15 kg.
Technical FAQs
What information can the 50065674-701 display?
The module presents information supplied by its compatible Honeywell host system. The exact information depends on the controller, system configuration, and interface architecture rather than being determined by the display module alone.
Why would an industrial cabinet need a local display when an HMI is already installed?
A local display gives technicians access to selected system information while they are physically working at the equipment. This can simplify commissioning, inspection, and troubleshooting, especially when the central HMI is located in another room or control area.
What should be checked before replacing a 50065674-701?
The complete part number, host Honeywell platform, mounting arrangement, electrical interface, system connections, and power requirements should be checked. The replacement should match the existing system architecture rather than being selected only according to physical dimensions.
How can a technician determine whether a blank display is caused by the module or the host system?
First verify the module’s power and physical connections. Then confirm that the host controller is operating normally and is generating the information expected by the display. If the upstream system and connections are confirmed to be healthy while the display remains inactive, the display module becomes a more likely point of investigation.
