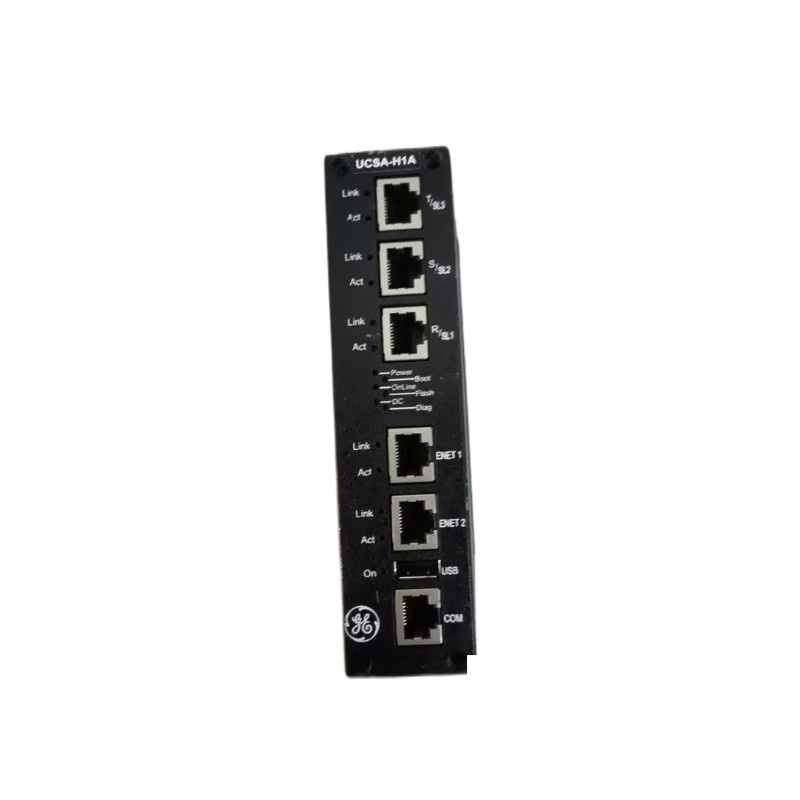

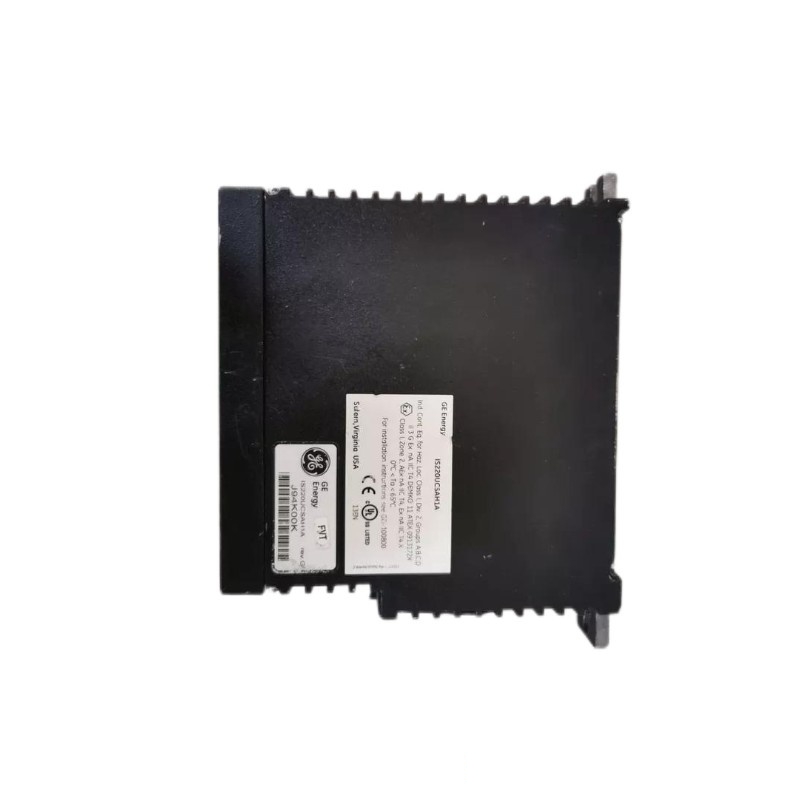

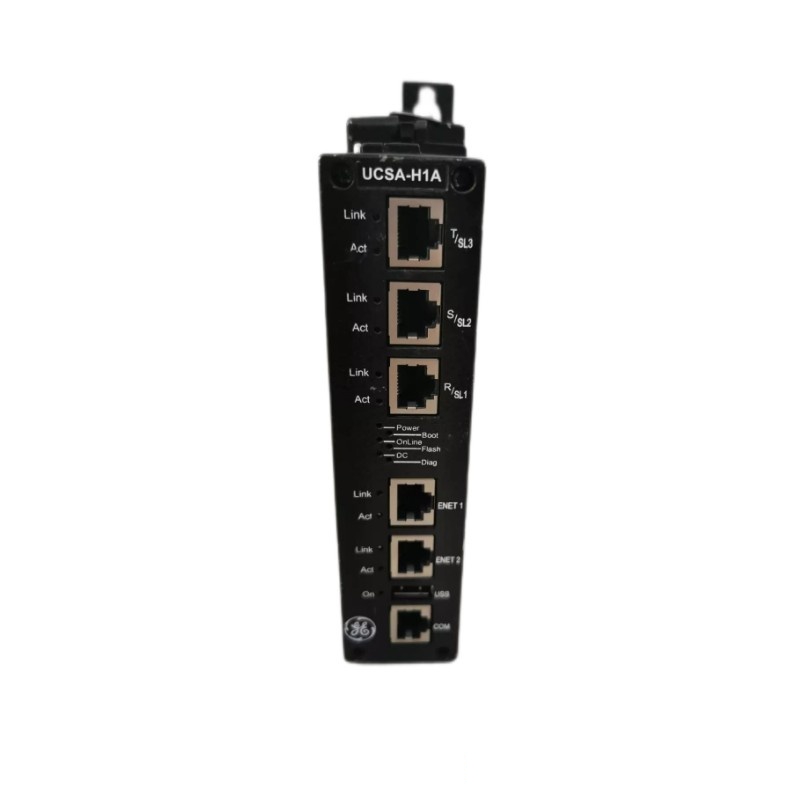

GE IS220UCSAH1A Stand‑Alone Controller Module
Product Description
The GE IS220UCSAH1A is a stand‑alone controller/processor module for the Mark VIe control platform. Engineered for demanding industrial environments, it combines a high‑performance CPU, on‑board memory, secure real‑time operating system, and multiple Ethernet interfaces in a single compact unit. The controller executes application logic, interfaces with distributed I/O packs, and provides deterministic control for gas/steam turbines, compressors, balance‑of‑plant auxiliaries, and other mission‑critical assets.
Housed in a rugged metal enclosure, the IS220UCSAH1A offers built‑in cybersecurity functions, redundant power input, and hot‑swap capability, ensuring maximum availability and safety for continuous‑process facilities.
Product Specifications
| Specification | Value |
|---|---|
| Module type | Stand‑Alone Industrial Controller |
| Series | Mark VIe Control System |
| Dimensions (H × W × D) | 82.6 × 41.9 × 121 mm |
| Weight | 0.907 kg |
| CPU / Memory | 1 GHz industrial processor / 512 MB RAM, 4 GB flash |
| Network interfaces | 2 × 10/100/1000 Base‑T Ethernet (copper) |
| Local I/O | 1 × USB, 1 × serial (RS‑232/485) |
| Real‑time OS | QNX® Neutrino RTOS with secure boot |
| Power supply | 28 V DC nominal (18–32 V range) |
| Operating temperature | –40 °C … +70 °C |
| Vibration / Shock | IEC 60068‑2‑6 / IEC 60068‑2‑27 |
| Mounting | DIN rail or panel‐mount plate |
| Certification | UL, CE, CSA Class I Div 2, RoHS |
| Cybersecurity features | Trusted Platform Module (TPM), TLS, role‑based access |
Applications
-
Gas & Steam Turbine Control – Executes turbine sequencing, primary speed/load control, and safety logic.
-
Compressor & Pump Trains – Coordinates surge control, load sharing, and vibration protection routines.
-
Balance‑of‑Plant Systems – Supervises auxiliary boilers, cooling towers, and fuel handling subsystems in power plants and refineries.
-
Pipeline Automation – Provides deterministic control for compressor stations, valve manifolds, and remote telemetry.
-
Distributed Safety Functions – Hosts SIL‑rated logic (when used with appropriate I/O) for emergency shutdown and fire & gas systems.
Key Advantages
-
High‑Performance Compute Core – 1 GHz processor and real‑time OS deliver sub‑millisecond scan times for complex control strategies.
-
Cyber‑Hardened Architecture – TPM‑based secure boot, encrypted firmware, and IEC 62443‑aligned user management protect against cyber threats.
-
True Stand‑Alone Operation – Continues to run application code even if the supervisory HMI network is unavailable.
-
Hot‑Swap & Auto‑Detect – Controller can be replaced under power; the Mark VIe supervisory system automatically recognizes and commissions the new unit.
-
Wide Environmental Range – Operates from –40 °C to +70 °C with high shock and vibration immunity, ideal for on‑skid and outdoors.
-
Flexible Networking – Dual gigabit Ethernet ports support redundant ring, parallel, or segmented topologies for maximum uptime.
Brand
General Electric (GE) – A global technology leader supplying advanced control, protection, and monitoring solutions for the energy, oil & gas, and industrial sectors.
Series
Part of the Mark VIe Control System, GE’s flagship programmable automation platform for heavy‑duty rotating equipment and critical process plants.
Recommended Models – Same / Related Series
| Model | Description | Role | CPU / Channels | Weight (kg) | Temp Range |
|---|---|---|---|---|---|
| IS220UCSBH1A | High‑availability controller | Redundant pair applications | 1.2 GHz / N A | 0.95 | –40 … +70 °C |
| IS220UCSCH1A | Low‑power controller | Compact skid packages | 800 MHz / N A | 0.85 | –40 … +70 °C |
| IS220PRTDH1A | RTD/TC input I/O pack | Temperature monitoring | 12 RTDs | 0.45 | –40 … +70 °C |
| IS220PDIOH1A | Digital I/O pack (32 DI/32 DO) | Sequence & interlock logic | 64 channels | 0.48 | –40 … +70 °C |
| IS220PAICH1A | Analog input conditioner | Process variable sensing | 10 AI | 0.47 | –40 … +70 °C |
Popular GE Control Modules
| Model | Function | Channels / CPU | Weight (kg) | Temp Range |
|---|---|---|---|---|
| IS220VVIBH1A | 8‑ch vibration monitor I/O pack | 8 channels | 0.60 | –40 … +70 °C |
| IS210BPPBH2A | Power supply / backplane | 125 W | 1.10 | –40 … +70 °C |
| IS200DSPXH1D | Turbine DSP control board | 400 MHz DSP | 0.55 | –40 … +70 °C |
| IS220PAOCH1A | 8‑ch analog output conditioner | 8 AO | 0.46 | –40 … +70 °C |
| IS220YDIAS1A | SIL‑rated digital input (ESD) pack | 20 DI | 0.50 | –40 … +70 °C |
Frequently Asked Questions (FAQ)
Q1: How many controllers can a single Mark VIe network support?
A1: Up to 40 IS220UCSA‑class controllers can share the same I/O network, each hosting its own application.
Q2: Does the IS220UCSAH1A support IEC 61131‑3 languages?
A2: Yes. Control Builder provides ladder, function block, structured text, and state‑machine editors.
Q3: Can the controller log data locally?
A3: It includes 4 GB industrial flash for event logs, SOE (1 ms), and historical data buffering when the historian link is down.
Q4: What redundancy options are available?
A4: Duplex (A/B) redundancy with bumpless transfer; controllers synchronize over dedicated link.
Q5: How is firmware updated securely?
A5: Signed firmware images are loaded via encrypted session; TPM verifies signatures before execution.
Q6: Which fieldbus protocols are natively supported?
A6: Modbus TCP/RTU, OPC UA (server), and GE SRTP; Profibus or HART via companion I/O packs.
Q7: Is there a built‑in touchscreen or display?
A7: No local HMI—the unit is headless. All configuration and diagnostics are performed through ToolboxST or ControlST.
Q8: What happens if power is lost?
A8: Battery‑less non‑volatile RAM stores last state; on power return the controller resumes application automatically.
Q9: Does the module require forced air cooling?
A9: Passive convection is sufficient; ensure 25 mm clearance above/below for airflow.
Q10: Can I develop custom cybersecurity policies?
A10: Yes. Role‑based access, password complexity, and network firewall rules are configured in the Security ST toolset.
