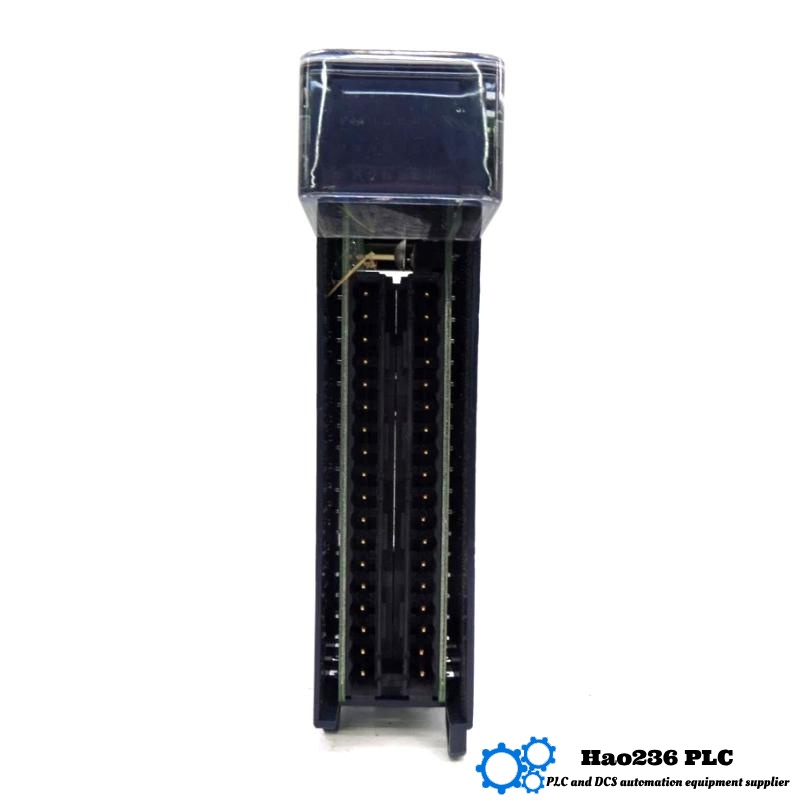

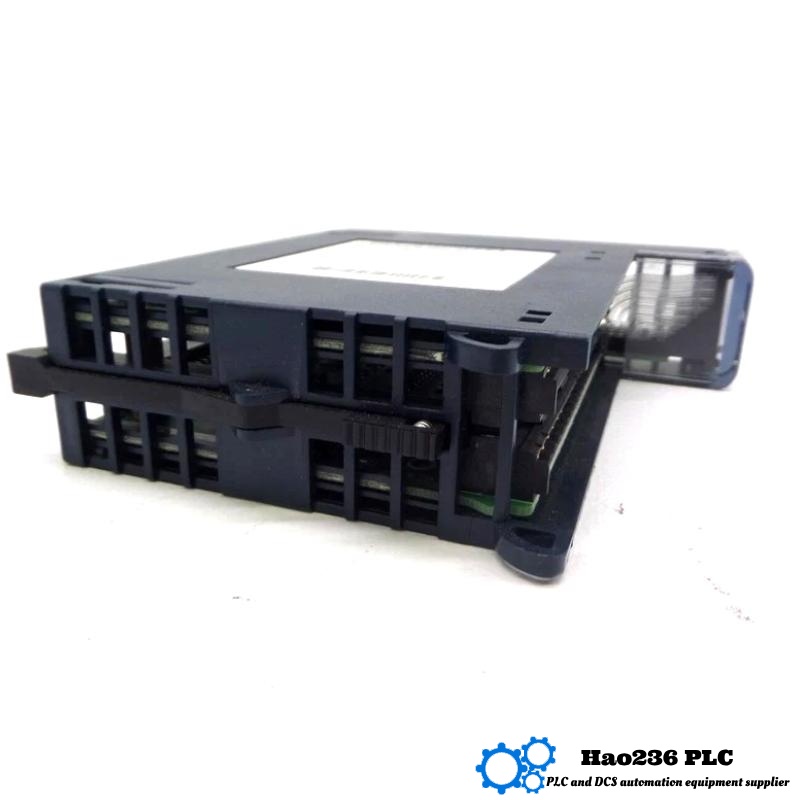

GE IC694MDL660 RX3i Input Module
Product Overview
The GE IC694MDL660 is a rugged 120 VAC input module from the PACSystems RX3i family, designed for digital signal acquisition in industrial control environments. It features 16 input channels, enabling detection of AC voltage logic levels used by a wide variety of field devices like sensors, switches, and mechanical contacts. With its high input voltage capacity and robust design, this module is ideal for heavy-duty, industrial-grade control systems.
This module supports sink/source input types, has high input impedance, and offers optical isolation for enhanced protection. Like all RX3i modules, it installs easily into standard RX3i racks and communicates over the system backplane for seamless data exchange with CPUs and other modules.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | IC694MDL660 |
| Product Type | Discrete Input Module |
| Input Type | AC Voltage (Sink/Source) |
| Number of Inputs | 16 |
| Input Voltage | 120 VAC nominal |
| Input Voltage Range | 0–132 VAC |
| Input Current | 6.2 mA typical @ 120 VAC |
| Input Frequency | 47–63 Hz |
| Input Impedance | 19 kΩ typical |
| On/Off Thresholds | On: ≥ 74 VAC / Off: ≤ 20 VAC |
| Isolation | 1500 V RMS (Field to Logic) |
| Response Time | ON: <20 ms / OFF: <30 ms |
| Module Width | Single slot |
| Mounting Type | RX3i rack |
| Dimensions (W x H x D) | 34 × 145 × 140 mm |
| Weight | 0.91 kg |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Certifications | CE, UL, cULus |
| Series | PACSystems RX3i |
| Brand | General Electric (GE) |
Applications
Industrial Automation: Detects digital input from field devices like contactors and switches in factory automation systems.
Power Plants & Utilities: Captures high-voltage AC input signals in substations and turbine controls.
Water & Wastewater Management: Interfaces with float switches, level sensors, and other field devices in treatment systems.
Building Management Systems (BMS): Connects to HVAC control inputs, fire alarms, and security sensors.
Heavy Equipment OEMs: Integrates into machine control panels requiring robust AC input detection.
Advantages
Wide AC Voltage Input Support
Accepts up to 132 VAC, ideal for North American and international systems.
Fast Switching Response
Quick signal response ensures reliable system behavior in time-sensitive automation.
Optical Isolation
Prevents ground loops and protects the CPU from electrical noise and surges.
High Reliability
Designed for 24/7 uptime with robust protection features.
Seamless RX3i Integration
Easily snaps into any RX3i rack, offering plug-and-play modularity.
Space Efficient Design
Compact footprint (34 × 145 × 140 mm) for efficient panel utilization.
Brand
GE (General Electric), a global leader in industrial automation and power systems, offers the PACSystems RX3i platform as part of its advanced control solutions. Known for robustness, modularity, and long-term support, GE’s automation products are a preferred choice in critical industrial sectors.
Series
The PACSystems RX3i series is GE’s flagship programmable automation controller family. It offers scalable CPU options, high-speed I/O, flexible networking, and a wide range of power and specialty modules for industrial applications.
Recommended RX3i/Related Models
| Model | Description | Type | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| IC694MDL660 | 16-Channel 120VAC Input Module | Discrete Input | 34 × 145 × 140 | 0.91 |
| IC694MDL655 | 32-Channel 24VDC Input Module | Discrete Input | 34 × 145 × 140 | 0.32 |
| IC694MDL645 | 16-Channel 24VDC Input (Sink) | Discrete Input | 34 × 145 × 140 | 0.30 |
| IC694MDL740 | 8-Channel Analog Input Module | Analog Input | 34 × 145 × 140 | 0.31 |
| IC694MDL742 | 8-Channel Relay Output Module | Relay Output | 34 × 145 × 140 | 0.34 |
Top 5 Popular GE Modules
| Model | Description | Type | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| IC694CPU315 | RX3i CPU Module | CPU | 72 × 190 × 160 | 0.8 |
| IC694ALG442 | Analog Output Module | Analog Output | 34 × 145 × 140 | 0.31 |
| IC695PSD140C | 24VDC Power Supply Module | Power Supply | 55 × 140 × 160 | 0.7 |
| IC694TBB032 | 32-Point Terminal Block | I/O Terminal Block | 34 × 145 × 140 | 0.28 |
| IC695ETM001 | Ethernet Communications Module | Network Module | 34 × 145 × 140 | 0.3 |
FAQ – GE IC694MDL660
Q1: How many input channels does the IC694MDL660 have?
A1: It features 16 discrete AC input channels.
Q2: What type of voltage does the module accept?
A2: The IC694MDL660 is rated for 120 VAC nominal input.
Q3: Is optical isolation available in this module?
A3: Yes, it includes optical isolation of 1500 V RMS between field and logic.
Q4: What is the response time of this module?
A4: The typical ON response is <20 ms; OFF is <30 ms.
Q5: Can I install this module in any RX3i rack?
A5: Yes, it is fully compatible with standard RX3i backplanes.
Q6: Is the IC694MDL660 suitable for high-noise environments?
A6: Yes, its design includes noise immunity and surge protection.
Q7: What certifications does the module have?
A7: It is certified with CE, UL, and cULus standards.
Q8: Can this module be used for both sink and source inputs?
A8: Yes, it supports both sink and source input types.
Q9: What is the size of the module?
A9: The physical dimensions are 34 × 145 × 140 mm.
Q10: What is the weight of the IC694MDL660?
A10: The module weighs approximately 0.91 kg.
