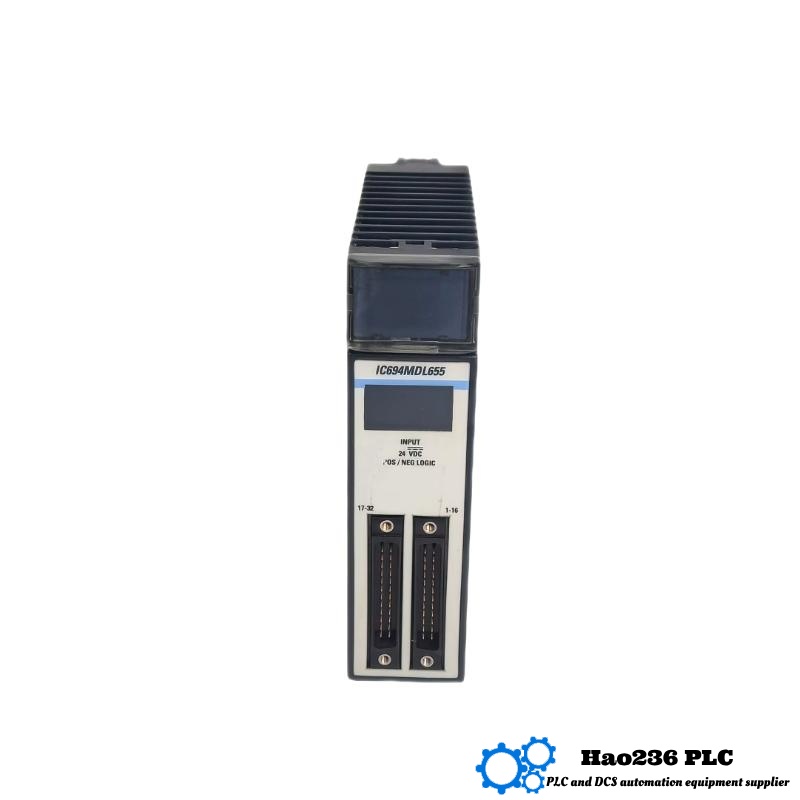

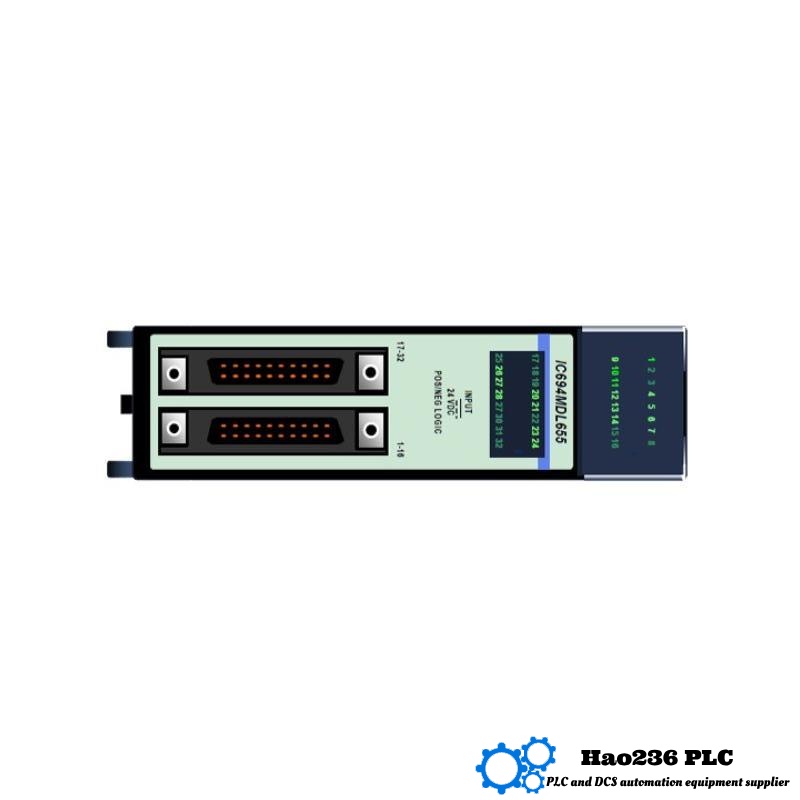

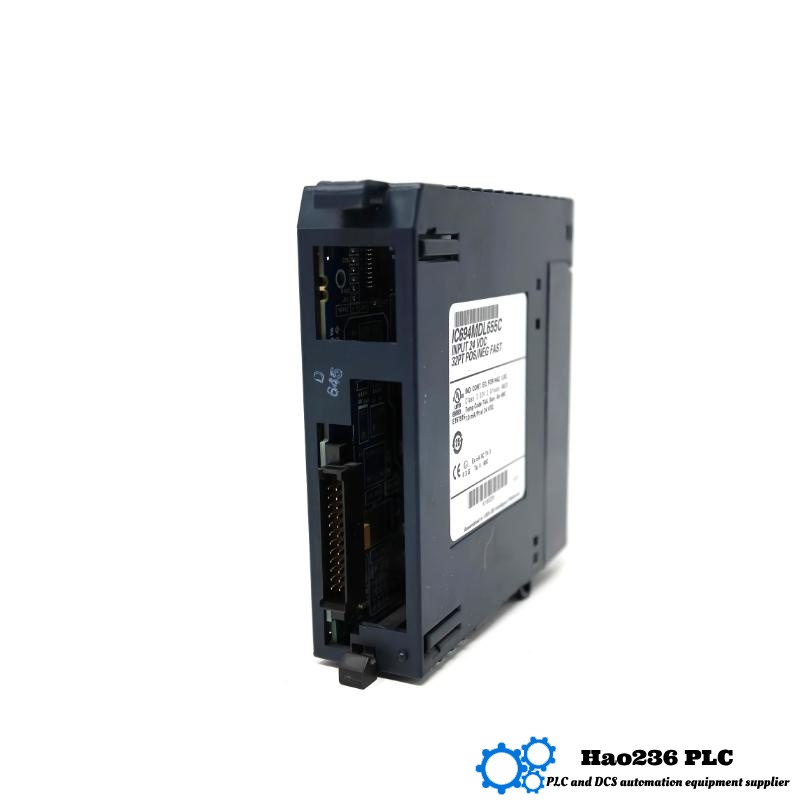

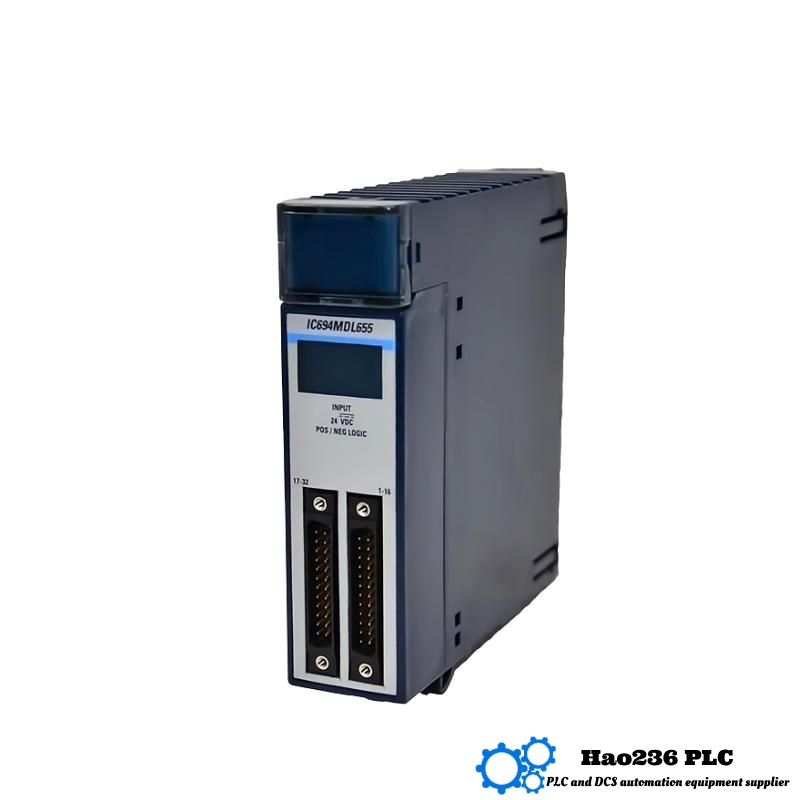

GE IC694MDL655 RX3i Input Module
Product Overview
The GE IC694MDL655 is a digital input module designed for the RX3i automation platform. It provides reliable and high-performance input handling for industrial control systems. This module supports various types of digital signals, allowing seamless integration with multiple field devices such as sensors, switches, and other binary input sources.
Engineered for robustness and flexibility, the IC694MDL655 is ideal for complex automation environments where precise and fast input signal processing is critical. The module is part of the RX3i series, known for scalability and ease of integration in process control and factory automation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | IC694MDL655 |
| Product Type | Digital Input Module |
| Series | GE RX3i |
| Brand | General Electric (GE) |
| Input Type | Discrete Inputs |
| Number of Inputs | 32 |
| Input Voltage | 24 V DC |
| Input Current | 8 mA per input (typical) |
| Response Time | 2 ms |
| Isolation | Optical Isolation |
| Communication Interface | RX3i backplane |
| Dimensions (L x W x H) | 34 × 145 × 140 mm |
| Weight | 0.32 kg |
| Mounting Type | DIN Rail or Rack Mounting |
| Operating Temperature | 0 °C to 60 °C |
| Certifications | CE, UL |
Applications
-
Factory Automation: Captures digital input signals from sensors and switches in manufacturing environments for real-time processing.
-
Process Control: Used in chemical, oil, and gas plants to monitor discrete process parameters.
-
Material Handling: Inputs signals from conveyors, sorters, and robotic equipment to optimize operations.
-
Building Automation: Integrates various digital inputs such as security sensors, lighting controls, and HVAC systems.
-
OEM Equipment: Suitable for original equipment manufacturers requiring reliable digital input interfaces in custom control systems.
Advantages
-
High-Density Input Handling
Offers 32 digital inputs in a compact form factor, allowing efficient space utilization. -
Fast Response Time
With a 2 ms response time, it ensures quick and accurate input signal processing. -
Optical Isolation
Provides electrical isolation for enhanced protection and noise immunity. -
Seamless RX3i Integration
Designed for easy integration within the RX3i platform, supporting scalable and modular system design. -
Robust Industrial Grade
Withstands harsh industrial environments with reliable operation over a wide temperature range. -
Compact and Lightweight
Dimensions of 34 × 145 × 140 mm and a weight of 0.32 kg make installation and handling straightforward.
Brand
General Electric (GE) is a globally recognized brand known for industrial automation and control products, with the RX3i series as a flagship platform for advanced process and factory automation.
Series
The RX3i series is an advanced modular automation platform providing high-performance control, flexibility, and scalability for a wide range of industrial applications.
Recommended Models in RX3i Series
| Model | Description | Input/Output | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| IC694MDL655 | 32-Channel Digital Input Module | 32 DI | 34 × 145 × 140 | 0.32 |
| IC694MDL640 | 16-Channel Digital Input Module | 16 DI | 34 × 145 × 140 | 0.3 |
| IC694MDL645 | 16-Channel Sinking Input Module | 16 DI | 34 × 145 × 140 | 0.3 |
| IC694MDL640M | 16-Channel Digital Input Module | 16 DI | 34 × 145 × 140 | 0.3 |
| IC694MDL742 | 16-Channel Digital Output Module | 16 DO | 34 × 145 × 140 | 0.35 |
Popular GE Models
| Model | Description | Function | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| IC694CPU315 | RX3i CPU Module | Controller | 72 × 190 × 160 | 0.8 |
| IC694MDL740 | Analog Input Module | AI | 34 × 145 × 140 | 0.32 |
| IC694MDL741 | Analog Output Module | AO | 34 × 145 × 140 | 0.32 |
| IC694MDL940 | Digital Output Module | DO | 34 × 145 × 140 | 0.35 |
| IC694ACC300 | Communication Module | Network Interface | 34 × 145 × 140 | 0.3 |
Frequently Asked Questions (FAQ)
Q1: How many digital inputs does the IC694MDL655 support?
A1: It supports 32 discrete digital inputs.
Q2: What is the input voltage requirement for the module?
A2: The module operates with 24 V DC input voltage.
Q3: What is the physical size of the IC694MDL655?
A3: The dimensions are 34 × 145 × 140 mm.
Q4: What is the weight of the module?
A4: It weighs approximately 0.32 kg.
Q5: What is the response time of the input signals?
A5: The typical response time is 2 milliseconds.
Q6: Does the module offer any electrical isolation?
A6: Yes, it provides optical isolation for inputs.
Q7: Can the IC694MDL655 be mounted on a DIN rail?
A7: Yes, it supports DIN rail and rack mounting.
Q8: What operating temperature range does the module support?
A8: The module operates between 0 °C and 60 °C.
Q9: Is the IC694MDL655 compatible with other RX3i modules?
A9: Yes, it integrates seamlessly with the RX3i platform.
Q10: What certifications does this module hold?
A10: It is CE and UL certified for industrial use.
