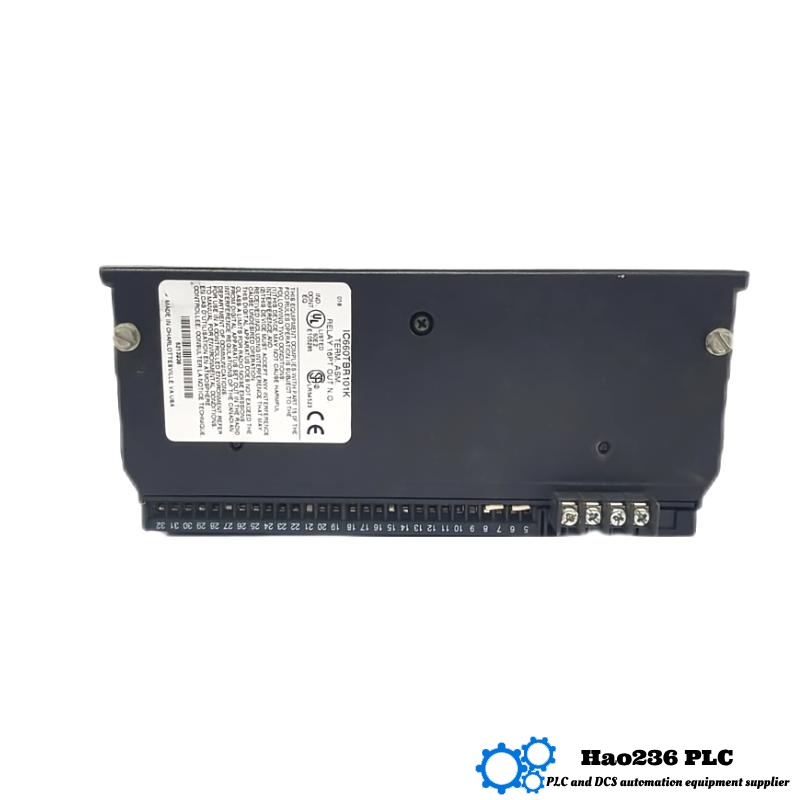

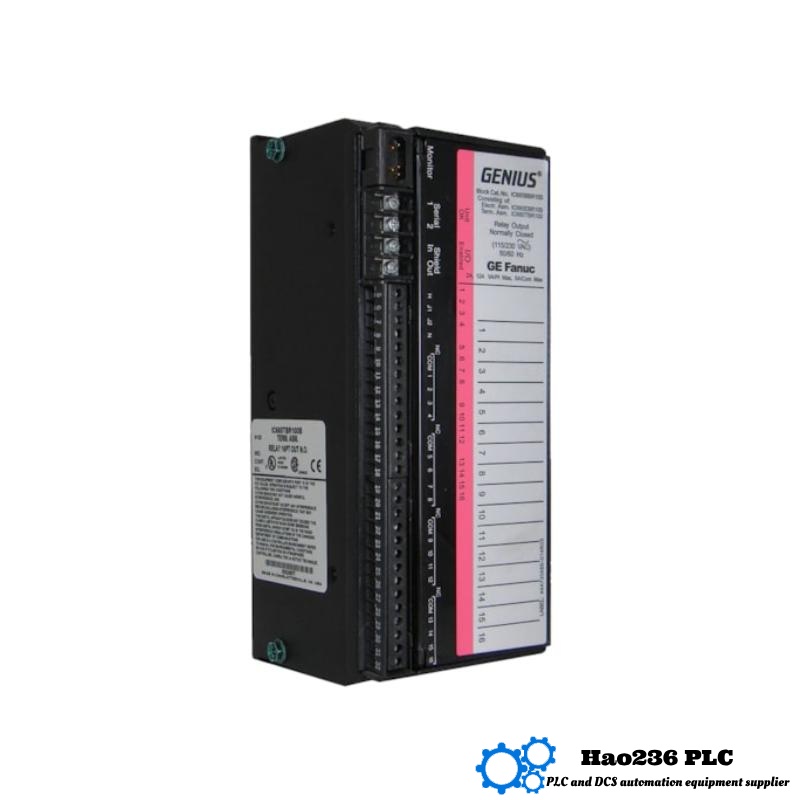

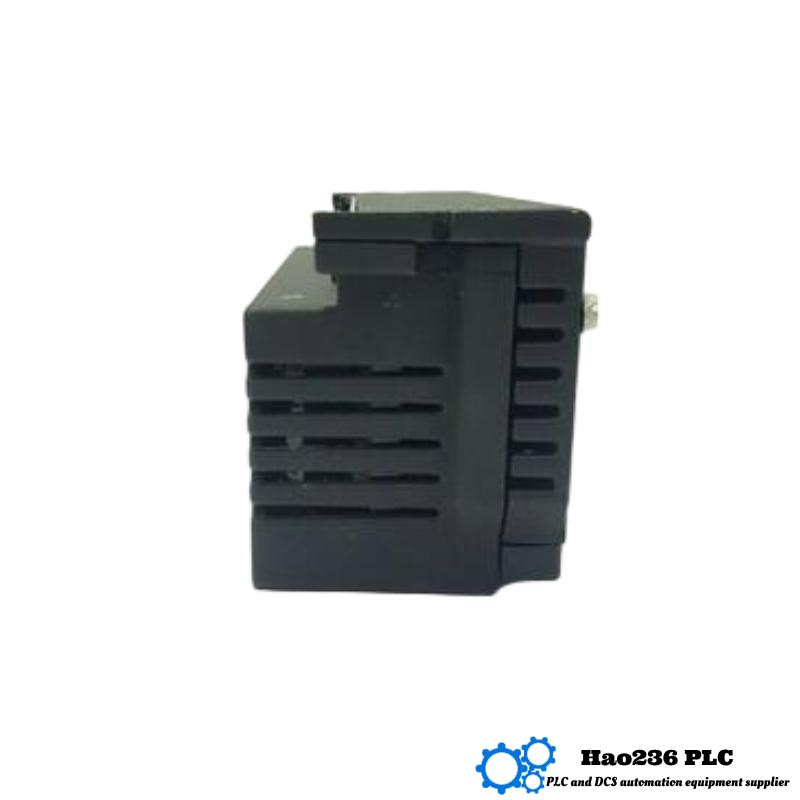

GE IC660BBR100 Normally Closed Relay Output Module

Product Introduction:

The GE IC660BBR100 is a normally closed relay output module used in industrial automation and control systems. This module plays a crucial role in controlling various field devices by providing electrical isolation between the control system and external devices. It enables the connection of sensors, actuators, and other equipment while ensuring safe and reliable operation. The IC660BBR100 is designed to handle significant output current, which is essential for controlling high-power devices such as motors, solenoids, and valves.

With its robust design and high switching capacity, the IC660BBR100 is ideal for applications where reliable, fast, and safe switching of electrical circuits is required. Its normally closed configuration ensures that connected devices are in a safe state by default, preventing accidental activation.

Product Parameters:

Here are the detailed technical specifications for the GE IC660BBR100 Normally Closed Relay Output Module:

Product Applications:

The GE IC660BBR100 is used in a wide range of applications within industrial control systems. Its primary use is in controlling field devices that require precise and reliable switching. The module is typically deployed in:

1. Process Automation: Used to control devices like solenoids, pumps, and valves in automated process control systems in industries such as chemical processing, oil and gas, and water treatment.

2. Manufacturing Automation: Ideal for controlling machines, assembly lines, and robotic arms, where rapid and reliable switching is required.

3. Energy and Utilities: Used for controlling electrical circuits in power generation, transmission, and distribution systems, especially for safety and fail-safe operations.

4. Building Automation: Integrated into HVAC, lighting, and security systems in buildings for managing energy consumption and ensuring system safety.

5. Safety Systems: Commonly used in safety-critical applications to control emergency shutdown systems, alarms, and other critical components that require reliable, normally closed contacts for safety.

Product Advantages:

1. High Switching Capacity: The IC660BBR100 is capable of switching up to 2 A per channel, making it suitable for controlling a wide variety of high-power field devices.

2. Normally Closed Configuration: The normally closed relay contacts provide a fail-safe operation, ensuring that connected devices are powered off by default, minimizing the risk of accidental activation.

3. Long Operating Life: With a rated operational life of 1,000,000 cycles, the IC660BBR100 is built to withstand the demands of continuous industrial use.

4. Compact and Durable Design: With dimensions of 224.4 x 88.9 x 100 mm and a weight of 1.72 kg, the module offers a robust yet space-efficient solution for industrial environments.

5. Wide Operating Temperature Range: The module operates in temperatures ranging from -20°C to 60°C, making it suitable for use in a variety of harsh industrial environments.

6. High Insulation Resistance: The IC660BBR100 offers 1000 MΩ insulation resistance, providing added protection against electrical interference and ensuring the reliability of signal transmission.

Brand: GE (General Electric)

General Electric (GE) is a global leader in industrial technology and automation. Known for its innovation and engineering expertise, GE provides advanced solutions in various sectors, including power, aviation, renewable energy, and industrial automation. The company’s products are widely used in critical applications where performance, reliability, and safety are paramount. GE’s commitment to creating sustainable and efficient solutions makes it a trusted brand in the industrial sector.
