Product Overview

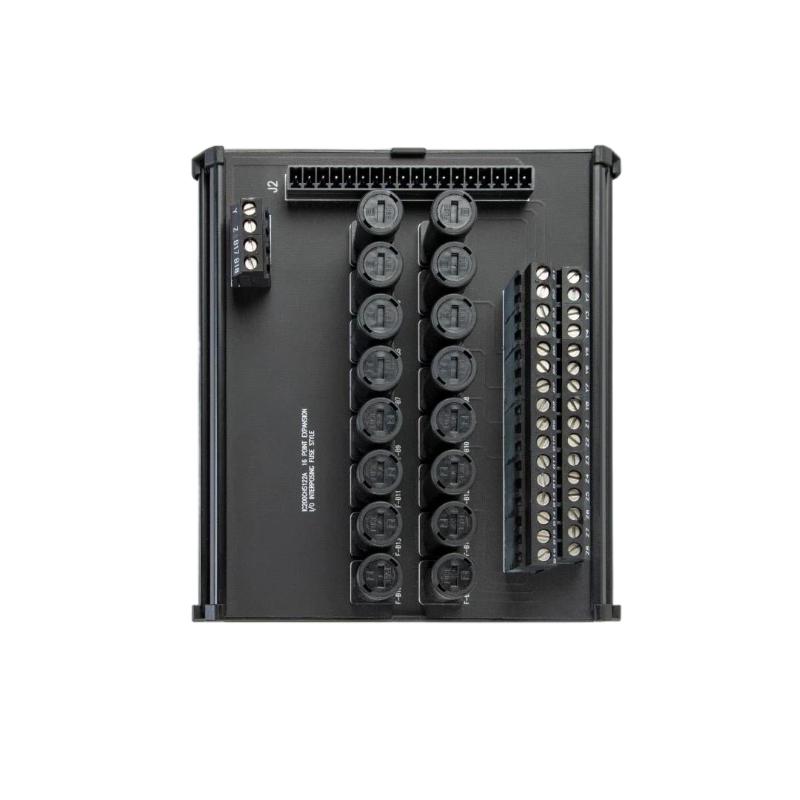

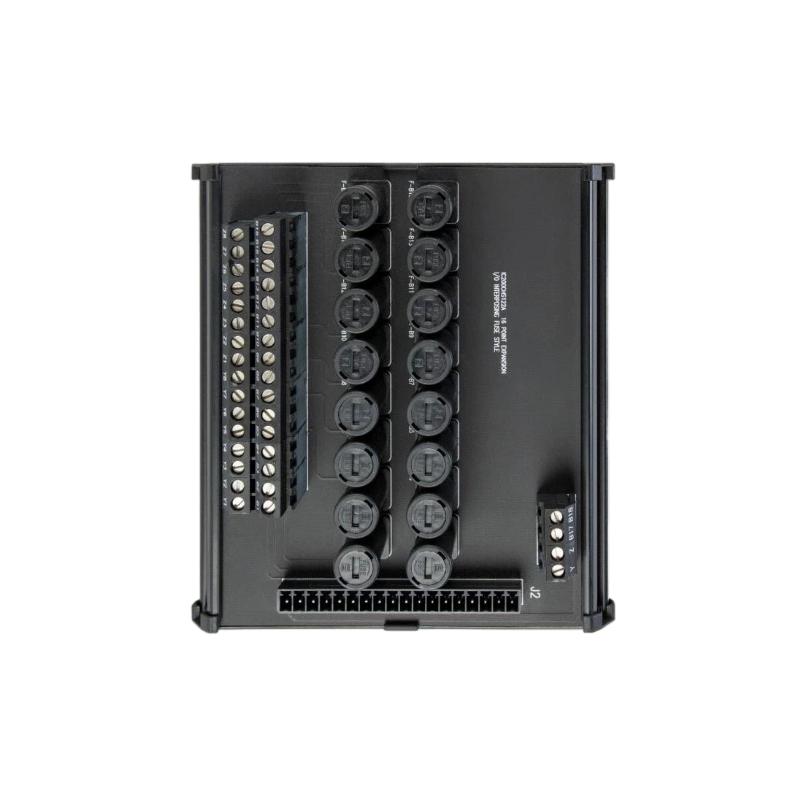

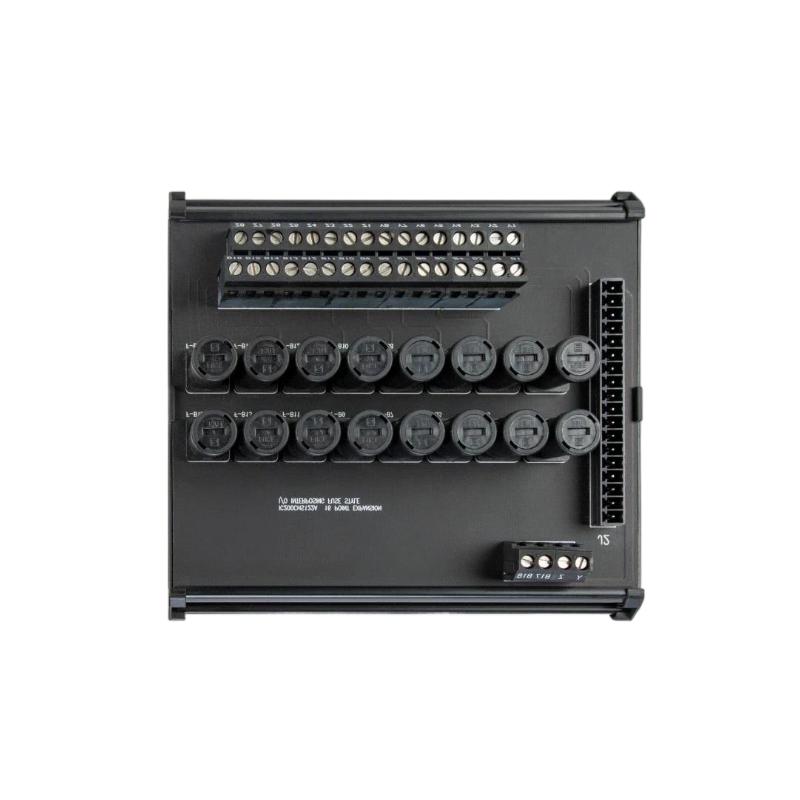

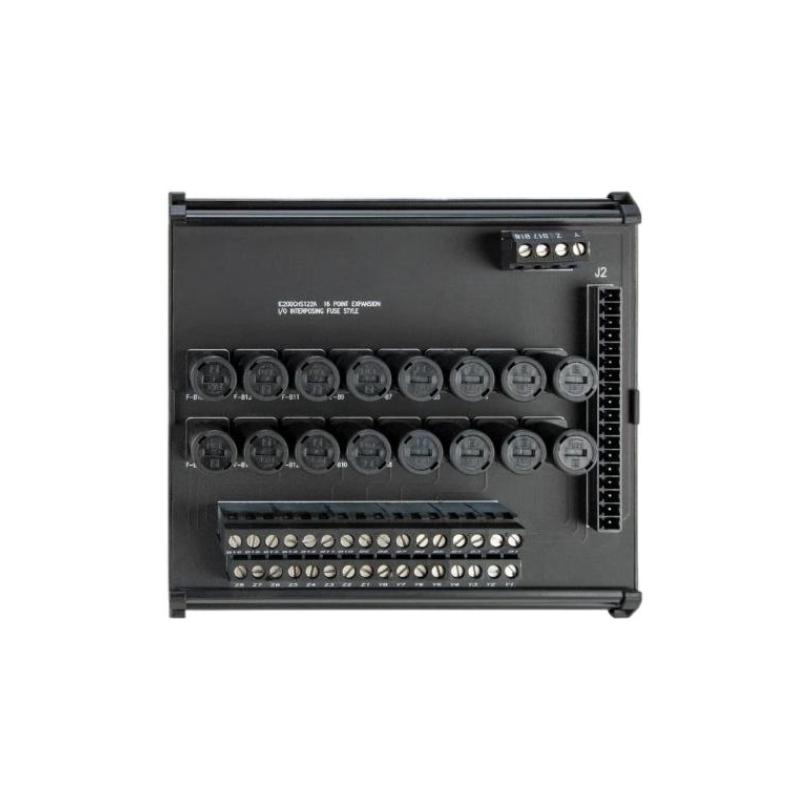

The GE IC200CHS122 VersaMax Fuse-Type Intermediate I/O Terminal Block Expansion Base is an expansion-base component designed for GE VersaMax industrial automation and distributed I/O systems. It provides an intermediate field-wiring interface for compatible I/O modules while extending the modular I/O architecture of the control system.

The IC200CHS122 is characterized by its fuse-type intermediate I/O terminal configuration and expansion-base design. Unlike a basic I/O module, it does not independently execute control logic or perform the primary signal-processing function. Instead, it provides the connection infrastructure required to integrate field circuits into an expandable VersaMax I/O station.

The fuse-type configuration can be useful in systems where individual field circuits require localized protection and convenient access during troubleshooting. The expansion-base arrangement allows additional I/O resources to be incorporated into a larger automation system without relying exclusively on a single base configuration.

The IC200CHS122 has specified dimensions of 137.16 × 126 × 75.4 mm and a weight of approximately 1.36 kg, making it suitable for industrial control cabinets, distributed I/O stations and machine-control systems where modular expansion and organized field wiring are important.

Technical Specifications

Function and Working Principle

The IC200CHS122 combines an intermediate I/O terminal interface with an expansion-base function.

This makes it useful in VersaMax systems that require both organized field connections and additional I/O expansion capability.

Intermediate I/O Connection

The terminal block provides an interface between compatible VersaMax I/O electronics and external field devices.

A typical signal path can be represented as:

Field Device → IC200CHS122 → I/O Module → VersaMax Controller

For an output circuit:

VersaMax Controller → I/O Module → IC200CHS122 → Field Load

The terminal block therefore serves as an intermediate connection point between the automation electronics and the equipment installed in the field.

Fuse-Type Interface

The fuse-type configuration provides a location for incorporating appropriate circuit protection into the field connection arrangement.

A properly engineered fuse can help limit current during certain fault conditions and can simplify circuit isolation during maintenance.

Fuse selection should be based on the complete electrical circuit rather than simply on the terminal-block model.

Important considerations include:

• Circuit voltage
• Normal operating current
• Load characteristics
• Inrush current
• Wire size
• I/O module requirements
• Required protection coordination

Expansion Base

The expansion-base configuration allows the VersaMax I/O architecture to be extended.

This is useful when a machine or process requires more I/O channels than are available in the initial configuration.

Additional I/O resources may be needed for:

• Sensors
• Valves
• Motors
• Contactors
• Status signals
• Analog instruments
• Alarms
• Machine interlocks

The expansion approach allows the control system to grow in a structured manner.

Role in Industrial Control Systems

The IC200CHS122 acts as a supporting interface within a VersaMax distributed I/O architecture.

A simplified system can be represented as:

PLC / Controller → VersaMax Network → I/O Module → IC200CHS122 Expansion Base → Field Devices

The IC200CHS122 is not the PLC processor and does not execute the user’s control program.

The controller performs logic execution, while the I/O module handles the actual signal-processing requirements.

The IC200CHS122 provides the intermediate field connection and expansion infrastructure between these components.

This modular architecture allows engineers to separate:

• Control logic
• I/O processing
• Field termination
• Circuit protection
• I/O expansion

Such separation can make larger control systems easier to configure and maintain.

Industrial Applications

The GE IC200CHS122 can be used in a variety of VersaMax industrial automation applications.

Typical applications include:

• Factory automation
• Machine control
• Packaging equipment
• Conveyor systems
• Assembly machinery
• Manufacturing lines
• Material handling
• Pump control
• Process monitoring
• Water and wastewater systems
• Industrial equipment
• OEM machine control
• Distributed I/O stations
• Production automation

The expansion-base configuration is particularly useful when additional I/O capacity is required as machine functionality increases.

Fuse-Type I/O Protection

Fuse-type field interfaces can provide a practical way to organize protection for individual control circuits.

Industrial field wiring may be exposed to conditions such as:

• Short circuits
• Damaged cables
• Failed actuators
• Incorrect wiring
• Excessive current
• Component failure

A correctly selected fuse can limit the available fault current within the protected circuit.

For example, an output circuit may be arranged as:

I/O Output → Fuse → Terminal → Field Device

If a downstream fault occurs, the fuse can interrupt the circuit according to its specified characteristics.

The fuse does not eliminate the need for proper wiring, grounding or electrical protection elsewhere in the control system.

Expansion Base and System Scalability

The expansion-base design is one of the important characteristics of the IC200CHS122.

Industrial control systems frequently evolve after initial installation. A machine may initially require only a small number of inputs and outputs, but additional functionality can later increase the I/O count.

For example, an original production machine might require:

• Digital sensors
• Solenoid outputs
• Motor status inputs

A later upgrade might add:

• Additional position sensors
• Temperature monitoring
• Pressure measurement
• Additional valves
• Alarm outputs
• Production counters

An expandable VersaMax architecture allows additional I/O resources to be integrated without completely rebuilding the control system.

This makes the expansion-base concept useful for systems expected to undergo future upgrades.

Installation and System Integration

Proper installation is important for reliable electrical connections and safe operation.

Expansion Base Installation

The IC200CHS122 should be installed securely according to the VersaMax system’s mechanical configuration.

Before installation, verify:

• Correct model
• Compatible I/O modules
• Expansion architecture
• Mounting arrangement
• Cabinet dimensions
• Wiring clearance
• Maintenance access

The specified 137.16 × 126 × 75.4 mm dimensions should be considered when planning cabinet layout.

I/O Module Integration

Before installing the associated I/O module, verify:

1. Correct module type.
2. Correct expansion position.
3. Proper mechanical alignment.
4. Secure electrical engagement.
5. Correct system configuration.

Fuse Installation

The fuse arrangement should be designed according to the connected field circuit.

Verify:

• Fuse voltage rating
• Fuse current rating
• Fuse type
• Interrupting capability
• Load characteristics
• Wiring requirements

Never bypass a protective fuse with an unsuitable conductor.

Field Wiring

Field wiring should be installed according to the I/O module and circuit design.

Check:

• Terminal identification
• Wire polarity
• Connection security
• Grounding
• Shielding
• Cable routing
• Separation from high-energy conductors
• Correct fuse placement

Commissioning

After installation:

1. Inspect the expansion base.
2. Verify the I/O modules.
3. Check all fuses.
4. Inspect field wiring.
5. Energize the system under controlled conditions.
6. Verify controller communication.
7. Check I/O status.
8. Test individual channels.
9. Confirm field-device operation.

Compatible System Components

The IC200CHS122 can be used with other components in a VersaMax automation system.

The exact configuration depends on the application and required I/O architecture.

IC200CHS122 vs. IC200CHS121

The two models have similar dimensions and the same specified weight, but their base configurations serve different roles.

This distinction is important when selecting a replacement. A similar physical size does not necessarily mean that the two components are interchangeable.

Recommended Alternative Models

Depending on the required field connection method and VersaMax system architecture, the following models may be considered.

These models have different mechanical, electrical and system-interface characteristics. The existing VersaMax architecture should always be checked before selecting an alternative.

Key Advantages

• Designed for GE VersaMax industrial automation systems
• Fuse-type intermediate I/O terminal configuration
• Expansion-base design
• Supports modular distributed I/O architecture
• Provides organized field-circuit connections
• Supports fuse-based field-circuit protection
• Allows additional I/O system expansion
• Facilitates structured maintenance
• Suitable for machine-control applications
• Supports larger distributed I/O configurations
• Helps organize control-cabinet wiring
• Dimensions of approximately 137.16 × 126 × 75.4 mm
• Weight of approximately 1.36 kg

Technical FAQs

What is GE IC200CHS122?

The GE IC200CHS122 is a VersaMax Fuse-Type Intermediate I/O Terminal Block with Expansion Base designed to provide field connections and expand the I/O architecture of a VersaMax industrial automation system.

Is IC200CHS122 an I/O module?

No. It is an expansion terminal-base component. The compatible I/O module performs the actual signal-processing function.

What are the dimensions of IC200CHS122?

The specified dimensions are 137.16 × 126 × 75.4 mm.

What is the weight of IC200CHS122?

The specified weight is approximately 1.36 kg.

What is the difference between IC200CHS121 and IC200CHS122?

The primary distinction is the base configuration. IC200CHS121 is specified as a Main Base, while IC200CHS122 is specified as an Expansion Base.

What is the purpose of the fuse-type interface?

It provides an organized location for incorporating appropriate fuse protection into selected field circuits.

Can IC200CHS122 increase the number of I/O points?

Its expansion-base function supports extending the VersaMax I/O architecture, allowing additional compatible I/O resources to be incorporated into the overall system.

Where is IC200CHS122 used?

It can be used in VersaMax-based factory automation, machine control, manufacturing, process monitoring and distributed I/O applications.

Can IC200CHS122 replace IC200CHS121?

Not automatically. Although the two models share the same specified dimensions and weight, their Main Base and Expansion Base configurations are different.

Does IC200CHS122 execute PLC logic?

No. The PLC or VersaMax controller executes the application logic. The IC200CHS122 provides the terminal and expansion infrastructure for the I/O system.

Conclusion

The GE IC200CHS122 VersaMax Fuse-Type Intermediate I/O Terminal Block Expansion Base is a specialized component designed to support expandable distributed I/O installations within GE VersaMax industrial automation systems.

Its combination of a fuse-type intermediate I/O terminal interface and expansion-base configuration makes it useful for applications where additional I/O capacity, organized field wiring and localized circuit protection are required.

With specified dimensions of 137.16 × 126 × 75.4 mm and a weight of approximately 1.36 kg, the IC200CHS122 provides a substantial interface component for industrial control cabinets and distributed I/O stations.

Its expansion function allows automation systems to accommodate additional I/O requirements as machines and processes evolve. The fuse-type arrangement can also assist with field-circuit organization and troubleshooting when correctly incorporated into the electrical design.

For replacement and system-integration projects, engineers should verify the complete VersaMax architecture, I/O module compatibility, expansion arrangement, fuse configuration, field wiring and mounting requirements before installation. When an expansion-base fuse-type intermediate I/O terminal is required, the GE IC200CHS122 provides a practical solution for scalable VersaMax industrial automation systems.
