Product Introduction

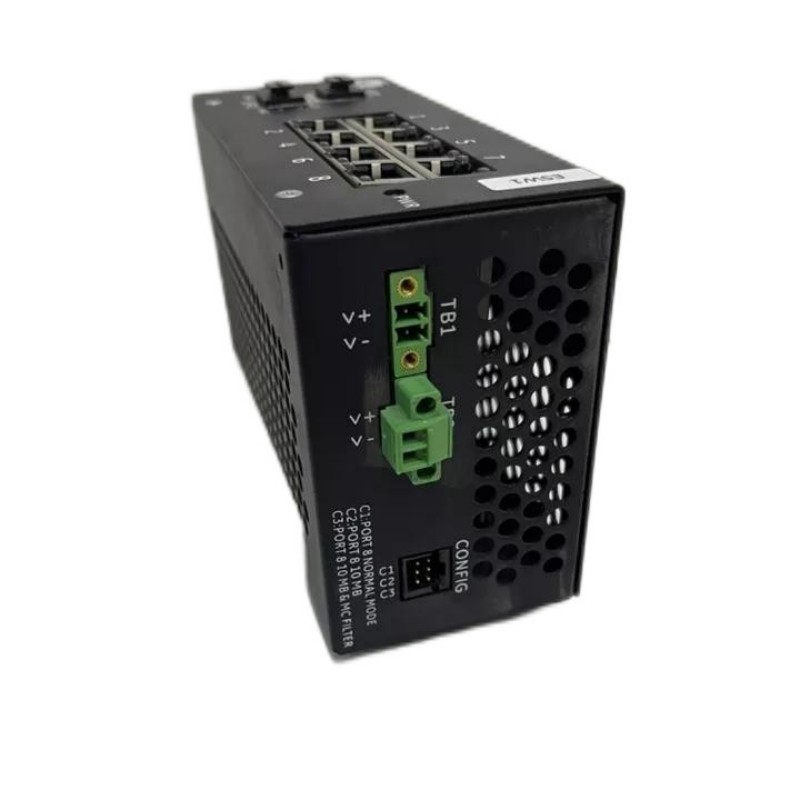

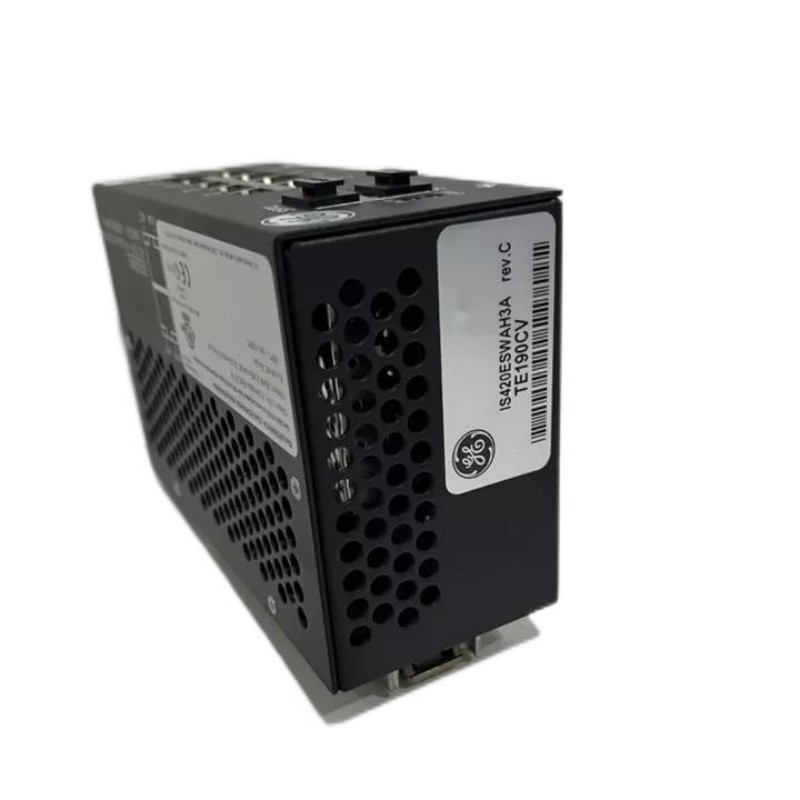

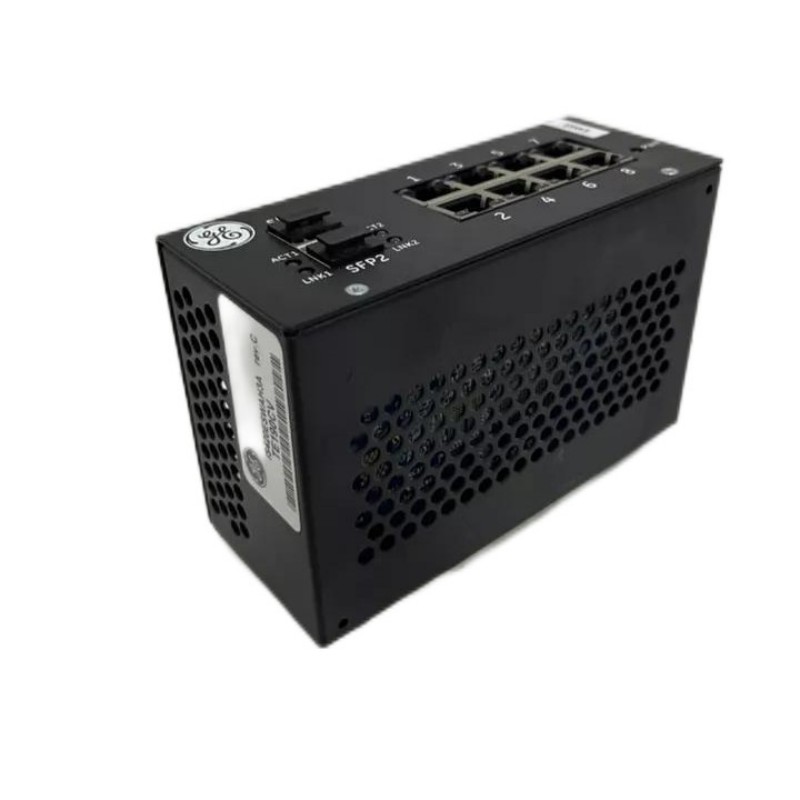

The IS420ESWAH3A is an industrial Ethernet switch module designed for Mark VIe / Mark VIeS control systems. It enables reliable network communication between controllers, I/O modules, and automation devices in critical industrial applications such as power generation, turbine control, and heavy industry.
-
Brand: GE Fanuc / General Electric
-
Series: Mark VIe / Mark VIeS – IONet Ethernet Switch Family
-
Key Feature: 8-port 10/100 Mbps copper Ethernet switch with redundant power inputs.
The module is built for harsh environments, featuring fanless cooling, wide operating temperature range, and industrial-grade vibration and shock resistance.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | IS420ESWAH3A |
| Brand | GE Fanuc / General Electric |
| Series | Mark VIe / Mark VIeS – IONet Ethernet Switch |
| Number of Copper Ports | 8 × RJ‑45 10/100Base‑TX |
| Fiber Ports | None |
| Power Supply | Dual redundant 18–36 V DC inputs |
| Cooling | Convection (fanless) |
| Operating Temperature | –40 °C to +70 °C |
| Storage Temperature | –40 °C to +85 °C |
| Dimensions (W × H × D) | 86 mm × 138 mm × 56 mm |
| Weight | 0.91 kg |
| Environmental Protection | Vibration/shock resistant, corrosion‑resistant coating |
Applications
-
Network backbone for turbine and generator control systems
-
Industrial automation and process control cabinets
-
Retrofit and upgrade of existing Mark VIe / VIeS networks
-
Systems requiring rugged, fanless, and compact Ethernet switches
-
Hazardous or extreme environments with wide temperature ranges
Advantages
-
High reliability with redundant power inputs
-
Compact and lightweight form factor for limited space
-
Fanless cooling reduces maintenance and increases MTBF
-
Rugged design for harsh industrial environments
-
Simple integration with Mark VIe / VIeS systems
-
Easy monitoring through port status LEDs
Related Models (Same Series / Alternatives)
| Model | Type | Key Feature |
|---|---|---|
| IS420ESWAH1A | IONet Ethernet Switch | 8 copper ports + 1 fiber port |
| IS420ESWAH2A | IONet Ethernet Switch | 8 copper ports + 2 fiber ports |
| IS420ESWAH4A | IONet Ethernet Switch | 8 copper ports + LX10 multimode fiber |
| IS420ESWBH3A | IONet Ethernet Switch | 16-port variant for higher port density |
| IS420UCSBH3A | Controller Module | Complementary module for system control |
Popular Models from the Same Brand
| Model | Series | Type | Key Feature |
|---|---|---|---|
| IS420UCSBH3A | Mark VIe | Controller Module | High-performance system controller |
| IS220AIIBH2A | Mark VIe | Analog Input Module | High-density analog I/O |
| IS200VCMIH2BCC | Mark VIe | Bus Master Controller | Controls IONet network segments |
| IS430SNUAH1A | Mark VIe | Mixed I/O Module | Flexible analog/digital I/O |
| IS420YDIAS1B | Mark VIe | Digital I/O Pack | Digital input/output module |
FAQ
Q1: What is the purpose of IS420ESWAH3A?
A1: It functions as an Ethernet switch in Mark VIe/VIeS systems to interconnect controllers, I/O modules, and automation devices.
Q2: How many ports are available?
A2: The H3A variant has 8 copper RJ‑45 10/100 Mbps ports.
Q3: What are the module dimensions and weight?
A3: 86 mm × 138 mm × 56 mm; weight approximately 0.91 kg.
Q4: What is the operating temperature range?
A4: –40 °C to +70 °C.
Q5: Does it support redundant power?
A5: Yes, two independent power inputs are supported.
Q6: Is the module fan-cooled?
A6: No, it is fanless and uses convection cooling.
Q7: Can it be mounted in standard racks?
A7: Yes, supports DIN-rail and panel mounting.
Q8: What types of applications use this switch?
A8: Turbine controls, power generation, process automation, and industrial retrofits.
Q9: Why choose this module over commercial switches?
A9: It is rugged, industrial-grade, fanless, and fully compatible with Mark VIe/VIeS systems.
Q10: What maintenance advantages does it offer?
A10: Fewer moving parts, fanless design, robust construction, and long MTBF reduce downtime.
