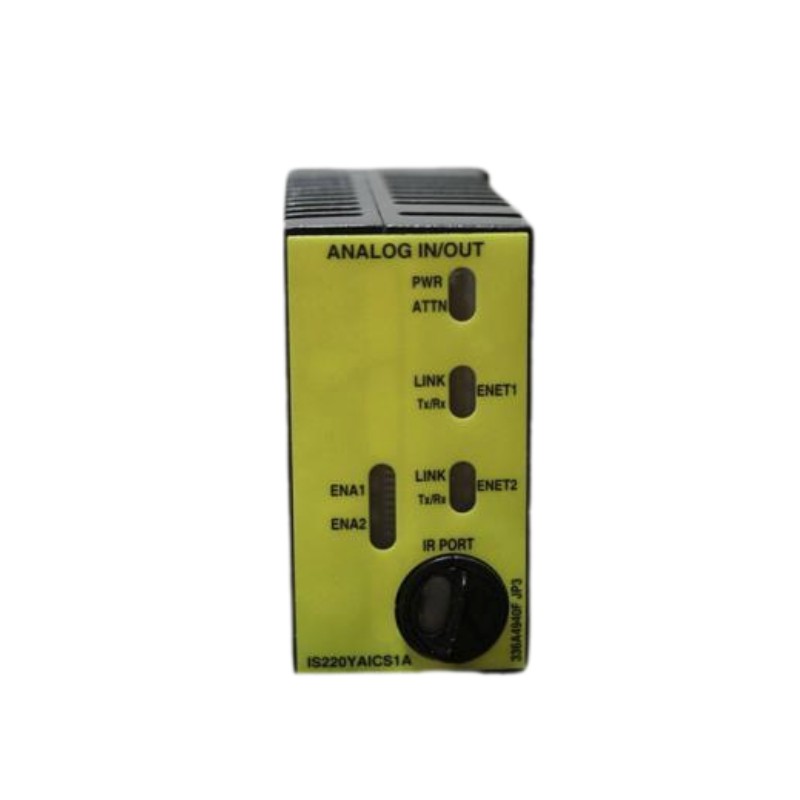

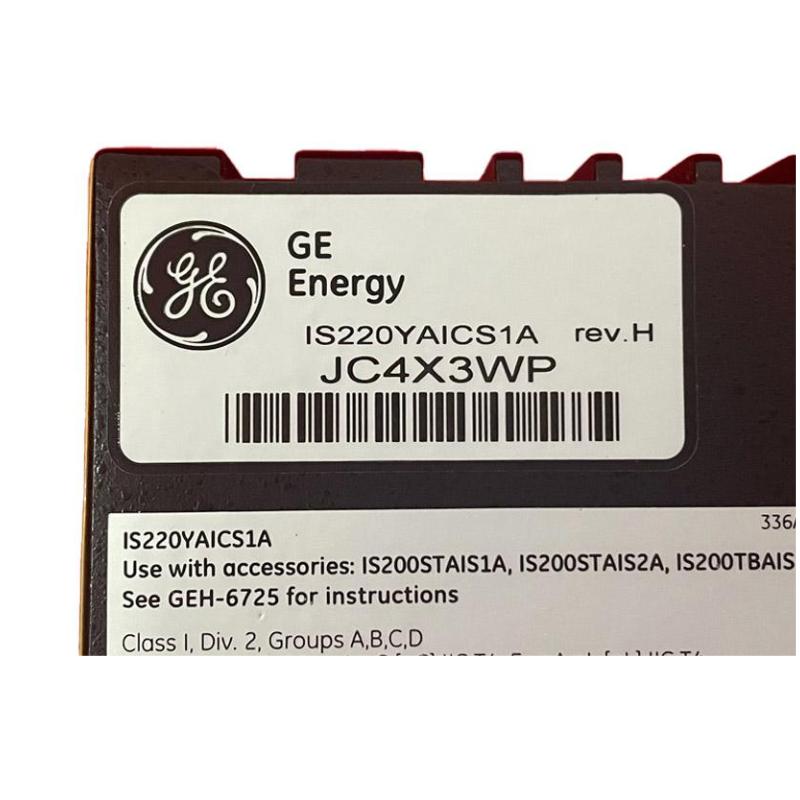

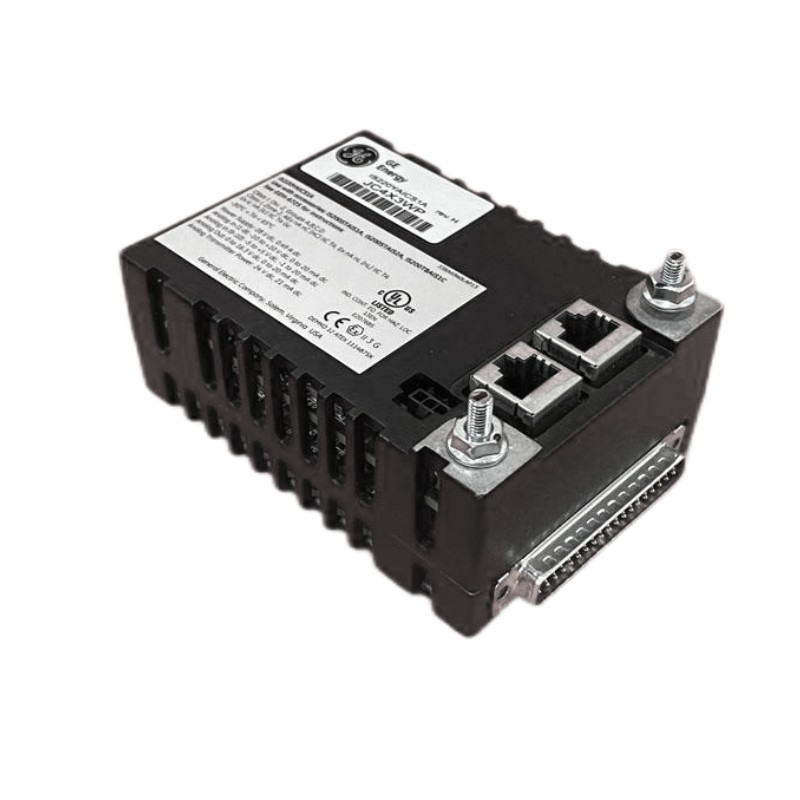

- IS220YAICS1A
- Safety Analog I/O Pack Module
- USA
- 160 mm × 100 mm × 40 mm
- 1.2kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 57
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| sales@plc-automations.com | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Basic Information
-
Brand: GE
-
Series: Mark VIeS / Functional Safety I/O Packs
-
Model: IS220YAICS1A
-
Product Type: Safety Analog Input Pack / Analog I/O Module
Technical Specifications
| Parameter | Description |
|---|---|
| Model | IS220YAICS1A |
| Brand | GE |
| Series | Mark VIeS Functional Safety I/O Packs |
| Product Type | Safety Analog Input Pack (Analog I/O Module) |
| Dimensions | Approx. 160 mm × 100 mm × 40 mm |
| Weight | Approx. 1.2 kg |
| Analog Input Channels | Up to 16 high‑precision analog input channels |
| Input Types | Typical ranges: 0‑10 V DC, 4‑20 mA (depending on terminal board) |
| Resolution | 16‑bit analog‑to‑digital converter |
| Communication | Dual 100 Mb full‑duplex RJ‑45 Ethernet ports |
| Power Supply | Typically 24 ‑ 28 V DC |
| Safety Certification | SIL 2/3 capable (as part of safety system architecture) |
| Operating Temperature | Typical range ‑40 °C to +70 °C |
| Hazardous Area Rating | Certified for Ex ic nA IIC T4 Gc when paired with appropriate terminal boards |
Product Description
The IS220YAICS1A is a high‑integrity safety analog input module designed for use within GE’s Mark VIeS functional safety system architecture. Its key role is to acquire analog sensor signals from the field—such as transmitters measuring temperature, pressure, flow or other process variables—and convert those signals to digital form for the safety controller logic to evaluate. The module supports multiple high‑precision channels, built‑in diagnostics, and network redundancy via dual Ethernet ports.
The design emphasises safety, reliability and serviceability. With SIL 2/3 certification capability, the module is suited for safety critical applications. The analog input resolution (16‑bit) and channel count (up to 16) provide high fidelity measurement. The module also supports advanced fault detection and status monitoring indicators, enabling rapid diagnostics.
In system integration, the IS220YAICS1A plugs into the I/O network of the Mark VIeS system and connects to terminal boards that interface to field wiring. When installed in power generation, oil and gas, chemical or other high‑hazard industries, it becomes a vital component in the process safety chain, helping ensure safe, continuous, and reliable operation.
Applications
-
Safety analog input acquisition in gas turbine and steam turbine control systems (monitoring temperature, vibration, pressure, etc)
-
Functional safety systems in power plants (SIL‑rated) where analog field signals must be processed reliably
-
Offshore or on‑shore oil & gas platforms requiring hazardous area certified modules for safety I/O
-
Chemical or petrochemical plants for monitoring critical analog variables and initiating safety shutdowns or interlocks
-
Retrofit upgrade of existing Mark VI/Mark VIe control racks to add high‑integrity analog I/O capability
Advantages
-
High safety integrity – Designed for SIL 2/3 applications, offering reliability in safety‑critical processes.
-
High‑precision analog measurement – 16‑bit resolution and high channel count provide detailed signal quality.
-
Dual Ethernet communication – Supports redundant networks, enhancing system resilience.
-
Hazardous area suitability – When paired with correct terminal boards, certified for Ex ic nA IIC T4 Gc environments.
-
Compact yet robust form factor – At ~160×100×40 mm and 1.2 kg weight, easy to handle and install.
-
Diagnostic capability – On‑board diagnostics and LED indicators support fast fault localisation and maintenance.
-
Integration friendly – Compatible with Mark VIeS I/O network and terminal boards, simplifying upgrades and replacements.
-
Industrial durability – Designed for ‑40 °C to +70 °C operation, making it suitable for harsh industrial settings.
Related Models (Same Series or Related)
| Model | Description | Key Specifications (Dimensions / Weight) |
|---|---|---|
| IS220YAICS1A | Current product: Safety analog input pack | 160×100×40 mm / ~1.2 kg |
| IS220YDIAS1A | Safety discrete input module (Mark VIe family) | Similar size / approx weight |
| IS220YDOAS1A | Safety discrete output module | Similar size / approx weight |
| IS220YTURS1A | Turbine specific safety I/O pack | Similar size / approx weight |
| IS220UCSAS1A | Universal safety controller module | Similar module size / ~1.0‑1.3 kg |
Popular Models from the Same Brand
| Model | Description | Key Specifications (Dimensions / Weight) |
|---|---|---|
| IS220PDIOH1B | Discrete I/O module – Mark VIe I/O Pack | ~114×89×57 mm / ~0.9 kg |
| IS215WEPAH2AB | Turbine pitch control module | ~200×150×50 mm / ~1.2 kg |
| IS215PMVPH1AA | Turbine control processor board | ~330×100×200 mm / ~2.0 kg |
| IS215VCMH2B | Communication/monitoring module (VME) | ~258×160×40 mm / ~1.9 kg |
| IS215REBFH1BA | Relay‑output control board | ~335×175×35 mm / ~0.56 kg |
FAQ (Frequently Asked Questions)
Q1: What is the IS220YAICS1A used for?
A1: This module is used as a safety analog input pack in high‑integrity control systems, acquiring analog sensor signals and delivering them to a safety logic controller.
Q2: Which series does this module belong to?
A2: It belongs to the Mark VIeS functional safety I/O packs series from GE.
Q3: What are its dimensions and weight?
A3: Its approximate size is 160 mm × 100 mm × 40 mm and the weight is around 1.2 kg.
Q4: What safety certification does it support?
A4: It is capable of supporting SIL 2/3 functional safety applications when used in appropriate redundant architecture.
Q5: What type of analog inputs does it accept?
A5: It accepts high‑precision analog inputs such as 0‑10 V DC, 4‑20 mA loops, and is configured via paired terminal boards.
Q6: Can this module be used in hazardous areas?
A6: Yes, when appropriately paired with certified terminal boards it is suitable for hazardous area ratings such as Ex ic nA IIC T4 Gc.
Q7: How many channels of analog input does it support?
A7: It supports up to 16 high‑precision analog input channels.
Q8: What communication interface does it provide?
A8: It provides dual 100 Mb IEEE Ethernet ports (RJ‑45) for redundancy and network integration.
Q9: How does this module assist in system maintenance?
A9: It includes on‑board diagnostics, LED indicators, status monitoring, which help quickly identify faults and reduce maintenance downtime.
Q10: What should be verified before integrating this module?
A10: Verify the exact model number (IS220YAICS1A), ensure compatibility with your Mark VIeS rack/backplane, confirm terminal board compatibility, power supply voltage and that the environmental conditions (temperature, humidity, explosion rating) are suitable.
