Product Overview

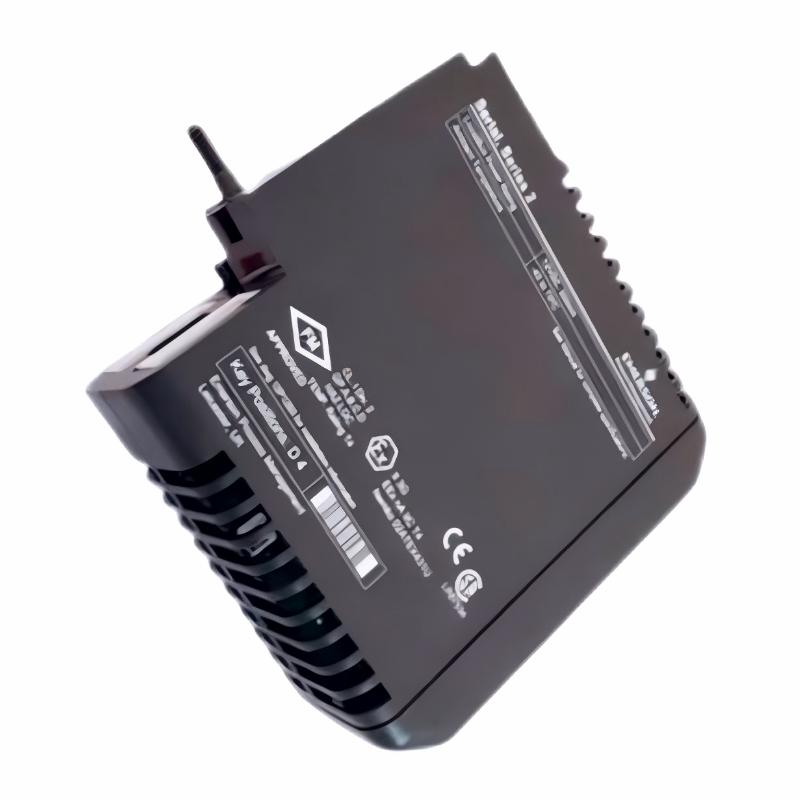

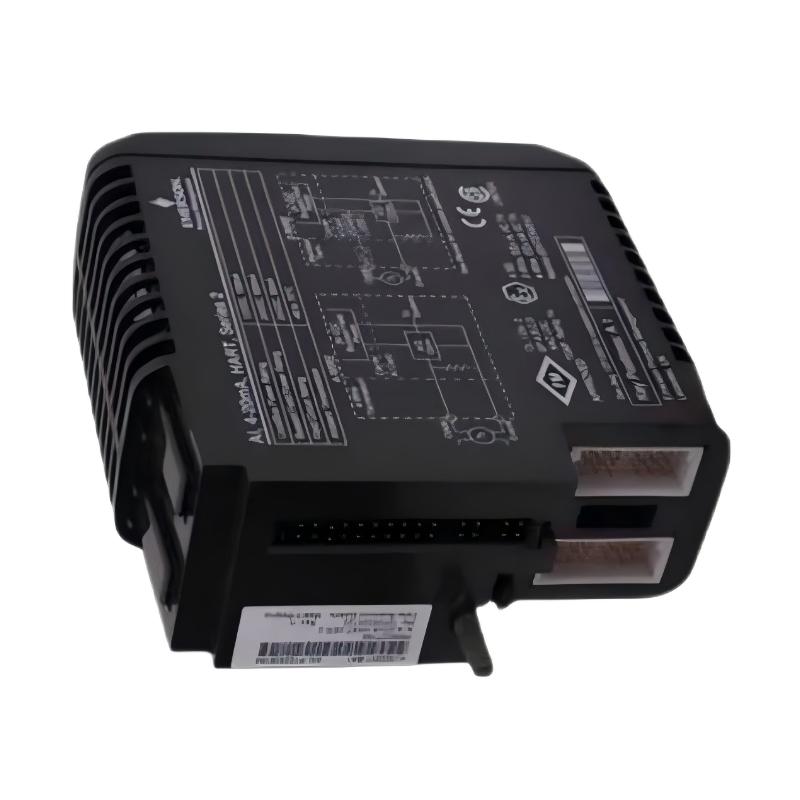

The Emerson VE4003S7B1 KJ3231X1-BA1 Input Module Card is an industrial automation I/O component designed to provide field input interface functionality within compatible Emerson process control systems. It serves as an important connection point between field-level instrumentation and the control architecture, allowing information from sensors, transmitters, switches, and other industrial devices to be acquired and transferred into the automation system.

Input modules are fundamental to distributed control and process automation because controllers require accurate field information before they can monitor operating conditions or execute control strategies. In a typical plant, field devices may be installed across process equipment, production lines, tanks, pumps, pipelines, compressors, utility systems, and other areas. The input module provides the electronic interface through which these field signals become available to the control system.

The VE4003S7B1 KJ3231X1-BA1 is designed for integration into a compatible Emerson I/O architecture. Its function is not limited to simply receiving a signal; the complete I/O system can provide appropriate signal interface, processing, diagnostics, and communication functions before the information is used by the control processor.

The supplied physical dimensions are 107 × 41 × 105 mm, and the listed weight is 0.5 kg. This compact form factor is suitable for industrial control cabinets and distributed I/O assemblies where installation space and organized field wiring are important considerations.

The exact input type, channel arrangement, electrical characteristics, isolation, terminal assignment, supported signal ranges, and system compatibility should be verified against the applicable Emerson documentation and hardware revision before installation or replacement.

---

Technical Specifications

Parameter	Specification
Manufacturer	Emerson
Product Family	VE Series / Process Automation
Model	VE4003S7B1
Associated Part Number	KJ3231X1-BA1
Product Type	Input Module Card
Primary Function	Industrial field input signal acquisition
Interface Role	Field device to control-system interface
Signal Type	Input signals
Application	Industrial process control and automation
Installation	Compatible Emerson I/O architecture
Dimensions	107 × 41 × 105 mm
Weight	0.5 kg
Typical Applications	Process monitoring, equipment supervision, alarms and control

---

What Is the Emerson VE4003S7B1 KJ3231X1-BA1?

The Emerson VE4003S7B1 KJ3231X1-BA1 Input Module Card is an I/O interface component used to bring field information into a compatible Emerson process automation system.

Field devices provide the control system with information about the condition of a process or piece of equipment. Depending on the application, these devices may include process sensors, transmitters, switches, monitoring instruments, and equipment-status devices.

The input module forms part of the signal path between these devices and the controller:

Field Device → Field Wiring → KJ3231X1-BA1 → I/O System → Controller → HMI / SCADA

This architecture allows field information to be incorporated into control logic, alarms, process displays, historical data, and other automation functions.

The exact electrical behavior of the input module should be determined from the installed system configuration and applicable documentation rather than assumed from the model number alone.

---

Function and Working Principle

Field Signal Acquisition

The primary function of the VE4003S7B1 KJ3231X1-BA1 is to provide an interface for receiving input information from compatible field devices.

The connected field device produces a signal corresponding to a physical process condition or equipment state. The input module receives this information through the appropriate field interface.

Input Signal Interface

Industrial field devices can use different electrical signaling methods. The input system must therefore be correctly matched to the connected instrumentation.

Before commissioning, engineers should verify:

• Input signal type
• Signal range
• Wiring arrangement
• Device power requirements
• Terminal assignments
• Grounding requirements
• Shielding requirements
• System configuration

Exact electrical specifications should be confirmed for the particular hardware and application.

Signal Processing

Once a field signal reaches the input interface, the I/O system can perform the processing required to make the information usable by the control architecture.

Depending on the system design, this can involve signal conditioning, filtering, conversion, validation, diagnostics, or other processing functions.

Control-System Integration

After the input information has been processed, the control system can use it for:

• Process monitoring
• Equipment status
• Alarm generation
• Interlocks
• Control logic
• Sequencing
• Diagnostics
• Process optimization

This allows the input module to become part of a complete automated process-control loop.

---

Role in Emerson Process Automation

The VE4003S7B1 KJ3231X1-BA1 operates as an I/O component rather than a standalone controller.

A simplified Emerson automation architecture can be represented as:

Field Instrumentation
↓
Input Module Card
↓
I/O Infrastructure
↓
Control Processor
↓
Control Strategy
↓
HMI / Operator Station

The input card supplies the controller with field-level information. The controller then processes this information according to the configured control strategy.

For example, an input condition can be used to generate an alarm, change a process sequence, initiate an interlock, or provide feedback to an operator.

---

Industrial Applications

Oil and Gas

Oil and gas production and processing facilities rely on extensive field instrumentation. Input modules can collect information from equipment and process instruments and transfer it into the control architecture.

Chemical Processing

Chemical manufacturing plants require continuous monitoring of equipment and process conditions. Input modules can provide the necessary field interface for automation systems.

Power Generation

Power-generation facilities use numerous monitoring and status signals throughout turbines, generators, auxiliary systems, cooling equipment, and other plant assets.

Water and Wastewater Treatment

Treatment facilities use sensors, switches, pumps, valves, and other equipment throughout the process. Input modules allow field information to become part of automated plant monitoring and control.

Pharmaceutical Production

Pharmaceutical manufacturing requires reliable monitoring of production equipment and process conditions. Input modules can form part of the automation infrastructure used for process supervision.

Food and Beverage

Food and beverage production systems use field instrumentation and equipment-status devices throughout production and packaging. Input interfaces help connect these devices with the control system.

General Manufacturing

Manufacturing facilities can use input modules for machine status, equipment monitoring, production sequencing, alarms, and process supervision.

---

Input Module Architecture

A typical industrial input system consists of several functional layers.

System Layer	Typical Function
Field Device	Detects or measures a process condition
Field Wiring	Transfers the electrical signal
Terminal Interface	Provides field termination
Input Module Card	Acquires field input information
I/O Infrastructure	Connects the input to the control system
Controller	Executes control logic
HMI	Displays process information
Historian	Stores process data
Alarm System	Reports abnormal conditions

The KJ3231X1-BA1 functions within this overall architecture.

---

Installation Guidelines

Confirm the Model and Part Number

Before installation, verify both identification references:

VE4003S7B1

and

KJ3231X1-BA1

The hardware revision and existing system configuration should also be checked where applicable.

Inspect the Card

Before installation, inspect the card for:

• Physical damage
• Connector damage
• Corrosion
• Contamination
• Signs of overheating
• Damaged mounting points
• Loose components

Any abnormal condition should be investigated before installation.

Verify the I/O Position

Install the module only in the appropriate compatible I/O position.

The associated carrier, terminal assembly, and system configuration should be confirmed before the card is installed.

Check Field Connections

Field wiring should be compared with approved engineering drawings.

Verify:

• Terminal identification
• Signal wiring
• Polarity where applicable
• Instrument power
• Shielding
• Grounding
• Cable routing

Confirm Software Configuration

The configured input point should correspond to the actual hardware and connected field device.

Incorrect configuration can cause invalid values, diagnostic conditions, or unexpected process behavior.

---

Commissioning Procedure

After installation, the VE4003S7B1 KJ3231X1-BA1 should be commissioned systematically.

Hardware Verification

Confirm that the card is correctly installed and securely connected.

I/O Diagnostic Check

Review the associated I/O system and controller for hardware or communication diagnostics.

Field Device Verification

Confirm that connected instruments or devices are powered and operating correctly.

Signal Verification

Verify that the expected field signal reaches the appropriate input interface.

Configuration Verification

Check the control-system configuration, tag assignment, signal scaling, and other applicable settings.

Functional Test

Change the field condition in a controlled manner and verify that the control system detects the expected change.

Alarm and Interlock Test

Where applicable, verify that configured alarms, interlocks, and process sequences respond correctly.

---

Troubleshooting the VE4003S7B1 KJ3231X1-BA1

A complete signal-path approach should be used when diagnosing input problems.

No Input Signal

If the controller receives no valid input, inspect:

• Field device
• Instrument power
• Field wiring
• Terminal connections
• Card installation
• I/O diagnostics
• Control-system configuration

A failed field device or disconnected cable can create symptoms similar to an input-card fault.

Incorrect Input Value

An incorrect value can be caused by:

• Incorrect configuration
• Signal mismatch
• Wiring problems
• Field-device calibration
• Grounding issues
• Electrical interference
• Input-interface problems

The signal should be checked at appropriate points in the signal chain.

Unstable Input

Potential causes include:

• Electrical noise
• Poor shielding
• Loose wiring
• Grounding problems
• Damaged cable
• Field-device instability
• Actual process fluctuations
• Hardware problems

Trend data can help determine whether the variation is caused by the process or the measurement system.

Intermittent Input

Intermittent behavior may result from:

• Loose terminals
• Damaged cables
• Connector problems
• Vibration
• Field-device degradation
• Temperature-related behavior
• Electrical interference

A physical inspection should be performed before replacing the card.

---

Preventive Maintenance

Reliable I/O operation depends on regular maintenance of both the electronic module and its connected field devices.

Inspect Connections

Check connectors and terminals for looseness, corrosion, contamination, or mechanical damage.

Check Field Wiring

Inspect cables for damaged insulation, excessive bending, moisture ingress, and mechanical stress.

Monitor Diagnostics

Review available I/O and controller diagnostic information to identify developing faults.

Maintain Cabinet Conditions

The control cabinet should remain clean and adequately ventilated. Excessive heat, moisture, dust, and vibration can affect electronic equipment.

Maintain Field Devices

Sensors, transmitters, and other connected equipment should be maintained and calibrated according to their applicable procedures.

---

Replacement Considerations

When replacing an Emerson VE4003S7B1 KJ3231X1-BA1 Input Module Card, the complete identification should be checked before installation.

Important verification points include:

• Model number
• Associated part number
• Hardware revision
• I/O position
• Connector arrangement
• Terminal configuration
• Input signal type
• Field-device compatibility
• Control-system configuration

The supplied dimensions are:

107 × 41 × 105 mm

The supplied weight is:

0.5 kg

These specifications are useful for cabinet planning, transportation, spare-parts management, and replacement logistics.

A similar physical size does not necessarily indicate electrical or functional compatibility.

---

Physical Dimensions and Cabinet Planning

The VE4003S7B1 KJ3231X1-BA1 has supplied dimensions of 107 × 41 × 105 mm and a listed weight of 0.5 kg.

When planning cabinet installation, engineers should allow sufficient space for:

• Module installation
• Field wiring
• Connectors
• Cable routing
• Adjacent modules
• Inspection
• Maintenance

The available clearance should be determined according to the requirements of the host Emerson I/O architecture.

---

Signal Integrity and Wiring Practices

Reliable input acquisition requires appropriate field wiring and installation practices.

Engineers should consider:

• Cable routing
• Shielding
• Grounding
• Electrical separation
• Terminal quality
• Field-device installation
• Cable length
• Sources of electrical interference

Long field cables may be exposed to electrical noise from motors, variable speed drives, contactors, transformers, and other industrial equipment. Proper cable routing and grounding can help maintain signal integrity.

When troubleshooting, compare the field-device output with the value observed by the control system whenever practical. This helps identify whether the problem exists at the field device, wiring, input card, or software-configuration level.

---

Compatible System Components

The VE4003S7B1 KJ3231X1-BA1 can form part of an industrial automation installation containing:

Component	Typical Function
Field Sensor	Detects process conditions
Process Transmitter	Provides measurement information
Equipment Status Device	Provides equipment-state information
Terminal Assembly	Provides field termination
Input Module Card	Receives field input signals
I/O Carrier	Provides module interconnection
Controller	Executes automation logic
Engineering Workstation	System configuration and maintenance
HMI	Operator visualization
Historian	Process data storage
Alarm System	Abnormal-condition notification

The exact combination depends on the Emerson control-system architecture.

---

Related Emerson Models

Model	Product Type	General Function
VE4003S1	Analog Input Module	Analog process signal acquisition
VE4003S2	Analog Input Card	Analog input processing
VE4003S2B3	Input Module with Terminal Blocks	Field signal acquisition and termination
VE4003S2B4	Input Module with Terminal Blocks	Process input interface
VE4003S2B5	Analog Input Card	Analog process signal acquisition
VE4003S2B6	Analog Input Module	Analog measurement interface
VE4003S2B7	Analog Input Module	Process signal acquisition
VE4003S2B9	Input Module with Terminal Blocks	Analog input and field connection
VE4002S2	Discrete Output Card	Discrete output control
VE4002S2T1	Standard I/O Terminal Block	Field termination
VE3006	Digital Input Module	Digital field signal acquisition

These models represent related Emerson automation and I/O equipment. They should not be treated as direct replacements for the VE4003S7B1 KJ3231X1-BA1 without confirming the required electrical and system-level compatibility.

---

Engineering Best Practices

The VE4003S7B1 KJ3231X1-BA1 should always be managed as part of a complete field-to-controller signal chain.

For each input point, maintain accurate documentation covering:

• Field-device identification
• Input location
• Wiring arrangement
• Signal characteristics
• Engineering-unit configuration
• Alarm limits
• Control-system tag
• Associated control strategy

During installation, field cables should be routed according to the plant’s electrical design and kept away from significant sources of electrical interference where appropriate.

Grounding and shielding should follow approved engineering practices.

During troubleshooting, technicians should first verify the field device and wiring before concluding that the input card itself has failed.

For critical process applications, correctly identified spare cards should be kept available and stored under suitable environmental conditions.

---

Key Advantages

Reliable Field Input Interface

The VE4003S7B1 KJ3231X1-BA1 provides an interface between field devices and a compatible Emerson control architecture.

Compact Construction

With supplied dimensions of 107 × 41 × 105 mm, the card is suitable for compact industrial I/O installations.

Process Monitoring

Field input information can be incorporated into continuous process monitoring and equipment supervision.

Automation Integration

The input data can participate in alarms, interlocks, sequences, diagnostics, and control strategies.

Industrial Application Flexibility

The module can be incorporated into suitable automation systems across process industries and general industrial applications.

---

Technical FAQs

What is the Emerson VE4003S7B1 KJ3231X1-BA1?

The Emerson VE4003S7B1 KJ3231X1-BA1 is an Input Module Card designed to provide field input interface functionality within a compatible Emerson industrial automation system.

What is the primary function of the KJ3231X1-BA1?

Its primary role is to receive compatible field input information and make that information available to the associated Emerson I/O and control architecture.

Where can an input module card be used?

Input modules can be used in oil and gas, chemical processing, power generation, water treatment, pharmaceutical manufacturing, food and beverage production, and general industrial automation.

What are the dimensions of the VE4003S7B1?

The supplied dimensions are 107 × 41 × 105 mm.

What is the weight of the KJ3231X1-BA1?

The supplied weight is 0.5 kg.

Is the VE4003S7B1 a controller?

No. It is an Input Module Card and operates as part of a larger Emerson I/O and process-control architecture.

Can another Emerson input module replace the KJ3231X1-BA1?

Replacement should not be based solely on physical dimensions or similar model names. The complete part number, hardware revision, input characteristics, terminal arrangement, and host-system configuration should be verified.

What can cause an input signal failure?

Potential causes include a failed field device, loss of instrument power, damaged wiring, loose connections, incorrect configuration, electrical interference, I/O hardware problems, or module failure.

How should the VE4003S7B1 be maintained?

Maintenance should include inspection of the module, connectors, field wiring, cabinet environment, connected instruments, and available system diagnostics.

---

Conclusion

The Emerson VE4003S7B1 KJ3231X1-BA1 Input Module Card is an industrial automation I/O component designed to provide field input interface functionality within a compatible Emerson process control architecture. By connecting field-level devices with the control system, it allows process and equipment information to be incorporated into monitoring, alarming, diagnostics, sequencing, and automated control.

The supplied dimensions of the VE4003S7B1 KJ3231X1-BA1 are 107 × 41 × 105 mm, with a listed weight of 0.5 kg. These physical specifications are useful for cabinet layout, replacement planning, spare-parts inventory, handling, and transportation.

For installation, commissioning, troubleshooting, and replacement, the complete VE4003S7B1 KJ3231X1-BA1 identification should be verified together with the applicable hardware revision, I/O architecture, field wiring, signal characteristics, and control-system configuration. Proper field-device integration, accurate wiring, appropriate grounding, and systematic commissioning are essential for maintaining reliable input acquisition and stable industrial automation performance.
