Product Overview

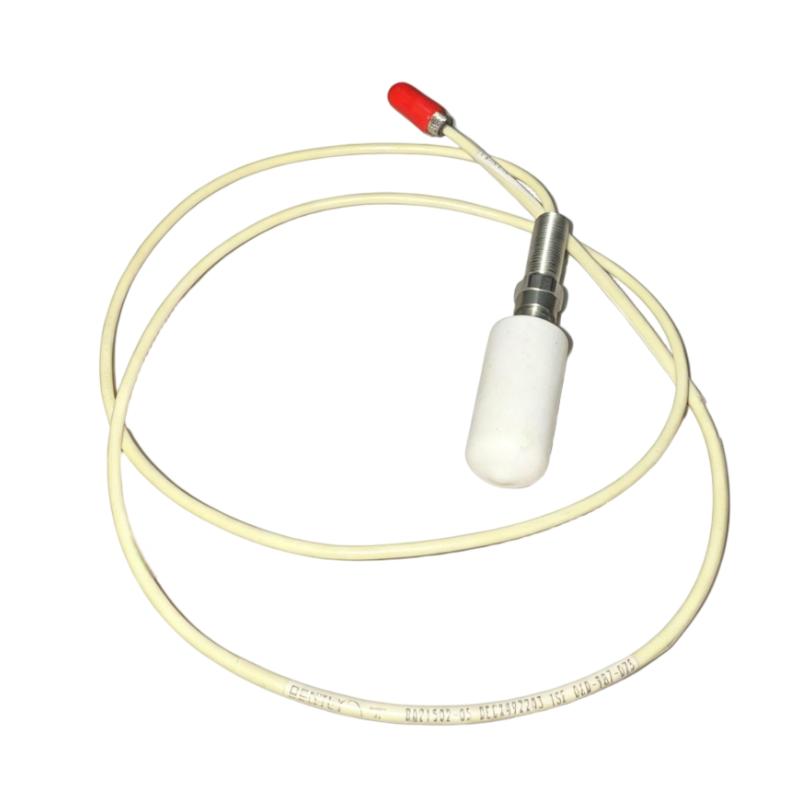

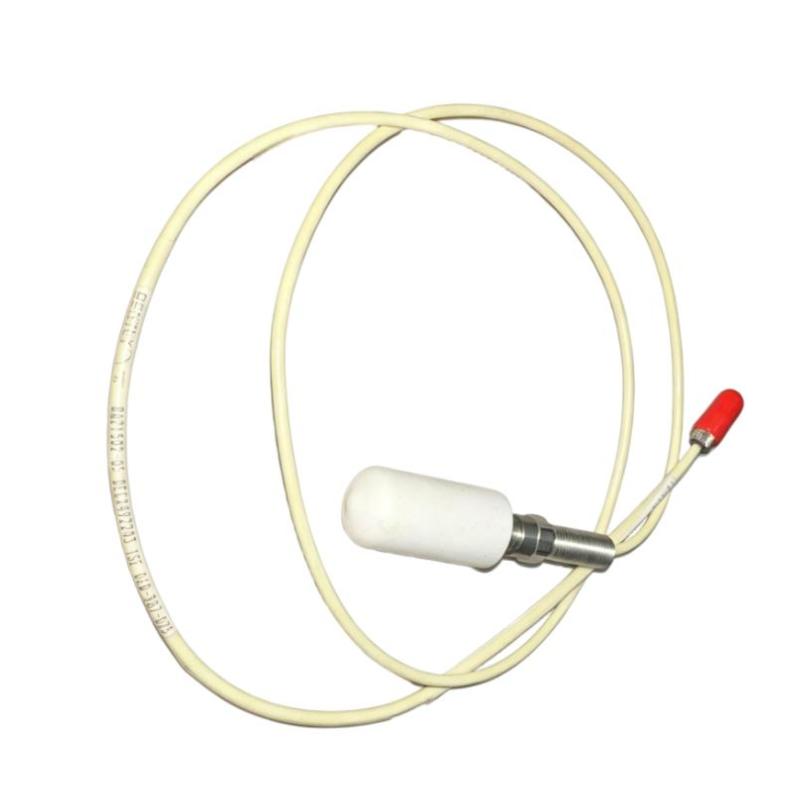

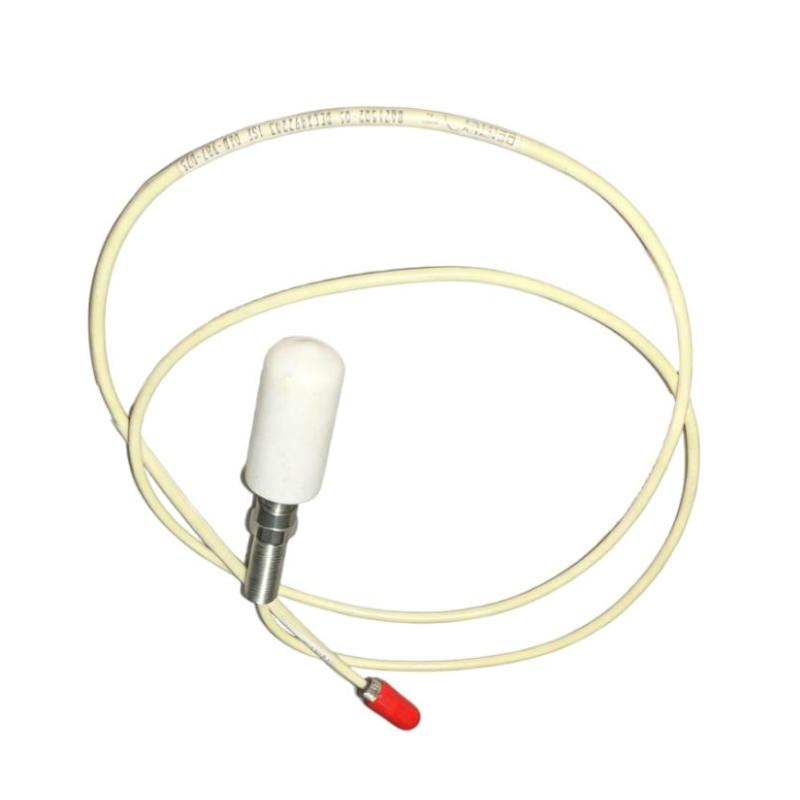

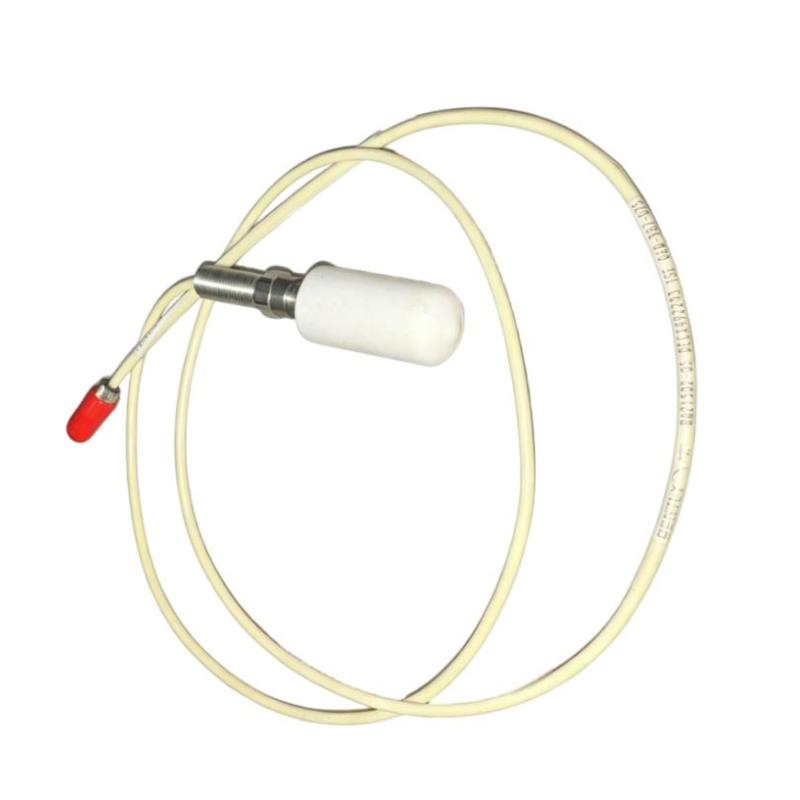

The Bently Nevada BA21502-06 7200 Series Proximity Probe is a non-contact displacement sensor used in machinery monitoring systems to measure the relative position of a conductive shaft. Unlike a contact sensor, it does not need to touch the rotating surface, allowing shaft movement to be monitored continuously while the machine is running.
In rotating equipment such as compressors, turbines, pumps, and generators, the probe is mounted close to the shaft with a controlled gap between the probe tip and the target surface. Changes in this gap produce corresponding changes in the probe system’s electrical output. The monitoring equipment can use the signal to evaluate shaft position, radial vibration, and other shaft-related operating conditions.
The BA21502-06 belongs to the legacy Bently Nevada 7200 Series proximity probe family. These installations operate as a complete measurement chain comprising the probe, a compatible extension cable, and a Proximitor sensor. Selecting the probe alone is therefore not enough when replacing an existing sensor. The electrical characteristics, cable arrangement, total system length, mounting configuration, and receiving electronics must remain compatible.
For maintenance teams working on older machinery monitoring installations, the complete part number is particularly important. A probe with a similar appearance may have a different sensing configuration, mounting arrangement, or cable connection. Matching the original installation helps avoid changes to the probe gap, signal calibration, and monitoring-channel response.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | BA21502-06 |
| Product Family | 7200 Series |
| Product Type | Proximity Probe |
| Measurement Principle | Non-contact eddy-current sensing |
| Primary Application | Shaft displacement and vibration monitoring |
| Sensing Target | Conductive shaft surface |
| System Components | Proximity probe, compatible extension cable, and Proximitor sensor |
| Cable Length | Optional |
| Shipping Weight | 3 kg |
Product Features
- Non-contact shaft measurement: Detects changes in the distance between the probe tip and a conductive target without physical contact.
- 7200 Series integration: Forms part of the legacy Bently Nevada proximity transducer system.
- Dynamic and static measurement: Supports shaft-position measurement and vibration monitoring through the associated electronics.
- Probe-and-cable system compatibility: Requires the correct extension cable and Proximitor configuration for the installed measurement channel.
- Continuous monitoring capability: Supplies a changing electrical signal as the relative shaft position changes.
- Suitable for rotating machinery: Applicable to machinery monitoring installations where the 7200 Series probe configuration is specified.
- Configuration-sensitive replacement: Requires confirmation of the mounting arrangement, electrical length, connector, and system compatibility.
Working Principle
The BA21502-06 operates through the eddy-current measurement principle used by the Bently Nevada 7200 Series. The probe and its compatible Proximitor electronics form a sensing system that responds to changes in the distance between the probe tip and a conductive target.
When the probe is positioned near a rotating shaft, the sensing field interacts with the target material. Movement of the shaft changes the probe-to-target gap, which changes the electrical response of the transducer system. The Proximitor converts this response into an output that can be interpreted by the connected monitoring equipment.
The measurement chain is:
Conductive Shaft → BA21502-06 Proximity Probe → Extension Cable → Proximitor Sensor → Monitoring System
When the shaft moves radially, the gap changes with the movement, allowing the system to measure relative shaft vibration. When the shaft remains at a particular position, the signal also represents the static gap condition within the system’s operating range.
The probe is only one part of this process. Its extension cable and Proximitor must match the intended system configuration. The probe lead and extension cable together establish the required electrical length between the probe and Proximitor; using an incorrectly matched combination can affect the measurement scale factor and system response.
Role in a Bently Nevada 7200 Series Machinery Monitoring Architecture
The BA21502-06 serves as the sensing point in a proximity measurement channel. It detects movement of the machine shaft and passes the resulting electrical response through the associated transducer components to the monitoring equipment.
| System Element | Function |
|---|---|
| BA21502-06 Proximity Probe | Detects changes in the gap between the probe tip and the conductive shaft |
| Compatible Extension Cable | Connects the probe lead to the Proximitor while maintaining the required system electrical length |
| 7200 Series Proximitor Sensor | Supplies the probe excitation and converts the sensing response into an output signal |
| Monitoring Instrument | Receives and processes the transducer output for shaft-position and vibration measurements |
| Conductive Shaft Target | Provides the surface whose relative position is measured |
| Probe Mounting Arrangement | Maintains the required probe position and mechanical clearance |
The complete measurement channel must be considered when replacing the probe. A mechanically compatible probe may still be unsuitable if its electrical configuration, cable length, or associated Proximitor differs from the existing system.
Industrial Applications
| Application | Typical Use |
|---|---|
| Centrifugal Compressors | Measuring relative shaft vibration and displacement during operation |
| Steam and Industrial Turbines | Monitoring shaft movement at designated measurement positions |
| Industrial Pumps | Tracking shaft vibration in suitable proximity monitoring arrangements |
| Electric Motors | Measuring relative shaft movement where a proximity system is installed |
| Generators | Monitoring shaft position and vibration through compatible sensing channels |
| Rotating Process Equipment | Providing shaft-related measurement signals for condition assessment |
| Legacy Machinery Monitoring | Maintaining existing 7200 Series sensing arrangements during component replacement |
| Predictive Maintenance | Supplying vibration and displacement data for trend analysis and fault investigation |
Installation and Maintenance
- Verify the complete model reference: Confirm BA21502-06 against the installed probe identification and the equipment maintenance records.
- Check the mounting configuration: Compare the existing probe installation, thread arrangement, case dimensions, and available clearance before removing the old unit.
- Inspect the shaft target: Ensure the measured surface is appropriate for the proximity system and is free from damage or conditions that could distort the measurement.
- Confirm the cable arrangement: Match the probe lead and extension cable to the required 7200 Series electrical configuration.
- Verify total system length: Ensure the probe lead and extension cable together match the electrical length required by the associated Proximitor.
- Inspect the connectors: Check the coaxial connectors for contamination, damage, loose fittings, or signs of previous mechanical stress.
- Protect the probe lead: Avoid twisting the integral lead while installing the probe, and prevent sharp bends or excessive tension along the cable route.
- Set the probe gap correctly: Establish the operating gap according to the applicable transducer-system requirements.
- Secure the probe mounting: Tighten the mounting hardware appropriately without damaging the probe case, threads, or associated machinery.
- Verify the Proximitor configuration: Check that the connected electronics match the probe system and the required total electrical length.
- Check the completed signal: Confirm that the monitor receives a plausible measurement and investigate abnormal output before returning the machine to service.
- Record the complete channel configuration: Document the probe reference, cable arrangement, Proximitor identification, measurement location, and initial operating readings for future maintenance.
Related Components
| Component | Function |
|---|---|
| 7200 Series Extension Cable | Connects the proximity probe to the matching Proximitor sensor |
| 7200 Series Proximitor Sensor | Excites the probe and conditions its response into a usable monitoring signal |
| 18745 Series Proximitor Sensor | Related 7200 Series proximity-system electronics, selected according to system requirements |
| 170172 Internal 7200 Proximitor Module | Provides internal Proximitor channels for compatible 7200 Series 5 mm or 8 mm probes in specified system lengths |
| Probe Mounting Hardware | Secures the sensor and maintains the required position relative to the shaft |
| Monitoring Instrument | Receives the conditioned signal for shaft-position or vibration monitoring |
Recommended Related Models
| Model | Product Type | Relationship |
|---|---|---|
| Bently Nevada 21502-04 | 7200 Series Proximity Probe | Related part-number reference within the same probe family; compare the complete configuration before substitution |
| Bently Nevada 21500 Series | 7200 Series 5 mm Standard-Mount Proximity Probe | Related probe family for applications requiring a 5 mm standard-mount configuration |
| Bently Nevada 21501 Series | 7200 Series 5 mm Armored Proximity Probe | Related armored probe family for installations using the corresponding mounting and electrical configuration |
| Bently Nevada 21504 Series | 7200 Series 8 mm Standard-Mount Proximity Probe | Related probe family with an 8 mm standard-mount configuration |
| Bently Nevada 21505 Series | 7200 Series 8 mm Armored Proximity Probe | Related armored probe family with an 8 mm standard-mount configuration |
These references represent related 7200 Series configurations, not automatic drop-in replacements. The probe geometry, mounting thread, cable length, connector, and Proximitor compatibility must match the installed measurement channel.
Key Advantages
- Measures shaft position and vibration without contacting the rotating surface.
- Forms part of the established Bently Nevada 7200 Series proximity transducer system.
- Supports continuous shaft-related measurements through compatible monitoring equipment.
- Can be incorporated into legacy machinery monitoring installations when the complete system configuration matches.
- Allows probe replacement planning to account for cable length and signal-conditioning requirements.
Technical FAQs
How does the BA21502-06 detect shaft movement?
The probe operates using eddy-current sensing. As the distance between the probe tip and the conductive shaft changes, the transducer system’s electrical response changes accordingly. The connected monitoring equipment uses this output to measure relative shaft position and vibration.
Why must the extension cable and Proximitor match the probe?
The probe lead, extension cable, and Proximitor form a calibrated measurement system. Their electrical characteristics and total system length affect the output relationship between physical gap and electrical signal. An incorrectly matched combination can cause measurement errors even when the probe can be physically installed.
Can the BA21502-06 be replaced with a different 7200 Series probe?
Not solely on the basis of series membership. Related 7200 Series probes can differ in sensing-tip size, mounting style, case dimensions, armor, connector arrangement, and cable configuration. The complete part number and the installed transducer system must be checked before choosing a replacement.
What should be checked if the 7200 Series monitoring channel shows an abnormal signal?
Check the probe gap, target surface, probe lead, extension-cable connectors, Proximitor supply, and system configuration. An abnormal output can result from a damaged cable, incorrect electrical length, faulty connections, an improper gap, or a problem with the sensing electronics. Testing the complete measurement chain helps isolate the cause.
