Product Overview

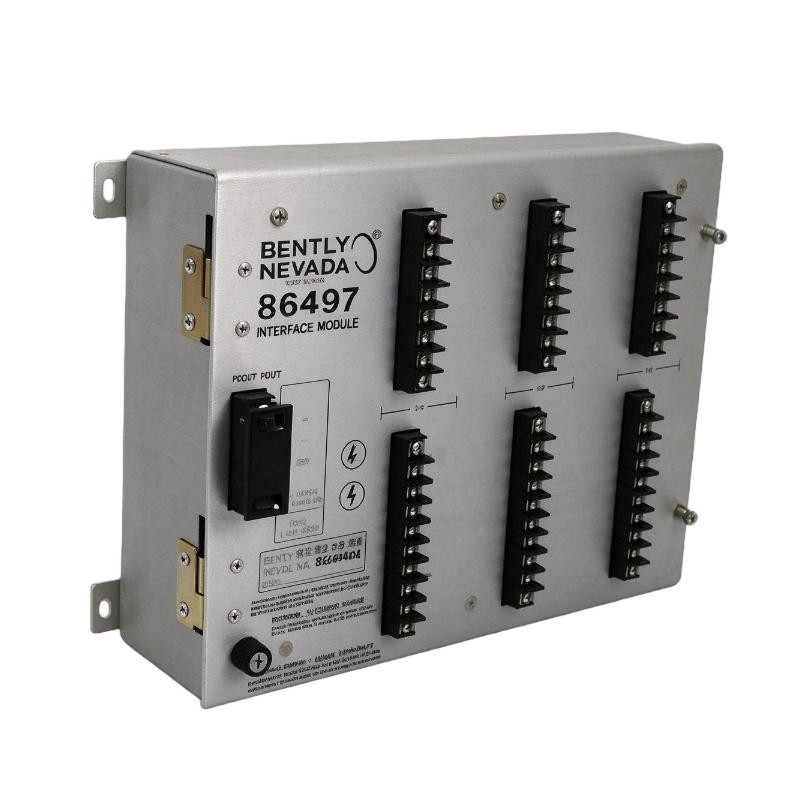

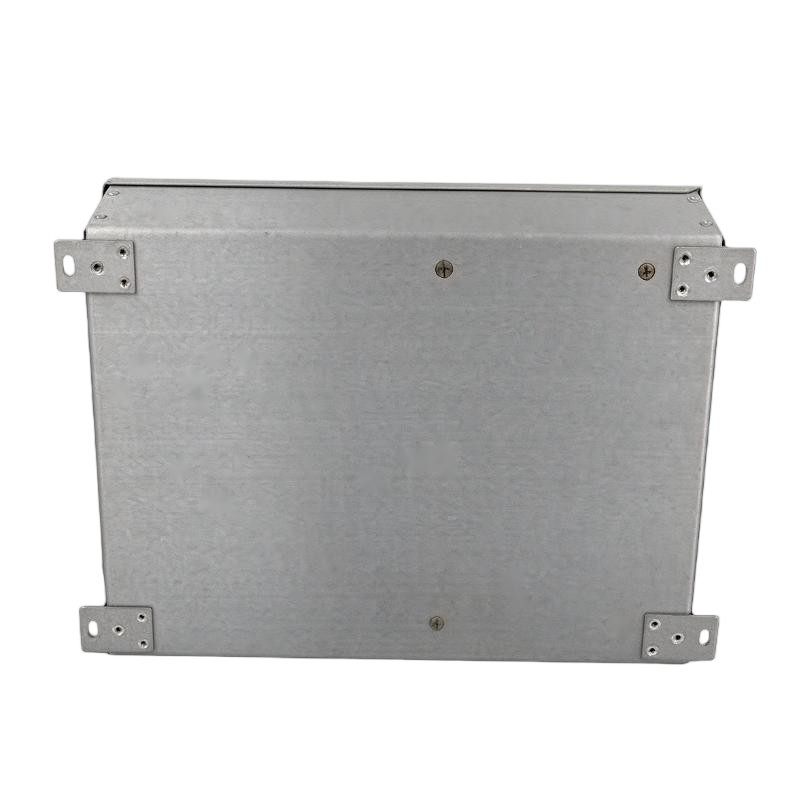

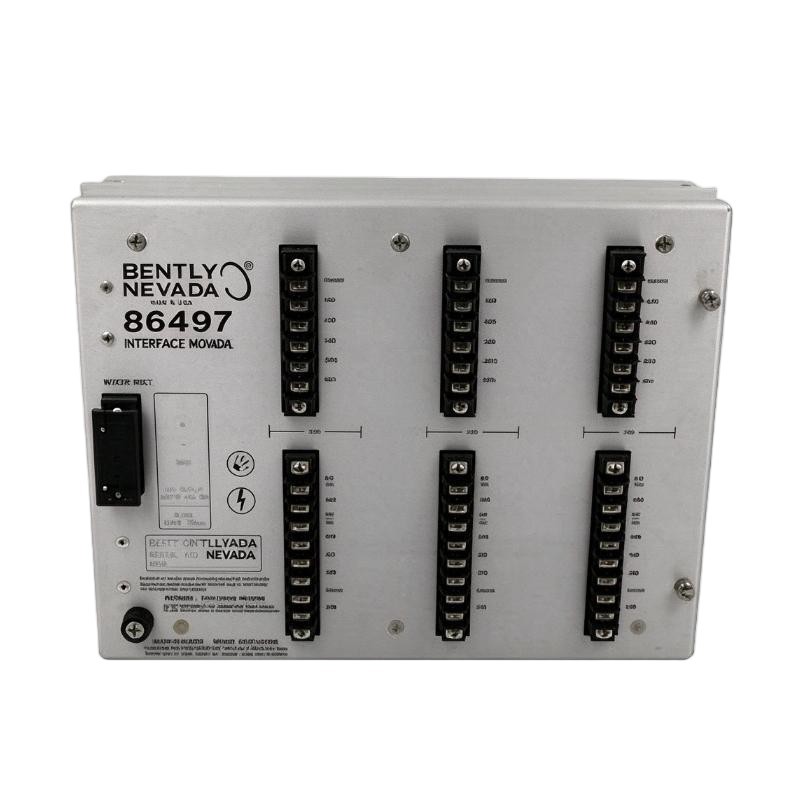

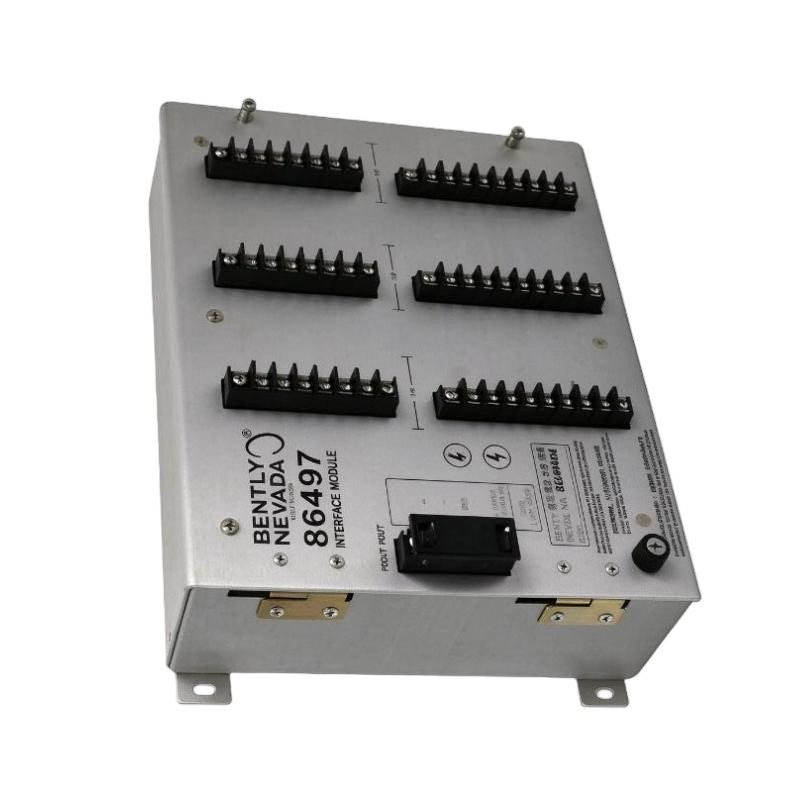

The Bently Nevada 86497-01-02-02-00 Interface Module is an RR interface module used in aeroderivative gas turbine vibration monitoring systems. It supports the connection of compatible acceleration and velocity measurement signals to the associated monitoring hardware, allowing machinery vibration data to be processed within a turbine protection and condition monitoring architecture.

In gas turbine applications, vibration measurements help engineers evaluate rotor behavior, identify changes in machine condition, and investigate abnormal operating patterns. The 86497 interface module is associated with the Bently Nevada 3500/44M Aeroderivative Gas Turbine Vibration Monitor and is also documented for use with the PAA input module in the 3701/44 ADAPT monitoring system. Its role depends on the installed monitoring platform and the specific signal interface configuration.

The module is relevant to maintenance teams supporting aeroderivative turbines where acceleration or velocity measurements form part of the machine monitoring strategy. Rather than treating it as a general-purpose PLC input card, engineers should identify the transducer type, signal requirements, host monitor, and wiring arrangement before selecting a replacement.

The complete part number, including 01-02-02-00, must be checked against the existing installation. Interface modules can have similar external appearances while serving different measurement functions, so matching only the base number or general product description is insufficient for confirming compatibility.

Technical Specifications

Product Features

• Acceleration and velocity signal interfacing: Supports compatible vibration measurement applications within aeroderivative turbine monitoring systems.
• 3500/44M integration: Works within the documented signal interface arrangement for the Aeroderivative Gas Turbine Vibration Monitor.
• 3701/44 ADAPT compatibility: Also associated with the PAA input module in the specified ADAPT monitoring architecture.
• Defined interface configuration: The complete model number helps identify the intended module variant during maintenance and replacement.
• Multiple-point organization: The listed six-group, eight-point arrangement supports structured signal connections within the applicable assembly.
• Fused electrical arrangement: The listed 2.5 A, 250 V fuse rating is relevant when checking the applicable electrical configuration.
• Turbine monitoring application: Supports the signal path used to evaluate vibration conditions in aeroderivative gas turbines.
• Existing-system maintenance: Can be evaluated as a replacement component when the original interface configuration and associated hardware are verified.

Working Principle

The 86497-01-02-02-00 functions as an interface component in a machinery vibration monitoring arrangement. Its purpose is to support the connection and handling of compatible acceleration or velocity signals within the designated monitoring architecture.

A simplified signal path is:

Vibration Transducer → RR Interface Module → Compatible Monitoring Input → Vibration Monitoring System

During turbine operation, vibration transducers detect mechanical movement and generate electrical signals corresponding to the measured vibration. These signals must be presented to the monitoring equipment through an appropriate interface. The 86497 module belongs to this signal-interface layer, working with compatible monitoring hardware rather than independently determining the overall condition of the turbine.

For example, when vibration measurements are used to monitor an aeroderivative gas turbine, the monitoring system evaluates incoming signals against configured measurement ranges and alarm thresholds. Changes in vibration amplitude or other monitored parameters can prompt further investigation by maintenance personnel. The actual measurements and protection decisions depend on the installed transducers, monitoring modules, channel configuration, and system settings.

The 86497 is associated with the 3500/44M Aeroderivative GT Vibration Monitor and the PAA input module of the 3701/44 ADAPT system. These are specific application relationships; the module should not be assumed to work with every 3500 rack or every vibration sensor simply because the equipment belongs to the same product family.

During replacement or troubleshooting, engineers should confirm the complete module designation, host platform, signal type, power arrangement, fuse specification, connector assignments, and wiring documentation. These checks help distinguish an interface-module fault from a problem originating in the transducer, field wiring, or monitoring input.

Role in an Aeroderivative Gas Turbine Monitoring Architecture

The 86497-01-02-02-00 occupies the interface stage between compatible vibration measurement signals and the associated monitoring hardware. Its correct application depends on the intended host system and signal configuration.

Gas Turbine → Vibration Transducer → 86497 Interface Module → Compatible Monitoring Hardware → Alarm and Diagnostic Functions

The interface module’s suitability must be established at the system level. Correct transducer selection, wiring, channel configuration, and host-monitor compatibility remain essential to obtaining meaningful vibration measurements.

Industrial Applications

This module is intended for its specified monitoring applications rather than unrestricted use as a generic analog input device. Signal type and host-system compatibility should be confirmed before installation in a different monitoring arrangement.

Installation and Maintenance

1. Verify the complete part number: Confirm 86497-01-02-02-00 and compare the module designation with the existing equipment documentation.
2. Identify the host monitoring platform: Determine whether the module belongs to a 3500/44M or 3701/44 ADAPT installation.
3. Confirm the signal type: Establish whether the connected measurement channel uses an acceleration or velocity signal and verify that the interface is appropriate.
4. Isolate electrical power: Follow the approved site procedure before removing, installing, or reconnecting the module.
5. Document the existing wiring: Record connector assignments and cable routing before disconnecting any connections.
6. Check the supply arrangement: Verify the applicable 20–34 V DC input specification against the installed configuration.
7. Inspect the fuse arrangement: Check the specified 2.5 A, 250 V fuse rating against the equipment documentation and inspect for damage.
8. Examine connectors and terminals: Look for loose connections, contamination, corrosion, or mechanical damage that could interrupt signal transmission.
9. Check module installation: Ensure that the module is properly seated and mechanically secured in the intended assembly.
10. Verify channel configuration: Confirm the monitoring input, signal assignments, and relevant measurement settings after installation.
11. Perform a functional test: Verify that the connected monitoring channel receives an appropriate signal and displays expected operating behavior.
12. Record the maintenance results: Document the replaced part number, host system, wiring checks, configuration changes, and functional test results.

If the monitoring system continues to report abnormal readings after replacement, inspect the transducer, field cable, connector interfaces, and receiving channel before concluding that the interface module is defective. Any change to the monitoring configuration should follow the approved turbine protection documentation.

Compatible System Components

The 86497-01-02-02-00 is associated with specific Bently Nevada aeroderivative turbine monitoring arrangements. Compatibility should be confirmed using the complete module designation and the applicable system documentation.

Recommended Related Models

Key Advantages

• Supports acceleration and velocity signal interface applications.
• Has documented applications with the 3500/44M monitoring platform.
• Is also associated with the 3701/44 ADAPT PAA input arrangement.
• Supports maintenance of existing aeroderivative turbine monitoring systems.
• Provides a defined module configuration for replacement identification.
• Allows signal-interface faults to be investigated separately from transducer and monitoring-channel faults.

Technical FAQs

What is the primary application of the Bently Nevada 86497-01-02-02-00?

It is an RR interface module associated with acceleration and velocity measurement applications in aeroderivative gas turbine vibration monitoring. Its documented system relationships include the 3500/44M Aeroderivative GT Vibration Monitor and the PAA input module in the 3701/44 ADAPT system.

Is the 86497-01-02-02-00 a Velomitor interface module?

It should be identified by its documented RR interface-module function for acceleration and velocity applications. Velomitor sensors are separate transducer products, so the module should not be classified as a Velomitor interface solely on the basis of its use in vibration monitoring.

Can this module be installed in any Bently Nevada 3500 rack?

Not automatically. The 86497 is specifically associated with the 3500/44M Aeroderivative GT Vibration Monitor, and compatibility with other modules or rack configurations must be verified. Check the complete part number, host hardware, signal requirements, and connector arrangement before replacement.

What should be checked if the monitoring channel shows an abnormal vibration signal after module replacement?

Check the transducer type, field wiring, connector seating, power arrangement, module installation, and host-monitor channel configuration. If these are correct, test the signal path using the approved maintenance procedure to determine whether the issue originates in the sensor, interface module, or monitoring input.
