Product Overview

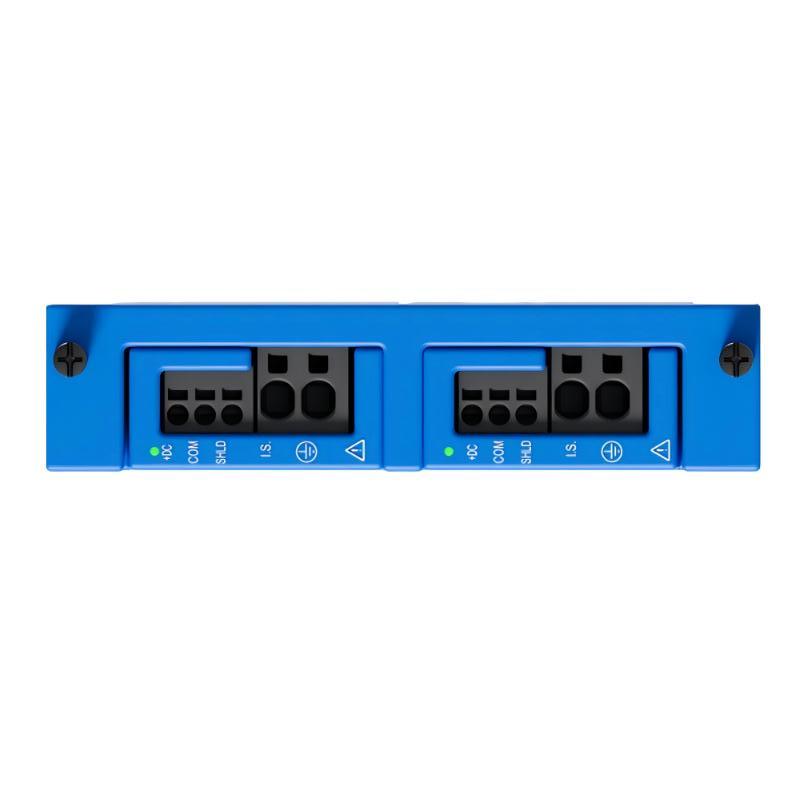

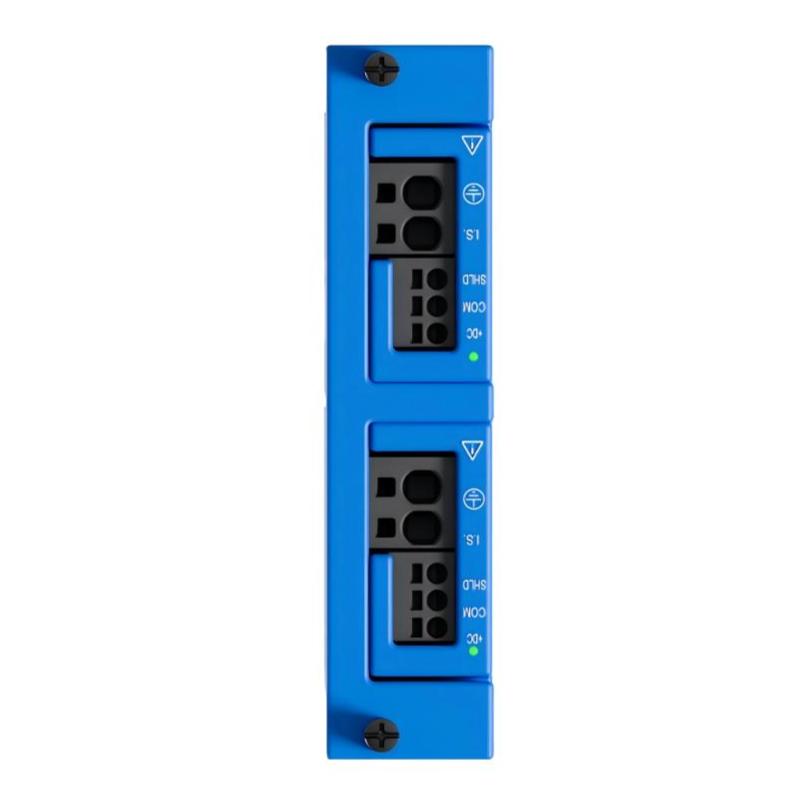

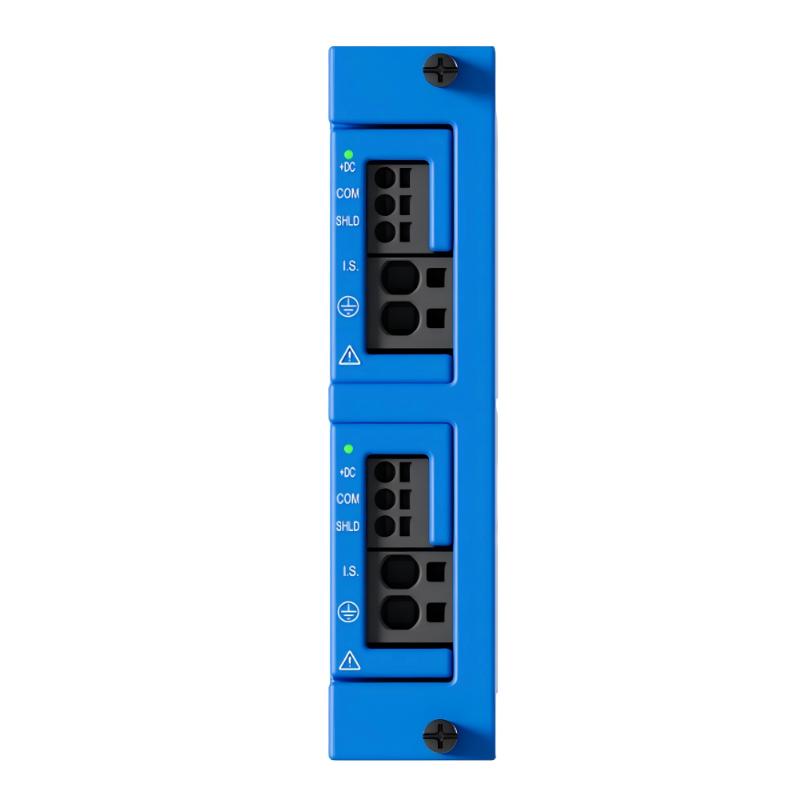

The Bently Nevada 60R/PIM02-02-0 is an Orbit 60 Series Power Input Module used as part of the power distribution architecture for Bently Nevada machinery monitoring systems. It provides the power-interface function required by compatible Orbit 60 Series monitoring hardware and helps establish the electrical supply path between the system power source and the installed monitoring modules.
Within a machinery monitoring cabinet, the power input stage is separate from the measurement and signal-processing functions performed by monitoring modules. This separation allows the monitoring architecture to receive its operating power through a dedicated interface while vibration, position, speed, and other machine-condition signals are handled by their respective system components.
The 60R/PIM02-02-0 is therefore relevant to Orbit 60 installations where power distribution, module availability, and system-level monitoring hardware need to be maintained as part of the same cabinet architecture. During replacement or commissioning, the module designation should be matched with the existing Orbit 60 configuration and power-system documentation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 60R/PIM02-02-0 |
| Product Type | Power Input Module |
| Product Family | Bently Nevada Orbit 60 |
| Series | Orbit 60 Series |
| Manufacturer | Bently Nevada |
| Primary Function | System Power Input |
| System Role | Power Distribution Interface |
| Application | Machinery Monitoring System |
| Power Function | Supplies Operating Power to Compatible System Hardware |
| Installation | Orbit 60 Monitoring Cabinet |
| Architecture | Machinery Condition Monitoring |
| Interface Role | Power-Side System Interface |
| Dimensions | 132.1 × 20.3 × 245.6 mm |
| Weight | 1.2 kg |
Product Features
- Provides a dedicated power input function within the Bently Nevada Orbit 60 Series architecture.
- Interfaces the system power source with compatible Orbit 60 monitoring hardware.
- Forms part of the power distribution layer rather than the measurement signal path.
- Supports the electrical infrastructure required by an installed machinery monitoring system.
- Separates system power management from vibration and machine-condition measurement functions.
- Suitable for Orbit 60 cabinet installations requiring a dedicated power input module.
- Supports maintenance and replacement of installed monitoring-system hardware.
- Helps maintain an organized power architecture within the monitoring cabinet.
- Can be integrated with the broader Orbit 60 monitoring and protection system.
- Suitable for industrial machinery monitoring applications where continuous system operation depends on properly maintained power infrastructure.
Working Principle
The 60R/PIM02-02-0 functions at the power-input stage of the Orbit 60 Series architecture. Rather than measuring machine vibration or processing condition-monitoring signals directly, it provides the electrical interface through which operating power is introduced into the monitoring system.
System power source → 60R/PIM02-02-0 → Orbit 60 power distribution → Monitoring modules → Machinery monitoring system
When the system is energized, the power input module forms part of the path that makes operating power available to the compatible Orbit 60 hardware. The downstream monitoring modules can then perform their respective measurement, processing, communication, or protection functions.
This division between power infrastructure and measurement hardware is important in a machinery monitoring cabinet. A vibration monitoring channel may be functioning correctly from a signal perspective while still becoming unavailable if its associated system power path is interrupted.
For troubleshooting, the power path should therefore be considered before replacing measurement modules unnecessarily. Maintenance personnel can check the incoming supply, the power input module, downstream power distribution, module status, and associated monitoring hardware in sequence.
The 60R/PIM02-02-0 should be treated as a system power-interface component rather than as an independent machinery sensor or vibration-monitoring instrument.
Role in a Bently Nevada Orbit 60 Series Machinery Monitoring Architecture
The 60R/PIM02-02-0 occupies the power-input layer of the Orbit 60 monitoring architecture. It supports the electrical infrastructure required by the monitoring modules while the actual machine-condition measurements are handled by dedicated sensing and monitoring components.
| System Layer | Typical Component | Function |
|---|---|---|
| Machinery | Turbine / Compressor / Pump / Motor | Provides the monitored rotating equipment |
| Sensors | Vibration / Position / Speed Sensors | Detects machine operating conditions |
| Monitoring | Orbit 60 Monitoring Modules | Acquires and processes machinery condition signals |
| Power Input | 60R/PIM02-02-0 | Interfaces system power with the Orbit 60 architecture |
| Communication | Orbit 60 System Interface | Transfers monitoring information within the system |
| Supervisory Layer | Monitoring / Control Platform | Displays, records, or uses machinery condition information |
Industrial Applications
| Application | Power Input Module Role |
|---|---|
| Turbine Monitoring | Supports the power infrastructure for machinery monitoring hardware |
| Compressor Monitoring | Provides the system power interface for installed monitoring equipment |
| Pump Monitoring | Supports continuous operation of the monitoring cabinet |
| Generator Monitoring | Forms part of the power architecture for machine-condition monitoring |
| Industrial Rotating Equipment | Supplies the electrical infrastructure required by compatible monitoring modules |
| Machinery Protection | Supports the monitoring system used to observe critical machine conditions |
| Predictive Maintenance | Maintains the power path for condition-monitoring equipment |
| Plant Maintenance | Provides a replaceable system component for Orbit 60 power architecture service |
Installation and Maintenance
- Confirm that the 60R/PIM02-02-0 matches the installed Orbit 60 Series configuration before replacement.
- Review the applicable system power drawings and cabinet documentation before disconnecting the existing module.
- Isolate the relevant power source according to the approved plant electrical safety procedure.
- Verify that the module position and associated power connections are correctly identified.
- Inspect the module and mating interfaces for contamination, corrosion, looseness, or physical damage.
- Check the incoming power wiring and associated connections before installing the replacement.
- Install the module according to the applicable Orbit 60 cabinet and hardware procedure.
- Ensure that all power connections are correctly seated and mechanically secured.
- Verify the downstream power distribution and connected monitoring modules before restoring the system.
- Re-energize the system under controlled conditions and check the status of the associated Orbit 60 hardware.
- If monitoring modules fail to initialize correctly, trace the power path from the incoming supply through the power input and downstream distribution stages.
- Record the installed module designation and any maintenance findings for future Orbit 60 system service.
Related Components
| Component | Function in the System |
|---|---|
| Bently Nevada Orbit 60 Monitoring Modules | Acquire or process machinery condition-monitoring signals |
| Orbit 60 System Interface Hardware | Supports communication and system-level integration |
| Vibration Sensors | Measure machinery vibration conditions |
| Proximity Probes | Monitor shaft position or relative shaft movement |
| Speed / Tachometer Sensors | Provide rotational-speed information |
| Machinery Protection Hardware | Uses monitoring information for equipment protection functions |
| System Power Distribution | Distributes operating power to compatible monitoring hardware |
| Monitoring Software / Supervisory System | Displays and manages acquired machinery condition information |
Recommended Related Models
| Model | Product Type | Typical Relationship |
|---|---|---|
| Bently Nevada 60R Series Power Input Modules | Orbit 60 Series Power Input Module | Related power-interface family |
| Bently Nevada 60R Series Monitoring Modules | Orbit 60 Series Monitoring Module | Associated monitoring hardware |
| Bently Nevada Orbit 60 Series System Components | Machinery Monitoring Hardware | Related system architecture |
| Bently Nevada 3500 Series Power Supply Modules | Machinery Monitoring Power Hardware | Related machinery-monitoring power architecture |
| Bently Nevada 60R Series Interface Components | Orbit 60 Series Interface Hardware | Related system interconnection hardware |
Key Advantages
- Provides a dedicated power-input interface for the Orbit 60 Series architecture.
- Separates system power distribution from machinery measurement functions.
- Supports the operating power path for compatible monitoring hardware.
- Integrates into an organized machinery-monitoring cabinet architecture.
- Simplifies maintenance of the power-input portion of an Orbit 60 installation.
- Suitable for replacement and service work on established Bently Nevada monitoring systems.
Technical FAQs
What is the primary function of the Bently Nevada 60R/PIM02-02-0?
The 60R/PIM02-02-0 functions as a power input module within the Orbit 60 Series architecture. Its role is associated with bringing operating power into the compatible monitoring-system power structure rather than measuring machinery conditions directly.
Does the 60R/PIM02-02-0 measure vibration or shaft position?
No. It is a power-interface component. Vibration, shaft position, speed, and other machinery parameters are handled by the appropriate sensors and monitoring modules within the Orbit 60 system.
What should be checked before replacing the power input module?
The complete module designation, Orbit 60 system configuration, incoming power connections, cabinet position, downstream power distribution, and applicable electrical documentation should be verified before replacement.
What symptoms can indicate a problem in the power-input section?
If multiple connected monitoring modules fail to initialize, lose power, or show abnormal system status at the same time, the power path should be included in the troubleshooting process. Incoming supply, power connections, the power input module, and downstream distribution should be checked systematically before replacing unrelated measurement hardware.
