Product Overview

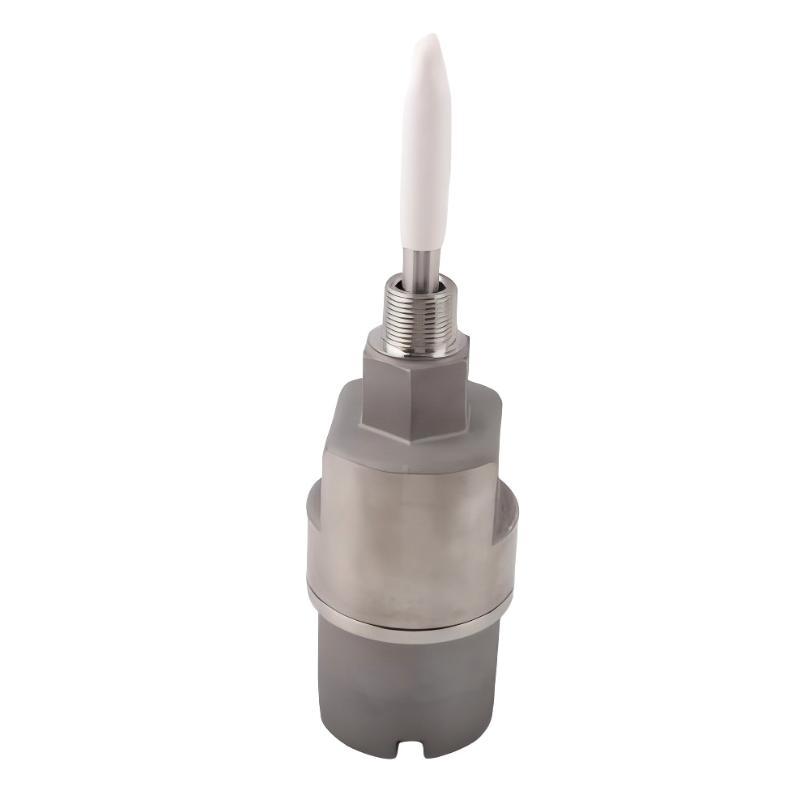

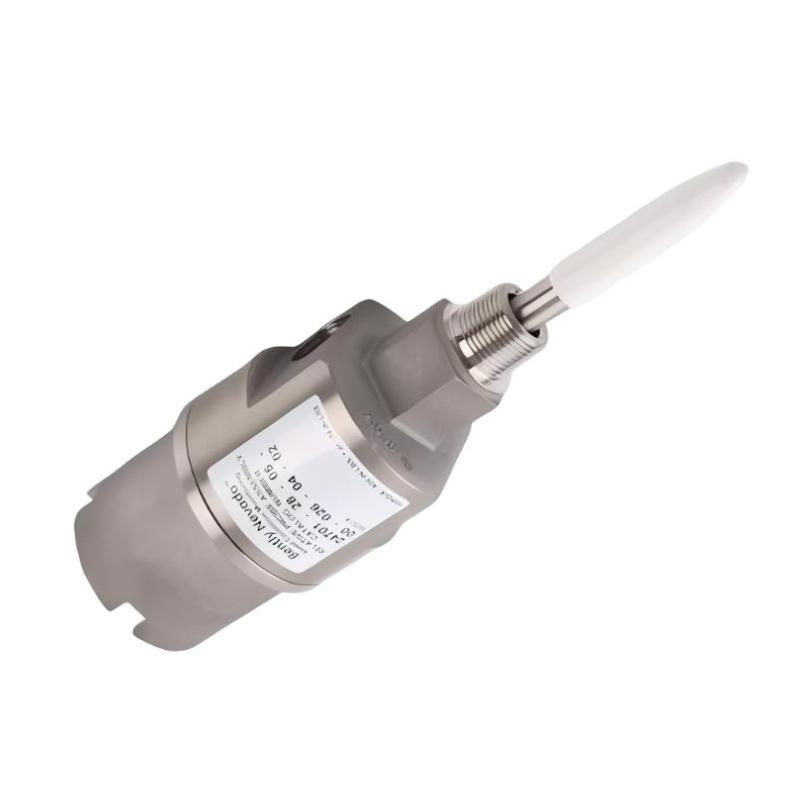

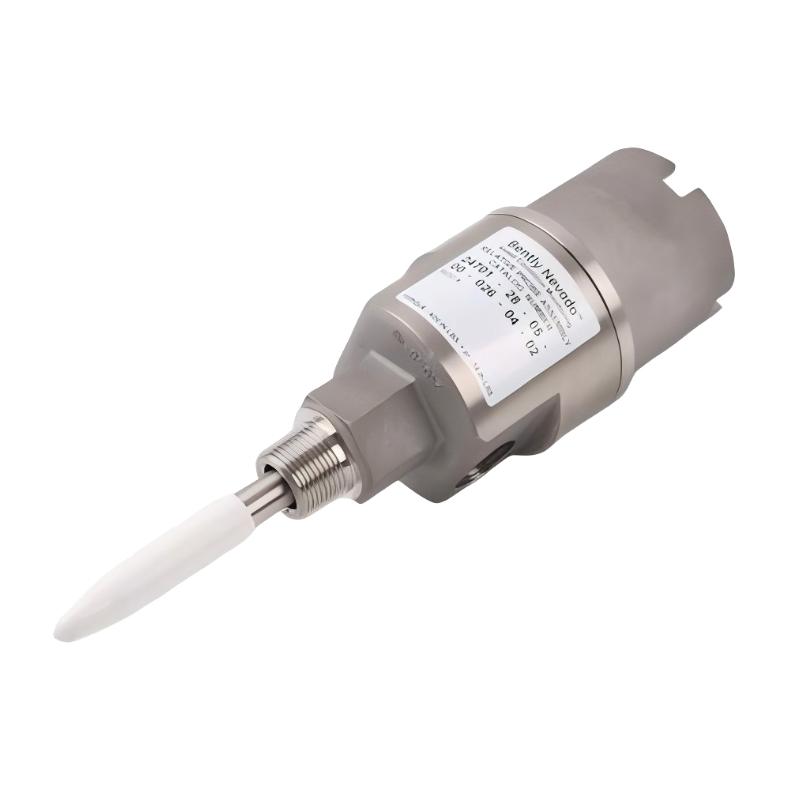

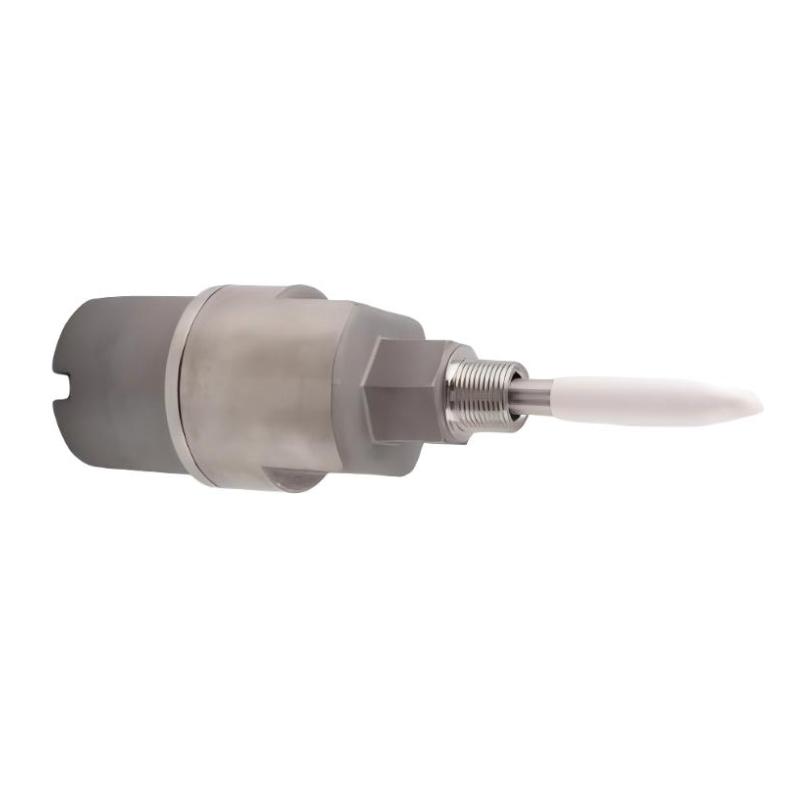

The Bently Nevada 24701-34-05-30-028-04-02 is a Proximity Probe Housing Assembly used to mechanically support and position a proximity probe within a rotating machinery monitoring installation. It belongs to the Bently Nevada 24701 family of housing hardware used with proximity measurement systems.

The housing serves as the mechanical interface between the machine structure and the associated proximity probe. It keeps the probe securely positioned toward the monitored shaft or other conductive target, while the probe and connected electronic components perform the actual sensing and signal-conditioning functions.

In a complete installation, the housing works together with a compatible proximity probe, extension cable, Proximitor Sensor, and machinery monitoring system. This arrangement separates the mechanical mounting function from the electrical measurement path and allows the probe to maintain a defined relationship with the monitored machine target.

Technical Specifications

Product Features

• Provides a dedicated mechanical housing arrangement for proximity probe installation.
• Supports fixed positioning of proximity sensing equipment on rotating machinery.
• Helps maintain the intended probe orientation relative to the monitored machine target.
• Forms part of the mechanical installation of a Bently Nevada proximity measurement channel.
• Suitable for machinery monitoring systems using non-contact proximity sensing.
• Supports maintenance and refurbishment of established Bently Nevada monitoring installations.
• Separates the mechanical probe mounting function from the electrical sensing function.
• Works with associated proximity probes, extension cables, Proximitor Sensors, and monitoring hardware.
• Suitable for machine-side installations where controlled probe positioning is required.

Working Principle

The 24701-34-05-30-028-04-02 is a passive mechanical component within the proximity measurement installation. It does not independently measure, condition, or analyze the proximity signal.

The associated proximity probe is installed through the housing and positioned toward the conductive target on the monitored machine. During operation, the probe detects changes in the relative position between the sensing element and target without physical contact. The resulting signal is transferred through the associated extension cable to the Proximitor Sensor.

Machine Structure → Probe Housing Assembly → Proximity Probe → Extension Cable → Proximitor Sensor → Machinery Monitoring System

The housing maintains the physical position of the probe while the machine operates. If the housing becomes loose, displaced, or mechanically damaged, the probe-to-target relationship can change and may affect the resulting measurement.

For this reason, the housing assembly should be treated as part of the complete proximity measurement channel during installation, inspection, and troubleshooting.

Role in a Bently Nevada Proximity Monitoring Architecture

The 24701-34-05-30-028-04-02 occupies the mechanical mounting layer of a Bently Nevada proximity monitoring architecture. It supports the probe at the machine interface while the sensing and electronic components handle measurement and monitoring functions.

Industrial Applications

Installation and Maintenance

1. Confirm that the housing assembly matches the intended proximity probe and existing machine mounting arrangement before installation.
2. Inspect the housing for cracks, deformation, corrosion, contamination, or other visible mechanical damage.
3. Verify the installation location and orientation against the applicable machinery documentation.
4. Ensure the mounting surface is clean and suitable for secure mechanical installation.
5. Install the housing without introducing excessive mechanical stress or unintended displacement.
6. Confirm that the associated proximity probe is correctly positioned and securely retained within the housing.
7. Check the probe orientation relative to the monitored shaft or conductive target before commissioning.
8. Route the associated extension cable so that it is protected from abrasion, excessive pulling, and mechanical interference.
9. Verify that mounting hardware and mechanical interfaces are properly secured.
10. Inspect the housing periodically for looseness, corrosion, deformation, or other changes that could affect probe positioning.
11. When troubleshooting abnormal proximity readings, inspect the housing and probe mounting arrangement together with the extension cable and Proximitor Sensor.
12. After installation, replacement, or adjustment, verify the complete proximity measurement channel under the applicable machinery operating conditions.

Related Components

Recommended Related Models

Key Advantages

• Provides dedicated mechanical support for proximity probe installations.
• Helps maintain the intended probe position relative to the monitored machine target.
• Forms part of the Bently Nevada proximity monitoring architecture.
• Separates mechanical probe mounting from electrical sensing and signal conditioning.
• Suitable for maintenance, replacement, and refurbishment of existing machinery monitoring installations.
• Supports stable installation of proximity sensing equipment on rotating machinery.

Technical FAQs

What is the purpose of the Bently Nevada 24701-34-05-30-028-04-02?

The 24701-34-05-30-028-04-02 is a Proximity Probe Housing Assembly used to mechanically support and position a proximity probe within a rotating machinery monitoring installation. It provides the physical mounting interface rather than performing the proximity measurement.

Does the housing assembly perform proximity sensing?

No. The housing is a mechanical component. The associated proximity probe performs the non-contact sensing, while the Proximitor Sensor conditions the resulting signal for use by the monitoring system.

Why is the mechanical position of the housing important?

The housing determines the physical position of the proximity probe relative to the monitored target. Mechanical looseness, displacement, or damage can change this relationship and may affect the resulting measurement signal.

What should be checked when replacing this housing assembly?

The existing proximity probe, mounting arrangement, probe orientation, mechanical interfaces, cable routing, and surrounding machine structure should be checked. After installation, the complete proximity measurement channel should be verified before returning the machinery monitoring function to normal service.
