Product Overview

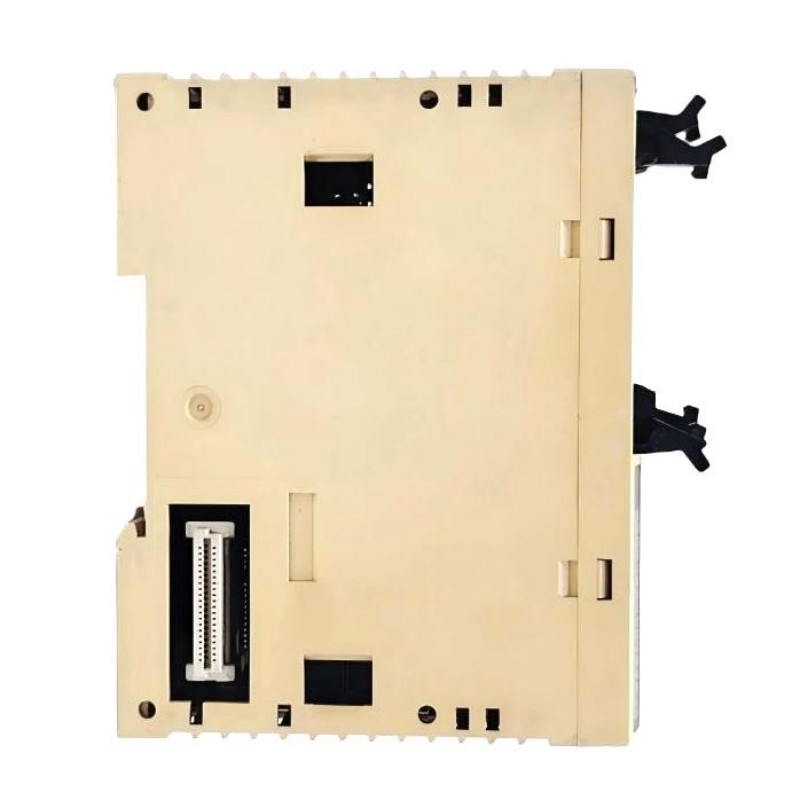

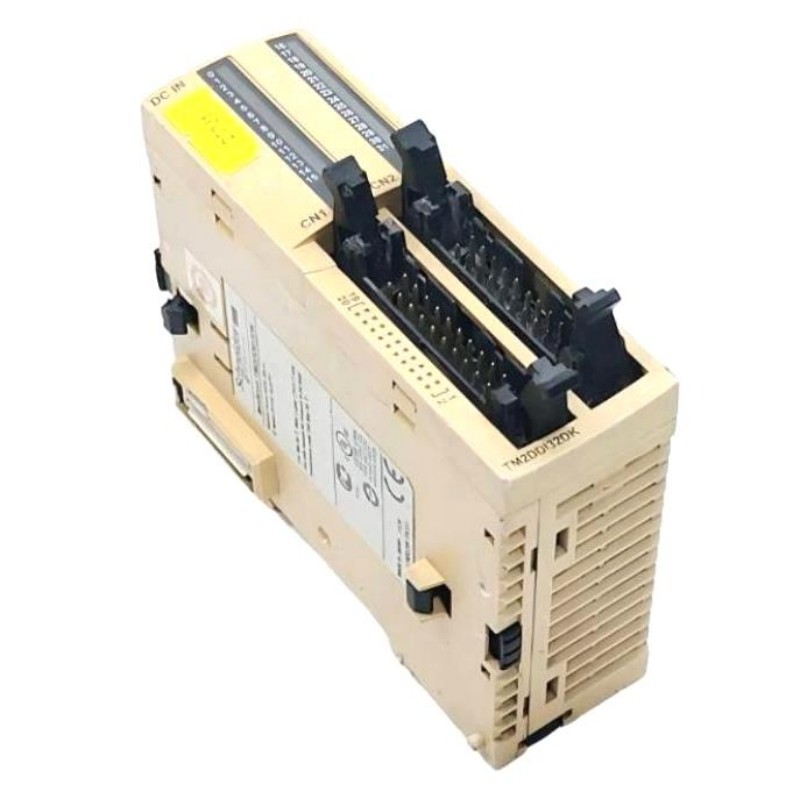

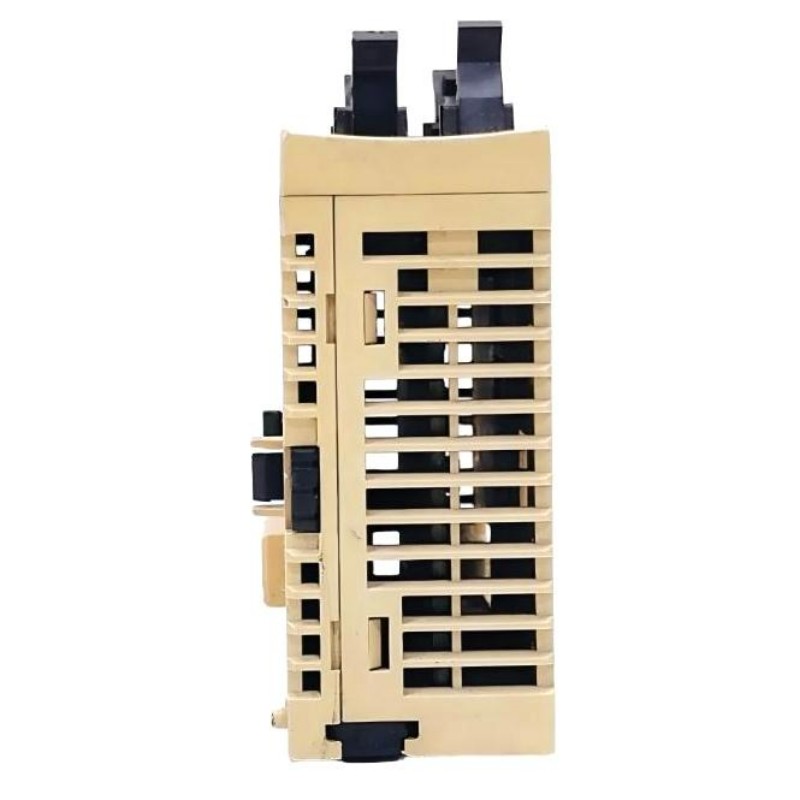

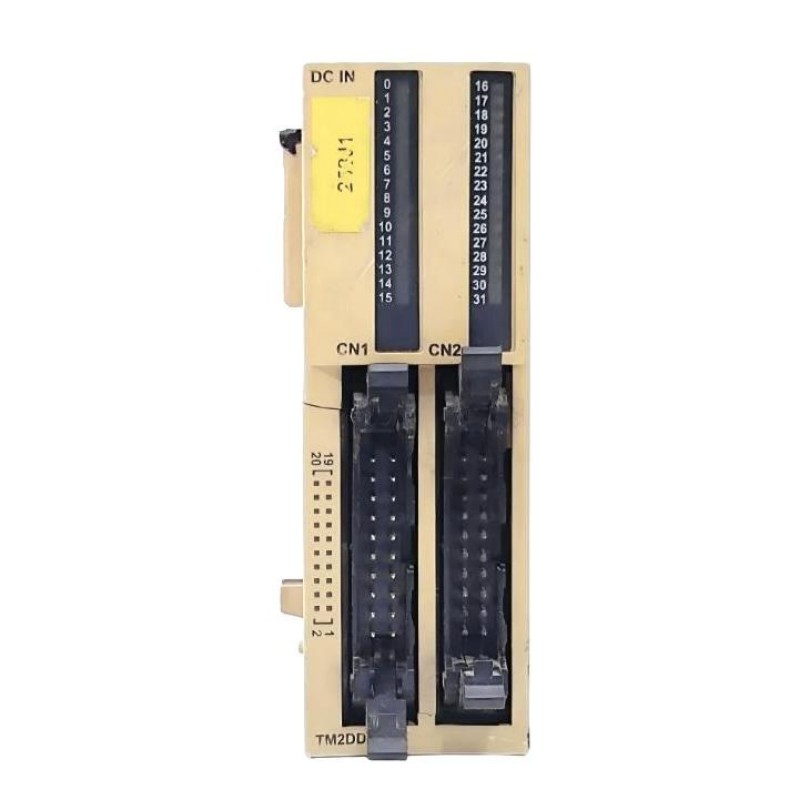

The Schneider TM2DDI32DK is a Modicon M238 discrete input module used to bring multiple binary field signals into the controller’s I/O architecture. As part of the TM2 expansion family, it is intended for machine and process applications where a larger number of discrete devices need to be monitored within the same control system.

The module provides a structured interface between field-level switching devices and the M238 controller. Typical sources include position switches, proximity devices, push buttons, auxiliary contacts, equipment status signals, alarms, and interlock circuits.

In a machine sequence, the incoming discrete states can be evaluated by the controller to determine whether an operation is permitted, whether a mechanism has reached a required position, or whether equipment is operating as expected. This makes the module useful for status acquisition as well as sequence and safety-related interlocking functions where the overall control design requires discrete feedback.

Technical Specifications

Product Features

• Modicon M238 TM2 discrete input module for monitoring binary field conditions.
• Provides a dedicated interface between external discrete devices and the M238 controller.
• Suitable for collecting machine status, position, alarm, and interlock signals.
• Supports applications requiring multiple discrete field connections within one control architecture.
• Organizes field input signals through the M238 expansion I/O system.
• Suitable for machine automation, equipment control, and industrial monitoring.
• Can be integrated into control panels using the Modicon M238 platform.
• Useful for expanding or replacing discrete input hardware in established M238 systems.

Working Principle

The TM2DDI32DK receives discrete electrical states from external field devices and transfers the corresponding input information into the Modicon M238 control system. Each connected device represents a defined field condition that can be evaluated by the controller.

A position switch, for example, can indicate that a machine component has reached its required location. An auxiliary contact can report equipment status, while an alarm contact can indicate an abnormal operating condition. The module receives these state changes through the field wiring and makes them available to the controller’s application logic.

Field Devices → Field Wiring → TM2DDI32DK → Modicon M238 Controller → Control Logic / HMI

The controller can use the input states for sequencing, permissives, interlocks, alarm handling, equipment status indication, and diagnostic routines. The actual control response depends on the application program configured in the M238 controller.

Role in a Modicon M238 Control Architecture

The TM2DDI32DK occupies the discrete input layer of the Modicon M238 control architecture. It forms the interface through which external binary conditions enter the controller system for evaluation by the application program.

Industrial Applications

Installation and Maintenance

1. Confirm that the TM2DDI32DK is compatible with the existing Modicon M238 controller and TM2 expansion arrangement.
2. Review the electrical drawings and I/O assignment documentation before installation.
3. Isolate the relevant controller and field circuits according to the approved maintenance procedure.
4. Identify each field device and confirm its assigned input connection before wiring.
5. Inspect the module, terminals, and connection points for visible damage or contamination.
6. Install the module in the designated TM2 expansion position according to the system configuration.
7. Verify that field conductors are connected to the correct input terminals and securely terminated.
8. Keep discrete input wiring organized and route it appropriately in relation to other cabinet circuits.
9. Compare the physical input assignments with the current controller program and electrical documentation.
10. Restore power and verify that the expected input states are received by the controller.
11. Operate representative field devices and confirm that the corresponding controller input indications respond correctly.
12. Record the module position, input assignments, and connected field devices for future troubleshooting and maintenance.

Related Components

Recommended Related Models

Key Advantages

• Provides discrete input interfacing for Modicon M238 control systems.
• Brings binary field conditions into the controller’s application logic.
• Supports machine status, position, alarm, and interlock monitoring.
• Organizes multiple field input connections within the TM2 expansion architecture.
• Suitable for machine automation and industrial control panels.
• Supports expansion, replacement, and maintenance of M238 discrete I/O systems.

Technical FAQs

What is the Schneider TM2DDI32DK used for?

The TM2DDI32DK is used to receive discrete field signals and make their states available to a Modicon M238 controller. It is suitable for monitoring machine conditions, equipment status, alarms, switches, and interlock signals.

What field devices can be connected to the TM2DDI32DK?

Typical sources include limit switches, proximity devices, push buttons, auxiliary contacts, alarm contacts, and other devices that provide binary electrical states. The specific field circuit must be checked against the applicable electrical specifications before installation.

How does the TM2DDI32DK contribute to machine sequencing?

The module transfers external machine states into the controller. The M238 program can use those states as conditions for sequence steps, permissives, interlocks, status checks, and alarm logic.

What should be checked when a discrete input remains unchanged?

Check the field device, wiring, terminal connection, input assignment, and controller configuration in sequence. The physical state of the device should be compared with the input status reported by the controller to determine where the signal path is interrupted.
