Product Overview

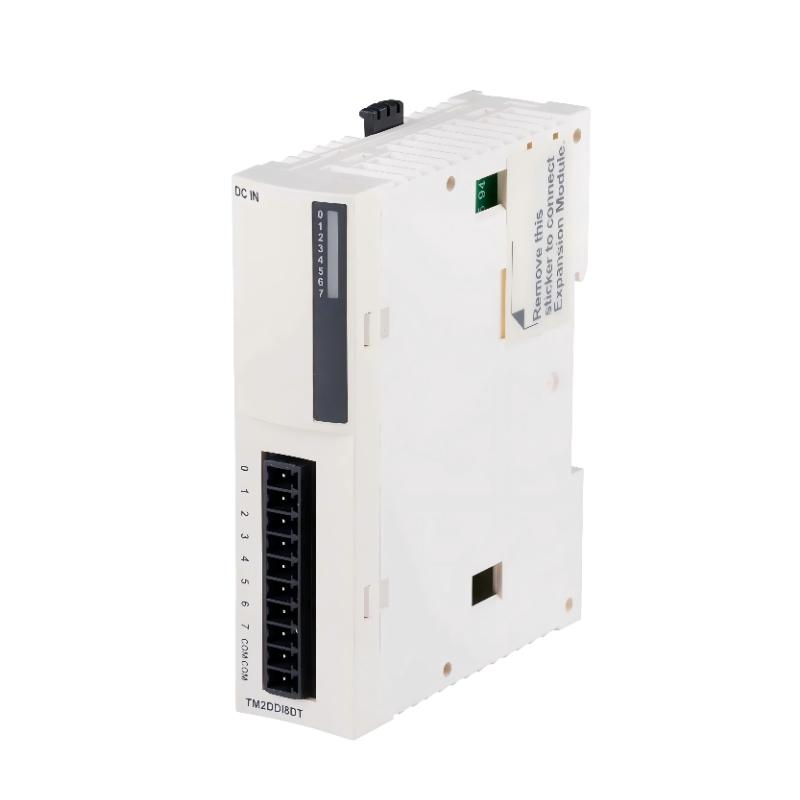

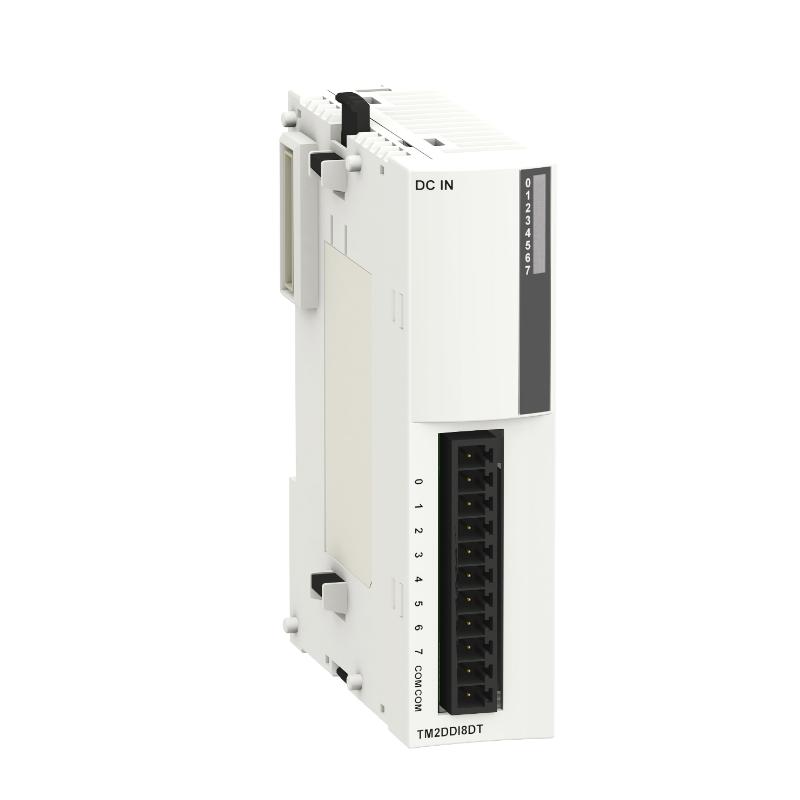

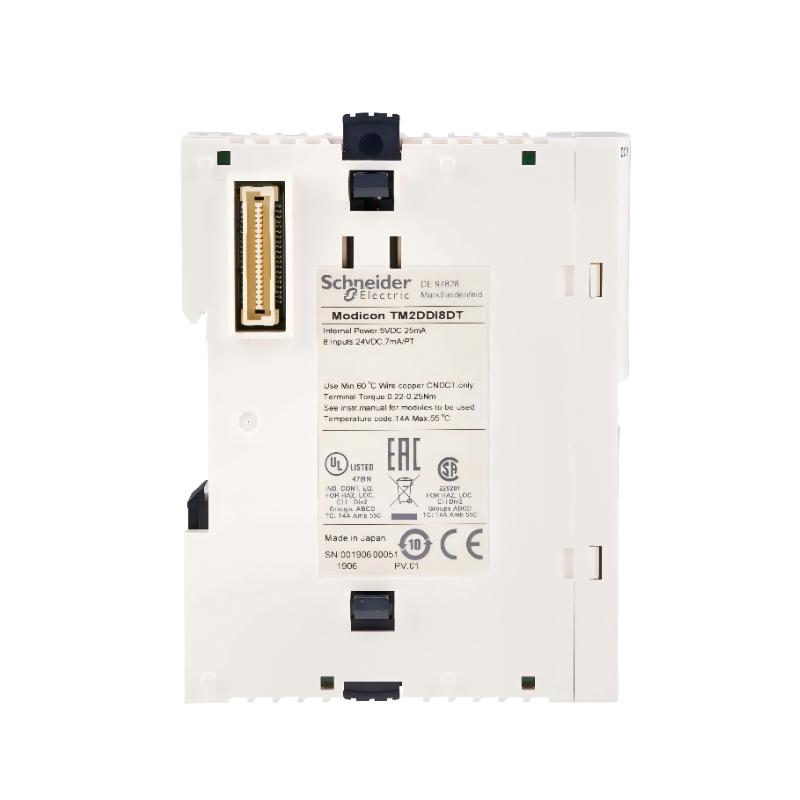

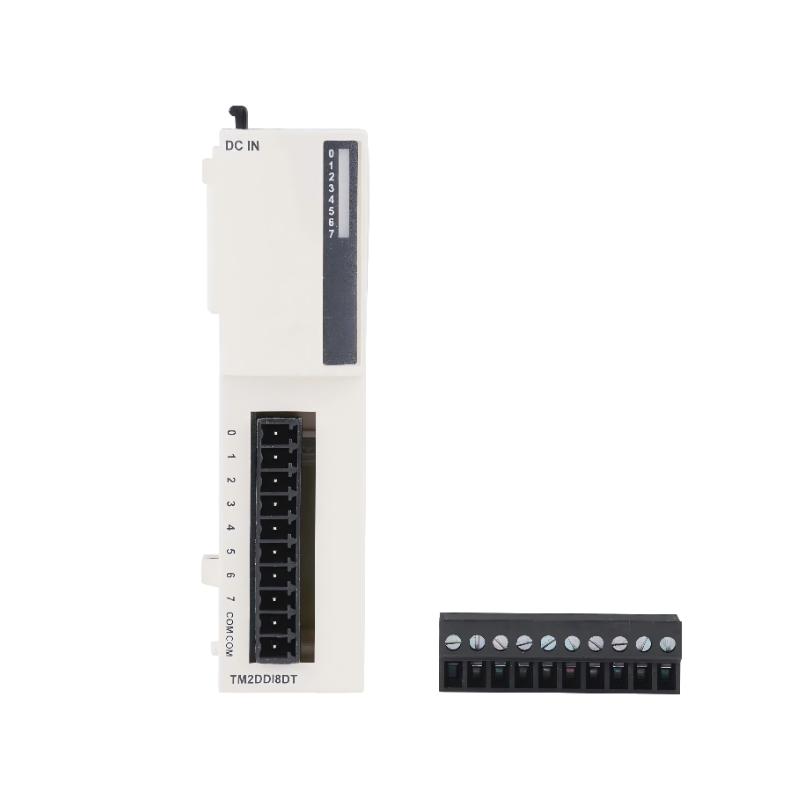

The Schneider TM2DDI8DT is a discrete input module for the Modicon M238 automation platform. It is used to bring binary field signals into the controller, allowing the control program to monitor equipment status, switching conditions, alarms, and other on/off signals from the machine or process.

In a typical M238 installation, the module sits between field devices and the controller. Signals from switches, sensors, auxiliary contacts, pushbuttons, or equipment status circuits are wired to the input terminals. The TM2DDI8DT detects the discrete state of these signals and makes the corresponding input information available to the M238 controller for logic processing.

The module is particularly useful when an application needs additional discrete input capacity without changing the basic controller architecture. It can be integrated into machine control cabinets where field devices are distributed across motors, actuators, safety-related status circuits, interlocks, and operating controls.

Technical Specifications

Product Features

• Provides a discrete input interface for Modicon M238 control systems.
• Collects binary signals from field devices and machine components.
• Suitable for monitoring operating states, commands, alarms, and interlock conditions.
• Integrates with the M238 controller as part of the controller’s distributed I/O architecture.
• Helps separate field wiring from the controller’s internal processing functions.
• Suitable for machine automation and general industrial control applications.
• Can be used when additional discrete input points are required within an existing M238 installation.
• Supports straightforward signal acquisition from conventional on/off field devices.
• Useful for replacement and maintenance of established Modicon M238 control panels.

Working Principle

The TM2DDI8DT receives discrete electrical signals from field devices and presents their states to the Modicon M238 controller. A field device changes the electrical condition of its associated input circuit, and the module interprets that condition as a discrete input state.

Typical input sources include selector switches, pushbuttons, proximity or limit switches, auxiliary contacts, machine alarms, and equipment status signals. The module does not make the overall control decision itself; instead, it supplies the controller with the input information required by the application logic.

Field Device → Field Wiring → TM2DDI8DT → Modicon M238 Controller → Control Logic / HMI

For example, a motor auxiliary contact can be wired to an input channel to indicate whether the motor has reached the expected operating state. The controller can then use that status in sequencing, interlocking, alarm handling, or operator monitoring.

The same architecture applies to machine-position signals. A limit switch or other binary sensor changes state when a mechanism reaches a defined position, allowing the M238 controller to respond according to the programmed machine sequence.

Role in a Modicon M238 Discrete Control Architecture

The TM2DDI8DT serves as the field-side input interface within a Modicon M238 control system. It handles the transition from physical binary signals to controller-readable input states while leaving the control logic to the M238 controller.

Industrial Applications

Installation and Maintenance

1. Confirm that the TM2DDI8DT is compatible with the existing Modicon M238 controller and I/O configuration before installation.
2. Review the electrical drawings and identify every field signal assigned to the input module.
3. Isolate the relevant control circuit and follow the plant’s electrical safety procedure before wiring or replacing the module.
4. Verify terminal assignments before disconnecting an existing module.
5. Inspect field wiring for loose conductors, damaged insulation, corrosion, or incorrect termination.
6. Mount the module securely in the designated control cabinet position.
7. Route field wiring neatly and keep signal wiring organized according to the cabinet design.
8. Check each input connection against the application wiring diagram before energizing the system.
9. Restore power and verify that the controller recognizes the expected input states.
10. Operate representative field devices and confirm that their status changes are correctly reflected in the control application.
11. Investigate unexpected input states by checking the field device, wiring, terminal connection, and input circuit systematically.
12. Record the installed module and I/O assignments after replacement or cabinet modification for future maintenance.

Related Components

Recommended Related Models

Key Advantages

• Adds discrete field-signal acquisition to a Modicon M238 control system.
• Provides a dedicated interface between binary field devices and controller logic.
• Suitable for machine status, position, alarm, and interlock monitoring.
• Fits established M238 I/O expansion architectures.
• Useful for both new control-panel construction and replacement work.
• Simplifies the organization of discrete field wiring within an automation cabinet.

Technical FAQs

What is the Schneider TM2DDI8DT used for?

The TM2DDI8DT is used to acquire discrete electrical signals from field devices and make their states available to a Modicon M238 controller. Typical signals include switches, contacts, machine-status devices, alarms, and position sensors.

What type of devices can be connected to a discrete input module?

Devices that provide an appropriate binary electrical state can be used as discrete input sources. Common examples include pushbuttons, selector switches, limit switches, proximity sensors, auxiliary contacts, and equipment-status circuits. The actual electrical compatibility should be confirmed from the system documentation before connection.

How should an unexpected input state be diagnosed?

Start at the field device and work toward the controller. Check the device’s physical state, field wiring, terminal connections, module input status, and controller diagnostics. Comparing the observed signal with the electrical drawings can help determine whether the problem is in the field device, wiring, input interface, or application logic.

Can the TM2DDI8DT be used with other Modicon M238 I/O modules?

The TM2DDI8DT belongs to the Modicon M238 I/O family and can be used as part of an M238-based I/O configuration. When combining it with other modules, the controller configuration, system architecture, electrical requirements, and application wiring should be checked to ensure that the complete installation is compatible.
