Product Overview

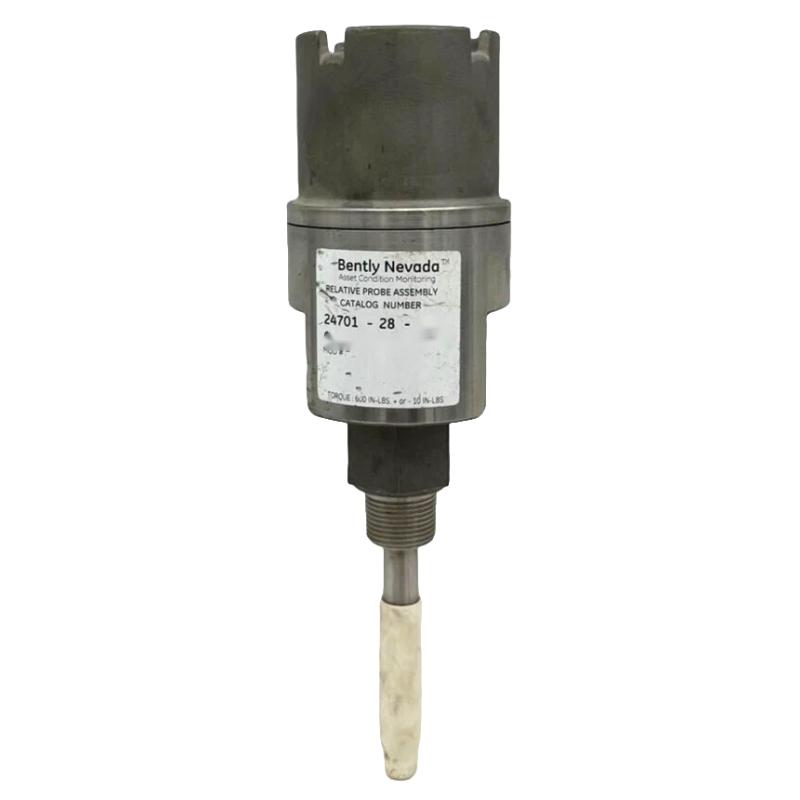

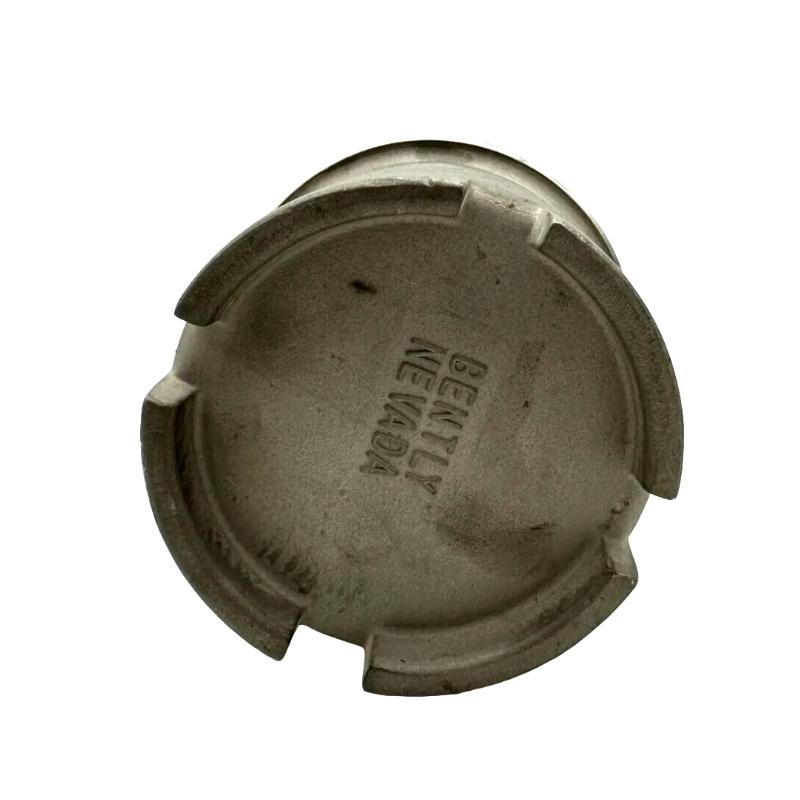

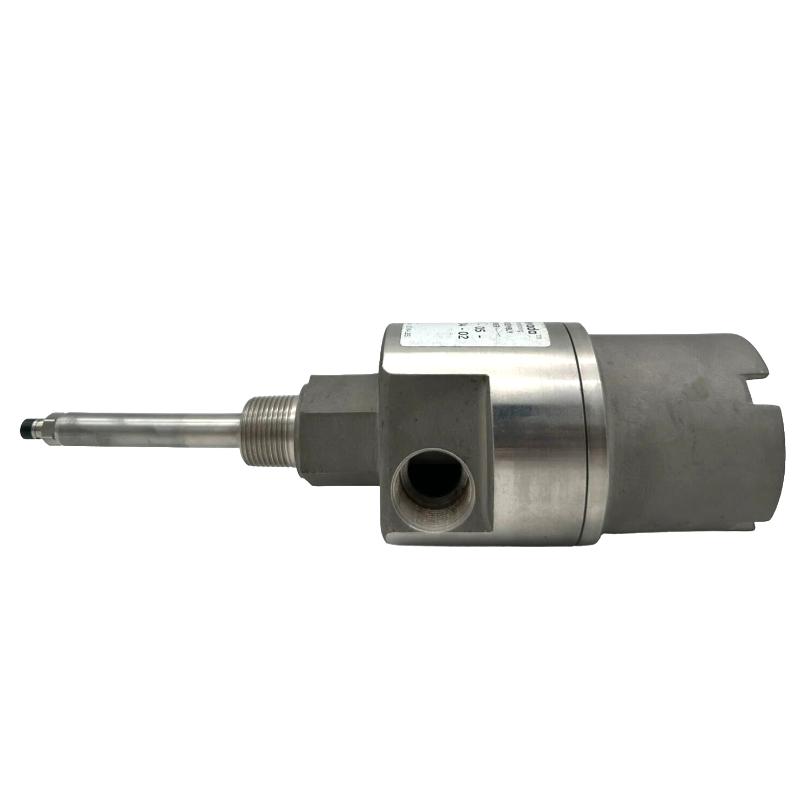

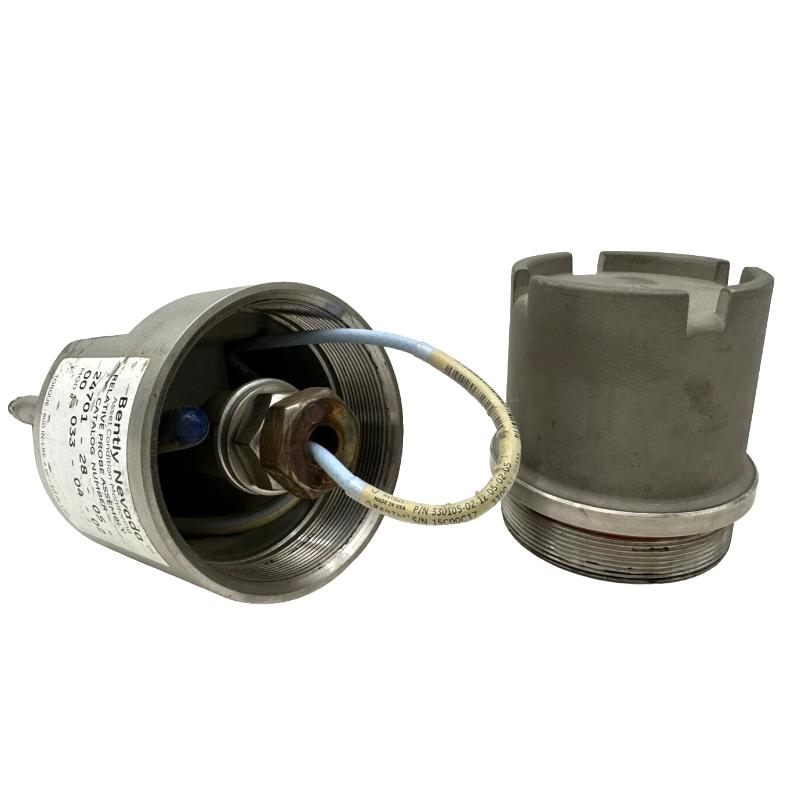

The Bently Nevada 24701-28-10-00-110-03-02 is a Proximity Probe Housing Assembly used to mechanically support and position a proximity probe within a rotating machinery monitoring installation. It belongs to the Bently Nevada 24701 family of housing hardware used with proximity measurement systems.
The housing provides the physical mounting interface between the machine structure and the associated proximity probe. Its purpose is to keep the probe securely positioned toward the monitored shaft or other conductive machine target while separating the mechanical mounting function from the electrical sensing and signal-conditioning functions.
In a complete installation, the housing assembly works together with a compatible proximity probe, extension cable, Proximitor Sensor, and machinery monitoring system. The housing establishes the probe’s mechanical position, while the sensing and electronic components form the measurement path used for machinery condition monitoring and protection.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Product Model | 24701-28-10-00-110-03-02 |
| Product Type | Proximity Probe Housing Assembly |
| Product Family | 24701 Series |
| System Application | Proximity Probe Installation |
| Primary Function | Mechanical Probe Support and Positioning |
| System Role | Probe Mounting / Mechanical Interface |
| Measurement System | Bently Nevada Machinery Monitoring System |
| Associated Device | Proximity Probe |
| Installation | Rotating Machinery Monitoring Equipment |
| Mechanical Function | Secures and positions the proximity probe |
| Application | Shaft Position and Machinery Condition Monitoring |
| Housing Body Diameter | 78.2 mm |
| Weight | 1.8 kg |
Product Features
- Provides a dedicated mechanical housing arrangement for proximity probe installation.
- Supports fixed positioning of proximity sensing equipment on rotating machinery.
- Helps maintain the intended probe orientation relative to the monitored machine target.
- Forms part of the mechanical installation of a Bently Nevada proximity measurement channel.
- Suitable for machinery monitoring systems using non-contact proximity sensing.
- Supports maintenance and refurbishment of established Bently Nevada monitoring installations.
- Separates mechanical probe support from the electrical measurement function.
- Works with associated proximity probes, extension cables, Proximitor Sensors, and monitoring hardware.
- Provides a practical machine-side mounting solution for proximity monitoring applications.
Working Principle
The 24701-28-10-00-110-03-02 is a passive mechanical component within the proximity measurement installation. It does not independently generate, condition, or analyze a measurement signal.
The associated proximity probe is mounted through the housing and positioned toward the monitored conductive target. During operation, the probe detects changes in the relative position between the probe sensing surface and the target. The resulting electrical signal is transferred through the associated extension cable to a Proximitor Sensor.
Machine Structure → Probe Housing Assembly → Proximity Probe → Extension Cable → Proximitor Sensor → Machinery Monitoring System
The housing maintains the mechanical relationship required by the sensing element. If the housing or its mounting interface moves, the probe position can change even when the machine itself is operating normally. Consequently, housing condition and mounting integrity are relevant when investigating unexpected proximity measurements.
The complete assembly should therefore be maintained as part of the overall proximity measurement channel, with mechanical inspection performed alongside electrical and signal-path checks.
Role in a Bently Nevada Proximity Monitoring Architecture
The 24701-28-10-00-110-03-02 occupies the mechanical mounting layer of the Bently Nevada proximity monitoring architecture. It supports the probe while the probe, Proximitor Sensor, and monitoring equipment handle sensing and measurement functions.
| System Layer | Typical Component | Function |
|---|---|---|
| Machinery | Turbine / Compressor / Pump / Motor | Provides the rotating target being monitored |
| Mechanical Mounting | 24701 Proximity Probe Housing Assembly | Supports and positions the proximity probe |
| Sensing | Bently Nevada Proximity Probe | Detects relative movement of the conductive target |
| Signal Connection | Extension Cable | Transfers the probe signal to the Proximitor Sensor |
| Signal Conditioning | Proximitor Sensor | Conditions the proximity measurement signal |
| Monitoring | Machinery Monitoring System | Receives and evaluates the measurement |
| Protection | Machinery Protection System | Uses monitored information for equipment protection functions |
Industrial Applications
| Application | Housing Assembly Role |
|---|---|
| Steam Turbines | Supports the mechanical installation of proximity probes |
| Gas Turbines | Maintains the mounting arrangement for shaft monitoring |
| Compressors | Provides a fixed interface for proximity sensing equipment |
| Pumps | Supports non-contact shaft monitoring installations |
| Generators | Provides mechanical support for proximity measurement channels |
| Industrial Motors | Helps position proximity sensing equipment near rotating targets |
| Machinery Protection Systems | Forms part of the physical installation of proximity monitoring channels |
| Equipment Maintenance | Used in replacement and refurbishment of existing probe mounting arrangements |
Installation and Maintenance
- Confirm that the housing assembly is compatible with the intended proximity probe and existing machine mounting arrangement.
- Inspect the housing for cracks, deformation, corrosion, contamination, or other visible mechanical damage.
- Verify the installation location and orientation against the applicable machinery documentation.
- Ensure the mounting surface is clean and suitable for secure mechanical installation.
- Install the housing without introducing excessive mechanical stress or unintended displacement.
- Confirm that the associated proximity probe is correctly positioned and securely retained within the housing.
- Check the probe orientation relative to the monitored shaft or conductive target before commissioning.
- Route the associated extension cable so that it is protected from abrasion, excessive pulling, and mechanical interference.
- Verify that mounting hardware and mechanical interfaces are properly secured.
- Inspect the housing periodically for looseness, corrosion, deformation, or other changes that could affect probe positioning.
- When troubleshooting abnormal proximity readings, inspect the housing and probe mounting arrangement together with the extension cable and Proximitor Sensor.
- After installation, replacement, or adjustment, verify the complete proximity measurement channel under the applicable machinery operating conditions.
Related Components
| Component | Function in the System |
|---|---|
| Bently Nevada Proximity Probe | Performs non-contact sensing of the monitored machine target |
| Proximitor Sensor | Provides signal conditioning for the proximity probe |
| Proximity Probe Extension Cable | Connects the probe to the Proximitor Sensor |
| Machinery Monitoring System | Receives and evaluates the conditioned proximity signal |
| Machinery Protection System | Uses monitoring information for equipment protection |
| Probe Mounting Hardware | Secures the housing assembly to the machine structure |
| Rotating Shaft | Provides the conductive target used for proximity measurement |
Recommended Related Models
| Model | Product Type | Typical Relationship |
|---|---|---|
| Bently Nevada 24701 Series | Proximity Probe Housing Assembly | Related housing assembly family |
| Bently Nevada 3300 XL Proximity Probe Series | Proximity Probe | Associated non-contact sensing component |
| Bently Nevada 3300 XL Extension Cable Series | Proximity Probe Extension Cable | Associated signal connection component |
| Bently Nevada 3300 XL Proximitor Sensor Series | Proximity Signal Conditioning Component | Associated electronics for the proximity measurement channel |
| Bently Nevada 3500 Series Monitoring Modules | Machinery Monitoring Module | Related monitoring hardware for machinery condition and protection applications |
Key Advantages
- Provides dedicated mechanical support for proximity probe installations.
- Helps maintain the intended probe position relative to the monitored machine target.
- Forms part of the Bently Nevada proximity monitoring architecture.
- Separates mechanical probe mounting from electrical sensing and signal conditioning.
- Suitable for maintenance and replacement of existing machinery monitoring installations.
- Supports stable installation of proximity sensing equipment on rotating machinery.
Technical FAQs
What is the purpose of the Bently Nevada 24701-28-10-00-110-03-02?
The 24701-28-10-00-110-03-02 is a Proximity Probe Housing Assembly used to mechanically support and position a proximity probe in a rotating machinery monitoring installation. It provides the physical mounting interface rather than performing the proximity measurement.
Does the housing assembly perform proximity sensing?
No. The housing is a mechanical component. The associated proximity probe performs the non-contact sensing, while the Proximitor Sensor conditions the resulting signal for use by the monitoring system.
How can a damaged housing affect a proximity measurement channel?
A damaged, loose, or displaced housing can change the physical position of the proximity probe relative to the monitored target. This can alter the measurement relationship and may contribute to abnormal or inconsistent monitoring signals.
What should be checked before replacing this housing assembly?
The existing proximity probe, mounting arrangement, probe orientation, mechanical interfaces, cable routing, and surrounding machine structure should be checked. After installation, the complete proximity measurement channel should be verified before returning the machinery monitoring function to normal service
