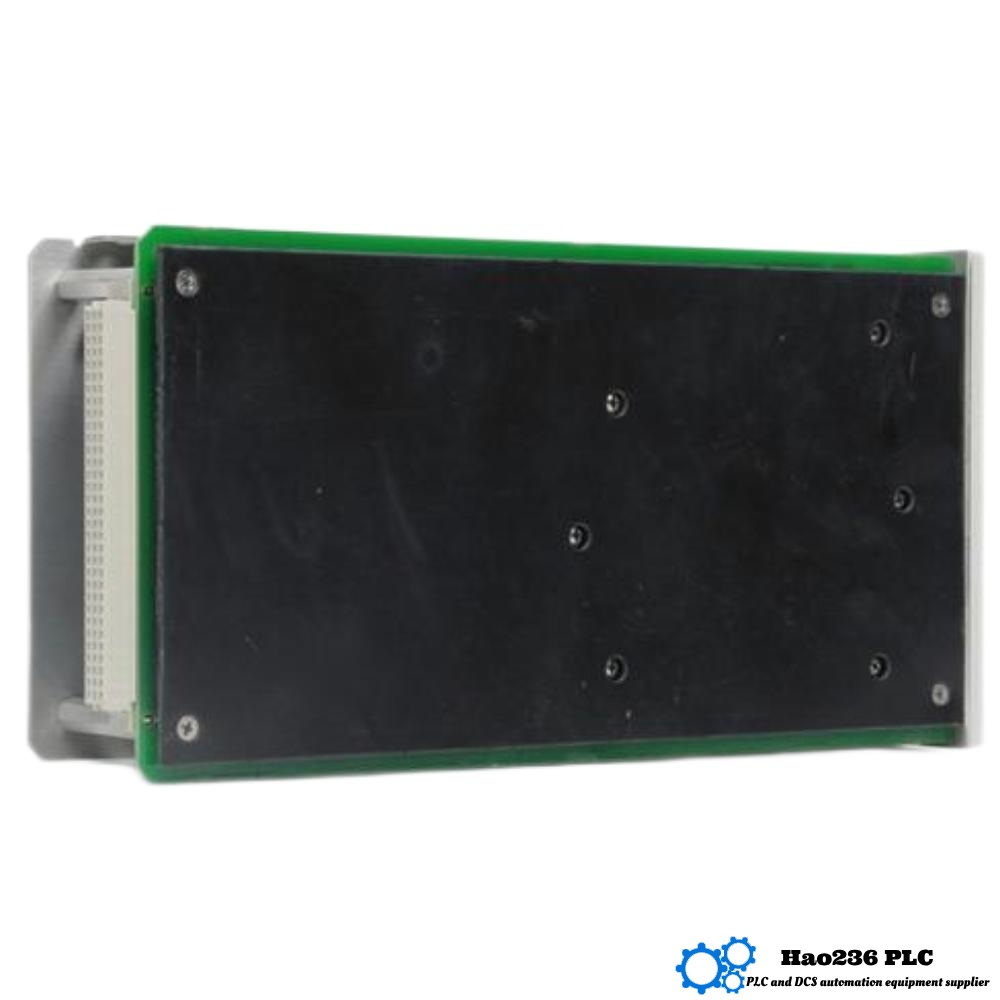

Product Overview: 3500/15 133292‑01
Low‑Voltage DC Power Supply Module
Specifications
| Parameter | Details |
|---|---|
| Model | 3500/15 133292‑01 |
| Module Type | Low‑Voltage DC Power Supply (half‑height rack module) |
| Input Voltage | 20–30 V DC |
| Output Voltage | Regulated DC output (designed for rack modules) |
| Output Current | Up to ~11 A |
| Efficiency | Around 85 % |
| Environmental Specs | Operating: –30 °C to +65 °C Storage: –40 °C to +85 °C |
| Humidity Rating | Up to 95 % non‑condensing |
| Vibration Resistance | Approx. 5 Grms (2–2000 Hz) |
| Shock Resistance | Approx. 20 Grms (11 ms) |
| Redundancy Support | Yes—supports dual‑supply configuration |
| Hot-Swappable | Yes, without interrupting rack operation |
| Dimensions | 120.7 mm × 50.8 mm × 251.5 mm (H × W × D) |
| Weight (kg) | 1.39 kg |
| Mounting Position | Left side of rack, occupies two half‑height slots |
| Protection Features | Overvoltage, undervoltage, overcurrent, short‑circuit |
| Status Indicators | LED indicators for power and fault status |
Description
The 3500/15 133292‑01 is a dedicated low-voltage DC power supply module designed for use in the 3500 modular machinery protection rack system. It accepts 20–30 V DC input and delivers reliable, regulated DC power to all modules within the rack. Its robust design ensures dependable performance under harsh industrial conditions.
This module can be configured for redundant power, allowing continuous operation even during maintenance or module replacement. It features multiple protections—including overcurrent and short-circuit prevention—and built-in LED diagnostics to assist with troubleshooting. Its half-height form factor and hot-swappability make it ideal for maintenance-critical environments.
Applications
-
Machinery protection in power generation (steam, hydro, and gas turbines)
-
Oil & Gas platforms and systems using DC-based power distribution
-
Petrochemical and chemical processing equipment racks
-
Industrial environments where continuous uptime is essential
-
Facilities using DC-only electrical systems for safety or convenience
Advantages
-
Wide input tolerance compatible with 20–30 V DC sources
-
High output capacity (~11 A) supports a full rack of modules
-
Redundancy-ready to enable uninterrupted operation during service
-
Hot-swappable, maintaining system live status during maintenance
-
Compact design, saving space in dense rack configurations
-
Robust environmental performance, suitable for demanding industrial conditions
-
Comprehensive protection ensures safe operation and peace of mind
Series & Brand
-
Series: 3500 Series Machinery Protection System – modular instrumentation platform
-
Module Role: Low-voltage DC power input
-
Brand Context: Developed by a leading provider of rotating machinery protection systems (name omitted per guidelines)
Related Models (Same Family)
| Model | Key Feature |
|---|---|
| 3500/15 125840‑01 | High-voltage AC input module (175–264 VAC) |
| 3500/15 125840‑02 | Low-voltage AC input module (85–132 VAC) |
| 3500/15 127610‑01 | High-voltage DC input module (88–140 V DC) |
| 3500/15 129478‑01 | Proximity sensor supply module (dual –18 V outputs) |
| 3500/15 Power Input Kit | Redundant power input configuration components |
Popular Modules from the Same Brand
| Model | Function |
|---|---|
| 3500/92 | Communication gateway (Modbus/Ethernet) |
| 3500/60 | Shaft clearance / Proximity monitor |
| 3500/94 | VGA display interface module |
| 3500/30M | Dual-channel vibration monitor module |
| 3500/22 | Transient Data Interface (TDI) module |
FAQ
Q1: What is the DC input range for the 133292‑01?
A1: It accepts 20–30 V DC input to power the rack.
Q2: How much output current can it deliver?
A2: Up to approximately 11 A to feed the rack modules.
Q3: Does it support hot-swapping?
A3: Yes—if a redundant module is present, it can be swapped without powering down the rack.
Q4: How does redundancy work?
A4: Two modules can be installed—one acts as primary, the other as backup for seamless switchover.
Q5: What diagnostics does it include?
A5: LEDs indicate power presence and fault conditions.
Q6: What protections are built-in?
A6: It includes safeguards against overvoltage, undervoltage, overcurrent, and short circuits.
Q7: What environmental conditions can it handle?
A7: Operating: –30 °C to +65 °C; Storage: –40 °C to +85 °C; Humidity: up to 95% non-condensing.
Q8: What is the module’s size and weight?
A8: 120.7 × 50.8 × 251.5 mm; weight ~1.39 kg.
Q9: What rack position does it occupy?
A9: Two adjacent half-height slots on the left side of the 3500 rack.
Q10: Which applications are best for this module?
A10: It’s ideal for sites with DC power infrastructure and where continuous uptime is critical.
