Product Overview

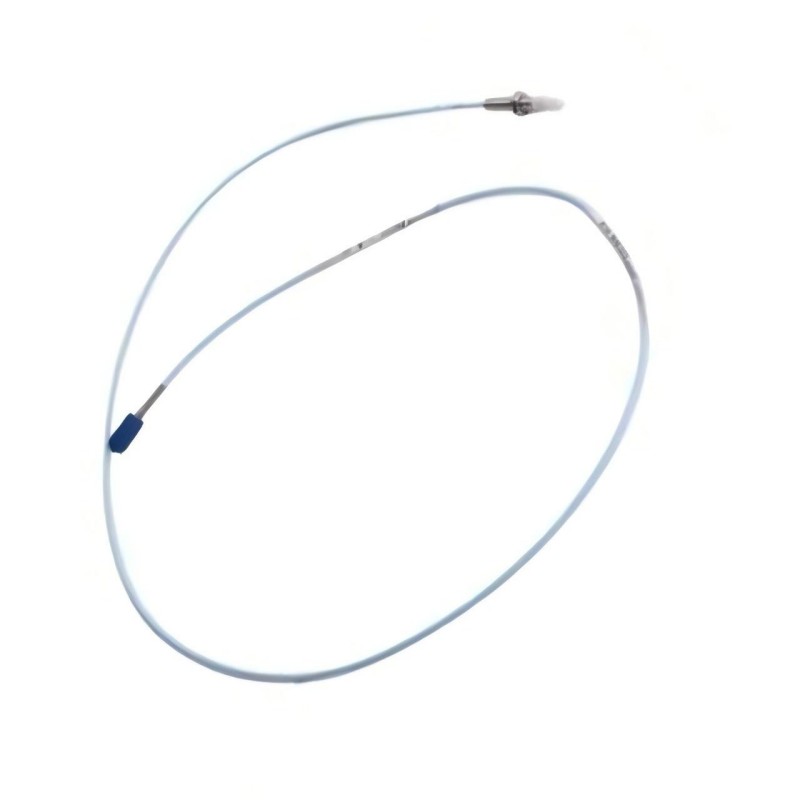

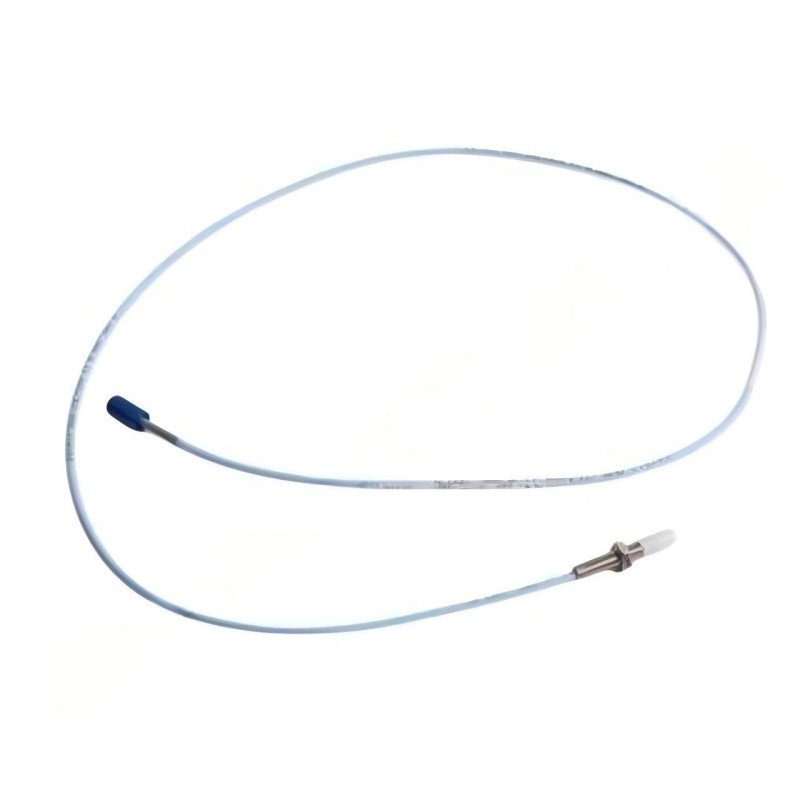

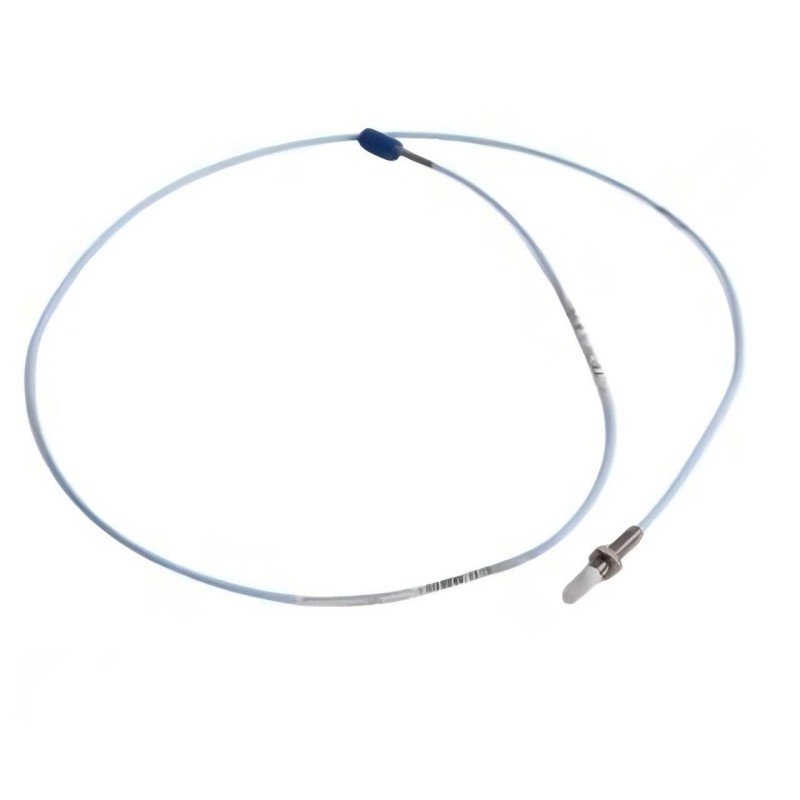

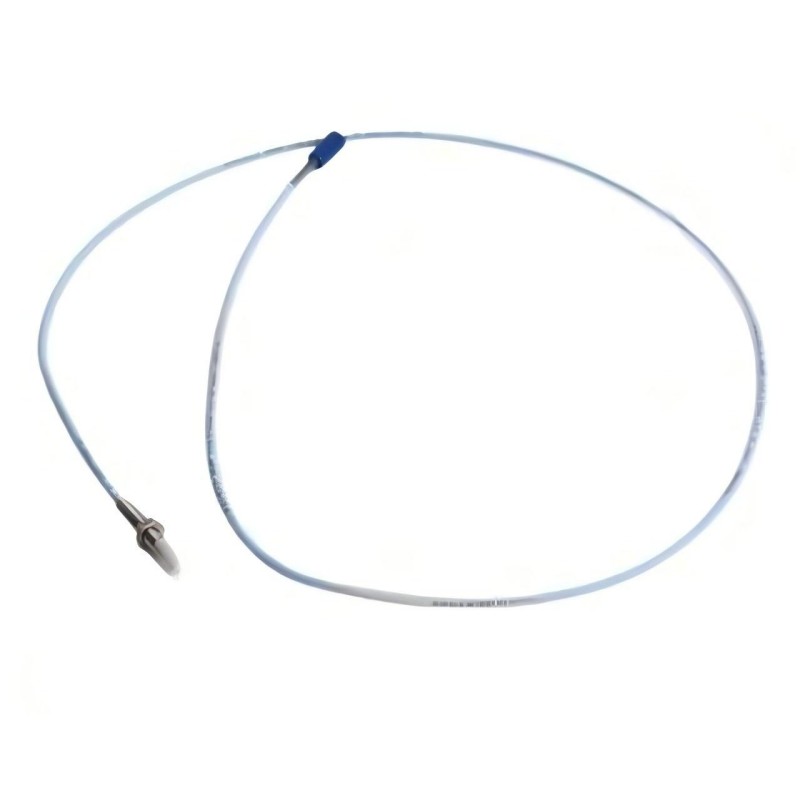

The Bently Nevada 330901-00-32-10-02-05 3300 XL NSv Proximity Probe is a non-contact displacement sensor used in machinery condition monitoring systems. It measures the position of a conductive target, typically a rotating shaft, by detecting changes in the electromagnetic field near the probe tip. The resulting signal is processed by a compatible Proximitor Sensor and used to monitor shaft vibration, radial position, axial movement, and other machine operating conditions.

This NSv probe is particularly useful where conventional proximity probes are difficult to install because of limited mechanical clearance. Its 1/4-28 UNF mounting thread and compact probe construction suit applications involving small shaft diameters, restricted mounting spaces, and recessed or side-view measurement locations. Typical installations include centrifugal compressors, refrigeration compressors, process gas compressors, and other rotating machinery requiring continuous shaft-motion monitoring.

The complete ordering code identifies a specific mechanical and electrical configuration. This model has no unthreaded section, a 3.2-inch overall case length, a 1-meter total length, a standard cable, and a miniature coaxial ClickLoc connector without a connector protector. It is unarmored, so cable routing and mechanical protection should be considered during installation.

The 330901-00-32-10-02-05 belongs to the 3300 XL NSv Proximity Transducer System. It should not be treated as a standalone measurement channel: the probe, extension cable, and Proximitor Sensor must form a compatible system. Correct component matching is especially important when replacing a probe in an existing machinery protection installation, where changes to the transducer configuration can affect measurement accuracy and alarm behavior.

Technical Specifications

Product Features

• Compact mounting configuration: The 1/4-28 UNF thread supports installations where probe mounting space is restricted.
• Non-contact measurement: Detects shaft movement without requiring physical contact with the rotating target.
• NSv sensing technology: Supports applications involving small shaft diameters and limited target areas.
• 1-meter total length: Suits installations where the required probe and cable arrangement matches this length option.
• Unarmored cable construction: Fits installations where cable armor is not required and suitable routing protection is available.
• ClickLoc connector interface: Provides the specified connection for compatible NSv extension cables.
• High-frequency response: The matched transducer system supports dynamic shaft-motion measurements within its specified frequency range.
• Multiple-approval option: The 05 suffix identifies the multiple-approvals configuration; the applicable approval requirements must match the installation.
• System-level measurement compatibility: Supports consistent monitoring when paired with the appropriate NSv extension cable and Proximitor Sensor.

Working Principle

The 330901-00-32-10-02-05 operates through eddy-current sensing. The compatible Proximitor Sensor generates a high-frequency electrical signal that travels to the probe coil. When the probe approaches a conductive shaft or target, the electromagnetic field induces eddy currents in the target material. Changes in the gap between the probe tip and the target alter the electrical response of the sensing circuit.

The measurement chain follows this arrangement:

Conductive Shaft → 330901 NSv Probe → Compatible Extension Cable → NSv Proximitor Sensor → Monitoring System

As the shaft moves, the probe-to-target distance changes. The Proximitor Sensor converts the resulting electrical variation into an output representing the measured displacement. A machinery monitor can then use this signal to calculate shaft vibration or track changes in shaft position.

For example, on a centrifugal compressor, the probe may be installed near a shaft bearing to monitor radial vibration. A correctly configured channel allows maintenance personnel to observe changes in vibration amplitude and identify developing mechanical problems. Similar arrangements can monitor axial position or provide speed and phase-reference signals when the complete installation supports those functions.

The NSv system’s nominal scale factor and linear range apply to the matched transducer system under the specified operating conditions. The target material, probe gap, cable arrangement, and Proximitor Sensor configuration all affect the measurement result. The recommended 1.0 mm gap should therefore be treated as a system installation reference rather than an arbitrary setting for every machine.

The 1-meter total-length configuration must also be considered when selecting the associated electronics. A probe with a different total length or an incompatible extension cable may change the electrical characteristics of the measurement circuit. Maintaining the intended probe-cable-sensor combination is essential when commissioning a new channel or replacing an existing probe.

Role in a Machinery Condition Monitoring Architecture

The 330901-00-32-10-02-05 occupies the sensing end of a proximity transducer channel. It detects the movement of a conductive target and supplies the corresponding signal through the extension cable to the Proximitor Sensor. The sensor output is then used by the machinery monitoring and protection equipment.

Rotating Shaft → NSv Proximity Probe → Extension Cable → Proximitor Sensor → Vibration Monitor → Alarm / Protection Logic

The probe does not independently determine whether a machine is safe to operate. Its output must be interpreted by the compatible measurement electronics and monitoring system, with appropriate configuration, alarm limits, and protection logic.

Industrial Applications

The NSv probe is particularly relevant where installation clearance and target geometry influence sensor selection. Before using it in a new application, confirm that the shaft material, target dimensions, mounting arrangement, operating temperature, and required measurement range are appropriate for the complete NSv system.

Installation and Maintenance

1. Verify the complete model number: Confirm 330901-00-32-10-02-05, including the thread, case-length, total-length, connector, and approval options.
2. Check the mounting thread: Confirm that the mounting point accepts the specified 1/4-28 UNF-2A thread and provides adequate engagement.
3. Inspect the probe tip: Check for mechanical damage, contamination, or other conditions that could affect the sensing surface.
4. Confirm the target material: Verify that the monitored surface is compatible with the NSv system’s calibration characteristics.
5. Set the probe gap correctly: Establish the specified installation gap using the appropriate procedure for the matched transducer system.
6. Verify the total electrical length: Confirm that the 1-meter probe configuration matches the required extension cable and Proximitor Sensor arrangement.
7. Inspect the ClickLoc connector: Check the connector interface for damage, contamination, and correct engagement before connecting the cable.
8. Protect the unarmored cable: Route it away from sharp edges, moving components, crushing hazards, and other sources of mechanical damage.
9. Maintain the specified bend radius: Avoid sharp bends or excessive tension, particularly near the cable-to-probe connection.
10. Check the Proximitor Sensor configuration: Verify the sensor model and system compatibility before applying power or interpreting the output.
11. Validate the measurement channel: Check the probe gap, sensor output, monitoring-channel scaling, and baseline readings during commissioning or after replacement.
12. Record the installation details: Document the probe part number, sensor and extension-cable models, gap setting, cable route, and commissioning results.

Because the cable is unarmored, mechanical protection must be provided by the installation where necessary. If the measured output changes after probe replacement, check the gap, target surface, connector condition, cable compatibility, and monitor configuration before assuming that the machine itself has developed a new vibration problem.

Compatible System Components

The 330901-00-32-10-02-05 must be paired with components belonging to a compatible 3300 XL NSv measurement system. The correct combination depends on the required electrical length, connector arrangement, sensor type, and monitoring application.

Recommended Related Models

Key Advantages

• Non-contact measurement of shaft movement and position.
• Compact 1/4-28 UNF mounting configuration.
• Suitable for compatible NSv applications with restricted installation clearance.
• Supports high-frequency shaft-motion measurement.
• Standard ClickLoc connection for the specified transducer arrangement.
• Available in a defined 1-meter total-length configuration.

Technical FAQs

Why is the 330901-00-32-10-02-05 suitable for restricted probe mounting locations?

Its 1/4-28 UNF mounting thread and NSv probe geometry support applications where mounting clearance and target dimensions limit the use of conventional proximity probes. The actual suitability depends on the available space, shaft geometry, and required measurement direction.

Does the 1-meter total length mean that the probe can be connected to any Proximitor Sensor?

No. Total length is only one part of the compatibility check. The probe must match the NSv transducer configuration, including the extension cable and Proximitor Sensor. Verify the complete measurement-system arrangement before replacing a probe.

What should be checked if the probe output is unstable after installation?

Inspect the probe gap, target surface, connector engagement, cable routing, and compatibility of the extension cable and Proximitor Sensor. Also verify the monitoring channel’s configuration and scaling. These checks help distinguish installation-related signal problems from actual shaft movement.

Is the 330901-00-32-10-02-05 suitable for hazardous-area installations?

The 05 suffix identifies the multiple-approvals option, but suitability depends on the specific approvals required at the installation site and the certification of the complete measurement system. Confirm the applicable markings and system requirements before installing the probe in a classified area.
