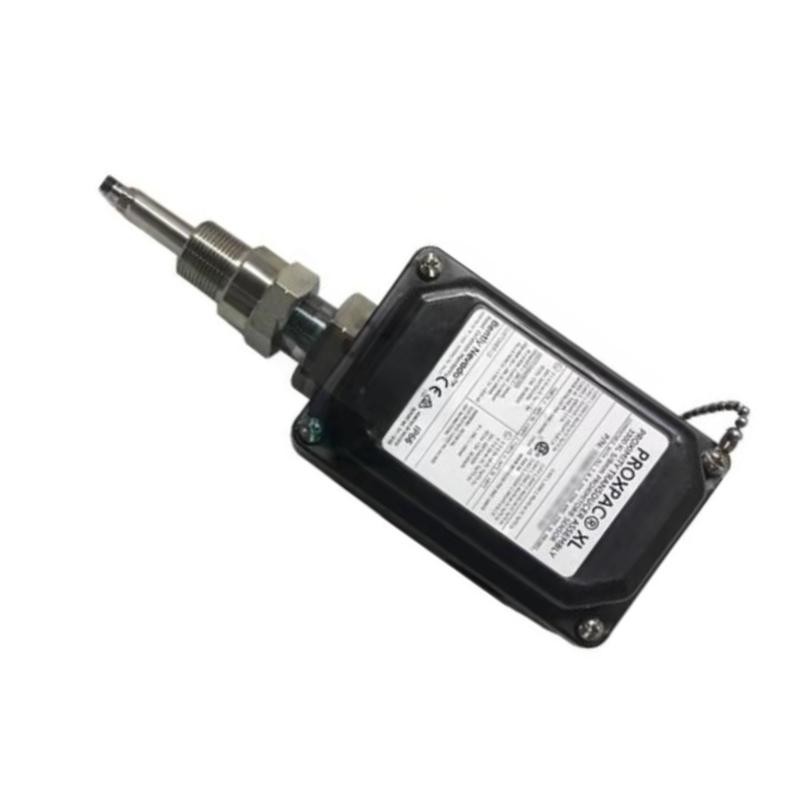

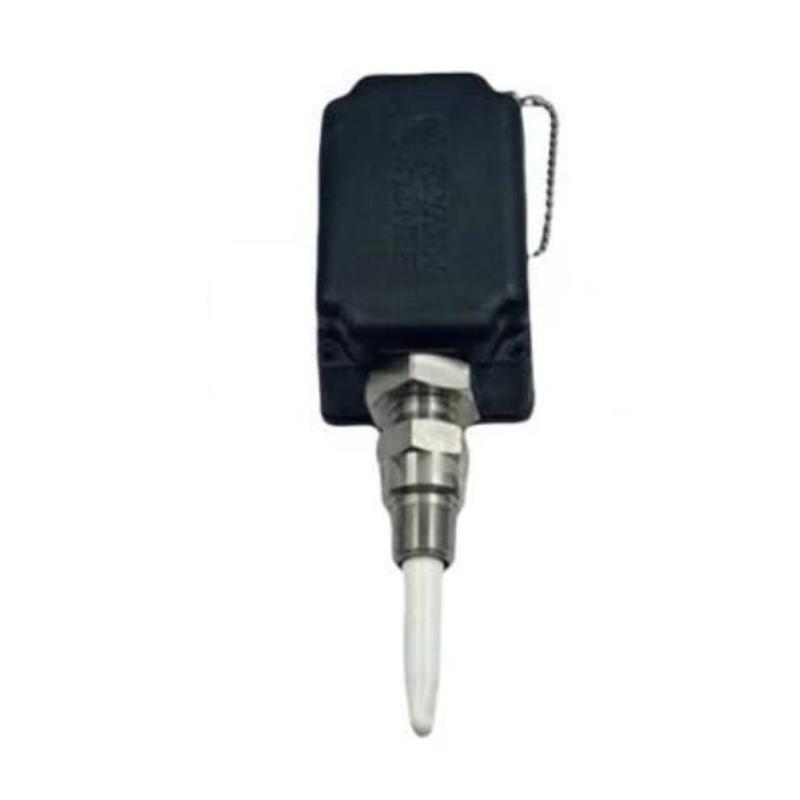

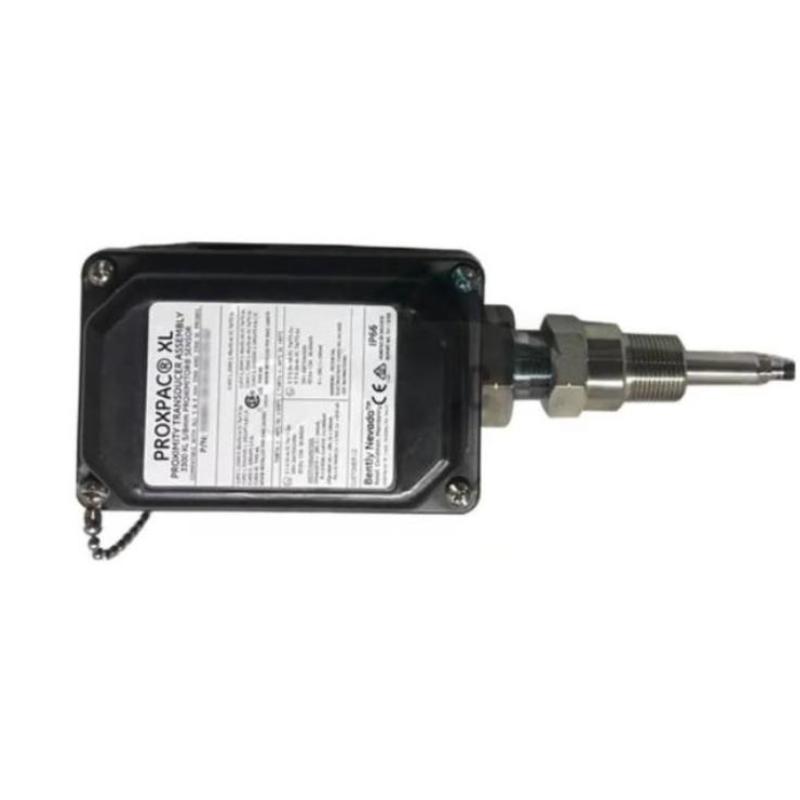

Bently Nevada 330880-28-15-044-01-02 PROXPAC XL Proximity Transducer Assembly

1. Product Overview

The Bently Nevada 330880-28-15-044-01-02 is a PROXPAC XL proximity transducer assembly designed for non-contact measurement and condition monitoring of rotating machinery. It combines a 3300 XL 8 mm proximity probe with an integrated Proximitor sensor in a protective housing, providing a compact arrangement for machinery vibration and shaft-position monitoring.

Unlike a conventional installation that places the probe and Proximitor sensor in separate locations, this integrated assembly reduces the need for a separate Proximitor housing and external extension cable. Field wiring can connect directly between the assembly and a compatible machinery monitoring system, simplifying installation and reducing the number of exposed connections.

The model is intended for industrial equipment where continuous, dependable measurement of shaft movement is important to machinery protection, maintenance planning, and operational reliability. Typical applications include turbines, centrifugal compressors, pumps, and other rotating assets with monitored shafts and bearings.

The assembly also uses a durable, glass-reinforced polyphenylene sulfide (PPS) housing containing conductive fibers. Its enclosure is rated for IP66 and Type 4X environmental protection, making it suitable for demanding plant environments where dust, moisture, and other contaminants may affect exposed instrumentation.

2. Product Parameters

The following table summarizes the model’s identifiable configuration and physical characteristics. Dimensions and weight are presented separately as overall assembly information and ordering dimensions, since they refer to different aspects of the product.

Dimensional note: The listed 36.5 × 9 × 9.3 cm figure is an approximate overall package/handling dimension, not a verified engineering envelope for every installed configuration. The 38 mm standoff-adapter dimension and 4.4 in probe-penetration option are configuration dimensions. Confirm the installation drawing before designing brackets, clearances, or replacement arrangements.

Weight note: The approximate 1.35 kg figure should be treated as a handling or supplied-assembly reference. Actual shipped weight can vary with packaging and included accessories.

3. Detailed Product Introduction

3.1 Integrated Proximity Measurement Design

The PROXPAC XL assembly is built around the principle of non-contact proximity measurement. Its 3300 XL 8 mm probe detects the position of a conductive shaft or target without requiring the sensing tip to make physical contact with the moving surface.

When properly installed and paired with compatible monitoring equipment, the system can provide a signal representing changes in the gap between the probe and the target. These changes can be used to assess relative shaft vibration, shaft displacement, and axial position, depending on the monitoring arrangement.

Because the Proximitor sensor is integrated into the assembly housing, the 330880 series can simplify the physical layout of a conventional proximity measurement system. Fewer separate enclosures and fewer interconnecting components can make field installation more straightforward, particularly where access around machinery is limited.

3.2 PROXPAC XL Protective Housing

The housing is made from glass-reinforced PPS thermoplastic with conductive fibers. This material combines structural reinforcement with resistance to environmental exposure and improved dissipation of electrostatic charge compared with an ordinary unreinforced plastic enclosure.

The IP66 and Type 4X ratings are important for installations where instrumentation may encounter dust, water exposure, outdoor weather, or industrial contaminants. These ratings describe enclosure protection; they do not mean that the assembly can be submerged indefinitely or installed without regard to the applicable hazardous-area and environmental requirements.

The design also provides access for probe adjustment and maintenance. This is useful when technicians need to inspect the installation, verify probe positioning, or replace a component during a planned shutdown.

3.3 Configuration of Model 330880-28-15-044-01-02

The complete part number identifies a particular arrangement of probe, standoff adapter, penetration length, fittings, and mounting thread.

These suffixes should be checked against the order documentation before replacement or procurement. In particular, the penetration option and fitting configuration affect mechanical compatibility, while the exact certification requirements must be checked for the intended installation area.

4. Product Applications

4.1 Steam and Gas Turbines

Turbines operate at high rotational speeds and are often critical to the continuous production of electricity or process energy. Changes in shaft vibration or axial position can indicate developing mechanical problems, including bearing wear, rotor movement, or changes in operating condition.

Installed at an appropriate measurement point and connected to a compatible monitoring system, the 330880 assembly can support continuous shaft-condition monitoring. Trend data can help maintenance teams distinguish normal operating variation from changes that require inspection.

4.2 Centrifugal and Process Compressors

Compressors are widely used in refining, chemical processing, gas transportation, and other continuous-process operations. Their rotating components may be expensive to repair, and unexpected shutdowns can interrupt production.

A proximity measurement system can provide information about relative shaft movement and position. Monitoring this information over time helps operators identify abnormal changes and investigate possible mechanical issues before they progress to more serious equipment damage.

4.3 Industrial Pumps

Large process pumps, feedwater pumps, and other critical pumping units can experience bearing degradation, rotor displacement, and changes in shaft behavior as operating conditions evolve.

The 330880 assembly can be used where a compatible non-contact shaft measurement is required. Its integrated design may be especially helpful where a separate sensor enclosure would complicate mounting or where exposed instrumentation needs additional environmental protection.

4.4 Petrochemical and Refining Equipment

Industrial process areas may expose instrumentation to moisture, dust, oil contamination, weather, and other demanding conditions. The PROXPAC XL housing provides a protected arrangement for the sensing system, while the multiple-approval probe option may be suitable for installations requiring specific regulatory certifications.

The actual suitability of a particular unit for a hazardous location depends on its exact approval documentation, installation method, wiring arrangement, and the requirements of the site. The part-number description alone should not be treated as proof of every possible certification.

4.5 Fans, Blowers, and Other Rotating Machinery

Large fans and blowers can develop vibration problems associated with imbalance, bearing wear, misalignment, or changing mechanical clearances. Where the shaft material, target geometry, and monitoring equipment are compatible, proximity measurement can contribute to machinery condition assessment.

The PROXPAC XL design is most appropriate when the application calls for a proximity probe arrangement, rather than a general-purpose accelerometer or a velocity sensor mounted on the machine casing.

5. Main Product Advantages

5.1 Integrated Probe and Proximitor Sensor

The assembly combines the probe and Proximitor sensor in one housing. This reduces the need to mount a separate Proximitor enclosure and eliminates the usual extension cable between the probe and its associated Proximitor sensor within this integrated configuration.

A more compact arrangement can make equipment layout easier to manage, reduce installation steps, and simplify access during routine maintenance.

5.2 Reduced Field Wiring Complexity

Conventional proximity systems may require careful routing and termination of separate probe, extension-cable, and Proximitor components. By integrating the probe and sensor, the PROXPAC XL arrangement reduces the number of separate connections involved in that portion of the installation.

This can help reduce wiring work and make troubleshooting more convenient. The system still needs suitable field wiring to a compatible monitor, correct grounding practices, and installation in accordance with the applicable technical requirements.

5.3 Robust Environmental Enclosure

The glass-reinforced PPS housing is designed for industrial use, with IP66 and Type 4X protection ratings. This construction can be beneficial in outdoor installations and plant areas exposed to dust, water, and contaminants.

The housing’s protective characteristics help shield the integrated electronics and associated components from environmental exposure. Correct sealing, cable entry, mounting, and maintenance remain essential to retaining the intended level of protection.

5.4 Flexible Installation and Probe Adjustment

The PROXPAC XL design supports access for probe adjustment and maintenance. The specified 1.5 in standoff adapter and 4.4 in penetration configuration provide defined mechanical dimensions for the intended installation.

These details are important because correct probe positioning is central to obtaining a useful measurement. Before installation, the technician should confirm target material, clearance, mounting thread, penetration, and the recommended electrical gap setting for the applicable sensor system.

5.5 Support for Continuous Machinery Monitoring

When connected to a compatible monitoring platform, the assembly can provide ongoing proximity measurement for equipment protection and condition monitoring. Continuous measurement is useful for identifying trends that may not be apparent during occasional manual inspections.

The sensor does not independently diagnose every mechanical fault. Rather, it provides measurement information that monitoring equipment and trained personnel can interpret alongside machine operating conditions, historical trends, and other instrumentation.

5.6 Potential Reduction in Maintenance Complexity

The integrated architecture reduces the number of separate components that must be mounted and interconnected. In suitable applications, this can make installation and maintenance procedures less complicated.

The actual maintenance benefit depends on site accessibility, the condition of the wiring and connectors, the compatibility of the monitoring system, and whether replacement parts match the original assembly configuration.

6. Product Series and Brand Information

Brand: Bently Nevada

Bently Nevada is known for industrial machinery condition monitoring and protection equipment. Its product portfolio includes proximity transducers, vibration sensors, monitoring modules, and systems used to observe the operating condition of rotating machinery.

Series: PROXPAC XL

The PROXPAC XL series is designed to integrate proximity measurement components into a self-contained assembly. Its key design feature is the inclusion of a 3300 XL Proximitor sensor within the housing, reducing the need for a separate Proximitor enclosure and the interconnecting extension cable used in conventional arrangements.

The series is suited to applications where reliable shaft-position or vibration measurements are required and where a protected, integrated installation is beneficial.

Role of the 330880-28-15-044-01-02

This particular model represents a specific mechanical and probe configuration within the PROXPAC XL family. When choosing a replacement, it is important to compare the complete part number rather than matching only the 330880 prefix.

Probe approval options, standoff dimensions, penetration length, fittings, and mounting threads can affect interchangeability. A model with a similar family number may still require different mounting provisions or may not meet the same site certification requirements.

7. Five Related Models in the PROXPAC XL Series

The following models are closely related to the 330880-28-15-044-01-02. They use the PROXPAC XL architecture, but their penetration lengths, fitting options, or adapter configurations differ.

Dimensions and weights below are approximate overall handling or shipping figures where available. They are not substitutes for mechanical installation drawings.

Selection guidance: The 330880-28-15-048-00-02 is worth considering when a longer penetration is needed. The 330880-28-15-027-00-02 may suit a different mounting depth. The 330880-28-00-035-01-02 differs in its adapter arrangement. Before ordering any alternative, compare the actual installation drawing, probe location, thread, fittings, approval requirements, and monitoring compatibility.

The variation in reported weights for some related models reflects differences in listing conventions and whether the figure refers to the assembly, a component, or a shipping package. For engineering calculations, use the verified product drawing or the supplier’s confirmed net weight rather than relying on a marketplace estimate.

8. Five Popular Bently Nevada Models to Consider

The following products are useful alternatives or complementary components in a machinery-monitoring system. They do not all belong to the PROXPAC XL series, and they are not direct drop-in replacements for the target assembly.

Important compatibility distinction: The models above serve different roles. A Proximitor sensor generally operates as part of a compatible probe system, whereas the PROXPAC XL 330880 assembly integrates the probe and Proximitor sensor into a single housing. A 3500/42M is a monitoring module rather than a proximity transducer assembly. These products should therefore be selected according to the system architecture, not solely by brand or series.

The exact dimensions and net weights of the additional models are not provided where the complete mechanical specification could not be confirmed. This avoids confusing a bare probe, a sensor enclosure, a complete assembly, and a shipping package as if they had the same physical specifications.

9. Installation and Selection Considerations

Mechanical compatibility

Before installing the 330880-28-15-044-01-02, confirm that the machine’s mounting port matches the specified 3/4-14 NPT thread. Check the standoff-adapter arrangement, the required penetration, the probe’s location relative to the target surface, and the clearance available for maintenance.

A mismatch in penetration length or adapter geometry may prevent the probe from reaching its intended measurement position. Mechanical fit alone is also insufficient: the probe must be positioned so that the sensing system can operate within its specified measurement range.

Electrical and monitoring compatibility

The assembly should be used with monitoring equipment compatible with its 3300 XL proximity measurement system. Confirm the required input type, power arrangements, wiring practices, and applicable installation instructions before energizing the unit.

Do not assume that every proximity input, probe family, or signal-conditioning device is interchangeable. Differences in probe design, system calibration, and monitor configuration can affect measurement accuracy and the interpretation of the resulting signal.

Environmental and approval requirements

Although the housing has IP66 and Type 4X ratings, the installation must still account for ambient temperature, chemical exposure, cable entry, sealing, grounding, and mechanical vibration. These ratings do not independently establish suitability for every hazardous location.

The model includes a multiple-approvals probe option, but the precise approval needed should be checked against the applicable product documentation and the site’s regulatory requirements.

Maintenance and replacement planning

During a planned shutdown, technicians should inspect the mounting arrangement, wiring connections, housing condition, and sensor positioning. If a replacement is required, retain the complete part number and compare it with the existing unit before installation.

It is also good practice to record the installed model, probe gap or setup information where applicable, monitoring-channel assignment, and relevant baseline measurements. This information can make future troubleshooting and replacement work more efficient.

10. Summary

The Bently Nevada 330880-28-15-044-01-02 PROXPAC XL Proximity Transducer Assembly is an integrated non-contact proximity measurement solution built around a 3300 XL 8 mm probe and an internally housed Proximitor sensor. Its main advantages are the integrated architecture, reduced need for separate probe-to-sensor wiring, and a protective PPS enclosure rated for IP66 and Type 4X environments.

The model’s identifying configuration includes a 1.5 in (38 mm) standoff adapter, a 4.4 in penetration option, one 3/4-14 NPT fitting with two plugs, and a 3/4-14 NPT mounting thread. Its approximate reported package dimensions are 36.5 × 9 × 9.3 cm, with a reported handling or shipping weight of about 1.35 kg; the final installed envelope and net weight should be confirmed against the exact product drawing.

For replacement planning, the most important factors are the complete part number, mounting geometry, probe penetration, fitting arrangement, certification requirements, and compatibility with the existing monitoring system. Closely related PROXPAC XL models may offer different mechanical configurations, while other Bently Nevada products can serve as complementary sensors or monitoring modules rather than direct substitutes.
