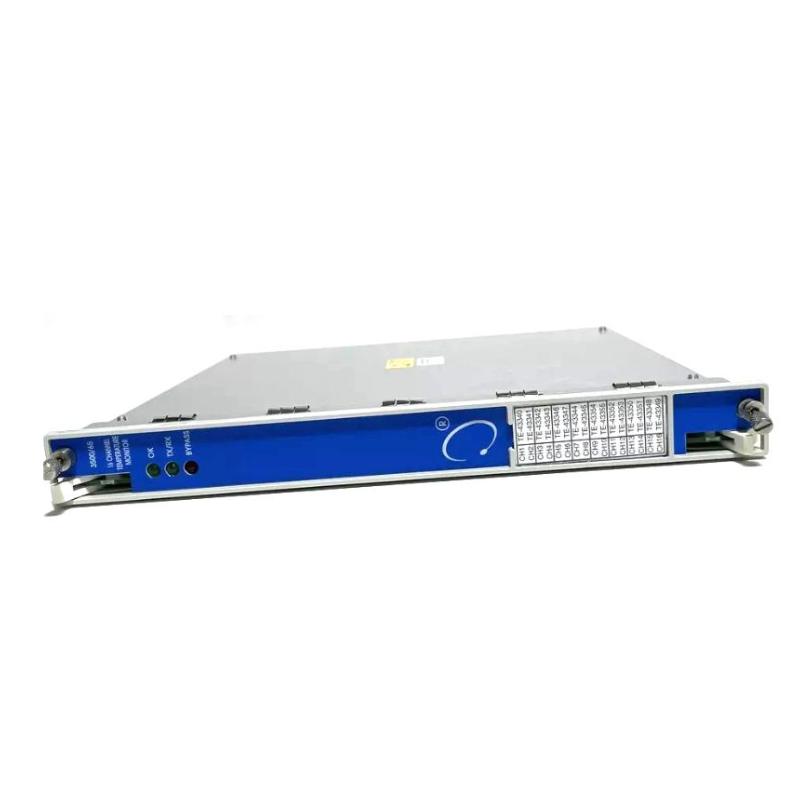

Bently Nevada 3500/65-01-00 16-Channel Temperature Monitor

1. Product Overview

The Bently Nevada 3500/65-01-00 is a 16-channel temperature monitoring module designed for industrial machinery condition monitoring and protection. It is part of the 3500 Machinery Protection System and accepts temperature signals from resistance temperature detectors (RTDs) and isolated-tip thermocouples (TCs).

The monitor conditions incoming sensor signals, converts them into temperature measurements, and compares the measured values with user-configurable alarm setpoints. When a monitored temperature reaches a configured threshold, the system can provide alarm information and support protective actions through compatible modules in the 3500 rack.

This model is suitable for installations where several temperature points must be monitored together, such as bearing metal, motor windings, turbine components, compressor process lines, and other critical equipment. Its 16-channel capacity allows multiple measurement points to be integrated into a single rack-based monitoring system.

The “-01-00” configuration identifies an I/O arrangement for RTD and isolated-tip TC inputs with internal terminations, with no additional agency approval option specified by that code. The complete installed configuration should still be checked against the module labels, I/O hardware, and system requirements before replacement or commissioning.

2. Brand and Product Series

3. Technical Specifications

The following table summarizes the commonly published specifications for the 3500/65 temperature monitor. Some details depend on the sensor type, rack arrangement, I/O module, and configuration. Confirm the exact hardware revision before using these values for engineering design or maintenance planning.

Important dimensional note: the dimensions above refer to the monitor module and the associated I/O module separately, not to a complete rack or shipping package. The actual shipping weight may be higher because of packaging, accessories, and mounting hardware.

RTD Measurement Ranges

The supported temperature range depends on the RTD material, resistance value, and wiring arrangement. The following are representative ranges for supported sensor types.

Thermocouple Measurement Ranges

These are sensor-specific ranges, not a single universal range for all 16 channels. The actual operating range and accuracy depend on the sensor type, configuration, and installation. The published monitor specifications describe a typical accuracy of approximately ±3°C at 25°C, with thermocouple cold-junction compensation accuracy specified separately.

StudyLib

+1

4. Product Configuration and Working Principle

The 3500/65-01-00 consists of a temperature monitor module and a compatible input/output module. The monitor occupies a full-height front slot in the rack, while its associated I/O module occupies a full-height rear slot.

The internal-termination configuration allows sensor wiring to connect at the rear I/O module. Correct wiring is essential because RTD lead configuration, thermocouple polarity, grounding, and sensor compatibility all influence measurement quality.

How the module works

1. Sensor signal acquisition: The module receives temperature signals from connected RTDs or isolated-tip thermocouples.

2. Signal conditioning: The incoming signals are conditioned so the monitor can interpret them as temperature measurements.

3. Temperature calculation: The module calculates the measured temperature according to the configured sensor type and measurement range.

4. Setpoint comparison: The measured value is compared with the alarm thresholds configured for the application.

5. Status and alarm communication: The monitor communicates status information to the rack system. Compatible relay modules and system logic can be used to initiate alarms or protective actions.

6. Operator monitoring: Front-panel indicators help maintenance personnel identify normal operation, communication activity, and bypass status.

The module is intended to form part of an integrated machinery monitoring system. It should not be treated as a standalone trip device without confirming the complete system architecture, configured logic, and required protection level.

5. Product Introduction

The 3500/65-01-00 16-Channel Temperature Monitor is intended for industrial plants that need continuous temperature supervision across several pieces of equipment or multiple measurement points on a single machine.

Temperature is an important indicator of machinery condition. A rising bearing temperature may indicate lubrication problems, excessive loading, friction, misalignment, or deterioration. High motor winding temperature may point to overload, cooling problems, or insulation stress. Abnormal process temperature can also indicate a changing operating condition or a problem elsewhere in the system.

By bringing multiple temperature signals into one monitoring platform, the 3500/65 helps operators observe thermal conditions alongside other machinery protection measurements. When integrated with the wider 3500 system, temperature data can contribute to alarm handling, maintenance decisions, and protective control strategies.

The module supports different sensor arrangements, including 3-wire RTDs, 4-wire RTDs, and compatible thermocouples. This flexibility makes it useful in plants where different machines or measurement points require different sensing technologies.

Its rack-based format is also useful for established industrial installations. Rather than installing an independent temperature instrument for every measurement point, a suitable rack configuration can consolidate multiple inputs and provide a consistent interface for monitoring and maintenance.

6. Main Applications

6.1 Turbine temperature monitoring

Steam turbines and gas turbines contain bearings, casings, and auxiliary systems whose temperature conditions are important to safe operation. The 3500/65 can monitor compatible temperature sensors installed at selected measurement points, helping operators identify abnormal thermal changes.

Typical measurement points may include bearing metal temperatures, thrust bearing temperatures, and selected auxiliary or process temperatures. The exact sensors and locations must be selected according to the turbine design and the plant’s monitoring requirements.

6.2 Compressor monitoring

Industrial compressors operate under changing loads, pressures, speeds, and process conditions. Bearing temperatures and selected suction or discharge process temperatures can provide useful information about equipment condition.

The monitor can bring these sensor signals into a common rack-based monitoring system. When temperature values depart from configured operating limits, the system can alert operators to investigate possible abnormal conditions.

6.3 Motor and generator protection

Motor windings, generator components, and associated bearings may be exposed to heat from electrical losses, friction, loading, and cooling-system performance.

Where suitable RTDs or thermocouples are installed, the 3500/65 can monitor the relevant temperature points. Its alarm functionality can support early detection of overheating before a problem develops into a more serious equipment issue.

6.4 Bearing and thrust-bearing temperature monitoring

Bearing temperature is a useful operating indicator for rotating machinery. Unexpected increases may be associated with insufficient lubrication, increased friction, excessive load, or other mechanical issues.

The module can monitor compatible bearing-temperature sensors and compare readings with configured alarm thresholds. Temperature data should be evaluated alongside vibration, shaft position, speed, and operating conditions rather than used as the sole basis for diagnosing a fault.

6.5 Industrial process temperature monitoring

Some installations use temperature signals to supervise process conditions around pumps, compressors, gearboxes, hydraulic systems, or other equipment. When these signals fall within the supported input types and configured measurement ranges, they can be integrated into the rack’s temperature monitoring arrangement.

6.6 Continuous machinery condition monitoring

For plants that operate continuously, monitoring temperature trends can support condition-based maintenance. Operators can review changes over time, compare readings between related measurement points, and investigate recurring alarms.

This approach is particularly useful when a plant wants to move beyond periodic manual temperature checks toward a more consistent monitoring strategy.

7. Product Advantages

7.1 Sixteen-channel monitoring capacity

The 16-channel design allows multiple temperature measurement points to be monitored through one module. This can reduce the number of separate monitoring devices required in a suitably designed rack and simplify the organization of temperature signals.

7.2 Support for RTD and thermocouple inputs

The monitor accepts compatible RTD and isolated-tip thermocouple signals. This makes it adaptable to different temperature measurement requirements across rotating machinery and industrial processes.

The exact input combination depends on the installed I/O module and the selected configuration.

7.3 Configurable alarm thresholds

User-programmable setpoints allow temperature limits to be matched to the operating needs of the monitored machine. Different equipment and measurement points may require different limits, so the settings should be based on engineering requirements and the equipment manufacturer’s recommendations.

7.4 Integration with a machinery protection rack

The 3500/65 works within the 3500 system architecture. When combined with compatible modules and properly configured system logic, temperature measurements can be considered alongside other machinery monitoring signals.

This integration helps maintenance and operations teams work with a more consistent monitoring arrangement across the plant.

7.5 Front-panel status indication

The OK, TX/RX, and Bypass indicators provide basic visual information about module status, communication activity, and bypass condition. These indicators can help technicians during inspection and troubleshooting, although detailed diagnosis may require the system software and appropriate maintenance procedures.

7.6 Suitable for continuous industrial operation

The rack-based design is intended for use in industrial monitoring installations. Correct installation, appropriate sensor selection, proper wiring, configuration management, and periodic maintenance are necessary to achieve dependable performance.

7.7 Support for maintenance planning

Temperature trends and alarm history can help plant personnel identify recurring abnormal conditions and prioritize inspections. Used with vibration and other condition-monitoring data, temperature measurements can provide a more complete picture of machinery health.

8. Installation and Maintenance Considerations

Before replacing an existing monitor or installing a new one, confirm the complete model number and hardware configuration. A module with a similar base model may have a different I/O arrangement or approval option.

The following checks are recommended:

• Confirm that the rack and system firmware are compatible with the installed monitor.

• Verify that the rear I/O module matches the required RTD/thermocouple configuration.

• Check whether the installation uses internal or external terminations.

• Confirm sensor type, wiring arrangement, polarity, and measurement range.

• Review alarm thresholds and delays against the approved protection settings.

• Confirm whether the application requires additional relay modules or redundant system arrangements.

• Check rack slot allocation, grounding, cable routing, and environmental conditions.

• After installation, verify channel readings and alarm operation using the approved commissioning procedure.

Do not assume that matching the model number alone guarantees a drop-in replacement. Hardware revisions, I/O modules, termination arrangements, and system software may affect compatibility.

9. Five Related Models in the Same Series

The following models are related to the 3500/65 because they belong to the 3500 machinery monitoring family. Some are temperature monitors, while others monitor different machinery parameters. Dimensions and weights are included where a commonly published module specification is available; values marked “verify” should be confirmed against the exact part number.

These are related models, not interchangeable replacements. The 3500/60 and 3500/61 are the closest alternatives when the application is specifically temperature monitoring. The 3500/62, 3500/40M, and 3500/42M address different measurement requirements and should be selected only when their input types and monitoring functions match the application.

10. Five Popular Models from the Same Brand

The following models cover several common categories within the Bently Nevada product range. They are included as related products for machinery protection, vibration measurement, and system integration.

Selection note: the three 3500 modules listed above are rack components, while the 330103 and 330180 are components of a proximity measurement system. Their specifications and physical dimensions depend on the full part number, not just the shortened model family.

11. Comparison: 3500/65-01-00 and Related Temperature Monitors

The 3500/65 is most relevant when a project requires up to 16 temperature channels within a compatible rack. The 3500/60 and 3500/61 may be considered for applications requiring fewer temperature channels, but channel count, signal routing, and recorder-output requirements must be checked before selecting a replacement.

12. Ordering and Configuration Checklist

When purchasing or replacing a 3500/65-01-00, use the following checklist to avoid mismatches.

13. Summary

The Bently Nevada 3500/65-01-00 is a 16-channel temperature monitor in the 3500 Machinery Protection System. Its main function is to receive compatible RTD and isolated-tip thermocouple signals, condition those signals, calculate temperature values, and compare the results with configurable alarm thresholds.

Its key strengths are the 16-channel capacity, support for multiple temperature sensor arrangements, rack-based integration, and ability to contribute temperature information to a broader machinery protection strategy. Typical applications include turbine and compressor bearing temperatures, motor and generator temperature monitoring, and selected industrial process temperature measurements.

The main monitor module is commonly specified at 241.3 × 24.4 × 241.8 mm and approximately 0.91 kg. The associated I/O module is commonly specified at 241.3 × 24.4 × 99.1 mm and approximately 0.45 kg. These are separate component measurements, not the packed shipping dimensions or weight.

For selection and replacement, the most important checks are the complete model code, the correct I/O module, sensor compatibility, rack and software compatibility, and the approved alarm configuration. Similar-looking modules from the same series may perform different functions and should not be treated as interchangeable without verification.
