- Siemens
- 6SN1118-0DH21-0AA1
- Closed-Loop Plug-In Performance Control Unit
- Germany
- 330 × 51 × 152 mm
- 0.77 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 4
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

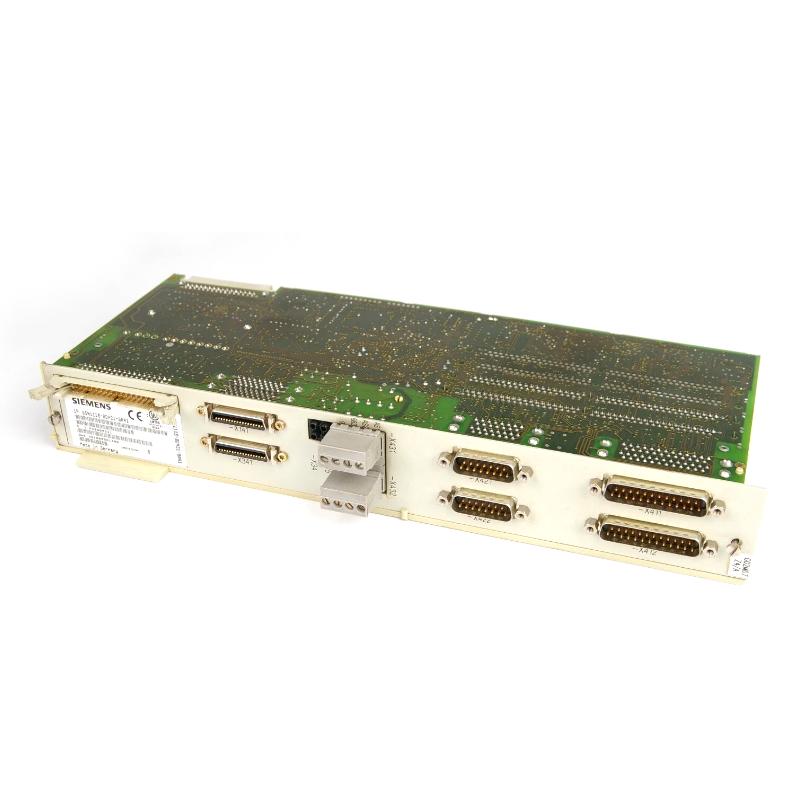

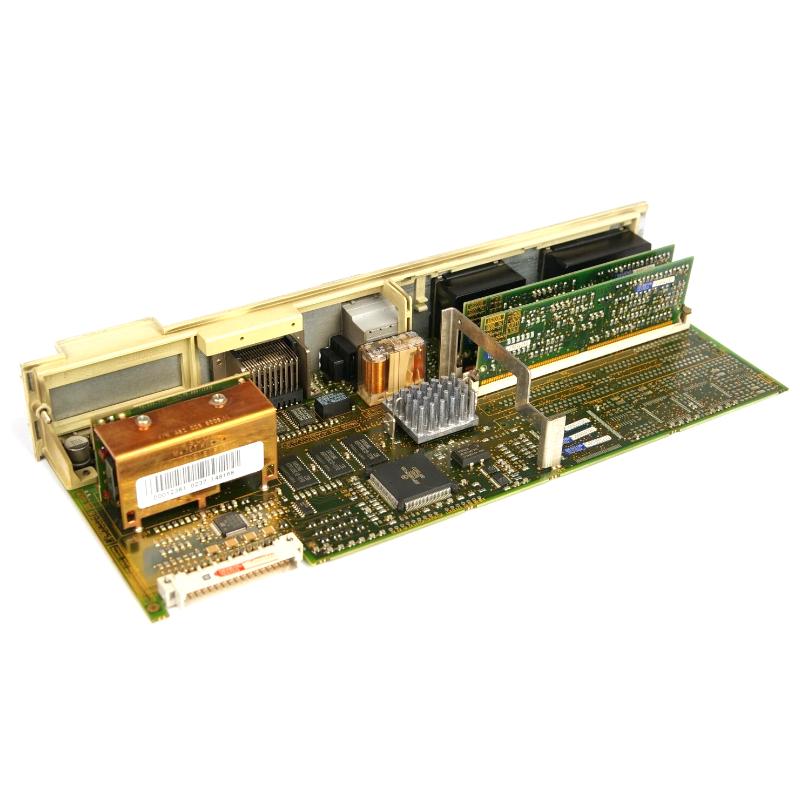

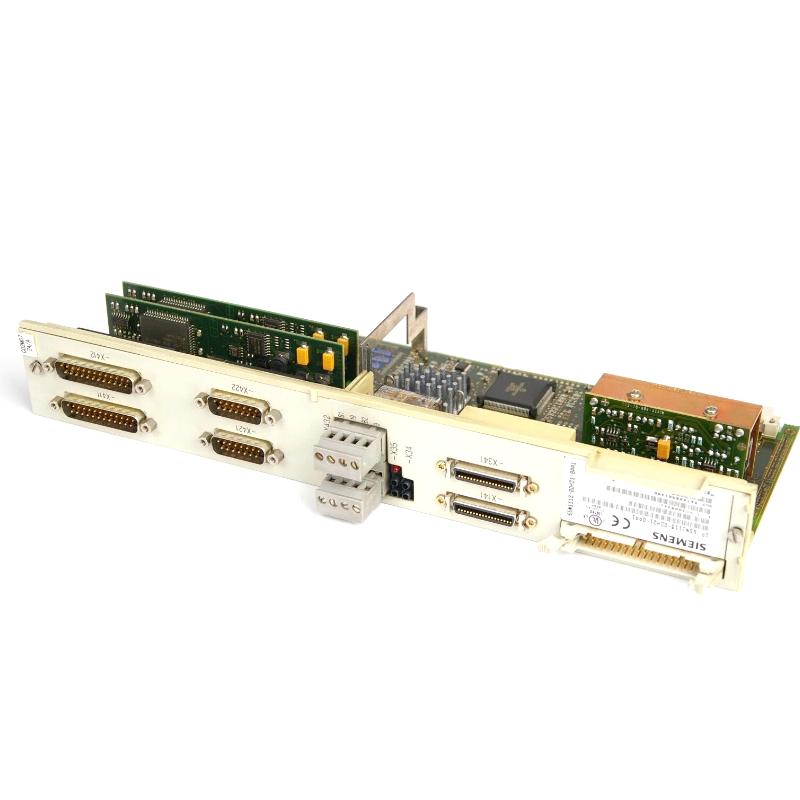

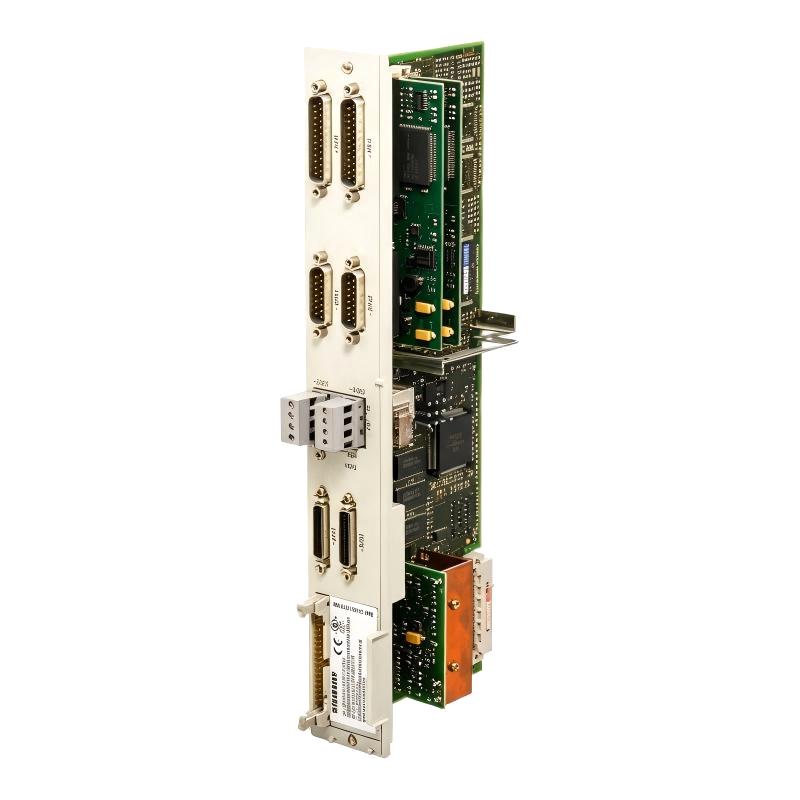

The Siemens 6SN1118-0DH21-0AA1 is a SIMODRIVE 611-D closed-loop plug-in performance control unit for two axes in digital feed-drive and main-spindle-drive applications. It is intended for compatible CNC drive systems that require two-axis control without a direct measuring system.
Within the SIMODRIVE 611-D architecture, the control unit manages the drive-control functions for its assigned axes. It operates with the associated power modules, motors, feedback arrangements, and numerical control system. The power modules provide the electrical energy required by the motors, while the control unit processes movement commands and regulates drive operation according to the configured parameters.
The two-axis configuration is useful in machine tools where two drive axes must operate within the same numerical-control architecture. A machining center, for example, may use separate motors to position a table and a carriage. The CNC coordinates the commanded movements, while the drive system regulates each motor to achieve the required motion.
This model is specified for operation without a direct measuring system. Its feedback arrangement therefore relies on the supported motor-side measurement configuration rather than a separate direct measurement device at the machine axis. The relationship between the motor, mechanical transmission, and driven axis is consequently an important part of the overall control arrangement.
The performance-control designation also matters when choosing a replacement. Although several SIMODRIVE 611-D units share similar physical and electrical interfaces, their axis configurations and control specifications can differ. The 6SN1118-0DH21-0AA1 should be matched to the intended two-axis drive application and the existing machine-control architecture.
As part of a complete drive system, this control unit works alongside the power section and feedback components rather than supplying motor power independently. Correct operation depends on the compatibility of these components and the configuration of both controlled axes.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model | 6SN1118-0DH21-0AA1 |
| Product Family | SIMODRIVE 611-D |
| Product Type | Closed-Loop Plug-In Performance Control Unit |
| Axis Configuration | 2 axes |
| Drive Application | Digital feed drives and main-spindle drives |
| Control Category | Performance closed-loop control |
| Direct Measuring System | Not included |
| Drive Architecture | SIMODRIVE 611-D digital drive system |
| Installation Type | Plug-in control unit |
| Dimensions | 330 × 51 × 152 mm |
| Weight | 0.77 kg |
Product Features
- Two-axis control: Provides drive-control functions for two axes within a compatible SIMODRIVE 611-D installation.
- Performance closed-loop regulation: Supports controlled motor operation using the configured feedback arrangement.
- Digital-drive compatibility: Integrates into the SIMODRIVE 611-D architecture for compatible feed and spindle drives.
- No direct measuring system: Uses the specified motor-feedback arrangement without a separate direct machine-axis measuring system.
- Feed-drive applications: Supports coordinated movement of compatible CNC machine axes.
- Main-spindle-drive applications: Fits supported digital-drive configurations involving feed and spindle drives.
- Modular power integration: Works with the corresponding power modules that supply electrical energy to the motors.
- Numerical-control coordination: Operates within a CNC system that generates and coordinates motion commands.
- Separate axis configuration: Allows the two controlled axes to be configured for their respective motors and mechanical loads.
- Machine-tool integration: Supports compatible SIMODRIVE 611-D installations in CNC equipment.
Working Principle
The 6SN1118-0DH21-0AA1 controls two axes within a SIMODRIVE 611-D digital drive system. It receives motion commands from the numerical control and works with the corresponding power modules and motor-feedback arrangements to regulate the connected drives.
CNC Numerical Control → SIMODRIVE 611-D Control Unit → Power Modules → Motors → Machine Axes
The numerical control generates movement commands according to the machining program. The control unit processes the drive-control requirements for the two assigned axes, while the power modules supply the electrical energy needed by the motors.
Each motor converts electrical energy into mechanical rotation. A ball screw, gearbox, or other transmission transfers that rotation to the corresponding machine axis. The configured motor-feedback arrangement supplies the measurement information used by the control system to regulate drive operation.
Because this model is specified without a direct measuring system, its control architecture does not rely on a separate measuring device mounted at the machine axis. The resulting positioning behavior depends on the motor feedback, mechanical transmission, drive parameters, and machine configuration.
Both axes must be assigned and configured correctly. If one motor is associated with the wrong axis, or its feedback signals and parameters do not match the hardware, the machine may respond incorrectly to movement commands. Commissioning should therefore include separate checks of each axis before coordinated motion is tested.
When diagnosing abnormal movement, engineers should examine the relevant control channel, power module, motor feedback, mechanical transmission, and CNC configuration. A fault affecting one axis does not necessarily indicate a failure of the entire control unit.
Role in a SIMODRIVE 611-D Control Architecture
The 6SN1118-0DH21-0AA1 provides drive-control functions for two axes between the CNC numerical control and the associated power sections. It coordinates the configured motor-feedback arrangements while the power modules drive the motors and the mechanical transmissions produce the required movement.
CNC Numerical Control → SIMODRIVE 611-D Control Unit → Power Modules → Feed Motors → Machine Axes
| System Component | Function |
|---|---|
| Siemens 6SN1118-0DH21-0AA1 | Provides performance closed-loop control for two axes without a direct measuring system |
| SIMODRIVE 611-D Power Modules | Supply electrical power to the connected motors |
| Digital Feed-Drive Motors | Produce controlled movement for the assigned axes |
| Motor Feedback Components | Supply feedback information for the drive-control arrangement |
| Numerical Control System | Generates movement commands and coordinates machine operation |
| Mechanical Transmissions | Convert motor rotation into linear or rotary movement |
| Drive Power Supply | Supplies electrical energy to the drive system |
| Machine Interlock System | Coordinates permitted operation with machine conditions and protective functions |
Industrial Applications
| Application | Typical Use |
|---|---|
| CNC Milling Machines | Coordinating two feed axes during programmed machining |
| CNC Machining Centers | Controlling compatible table and carriage movements |
| CNC Turning Machines | Regulating two feed axes used for tool positioning |
| CNC Grinding Machines | Controlling compatible feed mechanisms |
| Precision Machine Tools | Coordinating axis movement through the configured motor-feedback arrangement |
| Automated Production Machinery | Operating two compatible digital-drive axes |
| Machine-Tool Feed Systems | Controlling the movement of slides, carriages, and tables |
| CNC Retrofit Projects | Replacing a matching two-axis SIMODRIVE 611-D control unit |
| Industrial Motion Systems | Supporting compatible digital feed-drive and spindle-drive configurations |
| Machine Maintenance | Restoring two-axis control within an existing drive installation |
Installation and Maintenance
- Confirm the control-unit reference: Verify that 6SN1118-0DH21-0AA1 matches the required two-axis SIMODRIVE 611-D application.
- Review the drive architecture: Identify the associated power modules, motors, feedback arrangements, and numerical control before replacement.
- Isolate the drive system: Disconnect the relevant electrical supplies and follow the machine’s lockout and stored-energy discharge procedures.
- Record the existing configuration: Document both axis assignments, parameter settings, module positions, and feedback connections before removing the original unit.
- Inspect the plug-in interface: Check the mounting and electrical interfaces for damage, contamination, or signs of overheating.
- Check motor feedback: Verify that the connected motors and feedback devices match the existing drive configuration.
- Install the control unit: Fit the module into the designated SIMODRIVE 611-D position according to the system installation procedure.
- Inspect associated connections: Check the control, feedback, and power-module interfaces for both axes before restoring electrical power.
- Restore drive parameters: Apply the appropriate settings for each motor, feedback arrangement, and mechanical axis.
- Verify axis assignments: Confirm that the numerical-control configuration associates each control channel with the correct machine axis.
- Test each axis separately: Perform the approved commissioning checks for each motor before testing coordinated movement.
- Record maintenance results: Document the installed module reference, parameter changes, diagnostic findings, and commissioning results.
Related Components
| Component | Function |
|---|---|
| Siemens 6SN1118-0DH21-0AA1 | Two-axis SIMODRIVE 611-D performance control unit for digital drives without direct measuring |
| SIMODRIVE 611-D Power Modules | Supply electrical power to the connected motors |
| Digital Feed-Drive Motors | Produce controlled movement for the machine axes |
| Motor Feedback Devices | Provide the feedback signals used by the drive-control arrangement |
| Numerical Control System | Generates motion commands and coordinates machine operation |
| Mechanical Feed Transmissions | Transfer motor rotation to the machine axes |
| SIMODRIVE 611-D Drive System | Provides the modular architecture for compatible digital drives |
| Drive Power Supply | Supplies electrical energy to the drive system |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Siemens 6SN1118-0DH21-0AA0 | SIMODRIVE 611-D Closed-Loop Plug-In Performance Control Unit, 2 Axes | Digital drives without a direct measuring system |
| Siemens 6SN1118-0DH21-0AA1 | SIMODRIVE 611-D Closed-Loop Plug-In Performance Control Unit, 2 Axes | Two-axis feed and main-spindle drives without direct measuring |
| Siemens 6SN1118-0DH22-0AA1 | SIMODRIVE 611-D Closed-Loop Plug-In Performance Control Unit, 2 Axes | Related two-axis configuration with a direct measuring system using current signals |
| Siemens 6SN1118-0DH23-0AA1 | SIMODRIVE 611-D Closed-Loop Plug-In Performance Control Unit, 2 Axes | Related two-axis configuration with a direct measuring system using voltage signals |
| Siemens 6SN1118-0DK21-0AA1 | SIMODRIVE 611-D Closed-Loop Plug-In Performance Control Unit, 2 Axes | Related performance-control configuration for compatible digital drives |
| Siemens SIMODRIVE 611-D | Digital Drive System | Compatible CNC feed-drive and main-spindle-drive applications |
Key Advantages
- Provides performance closed-loop control for two axes within a compatible SIMODRIVE 611-D system.
- Supports digital feed-drive and main-spindle-drive applications.
- Uses the configured motor-feedback arrangement without a direct measuring system.
- Integrates with the corresponding power modules and numerical control.
- Supports coordinated axis operation in modular CNC drive architectures.
Technical FAQs
How does the 6SN1118-0DH21-0AA1 differ from a single-axis control unit?
This model is configured for two axes. It supports two assigned drive axes within a compatible SIMODRIVE 611-D system, whereas a single-axis unit is intended to control one axis.
What does operation without a direct measuring system mean?
The specified drive arrangement does not use a separate direct machine-axis measuring device. Drive regulation instead relies on the supported motor-feedback arrangement and the configured relationship between the motor and mechanical transmission.
Can the unit control both feed and main-spindle drives?
The product specification identifies digital feed drives and main-spindle drives as its application area. Actual use depends on the selected axis configuration, associated power modules, motors, and the machine’s numerical-control architecture.
What should be checked if one axis fails while the other operates normally?
Inspect the affected axis assignment, motor feedback, power module, drive parameters, and mechanical transmission. Compare its configuration with the working axis to help isolate channel-specific wiring, parameter, or hardware faults.
