Product Overview

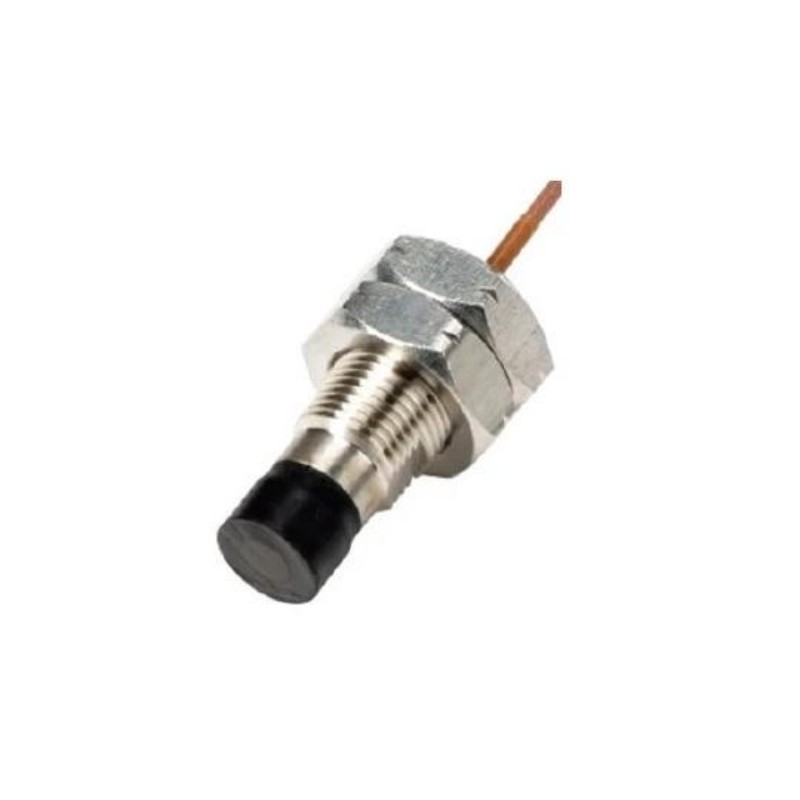

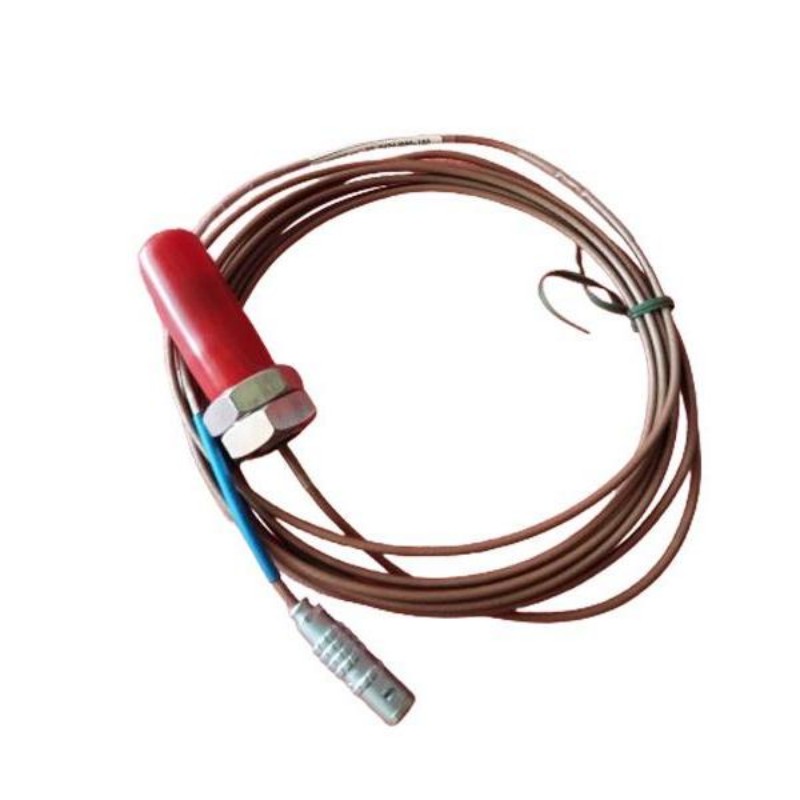

The Epro PR6424/006-131 16 mm Eddy Current Sensor is an industrial measurement probe intended for non-contact displacement measurement and machinery condition-monitoring applications. Eddy current sensing technology is widely used in industrial environments where the relative position or movement of a conductive target must be measured without physical contact.

In rotating machinery, displacement measurement can provide information about shaft movement, relative vibration, and changes in position. When integrated with compatible signal-conditioning electronics and monitoring equipment, these measurements can support equipment condition assessment, operating-trend analysis, and maintenance planning.

The PR6424 series is associated with industrial eddy current measurement applications. The PR6424/006-131 designation identifies a specific configuration within this family. Although related models may share the same nominal sensor-head diameter, their calibrated measurement characteristics, cable requirements, signal-conditioning interfaces, and installation specifications should be verified individually.

The supplied product details specify a 16 mm sensor head diameter and a weight of 0.2 kg. These values are useful for initial product identification and installation planning. Before installing the probe or using it as a replacement, verify the full model designation and confirm compatibility with the required cable, signal conditioner, monitoring instrument, and target surface.

Technical Specifications

Specification note: The sensor head diameter and weight are based on the information provided. Other model-specific parameters—including measurement range, sensitivity, electrical characteristics, cable requirements, and temperature limits—should be confirmed from the documentation for the exact PR6424/006-131 configuration. Specifications from related models should not automatically be treated as verified values for this product.

Function and Working Principle

1. Non-Contact Eddy Current Measurement

An eddy current sensor generates an electromagnetic field near a suitable conductive target. When the target interacts with this field, eddy currents are induced in its surface. Changes in the sensor’s electrical response can then be processed to determine the distance between the probe and the target.

This principle allows measurement without direct mechanical contact. In rotating machinery, the probe can be mounted near a suitable shaft surface to monitor relative movement during operation. Because the sensor does not need to touch the shaft, it avoids direct contact wear at the measurement point.

Measurement performance depends on the target material, target geometry, probe position, measurement gap, mounting stability, and characteristics of the complete measurement chain.

2. Signal Conditioning and Measurement Output

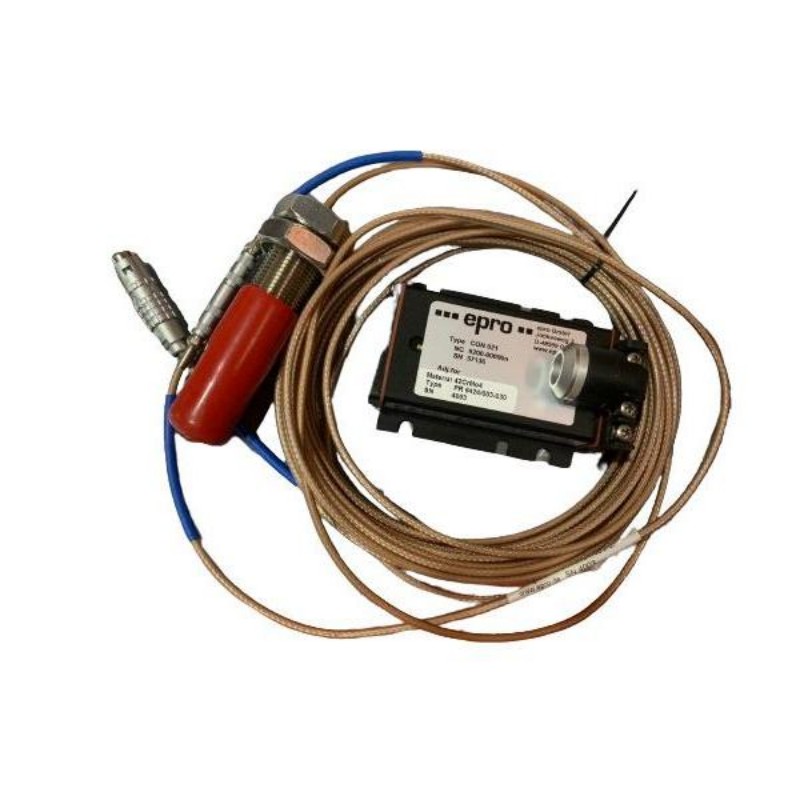

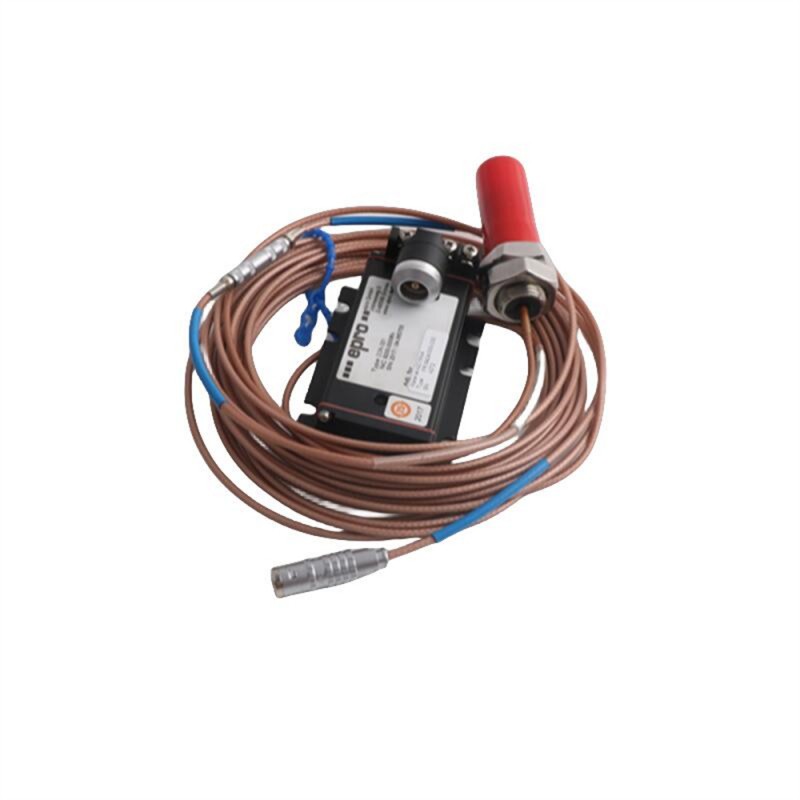

An industrial eddy current probe normally operates as part of a complete measurement channel. Depending on the system design, the probe connects through an approved cable to compatible signal-conditioning electronics. The processed output can then be supplied to a monitoring instrument or another approved system component.

The probe, cable, signal conditioner, and monitoring equipment must be matched according to their technical specifications. An incompatible combination may cause unstable readings, inaccurate measurements, or failure to obtain a valid signal.

For this reason, the required electrical interface and accessories for the PR6424/006-131 should be verified before installation, replacement, or modification of an existing monitoring system.

3. Shaft Displacement and Relative Movement

When installed at a suitable measurement point, an eddy current sensor can measure changes in the relative position between the probe and a conductive shaft. Depending on the measurement arrangement, the data may support observation of radial movement, axial displacement, or other position changes.

These measurements can help maintenance personnel identify deviations from established operating trends. However, a sensor reading alone cannot establish the cause of abnormal movement. Reliable diagnosis requires correct installation, calibration, signal processing, and consideration of operating conditions.

Role in Industrial Control and Machinery Monitoring

Rotating Machinery Condition Monitoring

Rotating equipment may experience changes in shaft movement due to imbalance, misalignment, bearing deterioration, mechanical looseness, thermal expansion, or changing operating loads. A correctly configured eddy current measurement channel can provide information that helps maintenance teams investigate these changes.

Comparing current readings with historical measurements and established operating conditions can help identify trends that warrant further inspection.

Integration with Monitoring and Protection Equipment

A compatible machinery monitoring system may use sensor measurements for display, trend recording, alarm generation, or protective functions. The available capabilities depend on the connected monitoring instrument and the design of the overall system.

Before replacing an existing probe, verify the complete model number, cable type, signal-conditioning arrangement, monitor input requirements, and calibration procedure. Mechanical fit alone does not guarantee electrical or functional compatibility.

Support for Predictive Maintenance

Continuous displacement measurements can contribute to condition-based maintenance programs. When interpreted alongside operating speed, load, temperature, lubrication condition, and maintenance history, these measurements can help maintenance teams evaluate changes in equipment behavior.

Reliable analysis requires a consistent measurement setup and a documented baseline. Unexpected changes should be investigated systematically rather than attributed to a specific mechanical fault based on a single reading.

Industrial Applications

1. Turbines and Generator Equipment

Turbines and generators may require monitoring of relative shaft movement and vibration-related behavior. Eddy current sensors can be used in suitable measurement arrangements where the target material, probe characteristics, operating environment, and monitoring system meet the application’s requirements.

2. Industrial Pumps

Industrial pumps often operate for extended periods under changing flow, pressure, and load conditions. Where shaft displacement monitoring is required, a compatible eddy current measurement system can provide information about relative movement and operating trends.

3. Compressors

Compressors are critical assets in many industrial and process facilities. Shaft displacement measurements can support condition-monitoring programs and help maintenance personnel investigate deviations from normal operating behavior.

4. Motors and Drive Systems

Selected motor-driven machines use non-contact displacement sensors to observe the movement of rotating components. Correct probe placement, a suitable target surface, and compatible monitoring equipment are necessary for meaningful measurements.

5. Process Manufacturing Facilities

Manufacturing plants and process facilities often use monitoring systems to observe the condition of critical rotating equipment. An eddy current sensor can form part of a measurement channel when its characteristics are suitable for the machine and the installed monitoring architecture.

6. Equipment Maintenance and Overhaul

During equipment maintenance, a sensor may require inspection, testing, or replacement. Verifying the complete model designation and associated components helps reduce the risk of installing a probe that has similar dimensions but different measurement or electrical characteristics.

Installation and System Integration

Correct installation is essential for reliable measurement. The following guidance is general; the product-specific documentation and machinery manufacturer’s requirements take precedence.

1. Verify the Complete Model Designation

Confirm that the probe is identified as Epro PR6424/006-131. Check the product label and equipment records before ordering replacement parts or selecting accessories.

Do not assume that all 16 mm PR6424 sensors have identical measurement characteristics, cable requirements, or signal-conditioning compatibility.

2. Inspect the Mounting Location

Check the available space, mounting arrangement, probe orientation, and clearance from the moving target. The probe should be securely mounted so that unintended movement does not affect the measurement.

The installation must prevent contact between the sensor and moving components throughout the expected operating range.

3. Set the Measurement Gap

Set the probe-to-target gap according to the documented procedure for the exact sensor and measurement system. The correct value depends on the approved configuration and calibration requirements.

Do not copy a setup value from another PR6424 suffix without confirming that it applies to the PR6424/006-131.

4. Verify the Cable and Signal Conditioner

Confirm the specified cable type, cable length, connectors, and compatible signal-conditioning equipment. These components form part of the measurement chain and must meet the applicable electrical and calibration requirements.

Inspect the connections and wiring before energizing the system. Follow the approved installation procedure for grounding, signal routing, and electrical safety.

5. Commission and Validate the Measurement Channel

After installation, verify that the system provides stable and plausible readings. Complete the required calibration and, where appropriate, compare readings with an approved reference or established baseline.

Record the sensor model, cable configuration, signal-conditioner identification, initial readings, and calibration information. These records can help simplify future maintenance and troubleshooting.

Compatible System Components

The following table lists component categories commonly considered when configuring an eddy current measurement channel. Specific compatibility must be confirmed before purchasing or connecting any component.

When sourcing replacement parts, evaluate the complete measurement chain rather than relying only on the sensor diameter or series name. A physically compatible probe may still be unsuitable if its electrical or calibration characteristics differ.

Recommended Models for Comparison

The following product families may be useful for comparison when evaluating other eddy current measurement configurations. They are comparison candidates, not confirmed direct replacements for the PR6424/006-131.

Replacement recommendation: Before selecting an alternative, confirm the sensor diameter, mounting dimensions, calibrated measurement range, sensitivity, cable characteristics, target requirements, signal conditioner, and monitoring-system input specifications. Similar product-family names do not guarantee direct interchangeability.

Key Advantages

Non-Contact Measurement

Eddy current technology measures the relative position of a suitable conductive target without physical contact. This is useful for monitoring moving machine components where contact-based measurement is unsuitable.

Support for Continuous Monitoring

When connected to compatible electronics, the sensor can provide data for ongoing observation of shaft position and relative movement.

Contribution to Condition-Based Maintenance

Measurement trends can help maintenance personnel identify deviations from normal operating conditions and determine when further inspection may be appropriate.

Industrial Machinery Measurement

Eddy current sensing is widely used in rotating machinery monitoring. The suitability of this particular model depends on its exact configuration and the requirements of the installation.

Integration with Existing Measurement Systems

The sensor can be considered for an existing monitoring arrangement when the required cable, signal conditioner, and monitoring instrument have been verified as compatible.

Technical FAQs

1. What is the Epro PR6424/006-131?

The Epro PR6424/006-131 is a PR6424-series eddy current sensor identified for non-contact displacement measurement applications. Its exact technical characteristics should be verified using the product label and applicable documentation.

2. What is the sensor head diameter?

The supplied product information specifies a sensor head diameter of 16 mm.

3. What is the weight of the PR6424/006-131?

The supplied weight is 0.2 kg. Confirm whether this figure applies to the sensor alone or includes additional accessories.

4. What is this sensor used for?

Eddy current sensors can measure the relative distance to suitable conductive targets. Depending on the installation and connected monitoring system, applications may include shaft displacement, relative vibration measurement, and position monitoring.

5. Can it directly replace another PR6424 model?

Not automatically. Different variants may have different measurement characteristics, cable requirements, calibration parameters, or signal-conditioning needs. Verify the complete model number and system compatibility before replacement.

6. What components may be required for operation?

A complete measurement channel may include the sensor, approved connecting cable, compatible signal-conditioning electronics, and monitoring equipment. The exact components depend on the installed system design.

7. What should be checked if the signal is unstable?

Inspect the mounting, probe-to-target gap, target surface, cable connections, wiring, signal conditioner, and calibration. Confirm that all components are approved for the exact sensor configuration and follow the applicable troubleshooting and safety procedures.

8. What should be confirmed before ordering?

Confirm the complete model designation, sensor dimensions, measurement requirements, cable and connector configuration, signal-conditioning compatibility, environmental limits, and monitoring-equipment requirements. Comparing the existing nameplate with the proposed replacement is an important first step.

Conclusion

The Epro PR6424/006-131 16 mm Eddy Current Sensor is intended for evaluation in industrial non-contact displacement measurement and machinery monitoring applications. Eddy current technology can provide information about relative shaft movement without direct contact, supporting equipment condition assessment when the complete measurement channel is correctly configured.

The supplied product details identify a 16 mm sensor head diameter and a weight of 0.2 kg. Other technical characteristics should be confirmed against the exact model documentation rather than inferred from related PR6424 variants.

For successful installation and replacement, verify the complete model designation and check compatibility with the connecting cable, signal-conditioning electronics, and monitoring equipment. Correct mounting, calibration, and maintenance records are important for achieving consistent measurement results.
