Product Overview

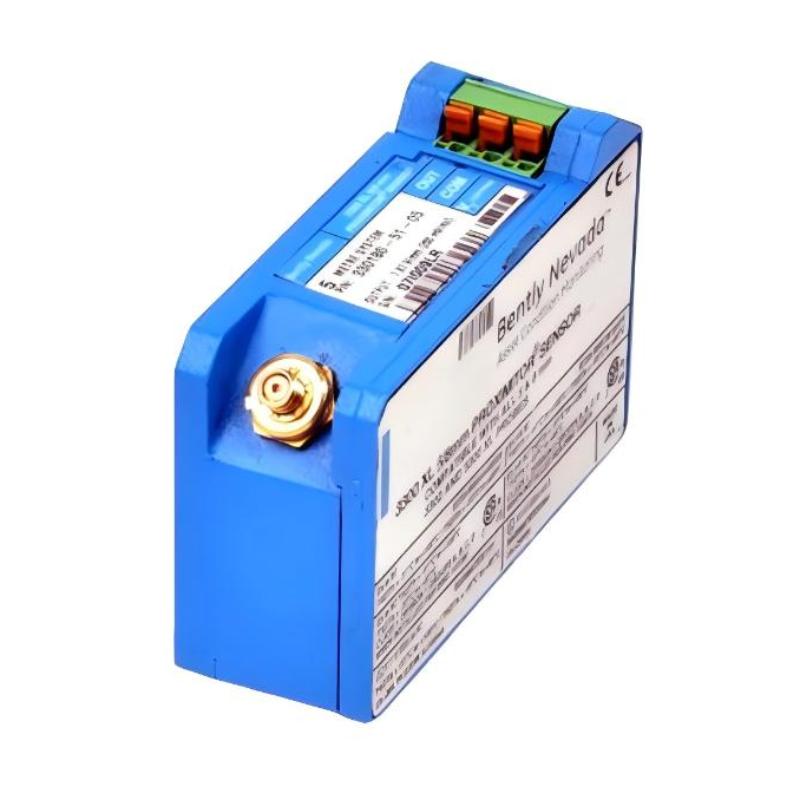

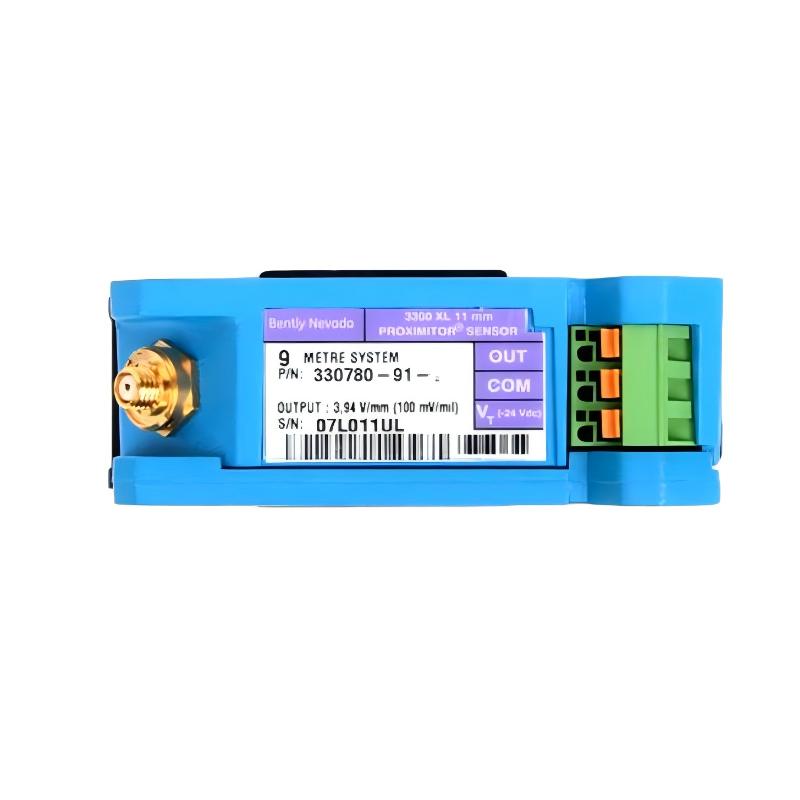

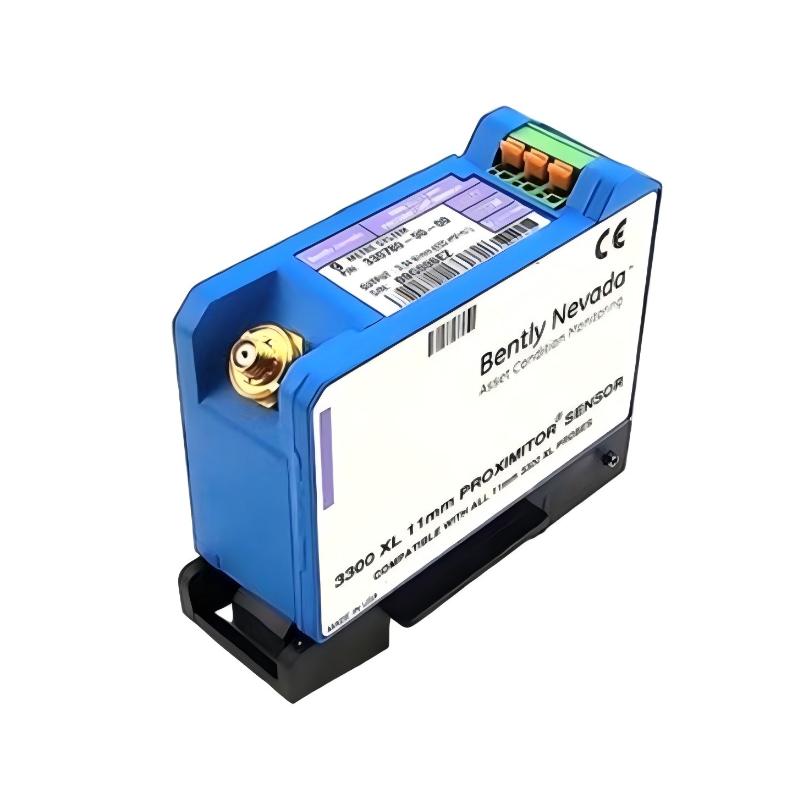

In industrial machinery protection and condition monitoring systems, reliable vibration and displacement sensing is essential for ensuring equipment health and operational safety. The Bently Nevada 330780-91-15 3300 XL 11 mm Front Sensor is engineered to provide high-precision non-contact measurement for rotating machinery in demanding industrial environments.

As part of the trusted 3300 XL sensor series, this model features a 9.0-meter integrated cable, enabling flexible installation layouts while maintaining consistent signal integrity. It is widely used in condition monitoring and machinery protection systems where long-term reliability and measurement accuracy are required.

Technical Specifications

Function and Working Principle

The 330780-91-15 sensor uses eddy current proximity sensing technology to measure the distance between the probe tip and a conductive target surface without physical contact.

Working principle:

• The probe emits a high-frequency electromagnetic field
• When a conductive surface enters the field, eddy currents are induced
• These eddy currents alter the field characteristics
• The system converts these changes into proportional electrical signals

This enables precise real-time monitoring of vibration and shaft displacement while eliminating mechanical wear and providing stable performance.

Role in Industrial Control Systems

Within industrial automation and machinery protection architectures, the 330780-91-15 plays a vital role by:

• Delivering continuous vibration and displacement data
• Supporting machinery protection and alarm systems
• Feeding real-time signals into condition monitoring platforms
• Enabling predictive maintenance strategies

Its extended cable length supports flexible installation in large or complex industrial layouts.

Industrial Applications

The 330780-91-15 sensor is widely used across industries that depend on precise machinery condition monitoring:

• Power generation plants
• Oil and gas processing facilities
• Petrochemical and refining industries
• Turbines, compressors, and pumps
• Heavy industrial manufacturing systems
• Continuous process automation environments

It is engineered to perform reliably in harsh and high-interference conditions.

Installation and System Integration

Proper installation is critical to ensure accurate measurement and long-term stability:

• Mounted near rotating shafts with precise gap adjustment
• Routed using the 9.0-meter integrated cable for flexible system design
• Securely installed to minimize vibration interference
• Connected to 3300 XL monitoring and interface systems
• Integrated into machinery protection and diagnostic platforms
• Requires calibration during system commissioning

Correct installation ensures stable signal output and measurement accuracy.

Compatible System Components

The 330780-91-15 typically operates within a complete monitoring architecture that includes:

• Proximitor sensor modules
• 3300 XL extension and interface units
• Vibration monitoring racks
• Data acquisition and processing systems
• Machinery protection and diagnostic modules

Together, these components form a complete industrial condition monitoring solution.

Recommended Alternative Models

Key Advantages

• High-precision non-contact measurement
• Extended 9.0-meter installation flexibility
• Strong resistance to electromagnetic interference
• Stable performance in harsh industrial environments
• Compatible with 3300 XL system architecture
• Supports continuous condition monitoring applications

Technical FAQs

What is the main function of the 330780-91-15 sensor?
It measures vibration and shaft displacement of rotating machinery using eddy current non-contact sensing technology.

How does the extended cable benefit installations?
The 9.0-meter cable provides flexibility in system layout and positioning, especially in larger or complex installations.

Is this sensor suitable for continuous operation?
Yes, it is designed for reliable long-term industrial monitoring applications.

Conclusion

The Bently Nevada 330780-91-15 3300 XL 11 mm Front Sensor is a dependable and high-performance solution for industrial condition monitoring and machinery protection systems. With its non-contact sensing technology and extended cable design, it delivers accurate real-time data that supports predictive maintenance, enhances operational reliability, and improves overall system performance.

For engineers and maintenance professionals, this sensor provides a reliable foundation for effective vibration monitoring and long-term equipment health management.
