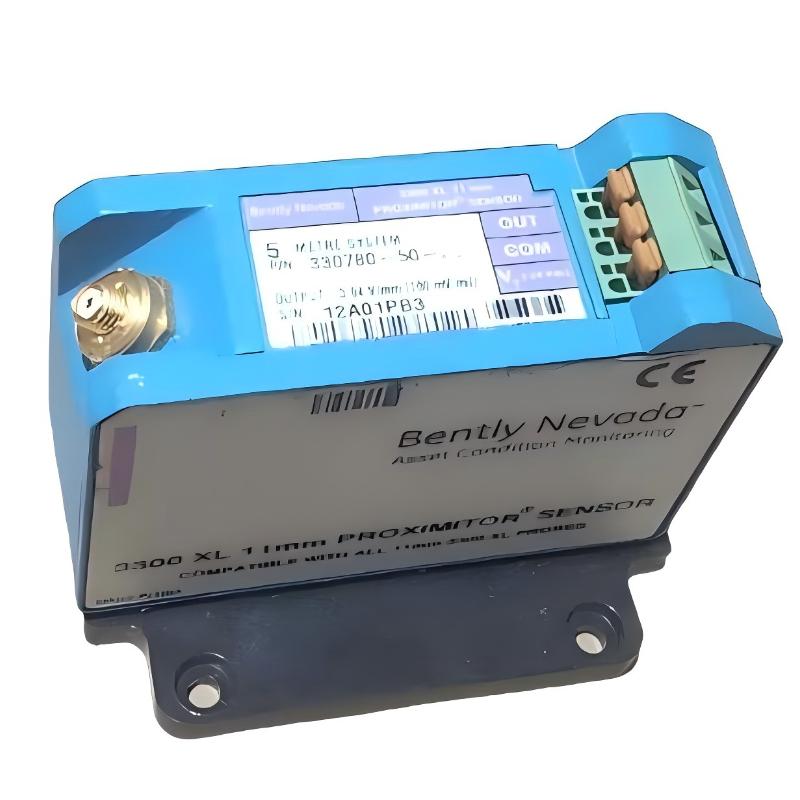

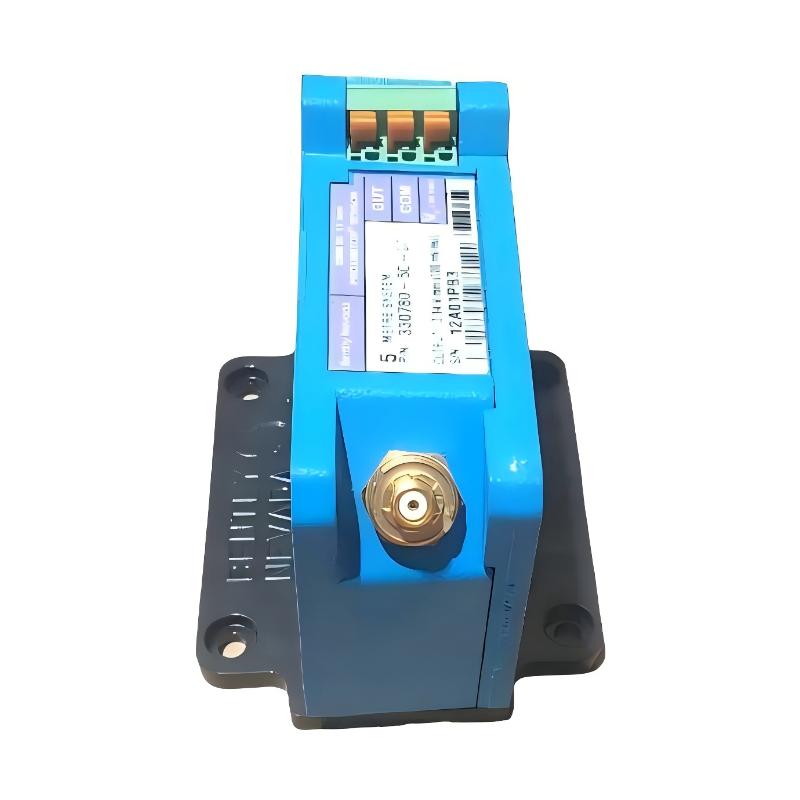

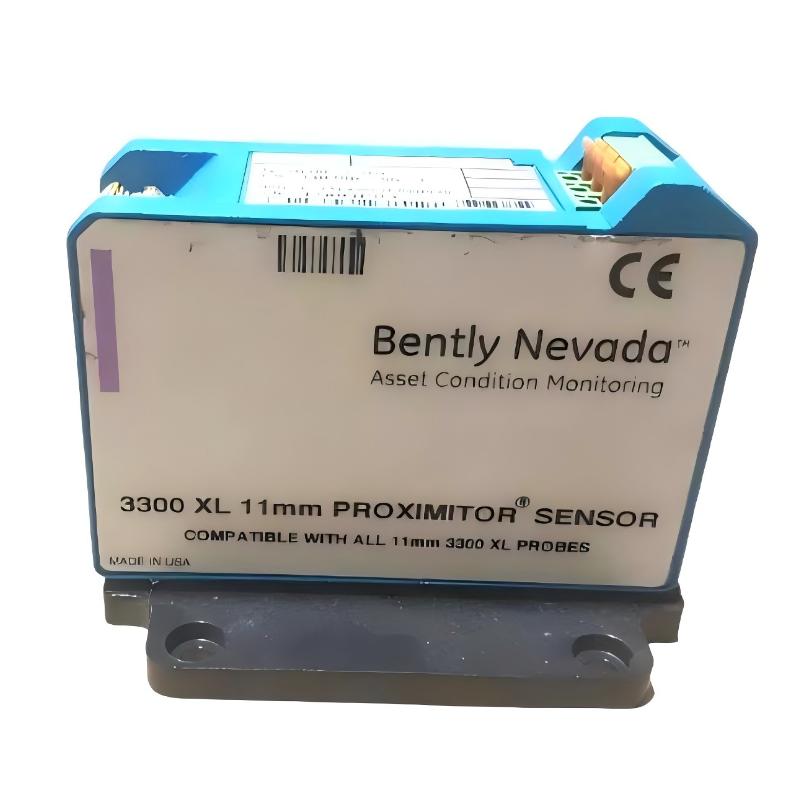

- Bently Nevada
- 330780-50-05
- 3300 XL 11 mm Front Sensor
- USA
- 5.0 meters
- 0.255 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 3
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview
In industrial machinery monitoring systems, accurate and stable vibration measurement is essential for maintaining operational safety and preventing unexpected downtime. The Bently Nevada 330780-50-05 3300 XL 11 mm Front Sensor is engineered to provide precise non-contact measurement of shaft vibration and position in critical rotating equipment.
As part of the advanced 3300 XL series, this sensor ensures reliable signal transmission and consistent performance even in harsh industrial environments. It is widely deployed in machinery protection systems where continuous monitoring is required for predictive maintenance and system optimization.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330780-50-05 |
| Series | 3300 XL |
| Product Type | 11 mm Front Sensor |
| Sensor Type | Proximity / Vibration Sensor |
| Total Length | 5.0 meters |
| Probe Diameter | 11 mm |
| Weight | 0.255 kg |
| Measurement Type | Non-contact vibration and displacement |
| Output Signal | Analog voltage |
| Operating Temperature | -40°C to +100°C |
| Installation | Panel mount |
| Cable Type | Integrated system cable |
| System Compatibility | 3300 XL transducer systems |
Function and Working Principle
The 330780-50-05 sensor operates using eddy current sensing technology to measure the distance between the probe tip and a conductive target surface.
Working process:
- The probe generates a high-frequency electromagnetic field
- When placed near a metal surface, eddy currents are induced
- These currents affect the electromagnetic field
- The system converts this variation into an electrical signal
This enables accurate, real-time monitoring of vibration and shaft displacement without physical contact.
Role in Industrial Control Systems
Within industrial control systems, the 330780-50-05 acts as a critical sensing component responsible for:
- Providing real-time vibration data
- Supporting machinery protection systems
- Feeding signals into monitoring and diagnostic units
- Enabling predictive maintenance strategies
It plays a vital role in ensuring safe and stable operation of rotating equipment.
Industrial Applications
This sensor is widely used in industries that depend on high-performance rotating machinery:
- Power generation systems
- Oil and gas facilities
- Petrochemical plants
- Compressors and turbines
- Heavy manufacturing industries
- Industrial automation systems
Its robust design makes it suitable for continuous operation in demanding environments.
Installation and System Integration
Proper installation is essential for optimal performance:
- Installed close to the rotating shaft with precise gap adjustment
- Mounted securely in a panel or designated position
- Connected to extension cables and signal conditioning modules
- Integrated into Bently Nevada monitoring systems
- Requires calibration and alignment during setup
Correct installation ensures stable signal output and long-term reliability.
Compatible System Components
The 330780-50-05 is typically used within a complete monitoring system, working alongside:
- Proximitor sensor modules
- Extension cables (3300 XL series)
- Vibration monitoring systems
- Rack-based monitoring units
- Control and data acquisition systems
Together, these components form a comprehensive machinery protection solution.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| 330780-50-05 | 11 mm Sensor | Standard 5m configuration | General monitoring |
| 330780-50-00 | 11 mm Sensor | Standard version | Common applications |
| 330780-90-00 | 11 mm Sensor | Extended cable length | Long-distance setups |
| 330730 Series | 8 mm Sensor | Compact design | Limited space environments |
| 330850 Series | Proximitor Module | Signal conditioning | System integration |
Key Advantages
- High-precision non-contact measurement
- Strong resistance to interference
- Stable performance in harsh environments
- Compatible with 3300 XL system architecture
- Supports continuous monitoring
- Improves equipment safety and reliability
Technical FAQs
What is the main function of the 330780-50-05?
It measures vibration and displacement of rotating machinery using non-contact sensing technology.
What systems is it used with?
It is designed for use within 3300 XL monitoring systems and compatible modules.
Is calibration required?
Yes, proper gap setting and calibration are necessary for accurate measurement.
Conclusion
The Bently Nevada 330780-50-05 3300 XL 11 mm Front Sensor is a critical component in industrial vibration monitoring systems. With its precise sensing technology and durable design, it ensures reliable performance in demanding environments.
For engineers and maintenance teams, it provides a dependable solution for improving system reliability, enabling predictive maintenance, and preventing costly equipment failures.
